DIN 5510 Certified Fibreglass Epoxy Laminated Sheets / G10 Plastic Sheet

Minimum Order Quantity : Nogociation accepted Packaging Details : crate packing ,pallet,carton
Delivery Time : 5-7 work days Payment Terms : T/T
Place of Origin: Xiamen of China Brand Name: Hongcheng
Certification: Din 5510 / EN45545 Model Number: FR 4 / EPGC202 / Hgw2372.1

Detail Information

Product Thickness:: 0.2mm-120.0mm Product Size:: 1020*1220;1220*2040;1220*2440
Specific Gravity: 1.90 - 2.15g/cm3 Water Absorption: <0.3%
Electric Strength: ≥ 14KV/mm Breakdown Voltage: ≥ 60KV
Volume Resistivity: ≥ 1.0×1012Ω.m Surface Resistivity: ≥ 1.0×1014Ω
High Light:

g10 laminate sheet

,

fr4 epoxy glass sheet

Product Description

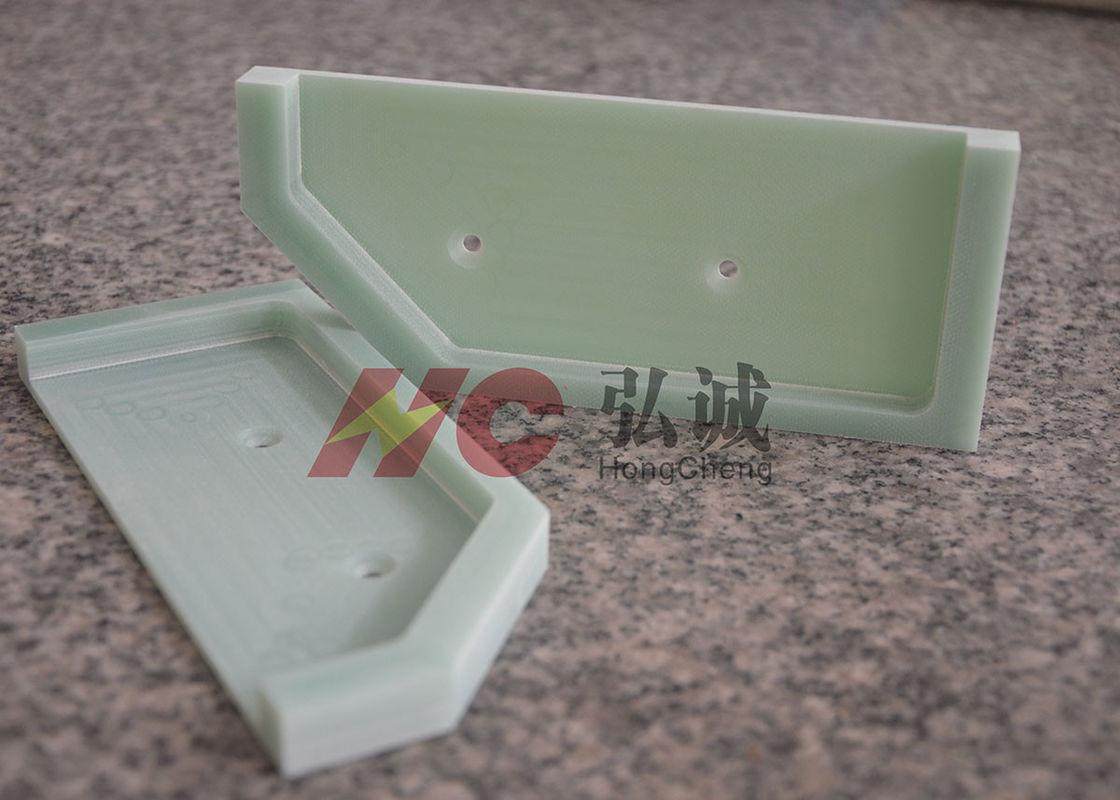

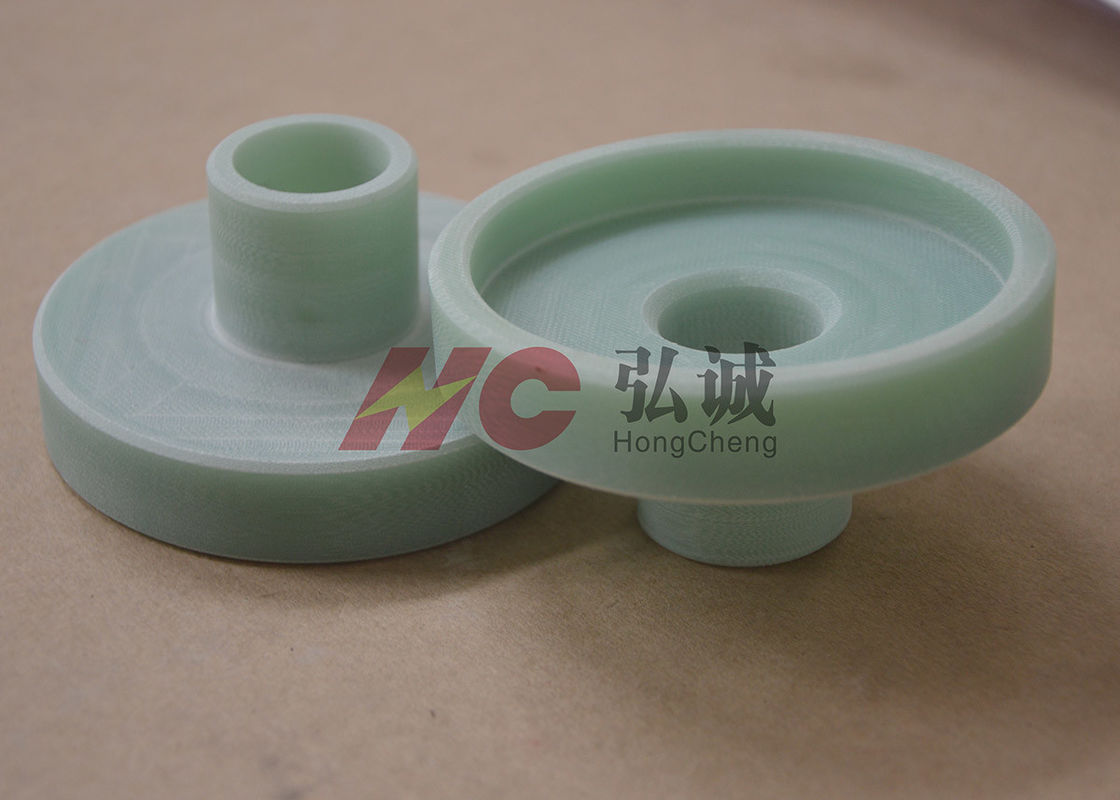

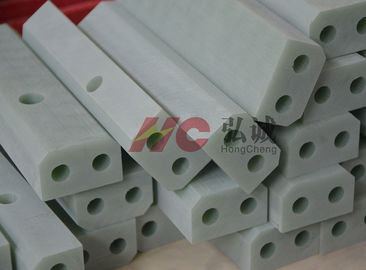

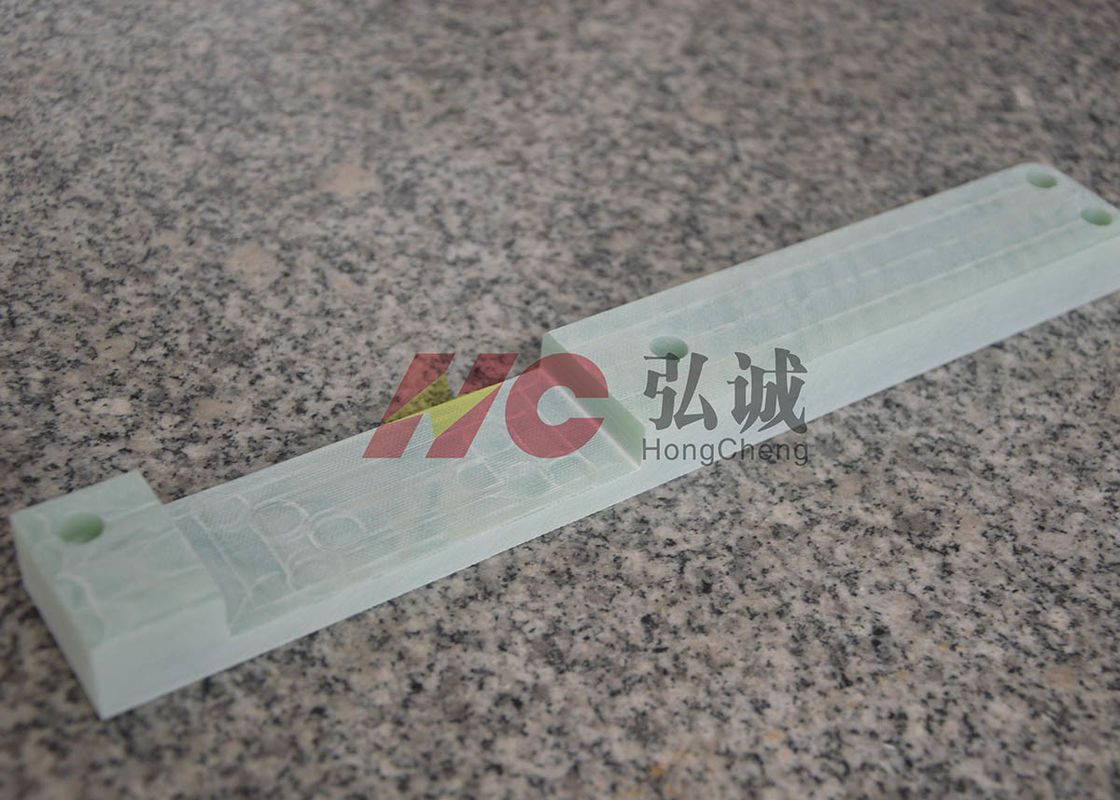

DIN5510 certified Fr4 Fiberglass Sheet machined parts High Thickness tolerance & flatness


DIN5510 certified Fr4 Fiberglass Sheet are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple.

Feature

High Thickness tolerance and high Machining precision

Good  Fire Retardant(UL 94 V-0 Grade)

Have Good Voltage Resistance Electric strength ≥16KV/mm,

Good Water Resistance with Water absorption ≤0.2%

Heat Resistance which is up to Class F

Good thermal impact resistance withTemp.Index:-273℃ to +155℃

High degree of automation processing and excellent mechanical processability

RoHS,Reach Certified products



Application:
DIN5510 certified Fr4 Fiberglass Sheet can be used as the insulating structure parts in circuit Breaker,Switchgear,Transformer,DC motor,AC contactor,Converter,inverter

Thickness:0.2mm-120mm

Sheeet Size:1020*1220;1220*2040

UL certification:E344098

DIN 5510 Certified Fibreglass Epoxy Laminated Sheets / G10 Plastic Sheet 0


Hong Cheng Grade HC-FR-4
IEC 893/EN 60893 Grade EPGC 202
ANSI (NEMA) Grade NEMA LI-1 FR-4
DIN 7735 Hgw2372.1
JIS GRADE EL-GEF

Item Test method Unit Typical Values
Physical Properties Color Visual inspection Light green / yellow
Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
Water absorption ISO 62:2008 % <0.3
Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
(1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
(1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
TensileStrength IEC 60893-2:2003 MPa ≥300
//Bond Strength // IEC 60893-3-4:2003 N ≥8000
Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
Temperature Index IEC 60085:2004 155
Toxicant Content E662 Low
Others Acetone Resistance boiled Min 30(OK)




UL certified FR4 epoxy sheet with low water absorbtion  used in New energy

DIN 5510 Certified Fibreglass Epoxy Laminated Sheets / G10 Plastic Sheet 1

New energy in the energy field is a trend that the world has been advocating for development, it has been developing from traditional oil and coal to cleaner and more environmentally friendly energy sources such as solar power and wind power etc..
At the same time, clean energy has been using to develop energy storage areas such as lithium batteries, supercapacitors and energy-saving components.With the development of the industry, the insulation materials of our company have expanded more market and R&D direction
Our GPO-3sheet are widely used in new energy field,including Wind power,photovoltaic,power battery etc.
