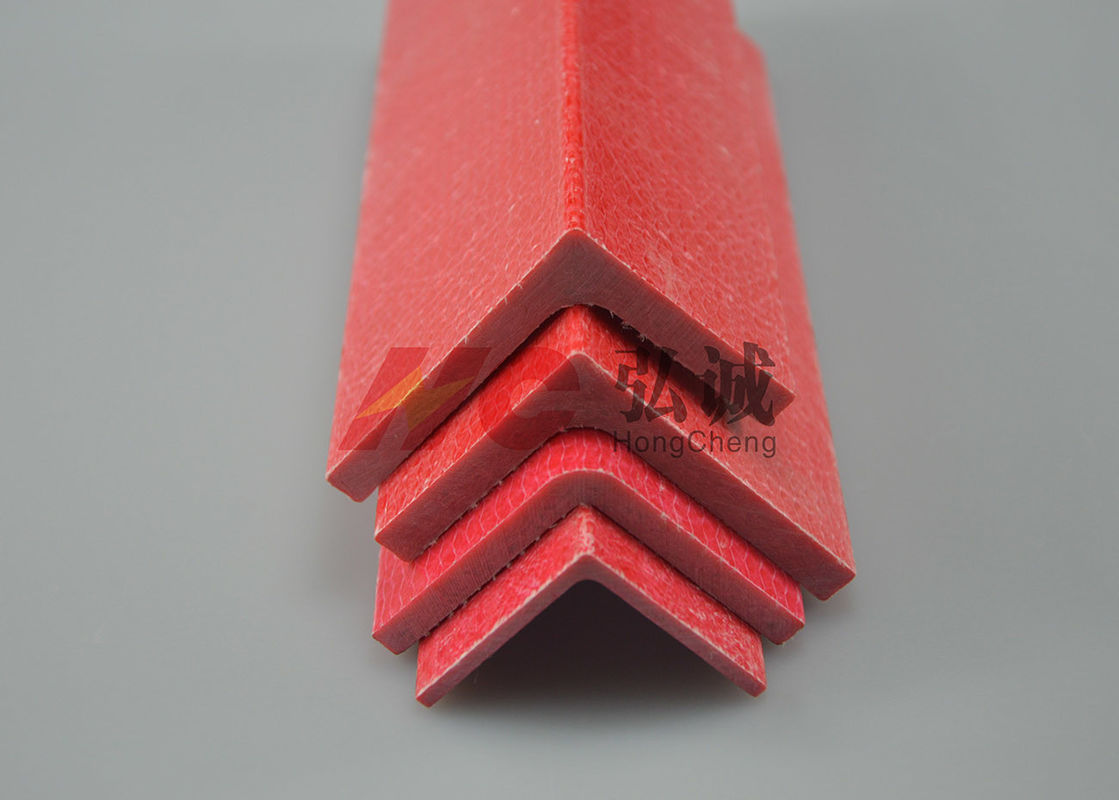

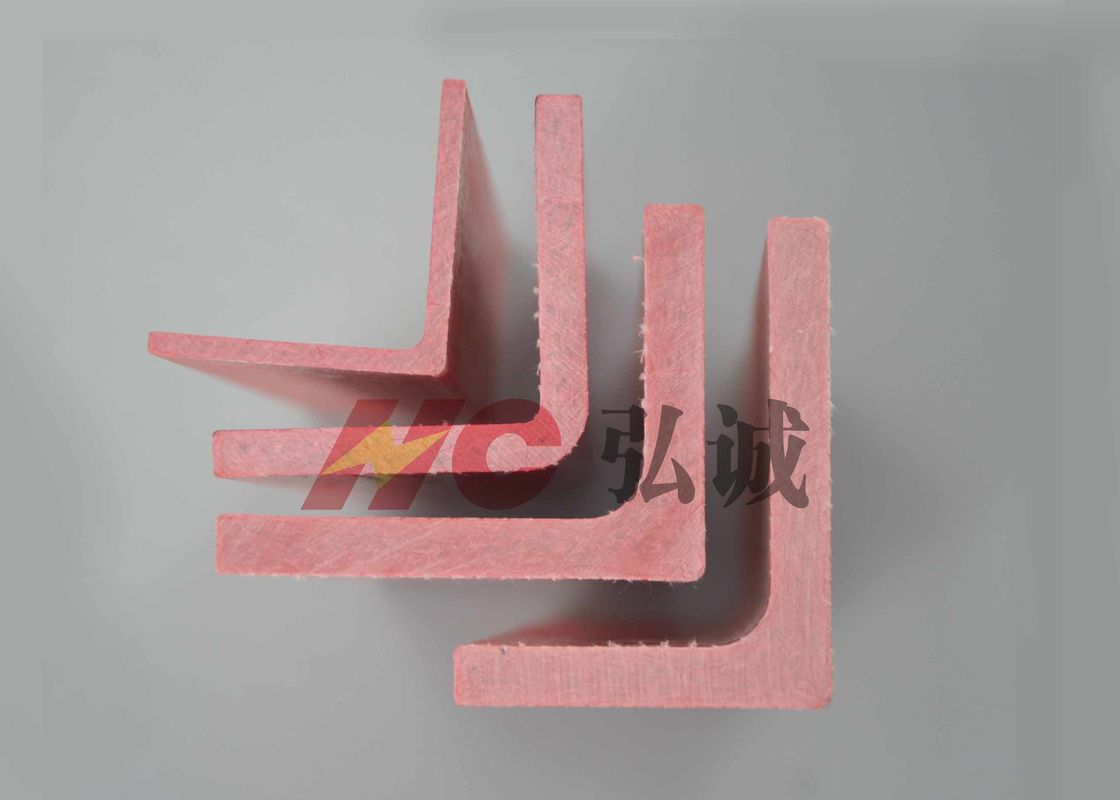

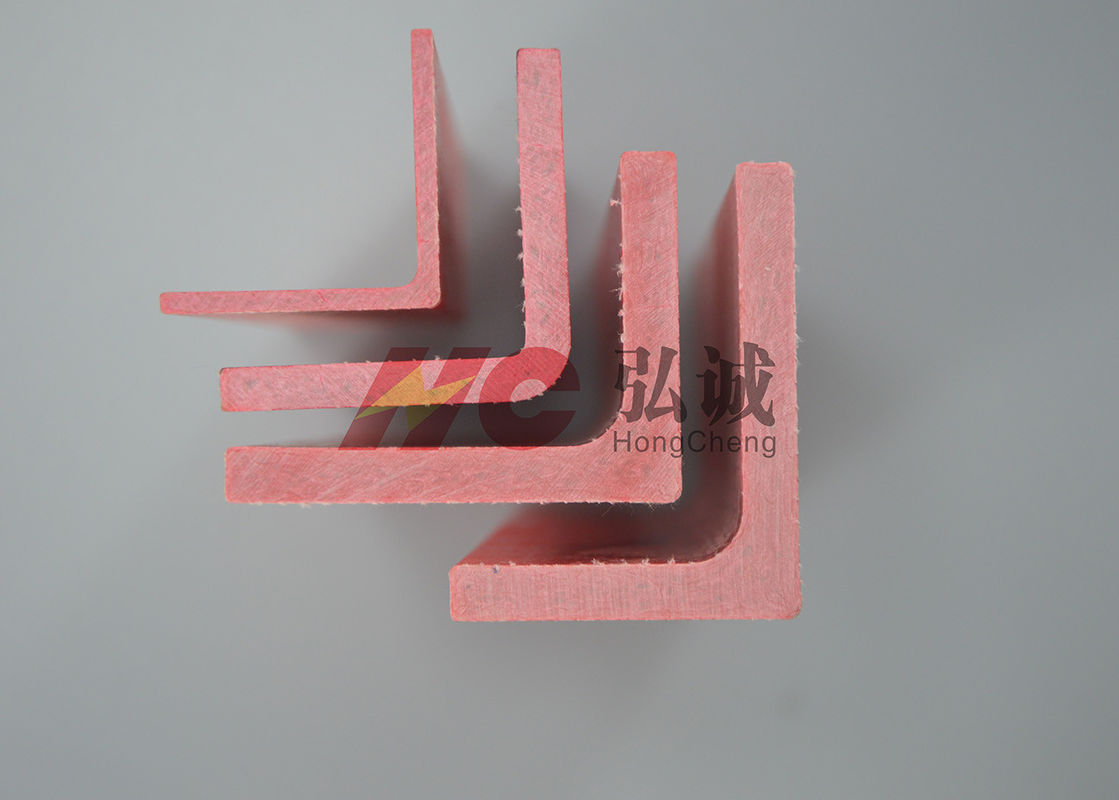

GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength

    • GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength
    • GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength
    • GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength
  • GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Packaging Details: crate packing / pallet / carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Density: 1.85-2.0g/cm3
    Tensile Strength: ≥400Mpa Flexural Strength: ≥650Mpa

    GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength


    Product Description



    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Red L angle is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.


    Product Advantages:



    1. Technical advantages, mold development and design capabilities, excellent supporting capacity.

    2. Excellent size, space stability, non cracking, non Explosive Edge

    3. Excellent Arc Resistance(Arc Resistance≥180 S)

    4. Excellent Track Resistance(CTI≥600V)

    5. Excellent Heat Resistance(Class F)

    6. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    7. Excellent Fire Retardant(UL 94 V-0 Grade)


    Diagram:

     GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

    GPO-3 pultruded profile L angle / polyester pultruded shape L angle with high tensile strength

    Custom Your Own Mould
    Mould trade Process
    1. Quote According to the drawing or Sample

    2. Comfirm Color,Material,Price,Payment,MOQ,

    3. Advance Pay the Mould cost 100% by T/T

    4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

    5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

    6.Delivery Delivery by sea or air under EXW/FCA

    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
