UPGM 203 IEC Standard Fiberglass Sheeting Panels Excellent Track Resistance
-
High Light
polyester sheets
,glass lamination sheet
-
IEC StandardUPGM203
-
German StandardHM2471
-
Flame ResistanceV-0
-
PTI Proof Tracking Index PTI≥600 V
-
Toxicant(Emission Halogen Etc.)Low
-
The Anti Microbial Properties Of BacteriaGood
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach/SGS
-
Model NumberGPO-3
-
Packaging DetailsCrate packing ,pallet, carton
-
Delivery Time5-8 work days
-
Payment TermsT/T
UPGM 203 IEC Standard Fiberglass Sheeting Panels Excellent Track Resistance
Excellent Track resistance GPO-3 fiberglass Sheet / High performance electrical properties upgm203
Product Introduction:

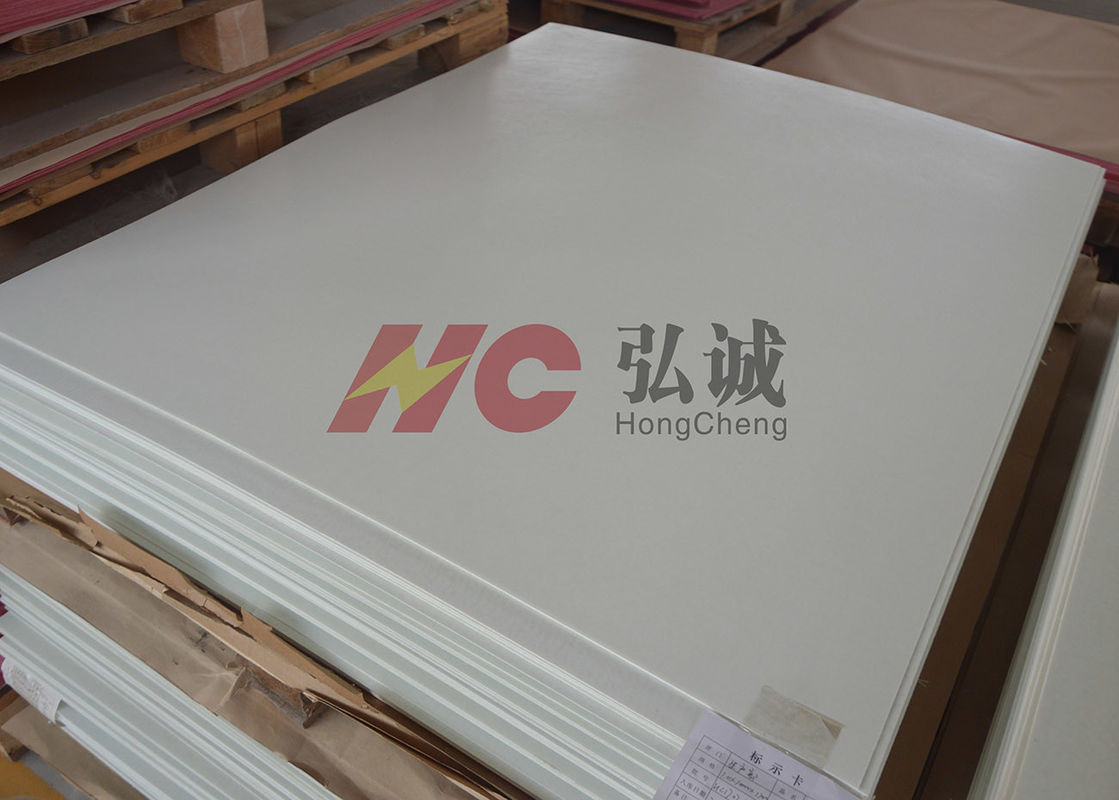

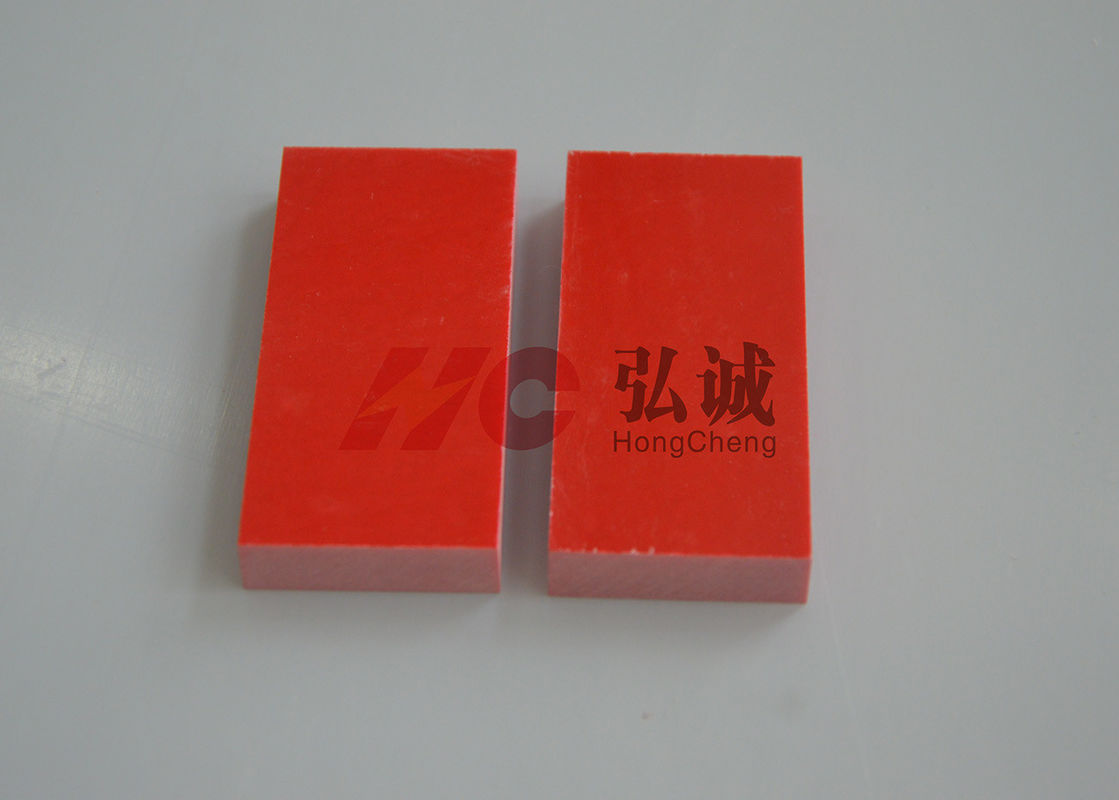

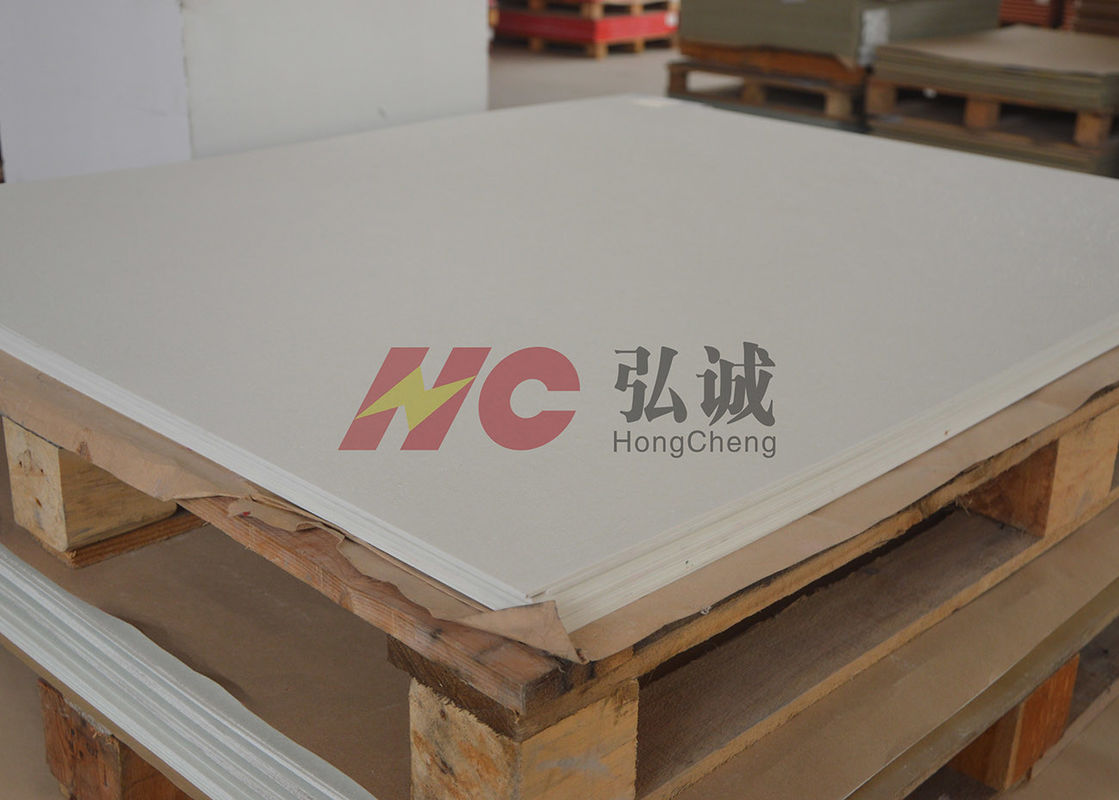

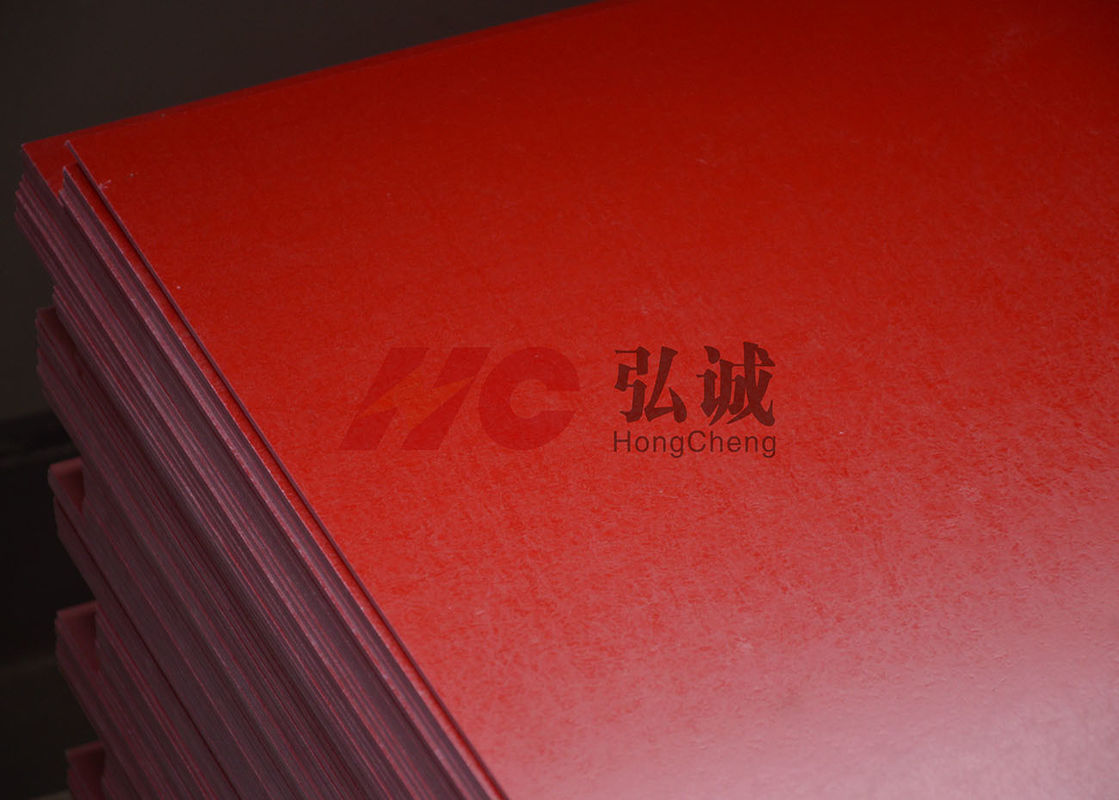

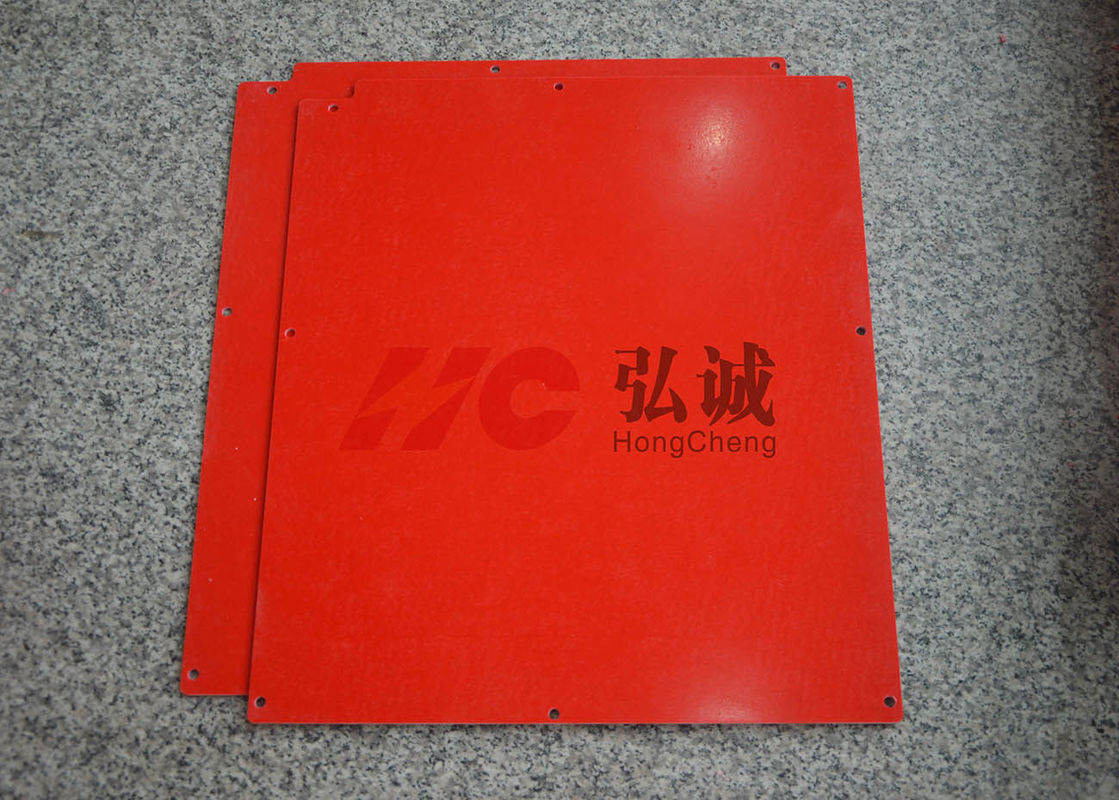

Excellent Track resistance GPO-3 fiberglass Sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.
Excellent Track resistance GPO-3 fiberglass Sheet has excellent arc resistance which is higher than 180 seconds.It can be used extensively in low & middle voltage electrical equipments as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor,converter,inverter & explosionproof apparatus etc. ; automotive industry field etc. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arcchute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate,slot wedge, stator, gasket,shims,carbon brush etc.
Product Advantages:
- Beard to draft the country standard,have earned six patents
- Excellent Arc Resistance(Arc Resistance≥180 S)
- Excellent Track Resistance(CTI≥600V)
- Excellent Heat Resistance(Class F)
- Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
- Excellent Fire Retardant(UL 94 V-0 Grade)
- Excellent Mechanical Strength and Automatic Machining
- Low Smoke,Halogen Free Products(NF-F16-101/102)
- RoHS,Reach Certified products
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Excellent Track resistance GPO-3 fiberglass Sheet used in Industrial Equipment
|
Application: |
Industrial Equipment |
| Description: | The industrial equipments refer to machinery manufacturing equipment, electromechanical integrated equipment, medical equipment, household appliance, central air conditioning compressor etc. The application of insulation material in industrial equipment is different, the emphasis is excellent mechanical performance ,easy to install, environmental protection and seal etc. The commonly materials used in it are HC-GPO3/HC-FR4 |
