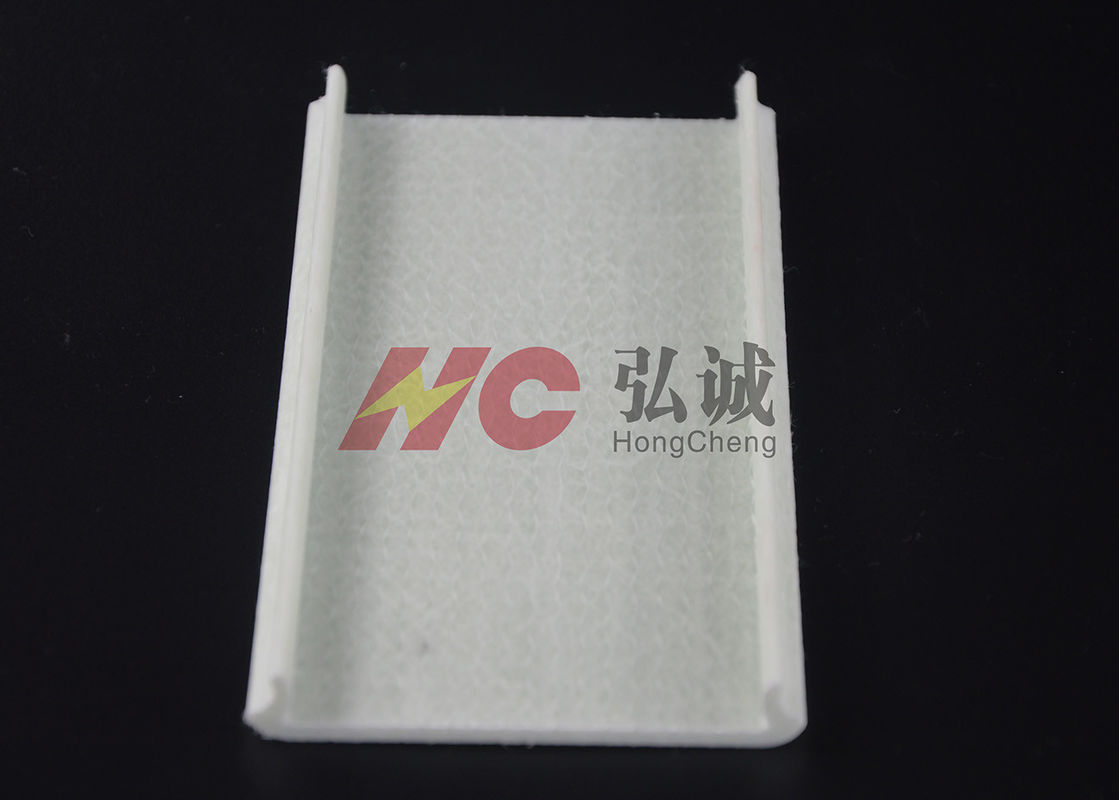

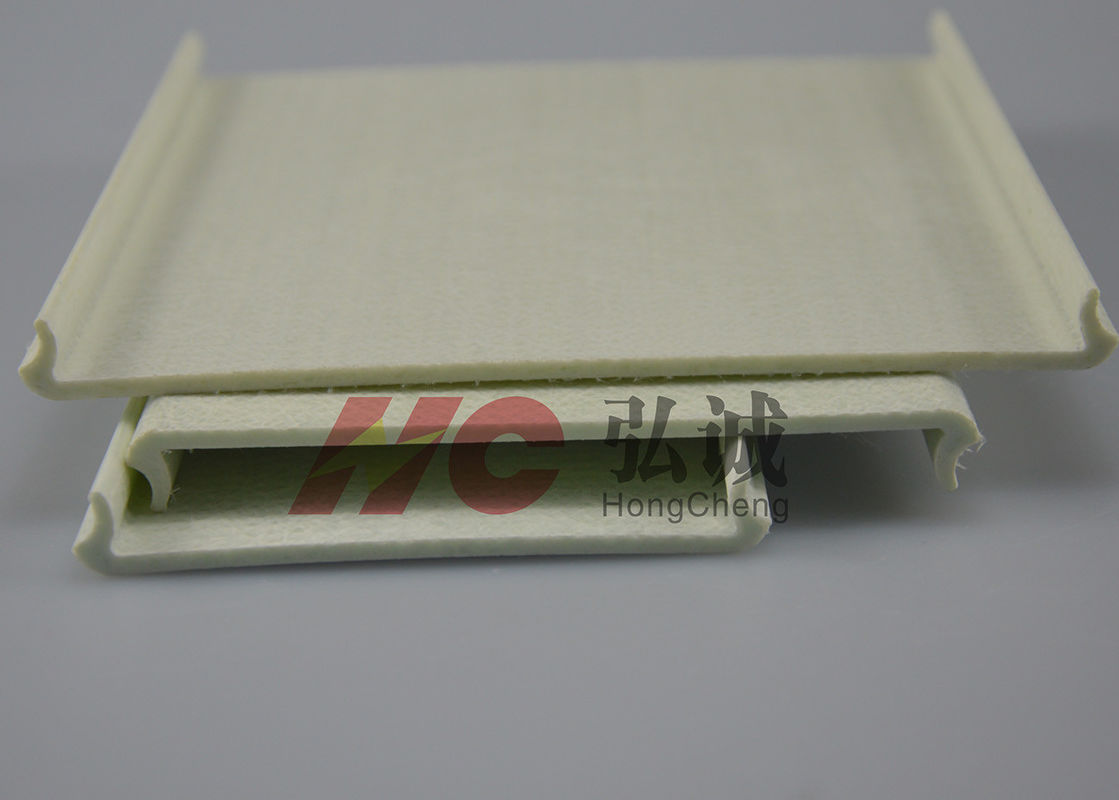

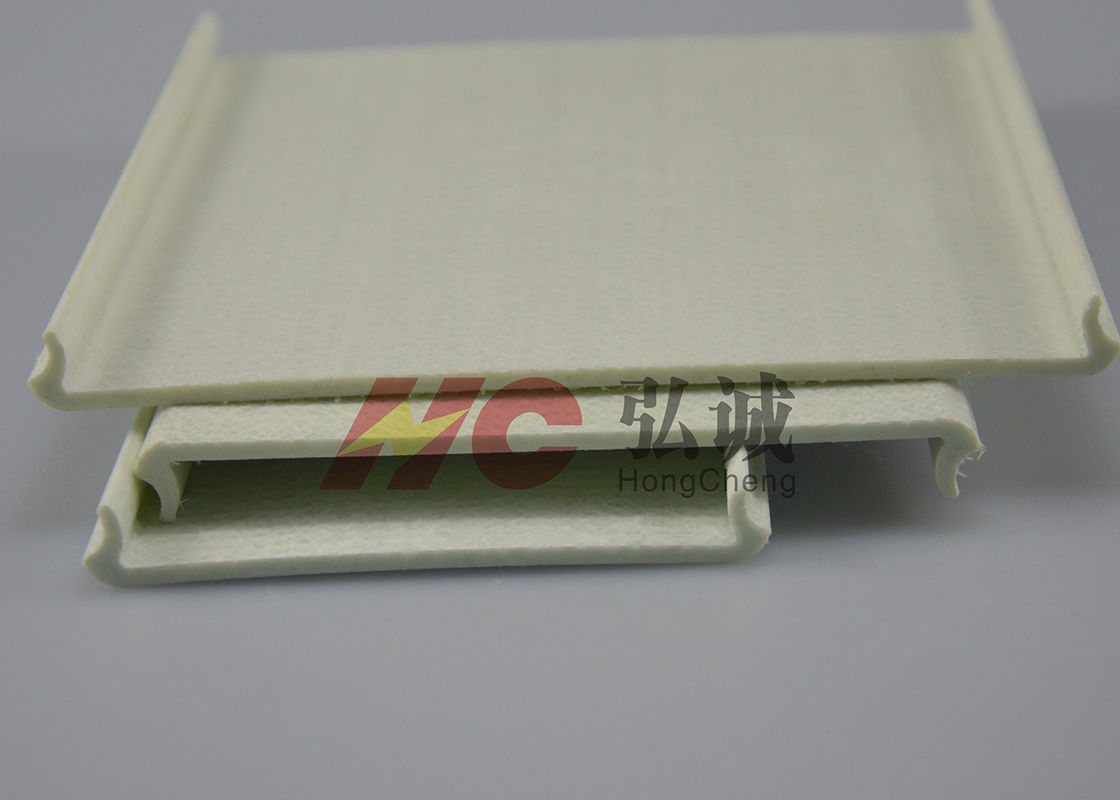

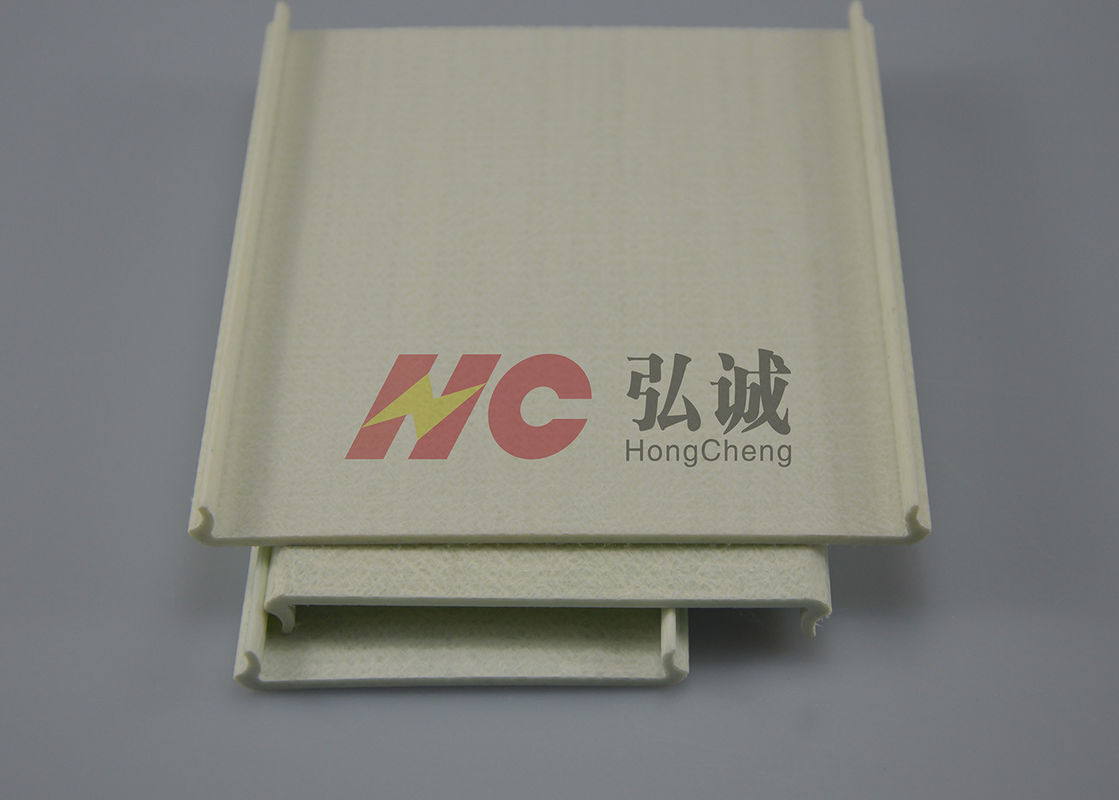

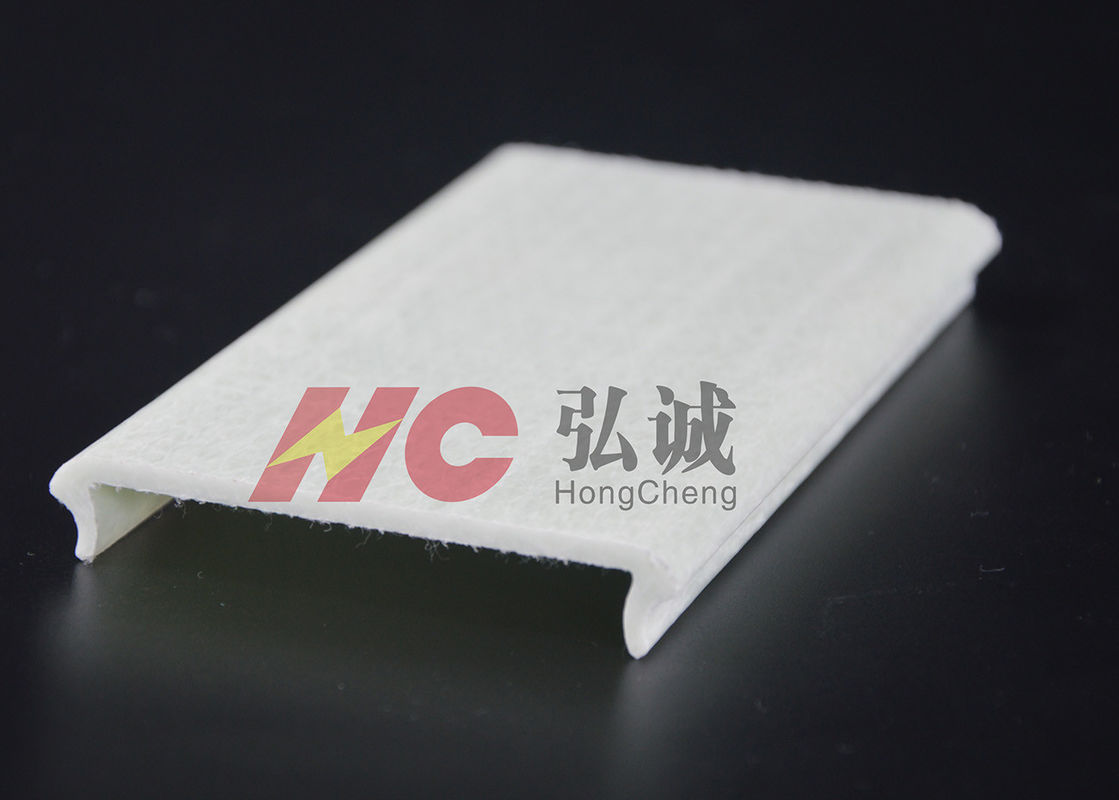

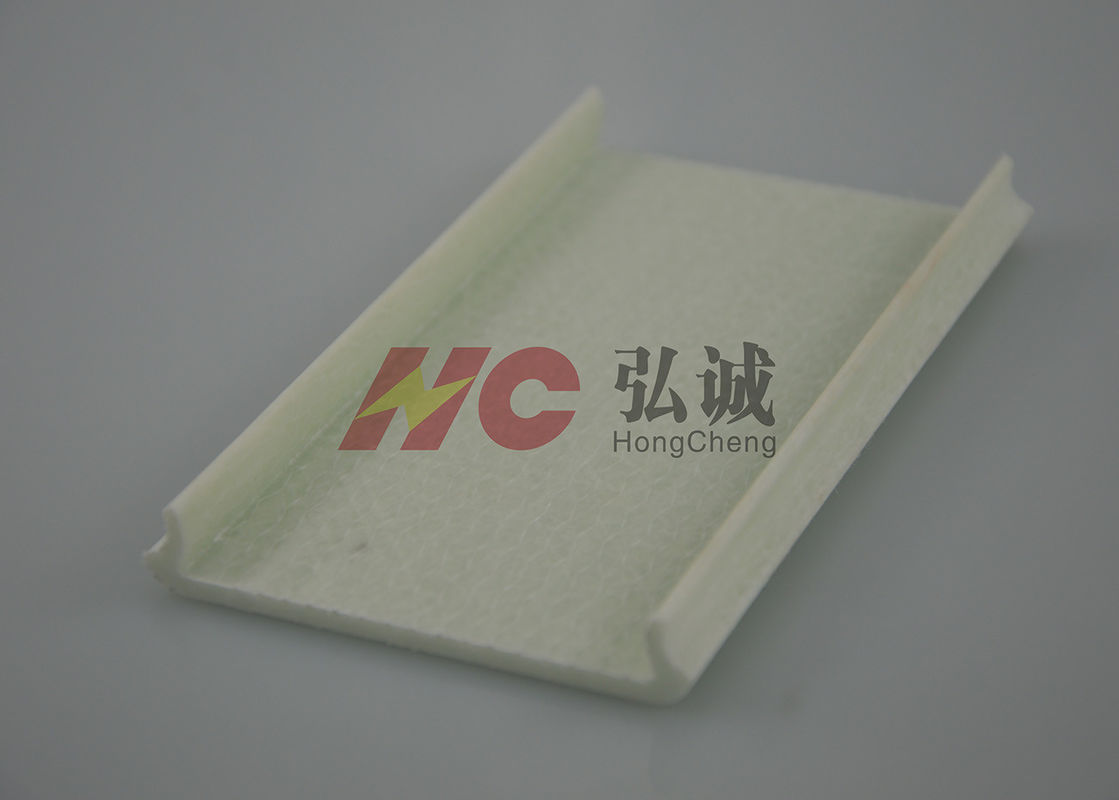

Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge

    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
    • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge
  • Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 Special U Channel Product Color: White
    Flexural Strength(perpendicular): ≥650Mpa Compressive Strength: ≥ 290Mpa
    Volume Resistivity: ≥1.0 X 1012Ω·m Arc Resistance: ≥ 180Sec.

    transformer & reactor special-purpose U support / U shape special for airway support in transformer & reactor


    Product Introduction:



    transformer & reactor special-purpose U support is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    transformer & reactor special-purpose U support is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.



    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade




    Diagram:

     Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge


    Specification sheet:

    Product Name Item No. Size
    Special U Chanel HC-XC-SU-R 5*90*27*27
    HC-XC-SU-W U50
    HC-XC-SU-W U63
    HC-XC-SU-W U78
    HC-XC-SU-W U85
    HC-XC-SU-W U110
    HC-XC-SU-W U150




    Pultrusion Technique

    Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge

    Custom Your Own Mould
    Mould trade Process
    1. Quote According to the sample & Sample

    2. Comfirm Color,Material,Price,Payment,MOQ,

    3. Advance Pay the Mould cost 100% by T/T

    4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

    5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

    6. Delivery

    Delivery by sea or air under EXW/FCA



    transformer & reactor special-purpose U support  used in transformer

    Transformer / Reactor White U Channel Non Cracking And Non Explosive Edge

    The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
    Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
