Xiamen Hongcheng Insulating Material Co., Ltd.

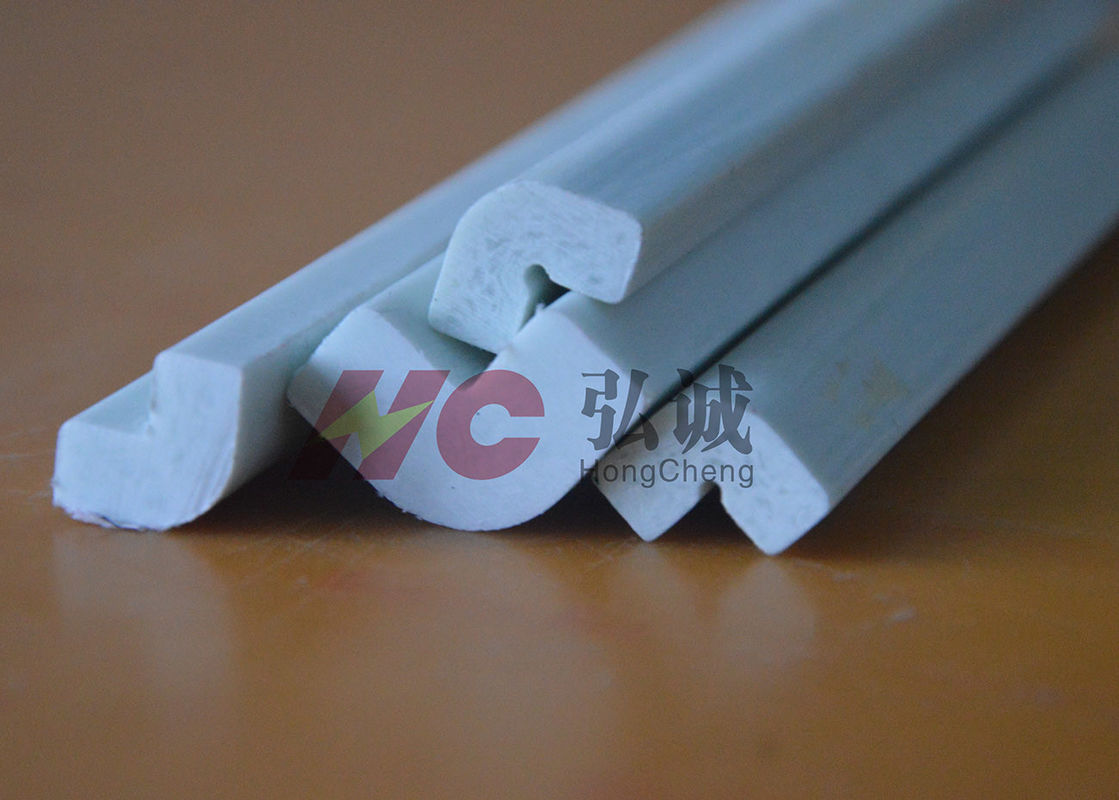

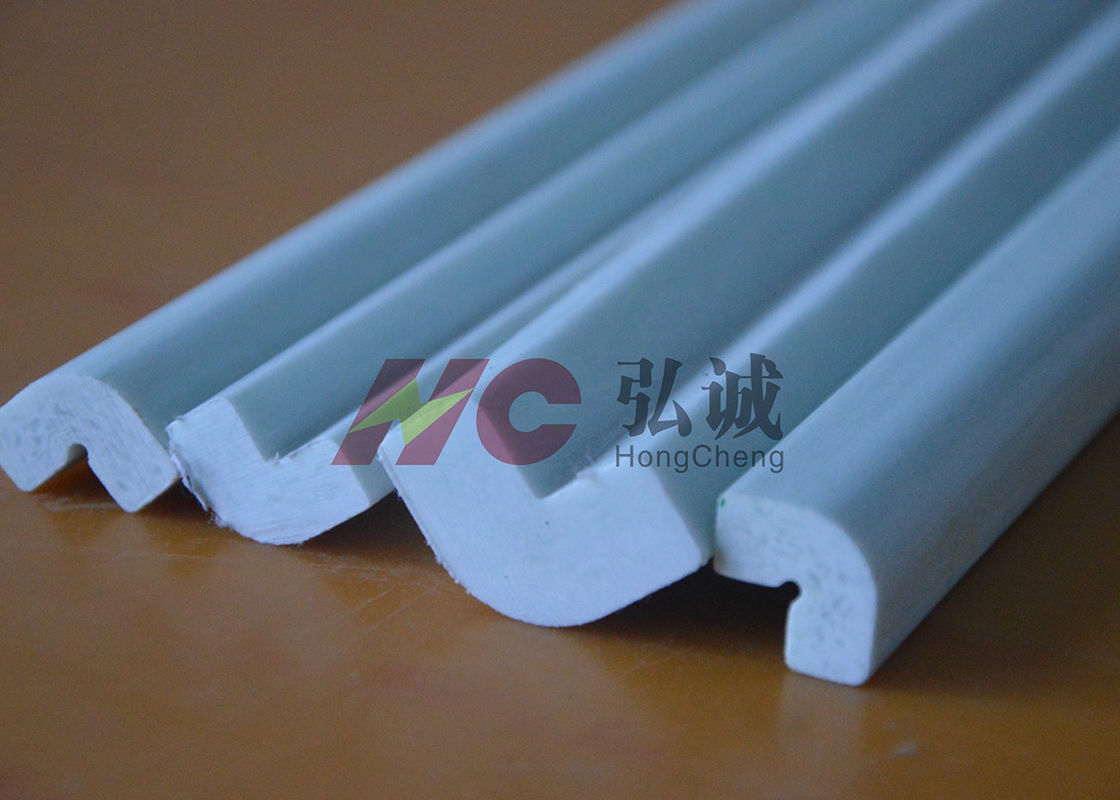

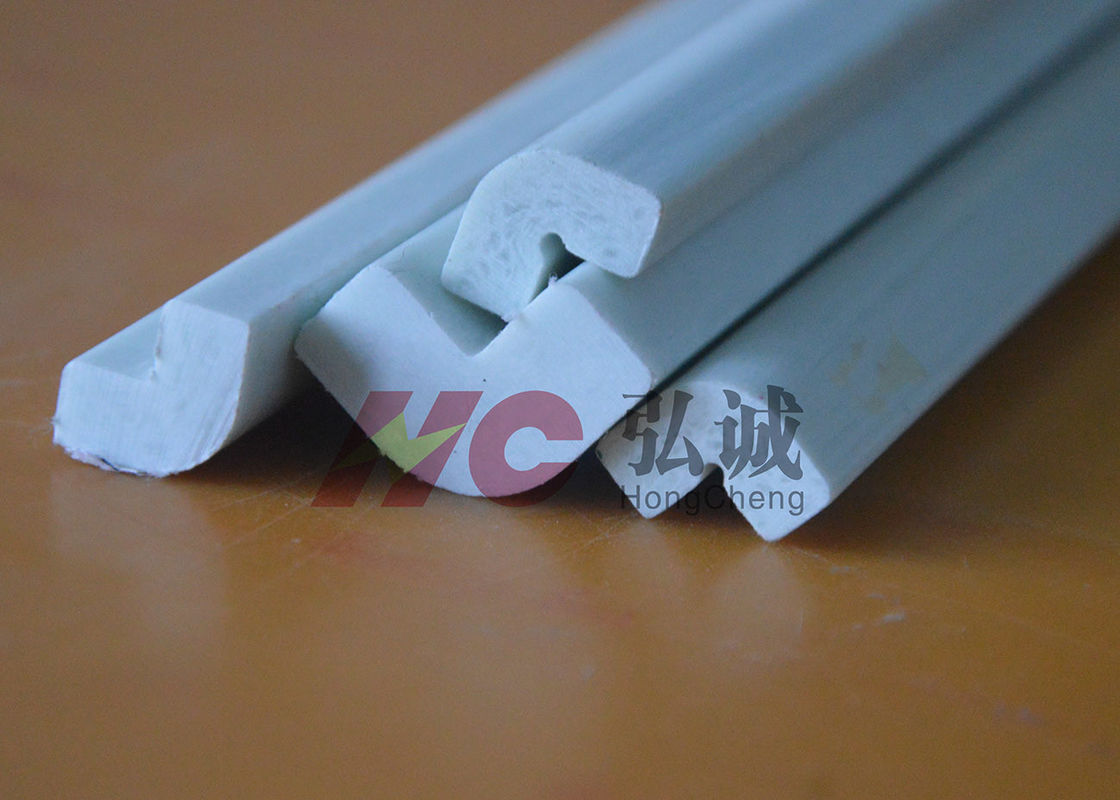

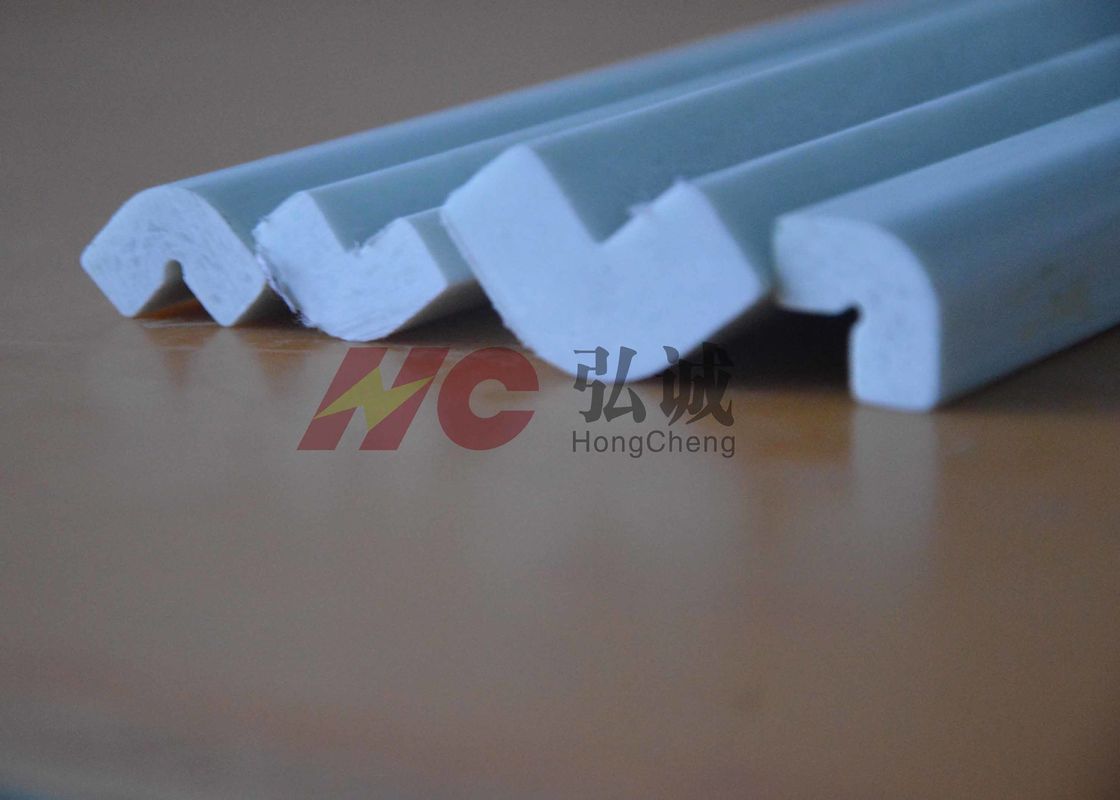

RoHS Certified Insulation Corner Bone Environment - Friendly Material

    • RoHS Certified Insulation Corner Bone Environment - Friendly Material
    • RoHS Certified Insulation Corner Bone Environment - Friendly Material
    • RoHS Certified Insulation Corner Bone Environment - Friendly Material
    • RoHS Certified Insulation Corner Bone Environment - Friendly Material
  • RoHS Certified Insulation Corner Bone Environment - Friendly Material

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Color: White Product Color: White
    Product Name: GPO-3 Corner Bone Product Size: 21 Kinds Of Specifications
    Product Size: 21 Kinds Of Specifications Surface Resistivity: ≥ 1.0×1014 Ω
    Surface Resistivity: ≥ 1.0×1014 Ω Volume Resistivity: ≥1.0 X 1012Ω·m
    Volume Resistivity: ≥1.0 X 1012Ω·m Impact Strength(Charpy): ≥ 475Kj/m2

    RoHS Certified Corner Bone / Environment-friendly Insulation corner bone


    Product Description:



    RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.

    RoHS Certified Corner Bone  is our cmpany special for the transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil or wire wound around the stability of bracing structure and non-cracking.



    Features:



     Technical advantages, mold development and design capabilities, excellent supporting capacity.

     Excellent size, space stability, non cracking, non Explosive Edge

     Excellent Arc Resistance(Arc Resistance≥180 S)

     Excellent Track Resistance(CTI≥600V)

     Excellent Heat Resistance(Class F)

     Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

     Excellent Fire Retardant(UL 94 V-0 Grade)



    Application:

    transformer ,reactor,large dry transformer

    RoHS Certified Insulation Corner Bone Environment - Friendly Material


    Diagram:

     RoHS Certified Insulation Corner Bone Environment - Friendly MaterialRoHS Certified Insulation Corner Bone Environment - Friendly MaterialRoHS Certified Insulation Corner Bone Environment - Friendly Material

    Specification sheet:

    Product Name Item No. Size
    Corner bone HC-XC-C-W 6*6 normal
    HC-XC-C-W 8*8 normal
    HC-XC-C-W 10*10 normal
    HC-XC-C-W 12*12 normal
    Corner bone HC-XC-SC-W 7*7 Special-shaped
    HC-XC-SC-W 8*8 Special-shaped
    HC-XC-SC-W 10*10 Special-shaped
    HC-XC-SC-W 12*12 Special-shaped
    HC-XC-SC-W 16*16 Special-shaped

    RoHS Certified Corner Bone used in Power battery

    RoHS Certified Insulation Corner Bone Environment - Friendly Material



    Power battery is the most widely used in energy storage systems ,the application of it is related to our new energy vehicles, new energy buses and so on.From the design and manufacture of power battery to the application of the installation, it has certain structural strength and high plane degree ,the flame retardant rating of insulating materials is V-0 grade. The commonly materials used in power battery are HC-GPO3/HC-FR4 etc.
