180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone

180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone

  • High Light

    gpo 3 corner bone

    ,

    fiberglass corner bone

  • Product Name
    GPO-3 Corner Bone
  • Product Color
    White
  • Product Size
    21 Kinds Of Specifications
  • Impact Strength(Charpy)
    ≥ 475 Kj/m2
  • Volume Resistivity
    ≥1.0 X 1012 Ω·m
  • Surface Resistivity
    ≥ 1.0×1014Ω
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone

H-class Corner Bone with 180℃ Heat resistance / Insulation Corner Bone with Teminal index up to 180℃


Introduction:

RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.



Product Feature:

Technical advantages, mold development and design capabilities, excellent supporting capacity.

Non-cracking,space stability

Arc resistance:≥180S which is longer than most of other material

Track Resistance: CTI ≥600V

Heat resistant:H class,heat resisitance up to 180℃

Fire retardant:UL 94 V-0 Grade

Thermal Impact:Temp. Index: -273℃ to +155℃



Application:

GPO-3 Corner bone has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

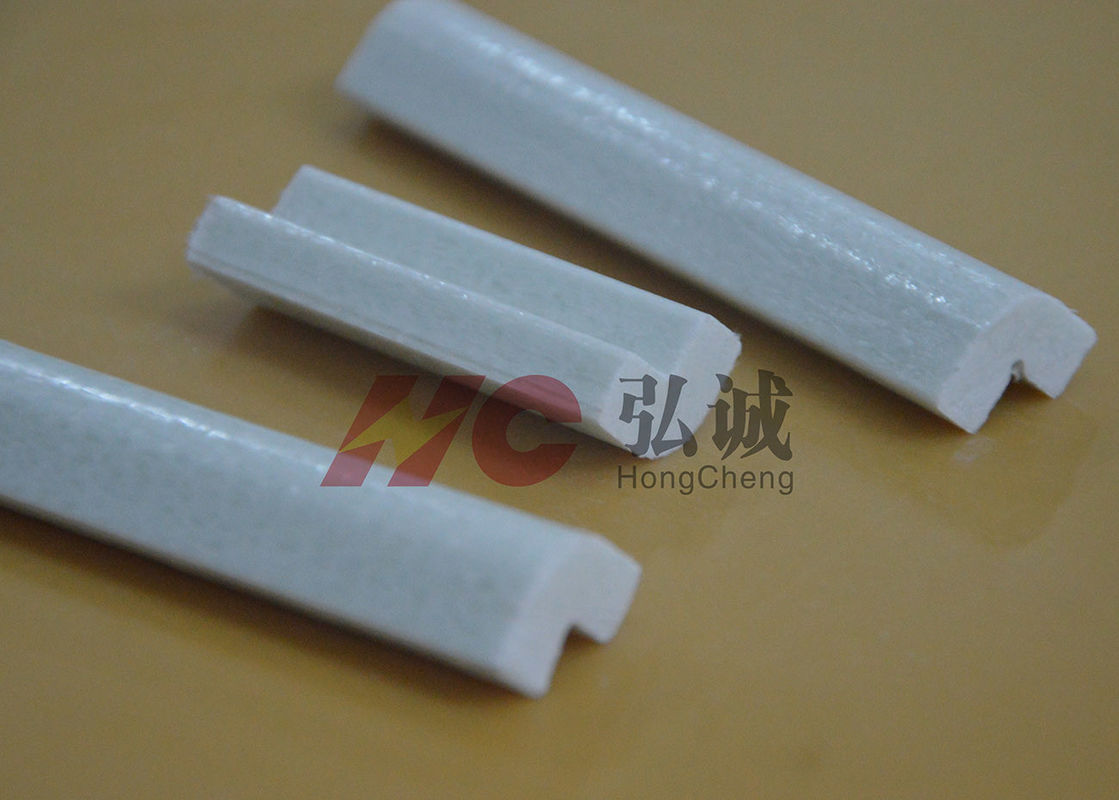

180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone 0


Diagram:

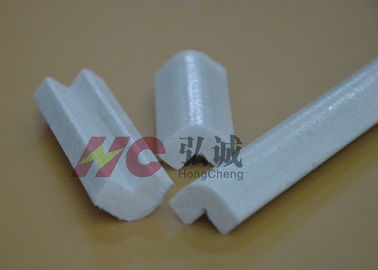

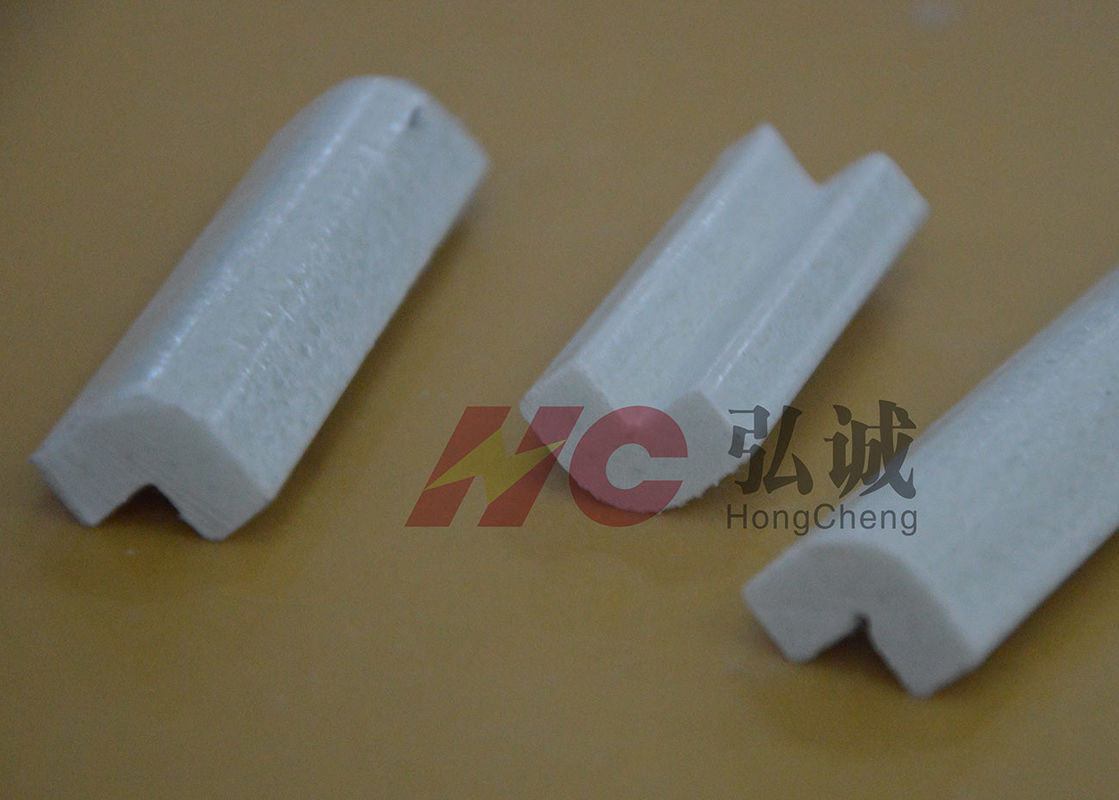

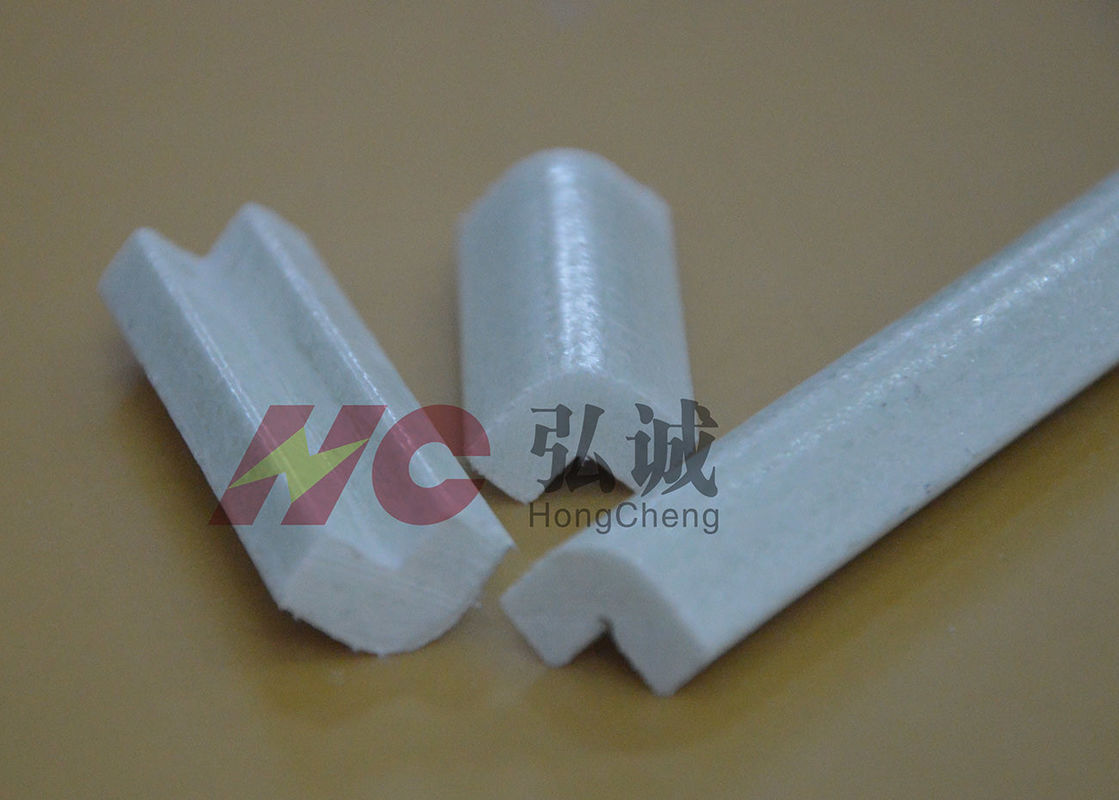

 180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone 1180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone 2180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone 3


Specification sheet:

Product Name Item No. Size
Corner bone HC-XC-C-W 6*6 normal
HC-XC-C-W 8*8 normal
HC-XC-C-W 10*10 normal
HC-XC-C-W 12*12 normal
Corner bone HC-XC-SC-W 7*7 Special-shaped
HC-XC-SC-W 8*8 Special-shaped
HC-XC-SC-W 10*10 Special-shaped
HC-XC-SC-W 12*12 Special-shaped
HC-XC-SC-W 16*16 Special-shaped

H-class Corner Bone with 180℃ Heat resistance  Processing advantage

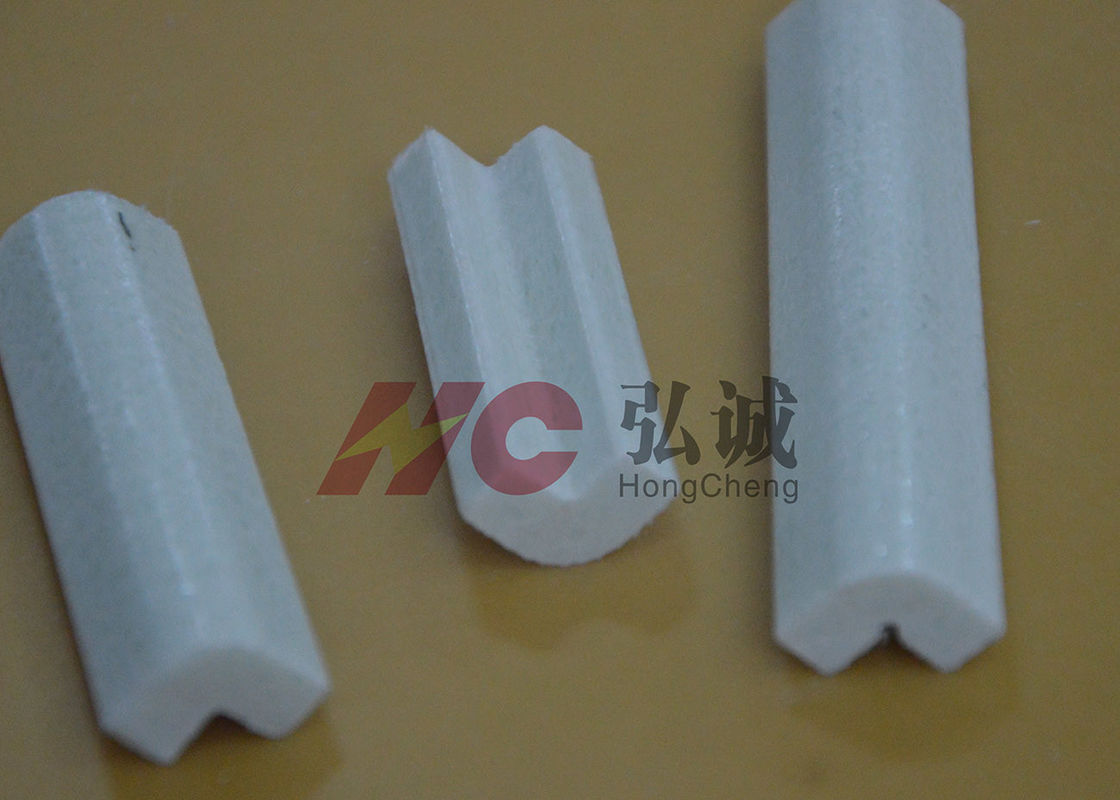

180℃ Heat Resistance Pultruded Corner Bone , Gpo - 3 Insulation Profile Corner Bone 4

Processing methods Machinery processing
Application of plate Material thickness 0.1-40mm
The advantage of processing

1. skilled at face milling, drilling speed, flexible processing;

2. Strong versatility, it can be processed into various parts;

3. The advantage of low cost, high efficiency to meet the requirements of customer delivery.
