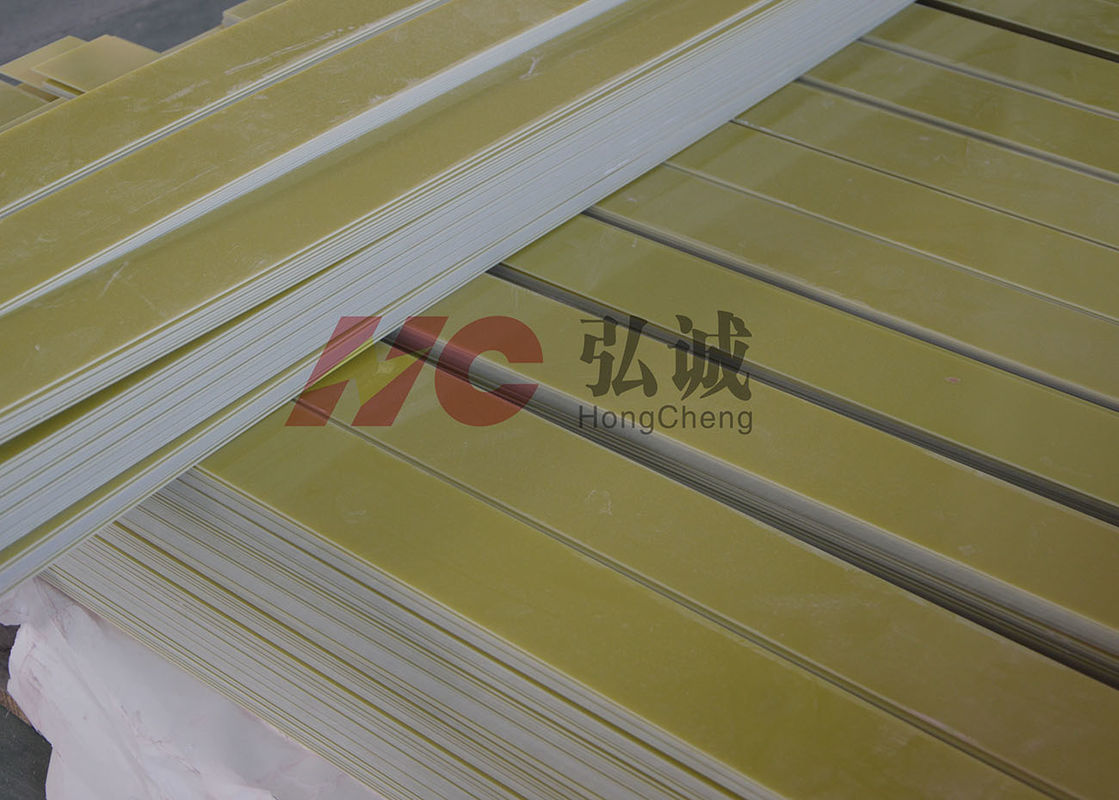

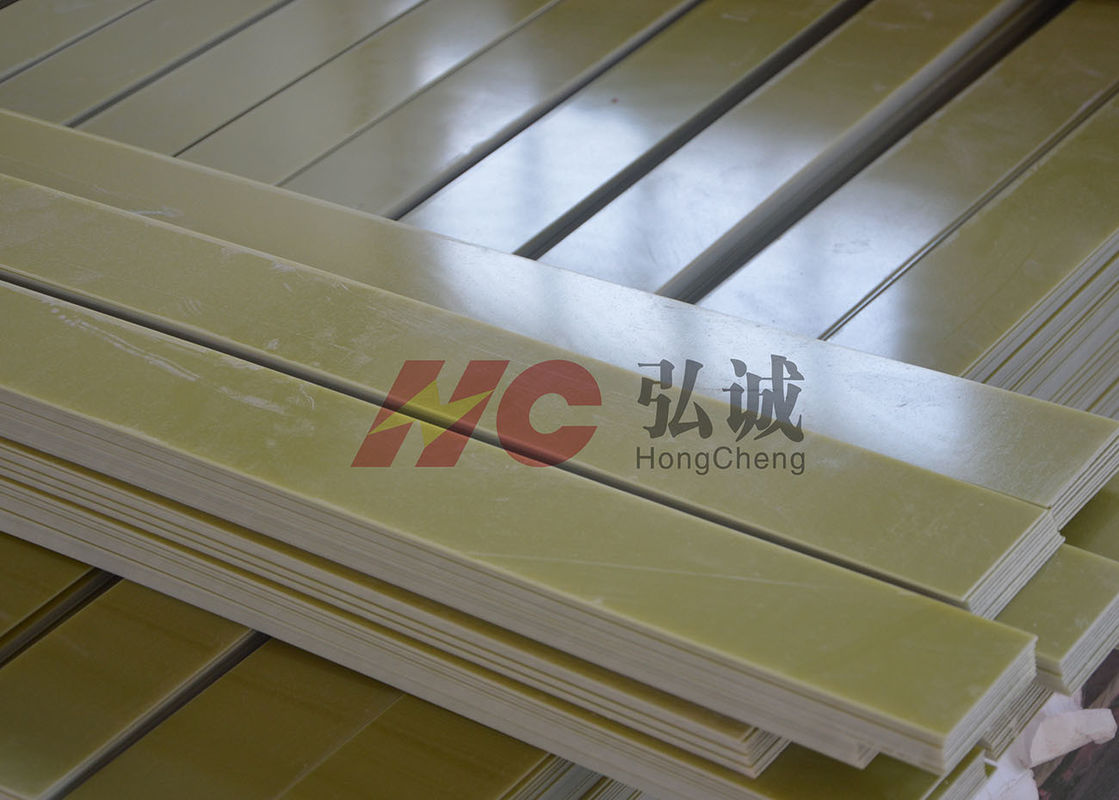

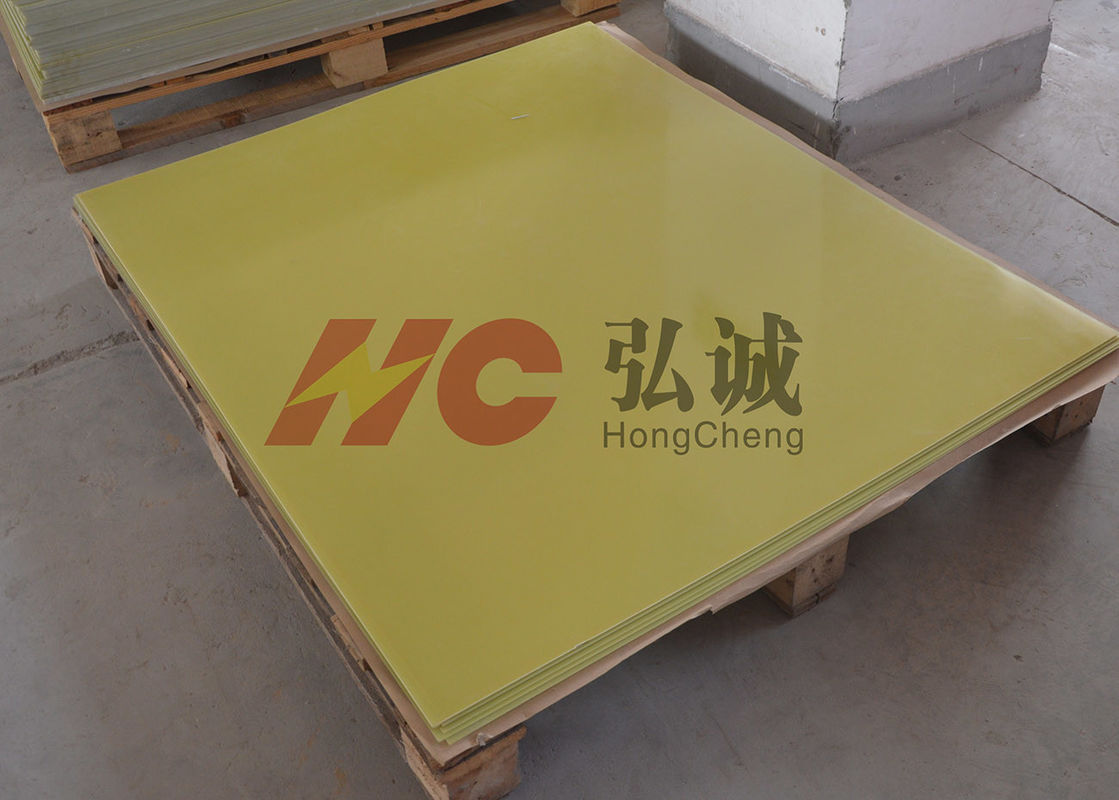

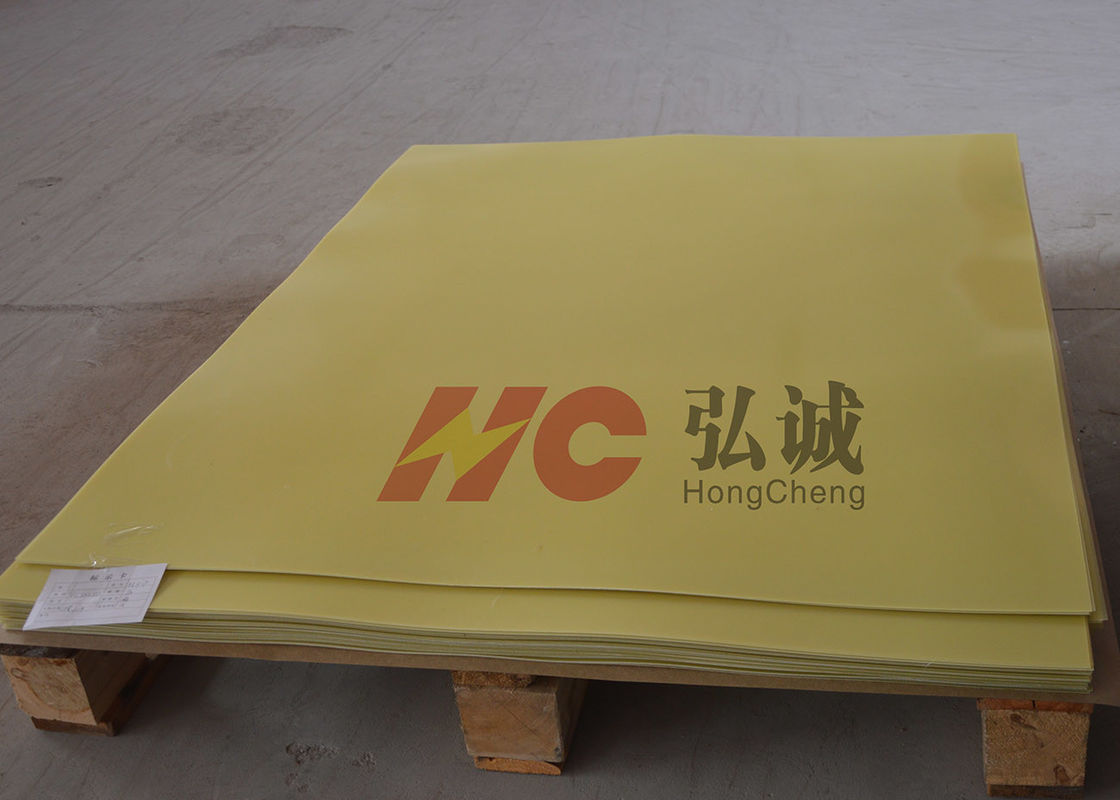

Yellow Fr 4 G10 Laminate Sheet / G10 Plastic Sheet Excellent Heat Resistance

Yellow Fr 4 G10 Laminate Sheet / G10 Plastic Sheet Excellent Heat Resistance

  • High Light

    g10 laminate sheet

    ,

    g10 fr4 sheet

  • Product Name:
    Yellow FR4 Epoxy Sheet
  • IEC Standard
    EPGC202
  • German Standard:
    Hgw2372.1
  • Product Thickness:
    0.2mm-120.0mm
  • Product Size:
    1020*1220;1220*2040;1220*2440
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    SGS/UL/RoHS 2.0/Reach
  • Model Number
    FR 4 / EPGC202 / Hgw2372.1

Yellow Fr 4 G10 Laminate Sheet / G10 Plastic Sheet Excellent Heat Resistance

Yellow FR4 epoxy sheet / Yellow EPGC202 with RoHS / UL / SGS certified


Yellow FR4 epoxy sheet are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple

Feature:
EPGC sheets(thermal class B-H),producer as per IEC60893-3-2,These sheets have excellent mechanical strength(the thermal state retension rate can reach over 50%)under medium temperature or the thermal state,as well as the stable electric properties(the insulation resistance after immersion reachers 10^12Ω)in high humidity condition .and also with higher voltage end urance /withstand voltage (over 35KV),parallel to laminated ,and they also have excellent flame retardant property.the sheets also passed the toxic and hazadous substance detection(RoHS Report)

Application:
Yellow FR4 epoxy sheet  used as the insulating structure parts in class B-h electric motors,electric equipments,which has flame resistance requirements or not,or other applications.

Thickness:0.2mm-120mm

Sheeet Size:1020*1220;1220*2040

UL certification:E344098

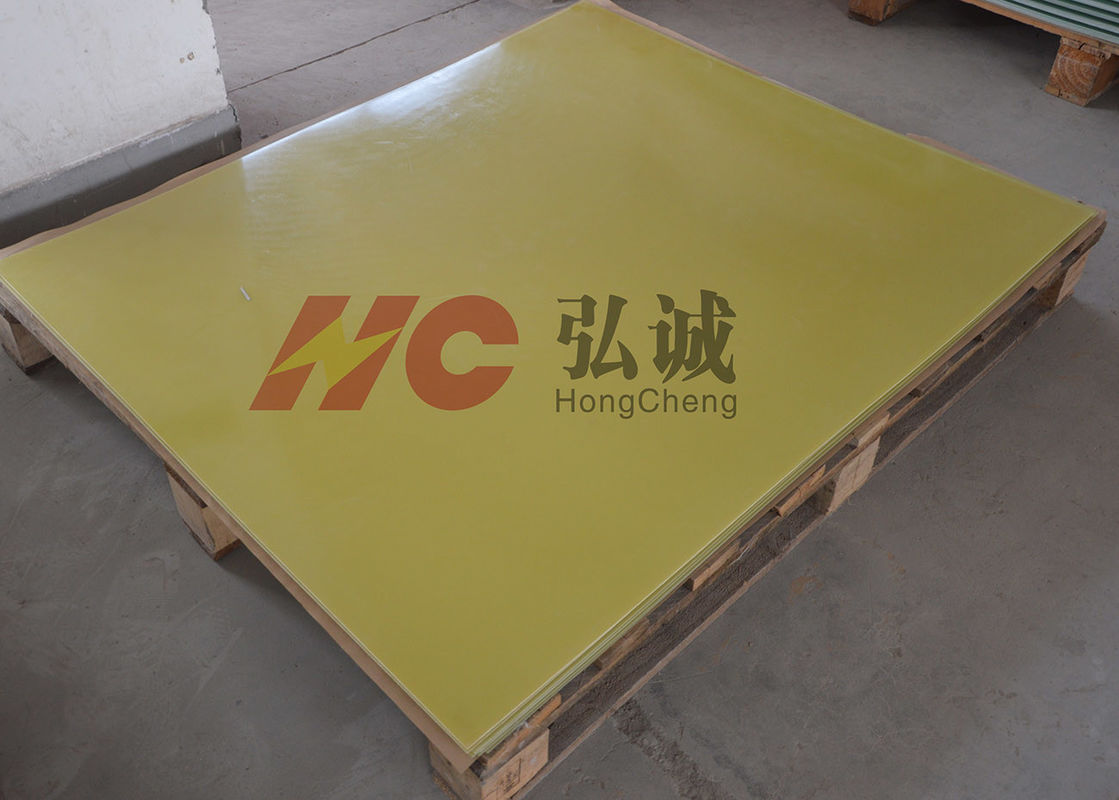

Yellow Fr 4 G10 Laminate Sheet / G10 Plastic Sheet Excellent Heat Resistance 0


Hong Cheng Grade HC-FR-4
IEC 893/EN 60893 Grade EPGC 202
ANSI (NEMA) Grade NEMA LI-1 FR-4
DIN 7735 Hgw2372.1
JIS GRADE EL-GEF

Item Test method Unit Typical Values
Physical Properties Color Visual inspection Light green / yellow
Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
Water absorption ISO 62:2008 % <0.3
Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
(1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
(1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
TensileStrength IEC 60893-2:2003 MPa ≥300
//Bond Strength // IEC 60893-3-4:2003 N ≥8000
Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
Temperature Index IEC 60085:2004 155
Toxicant Content E662 Low
Others Acetone Resistance boiled Min 30(OK)




Yellow FR4 epoxy sheet use in FCP

Yellow Fr 4 G10 Laminate Sheet / G10 Plastic Sheet Excellent Heat Resistance 1

Flexible Printed Circuit Board is also called FPC,is kind of printed circuit made of flexible insulating substrate. FPC meets the design requirements of smaller and higher density which helps to reduce the assembly process and increased reliability.FPC is the only way to solve the The miniaturization of electronic products,free to bend,wind,fold for million times but won't damage the conductor,it can move in three-dimensional space and scale.So as to achieve integration of the components assembly and wire connection.
Pultruded fiberglass tube has excellent Fire Retardant,excellent Voltage Resistance,excellent Heat Resistance,excellent Heat Resistance(Class F),excellent mechanical processability & high degree of automation processing,FR-4 sheet and FR-2 Bakelite plate are good materials for Rigid circuit board,FPC.
