EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

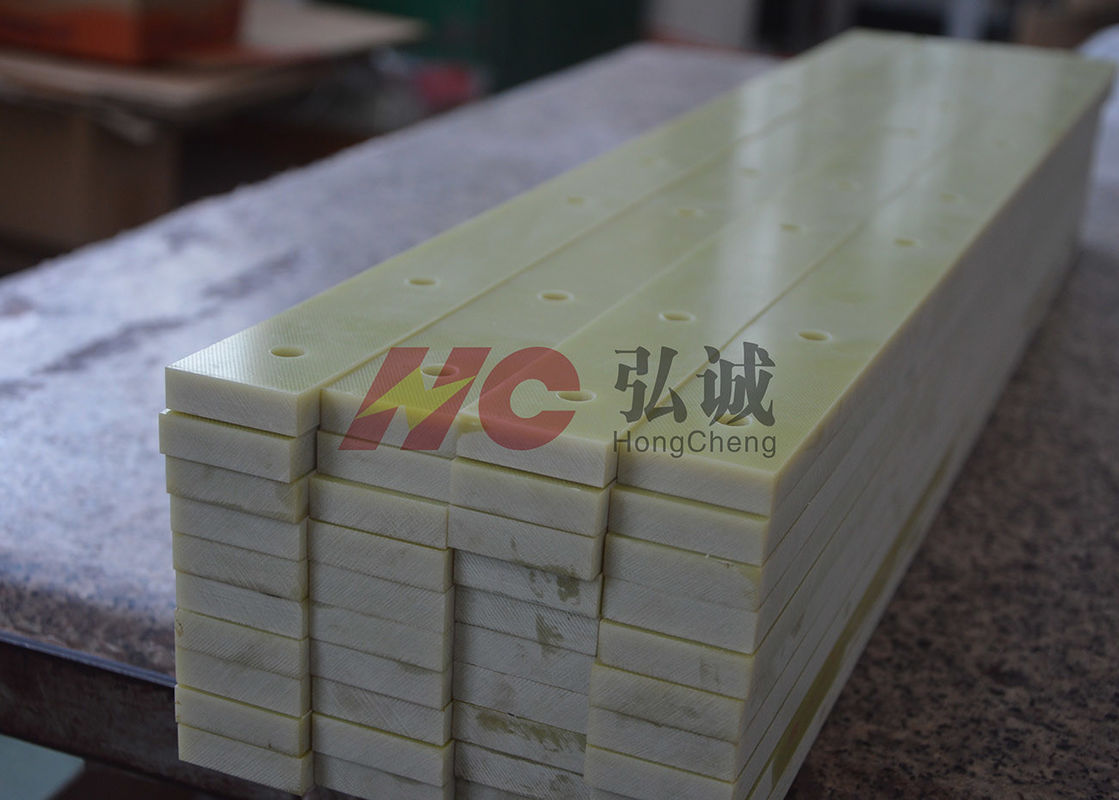

    • EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

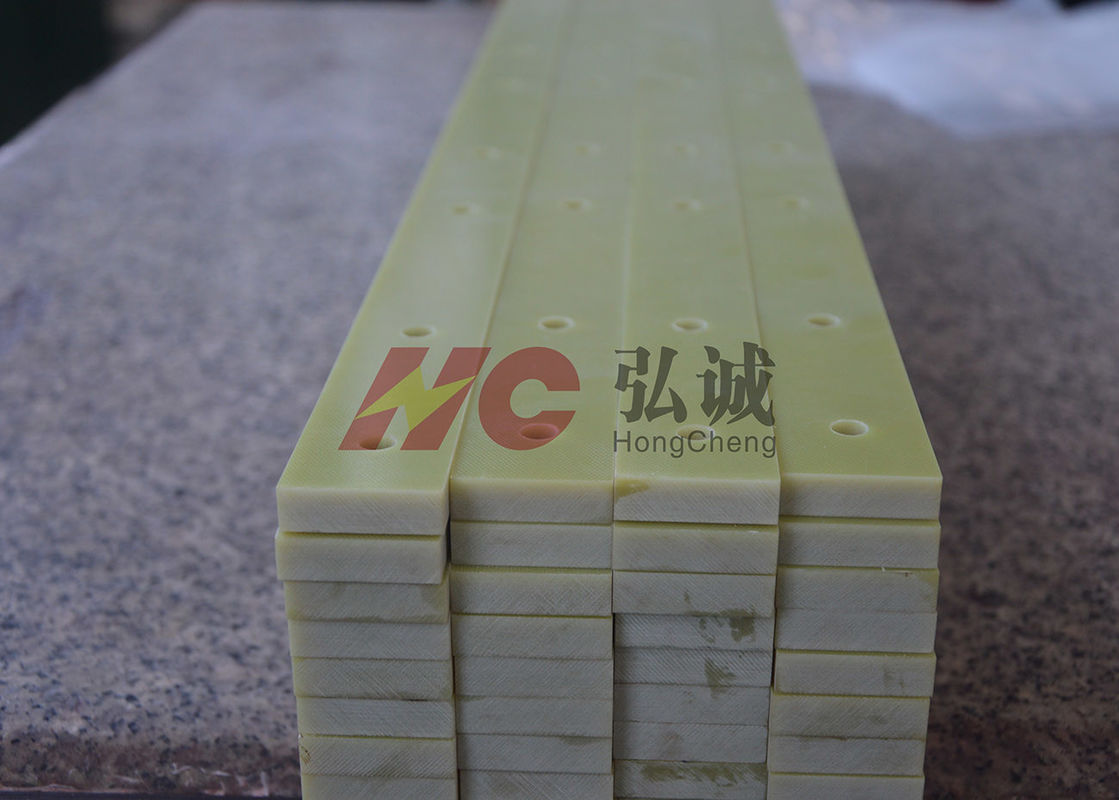

    • EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

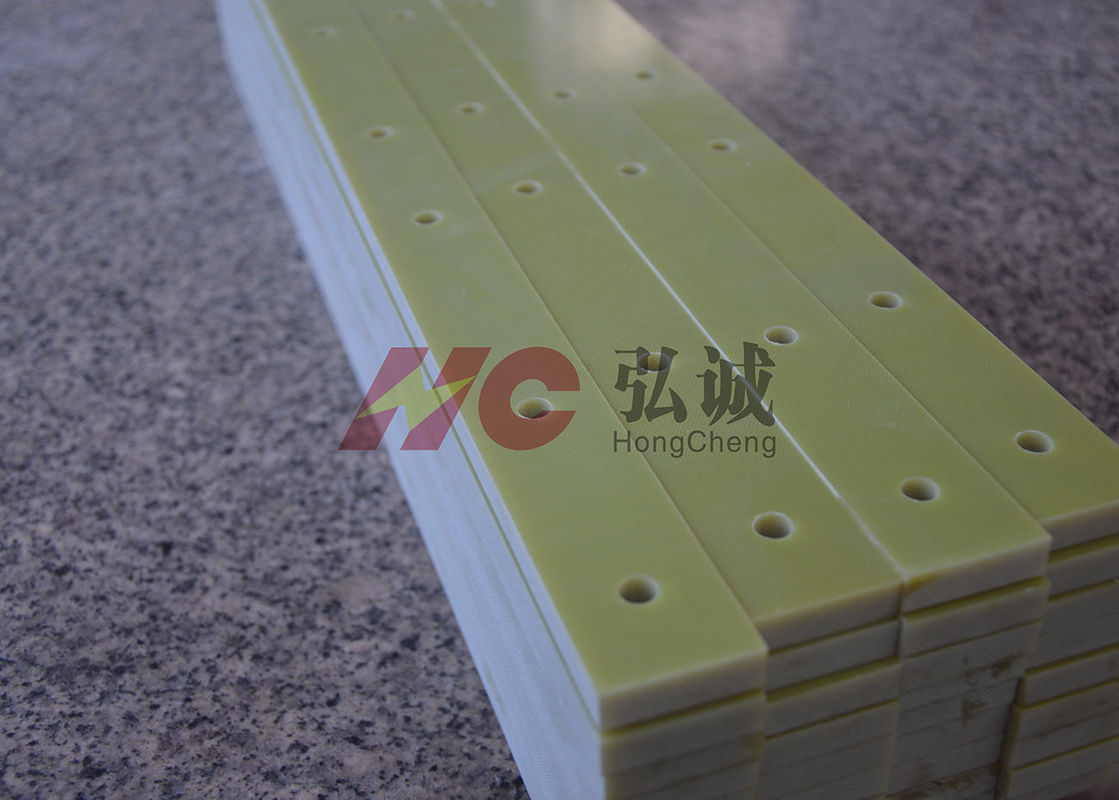

    • EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose
    • EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose
  • EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 4 / EPGC202 / Hgw2372.1

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR4 Epoxy Sheet IEC Standard:: EPGC202
    German Standard:: Hgw2372.1 Product Thickness:: 0.2mm-120.0mm
    Product Size:: 1020*1220;1220*2040;1220*2440

    Switch cubicle special-purpose FR4 epoxy sheet / EPGC202 sheet specified for switchgear


    Switch cubicle special-purpose FR4 epoxy sheetare made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple



    Feature:

    EPGC sheets(thermal class B-H),producer as per IEC60893-3-2,These sheets have excellent mechanical strength(the thermal state retension rate can reach over 50%)under medium temperature or the thermal state,as well as the stable electric properties(the insulation resistance after immersion reachers 10^12Ω)in high humidity condition .and also with higher voltage end urance /withstand voltage (over 35KV),parallel to laminated ,and they also have excellent flame retardant property.the sheets also passed the toxic and hazadous substance detection(RoHS Report)



    Application:

    used as the insulating structure parts in class B-h electric motors,electric equipments,which has flame resistance requirements or not,or other applications.



    Thickness:0.2mm-120mm



    Sheeet Size:1020*1220;1220*2040



    UL certification:E344098

    EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose


    Hong Cheng Grade HC-FR-4
    IEC 893/EN 60893 Grade EPGC 202
    ANSI (NEMA) Grade NEMA LI-1 FR-4
    DIN 7735 Hgw2372.1
    JIS GRADE EL-GEF

    Item Test method Unit Typical Values
    Physical Properties Color Visual inspection Light green / yellow
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
    Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
    Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
    Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
    Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
    TensileStrength IEC 60893-2:2003 MPa ≥300
    //Bond Strength // IEC 60893-3-4:2003 N ≥8000
    Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
    Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
    Temperature Index IEC 60085:2004 155
    Toxicant Content E662 Low
    Others Acetone Resistance boiled Min 30(OK)




    Switch cubicle special-purpose FR4 epoxy sheet

    EPGC 202 IEC Standard Fr 4 Epoxy Sheet Switch Cubicle Special - Purpose

    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
