SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

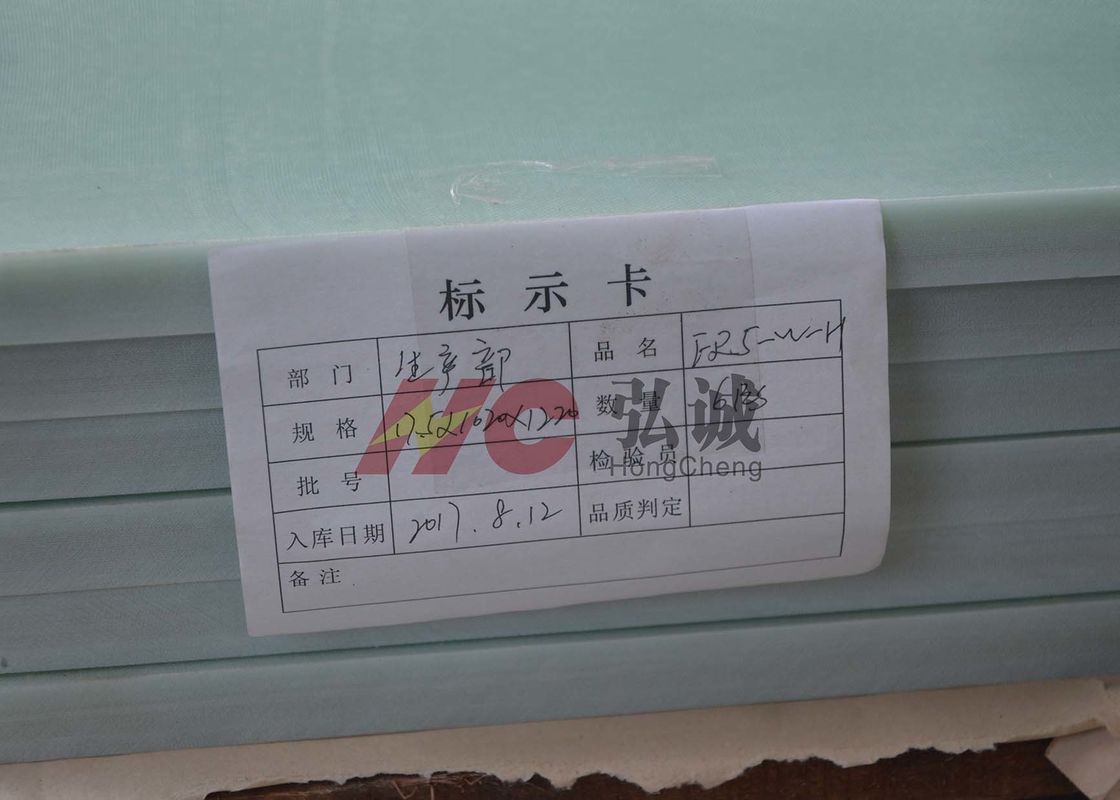

    • SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

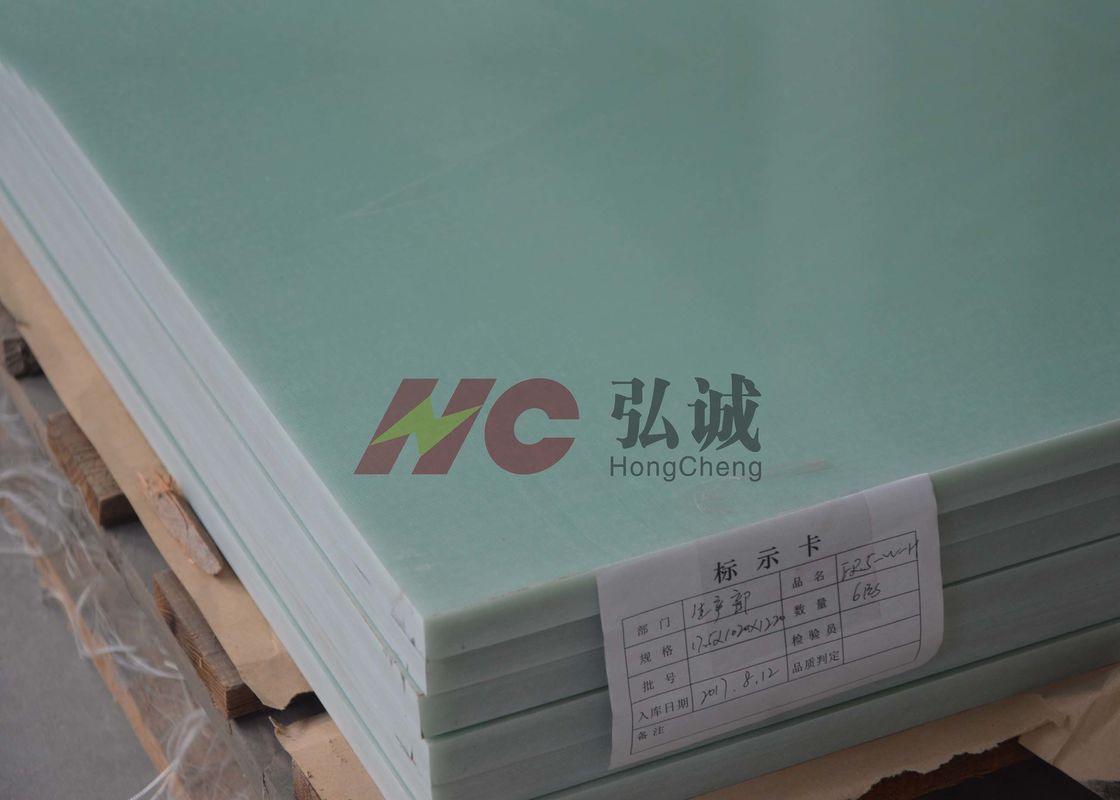

    • SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

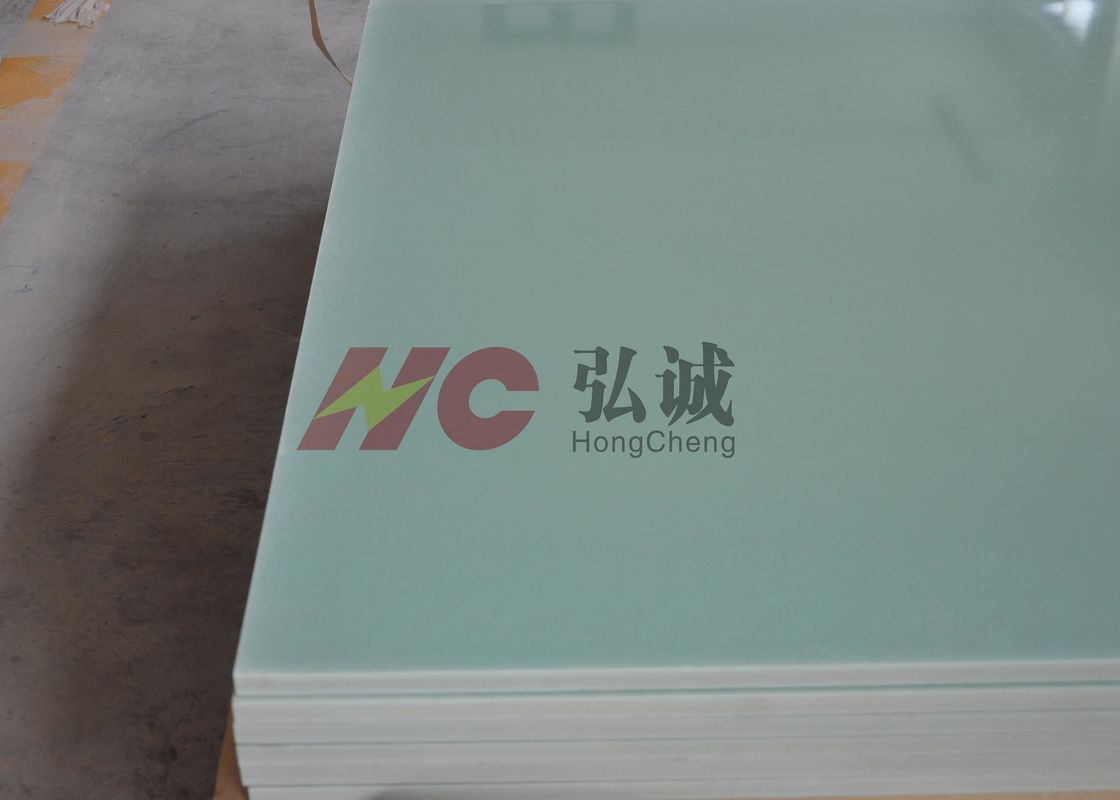

    • SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

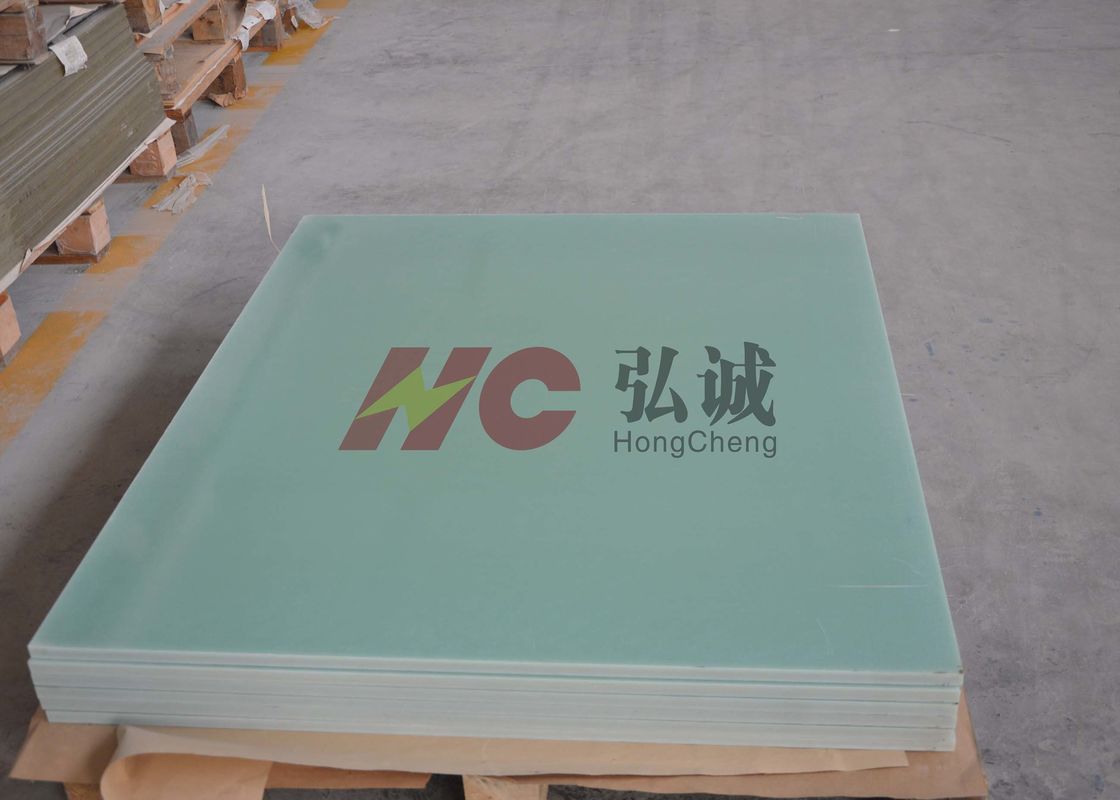

    • SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles
  • SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 5 / EPGC204 / Hgw2372.4

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR5 H-class Epoxy Fiber Glass Sheet IEC Standard:: EPGC204
    German Standard:: Hgw2372.4 Product Thickness:: 1.0mm-40mm
    Product Size:: 1020*1220

    SGS certified FR5 H-class epoxy sheet specified for rail vehicles / SGS certification EPGC204 sheet


    Product Introduction:

    SGS certified FR5 H-class epoxy sheet also known as EPGC204 under the IEC standard which were joint developed by ISOLA Twaiwan and our company,This is the high temperature resistant rigid plate insulating materials.



    Application:

    1. High-voltage motor and electrical equipment as insulating structure: high-tension switch cubible,transformer,frequency changer,Converter,DC motor,AC contactor

    2. Switch cubicle:bursting disk,lining plate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plat insulating supports

    3. Strut member and bus bar supports

    4. The armature parts of electrical machine:cover plate,slot wedge,stator gasket,shims,carbon brush etc.


    Product Advantage:



    1. Heat resistance:High temperature resistance more than 180℃(the gradeof heat resistance is class H)
    2. Voltage resistance: the voltage resistance of FR5 up to 16KV/mm
    3. Fire retardant: FR5 Epoxy sheets are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.
    4. Mechanical strength:FR5 Epoxy sheet have stable mechanical strength and high degree of automation processing.

    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    SGS certified FR5 H-class epoxy sheet specified for rail vehicles used in power grid

    SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

    SGS certified FR5 H-class epoxy sheet specified for rail vehicles is used extensilvely in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
    Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.
    In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.

    SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles

    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
    SGS Certified FR5 Epoxy Fiberglass Sheet / Epoxy Laminate Sheet For Rail Vehicles
