EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets

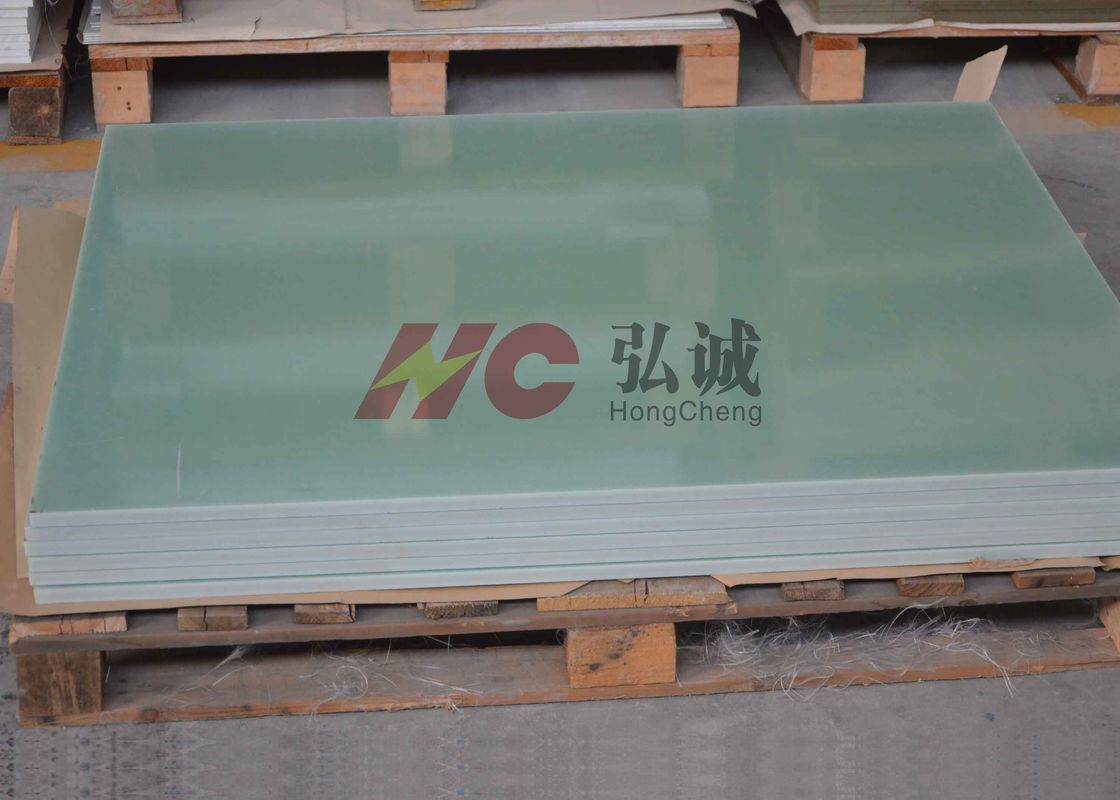

    • EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets

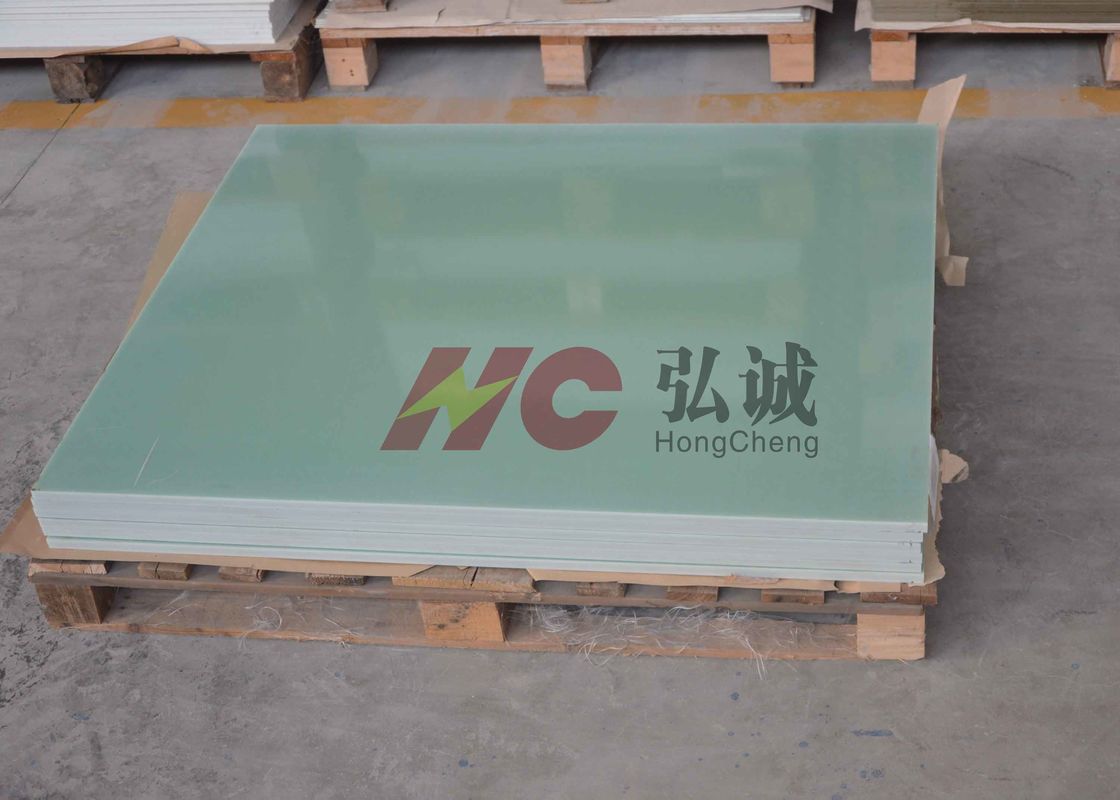

    • EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets

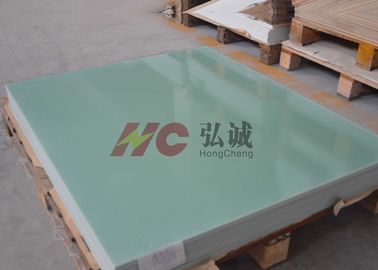

    • EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets
  • EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 5 / EPGC204 / Hgw2372.4

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR5 H-class Epoxy Fiber Glass Sheet IEC Standard:: EPGC204
    German Standard:: Hgw2372.4 Product Thickness:: 1.0mm-40mm
    Product Size:: 1020*1220

    Excellent heat resistance FR5 H-class epoxy sheet / EPGC204 sheet with heat resistance up to 180℃


    Product Introduction:

    FR5 H-class epoxy sheet also known as EPGC204 under the IEC standard which were joint developed by ISOLA Twaiwan and our company,This is the high temperature resistant rigid plate insulating materials.



    Feature:

    • Heat resistance:High temperature resistance more than 180℃(the gradeof heat resistance is class H)
    • Voltage resistance: the voltage resistance of FR5 up to 16KV/mm
    • Fire retardant: FR5 Epoxy sheets are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.
    • Mechanical strength:FR5 Epoxy sheet have stable mechanical strength and high degree of automation processing.

    Application:

    1. High-voltage motor and electrical equipment as insulating structure: high-tension switch cubible,transformer,frequency changer,Converter,DC motor,AC contactor

    2. Switch cubicle:bursting disk,lining plate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plat insulating supports

    3. Strut member and bus bar supports,The armature parts of electrical machine:cover plate,slot wedge,stator,gasket,shims,carbon brush etc.

    EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets


    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    Excellent heat resistance FR5 H-class epoxy sheet  used in Switch cabinet

    EPGC204 Epoxy Glass Laminate Sheet / Fibreglass Epoxy Laminate Sheets

    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are FR5 H-class epoxy sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
