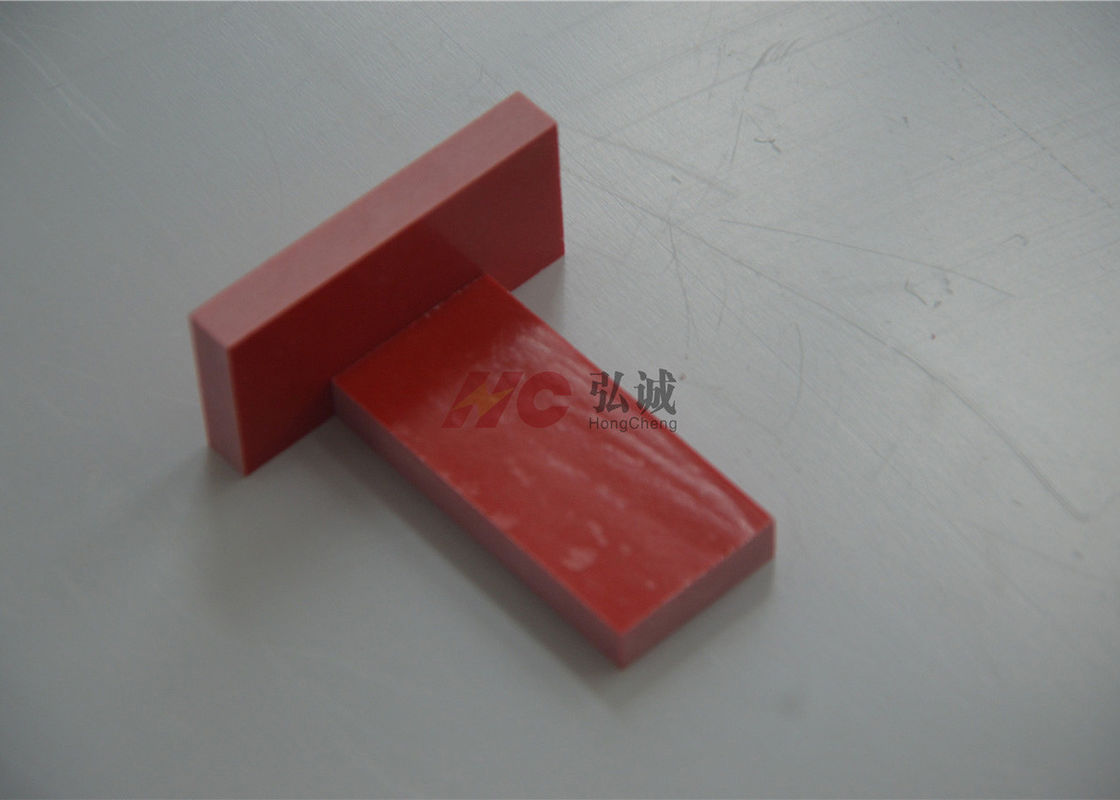

Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength

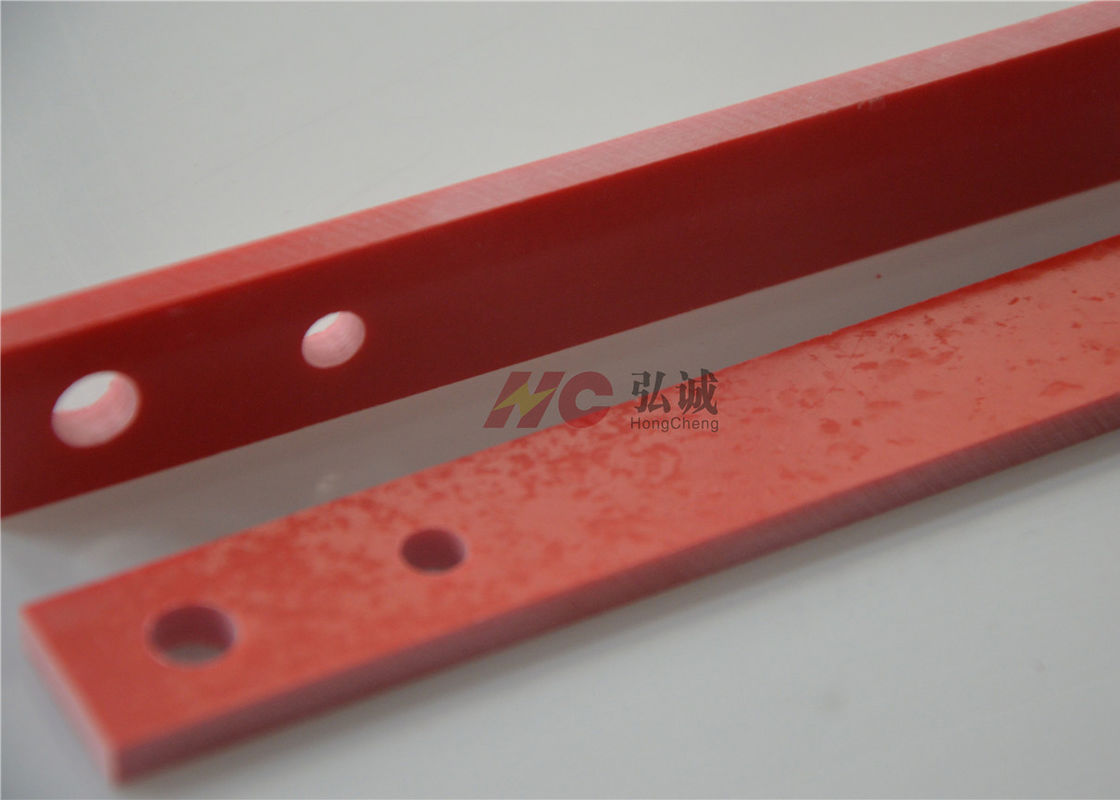

Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength

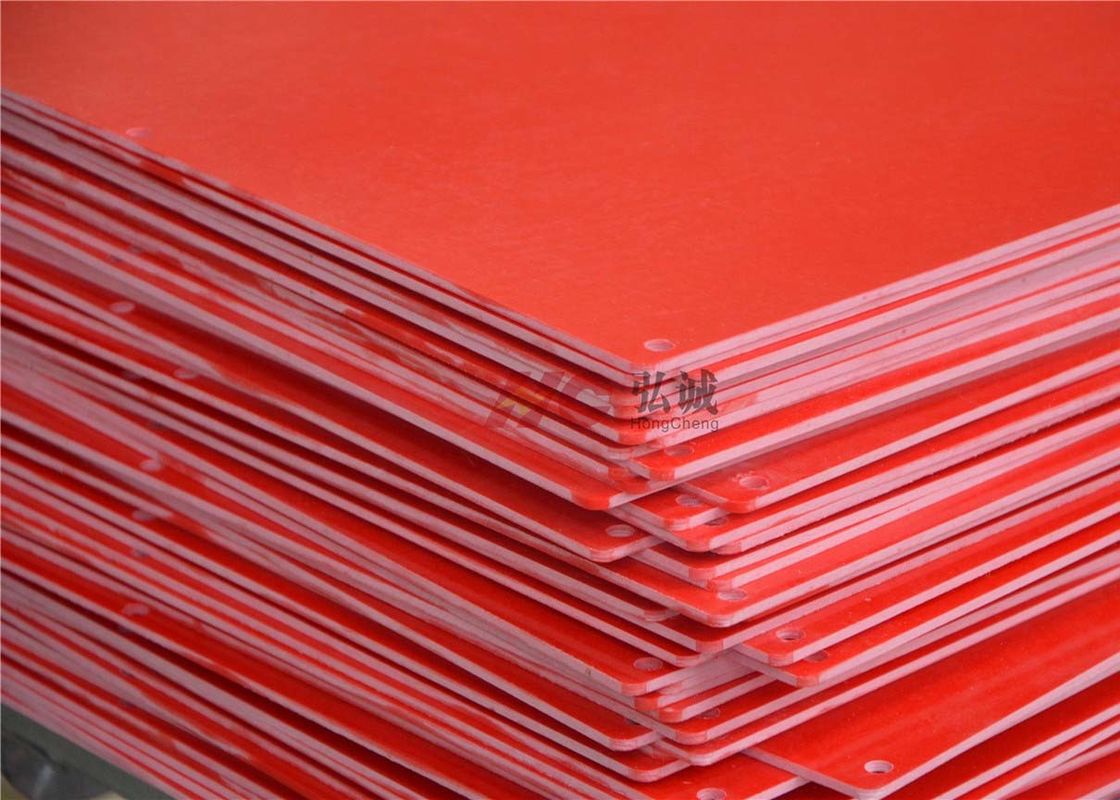

    • Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength

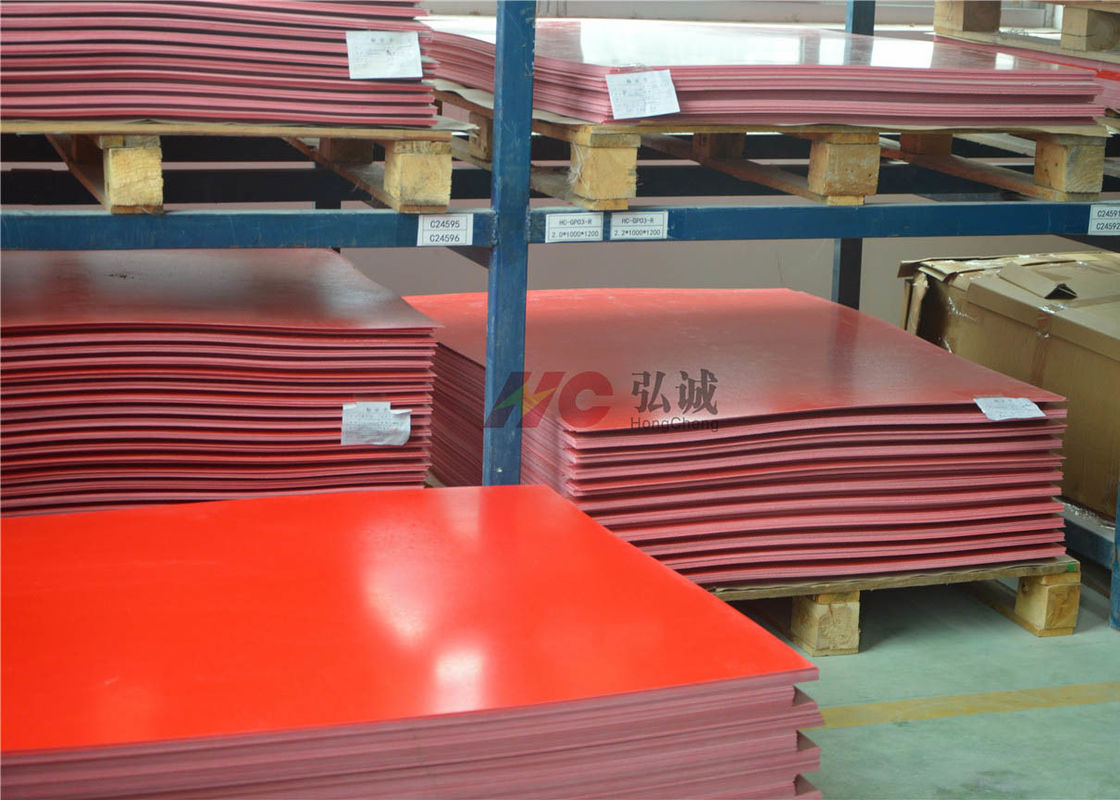

    • Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength
    • Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength
    • Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength
  • Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 piece
    Delivery Time: 1-3 WORK DAYS
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: Red UPGM203 Nema Standard: GPO-3
    German Standard: HM2471 Flame Resistance: V-0
    Temperature Index: 155℃

    Red upgm203 fiberglass Sheet / Red laminated sheet upgm203


    Product Introduction:

    Red upgm203 fiberglass Sheet is made of akili-free glass mat impregated with polyester resin under heat and pressure process.



    Feature:

    Red upgm203 fiberglass Sheet has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.



    Application:
    it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.


    Thickness range :2mm-60mm



    Sheet Size:1000mm*1200mm


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good

     Red UPGM 203 Insulation Sheet HM2471 German Standard High Mechanical Strength

    Red upgm203 fiberglass Sheet  is used extensilvely  in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
    Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.

    In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.
