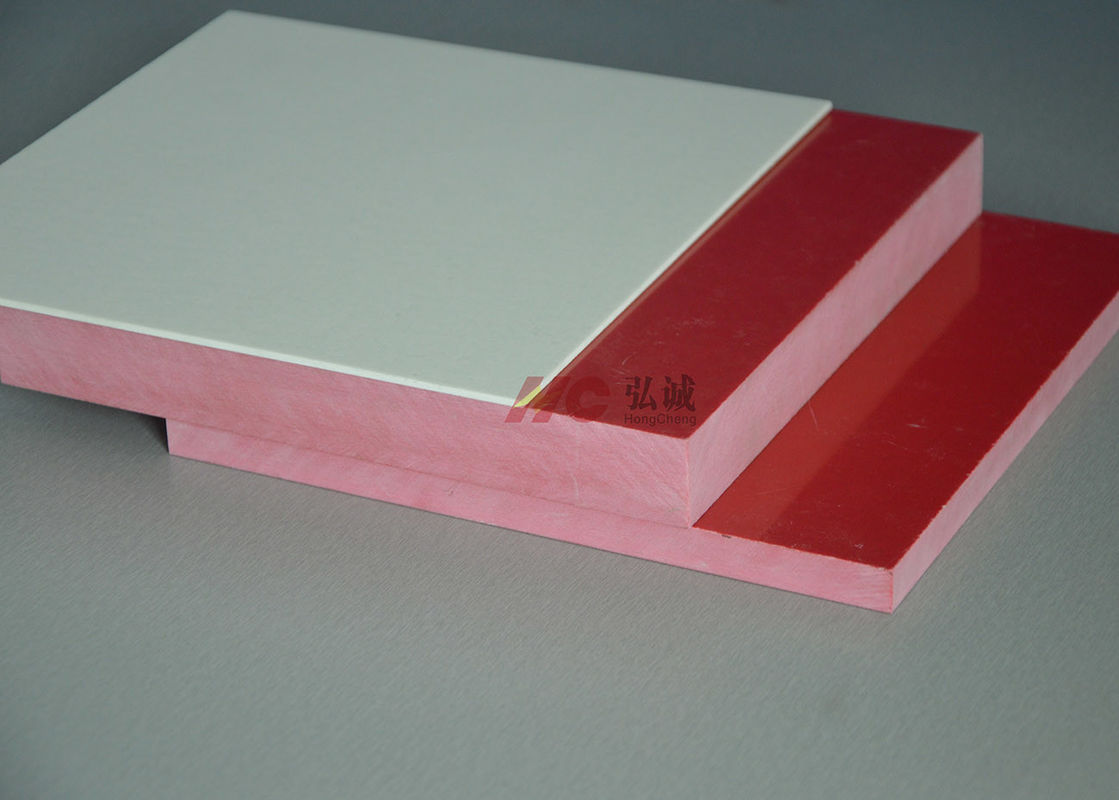

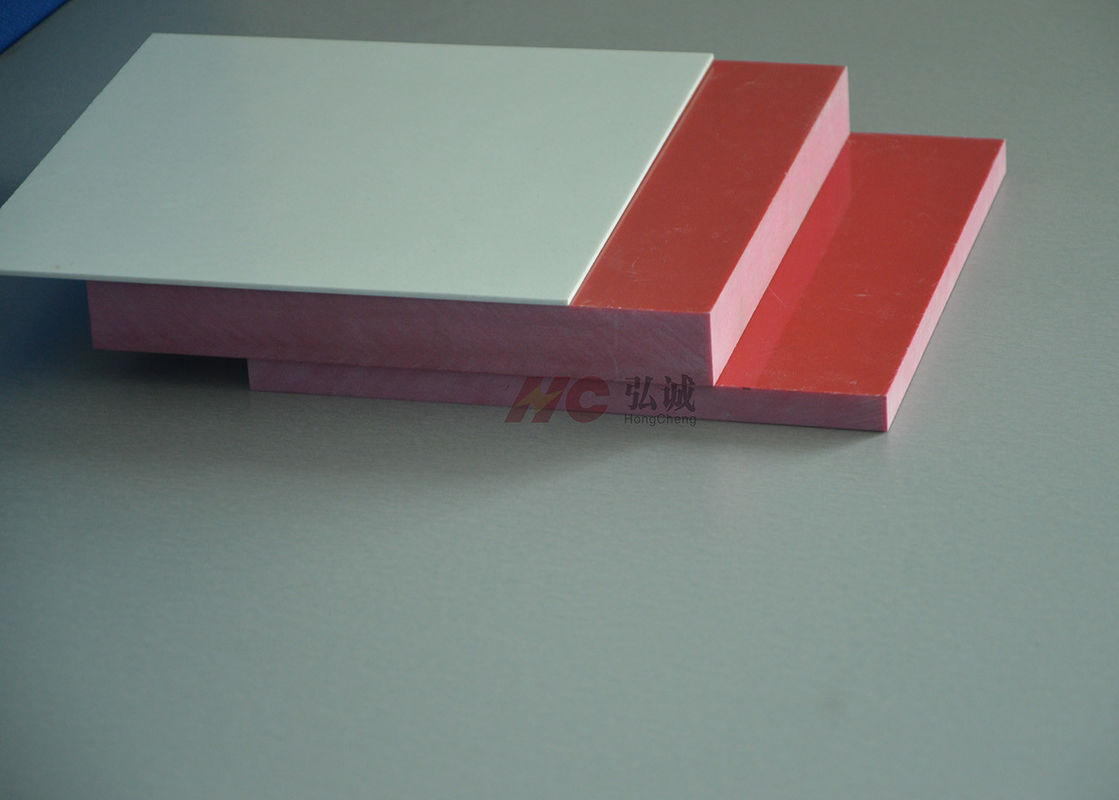

No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet

    • No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet
    • No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet
    • No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet
  • No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: cartons,plywood pallet;crate packing
    Delivery Time: 3-5 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    German Standard: HM2471 Flame Resistance: V-0
    PTI Proof Tracking Index PTI: ≥600 V Toxicant(Emission Halogen Etc.): Low
    The Anti Microbial Properties Of Bacteria: Good Water Absorption: ≤0.5%
    Tensile Strength: ≥130Mpa Compressive Strength: ≥300Mpa

    REACH Certified Upgm203 Sheet / upgm203 with no-halogen


    Product Introduction:

    REACH Certified Upgm203 Sheet are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press,GPO3 sheet offer a superior combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.

    our laminates also have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.

    These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.



    Features:

    Electrical Insulation :All grades of upgm203 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



    Flame Resistance :upgm203 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



    Mechanical Strength :Our upgm203 sheet have stable mechanical strength wich won’t cracked when machining



    Heat Resistance:Our upgm203 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃



    Application:

    upgm203 sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    No - Halogen UPGM 203 Insulation Sheet , High Pressure Laminate Sheet





    Processing Advantages:

    1.  Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;

    2. We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.

    3.  To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .

    4.  The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.

    5.  The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.

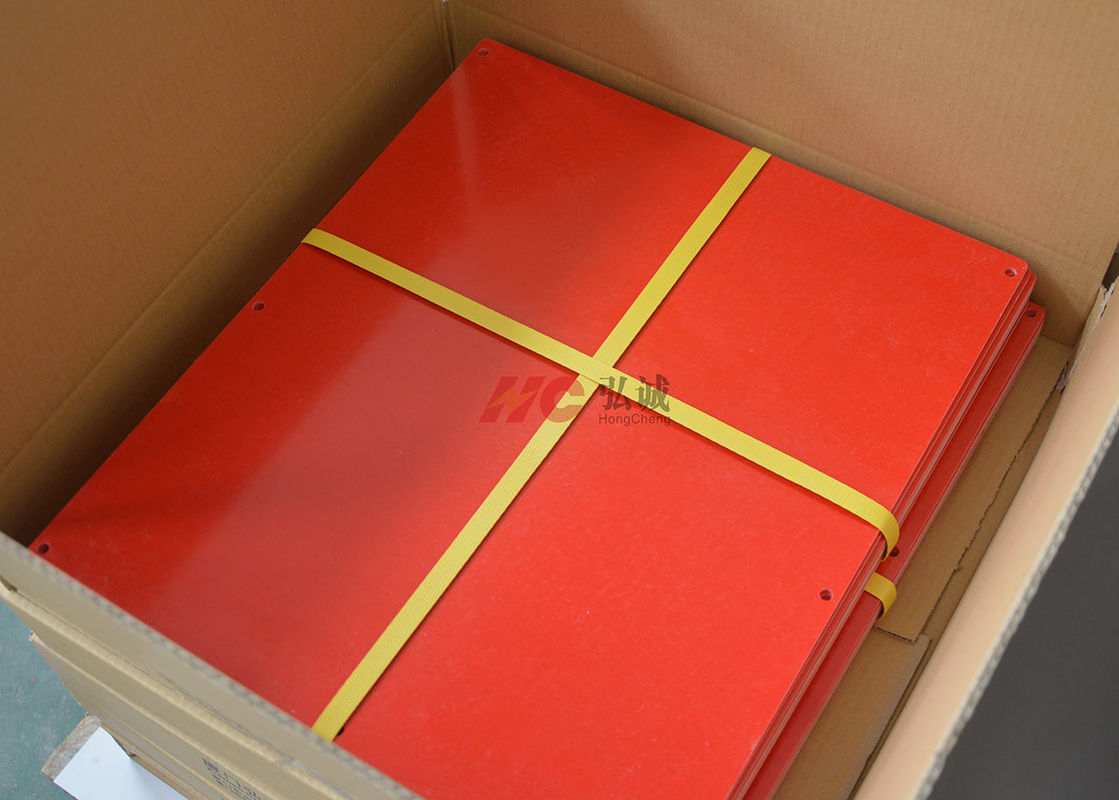

    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
