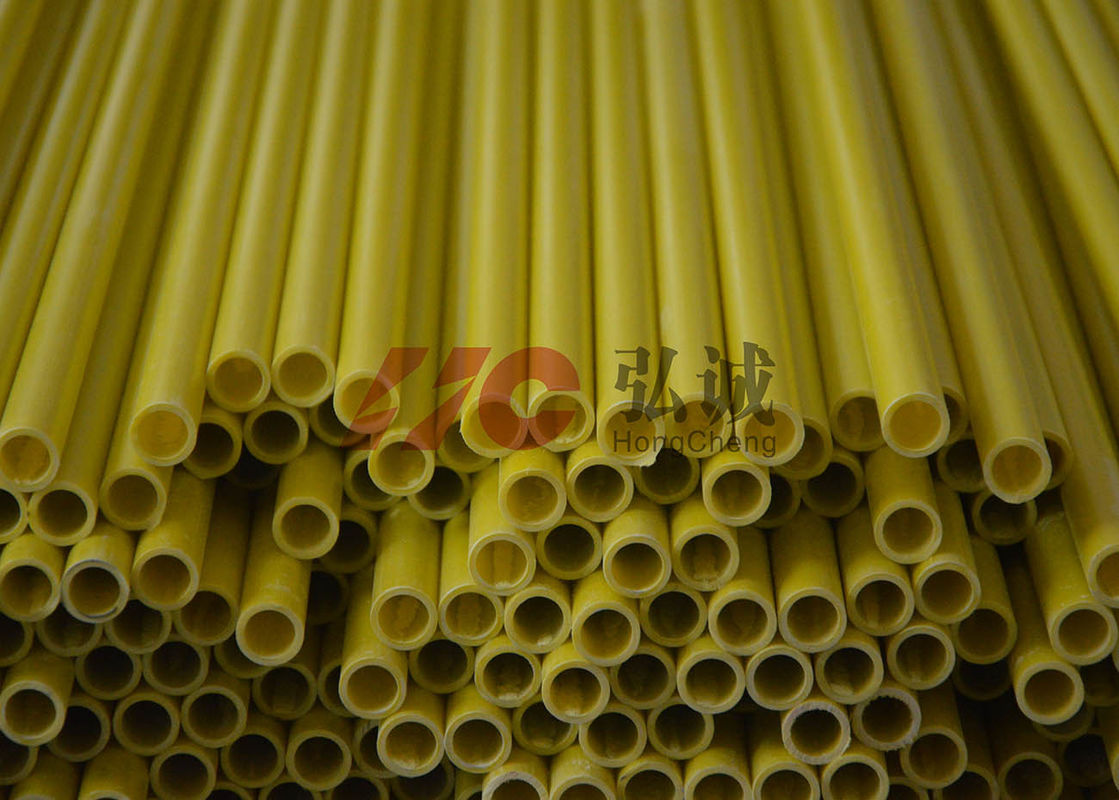

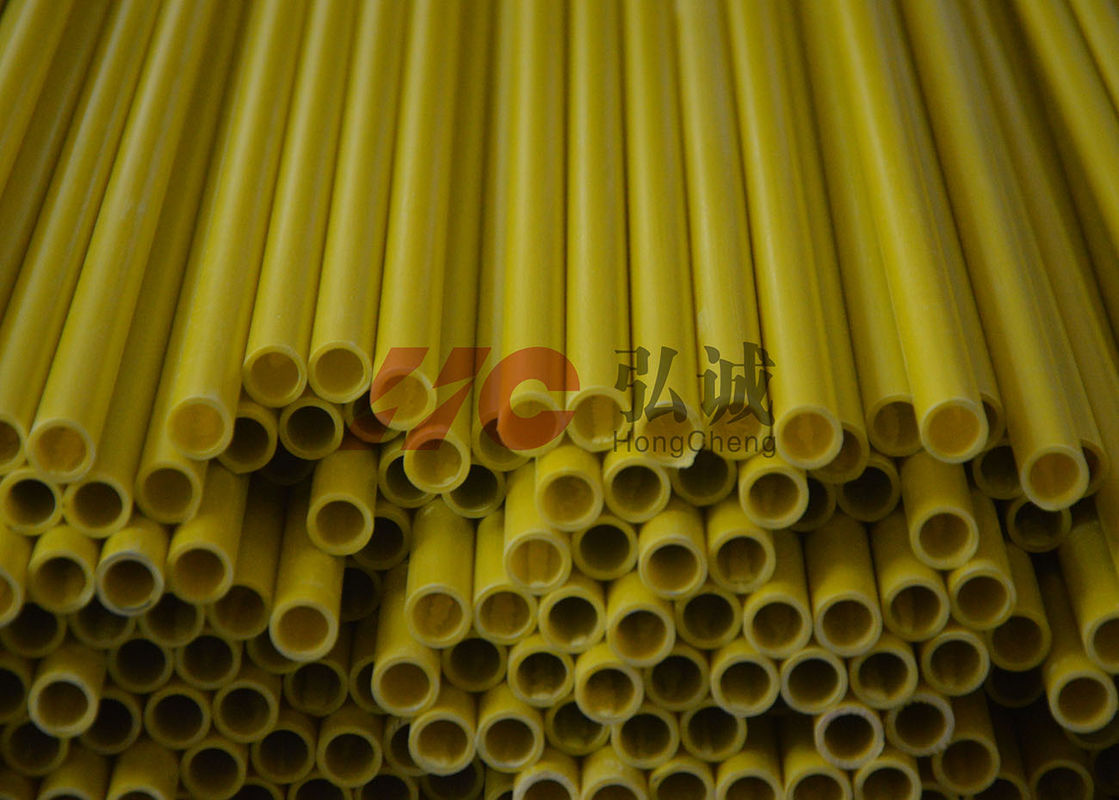

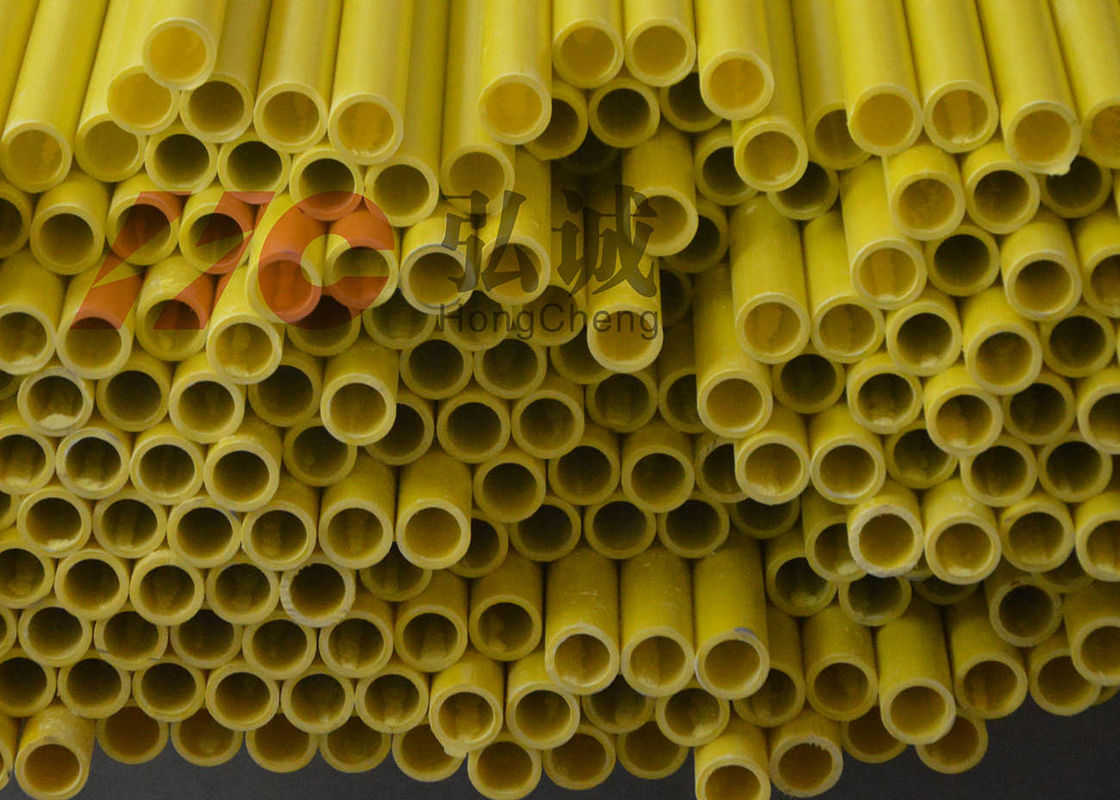

Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength

    • Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength
    • Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength
    • Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength
  • Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Model Number: HC-XC-RT-R

    Payment & Shipping Terms:

    Packaging Details: crate packing/ carton/pallet
    Delivery Time: 5-8work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Epoxy Pultruded Rod Product Color: Light Green
    Density: 2.1g/cm3 Tensile Strength: ≥400Mpa
    Flexural Strength: ≥650Mpa

    Yellow pultruded epoxy tube / Pultrusion tube with high flexural strength


    Product Introduction:
    Yellow pultruded epoxy tube is made of composed imported alkali-free glass fiber cloth ,impregnated with imported high quality epoxy resin,added the imported fire retardant and cementing compound,pultruded under high temperature and high pressure.



    Materials:Epoxy resin,E-class glass mat,fire retardant and cementing compound.



    Feature:Meet the requirement of different colors and smooth appearance High arc resistance & mechanical strength & flame resistance,low water absorption,the insulation properties not changed by the time and environment






    Hong Cheng Grade FR4 Epoxy Tubes
    Item No.
    Item Test method unit values
    Physical properties Flexural strength JB/DQ2473-90 Mpa ≥156.9
    Shear strength JB/DQ2473-90 Mpa ≥7.84
    Compressive strength JB/DQ2473-90 Mpa ≥88.3
    Water Absorption JB/DQ2473-90 % ≤0.05
    Electric strength perpendicular to lamination JB/DQ2473-90 kv 5.5kv Pass
    Electrical Properties Permittivity(50Hz) JB/DQ2473-90 % ≤0.05
    Density JB/DQ2473-90 g/cm3 1.6
    Surface Resistivity(500v) JB/DQ2473-90 Ω ≥1.0
    Volume Resistivity(500v) JB/DQ2473-90 Ω*m ≥1.0

    Yellow pultruded epoxy tube used in Switch cabinet

    Yellow Pultruded Fiberglass Tube / Hollow Fiberglass Tube High Flexural Strength

    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
