SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

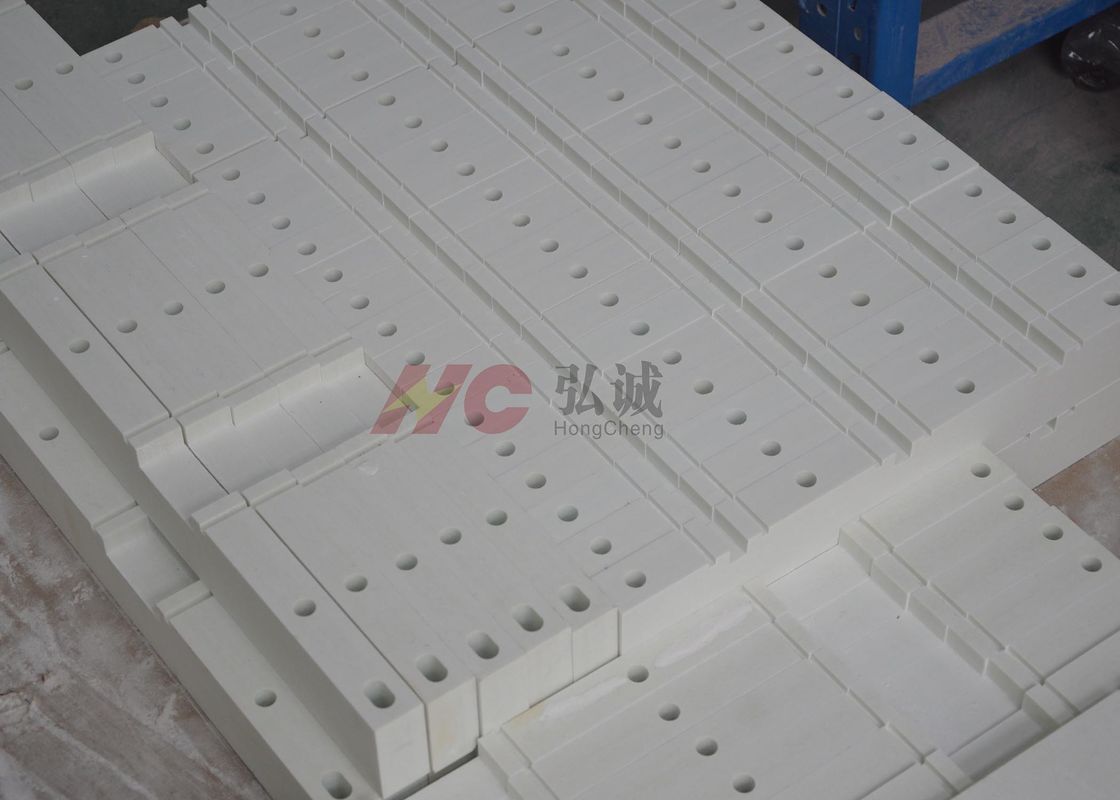

    • SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

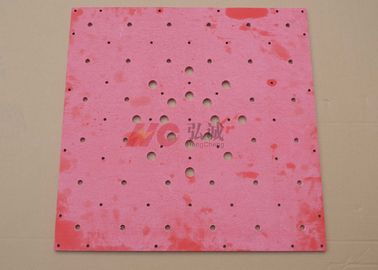

    • SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

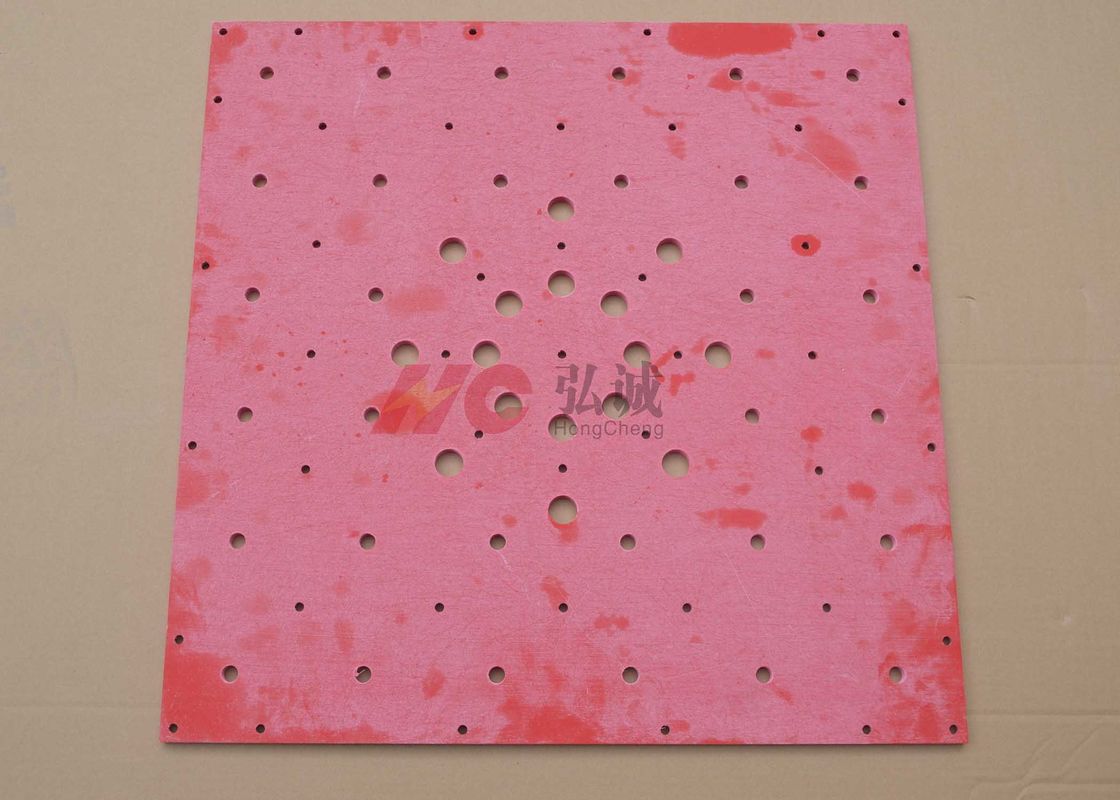

    • SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

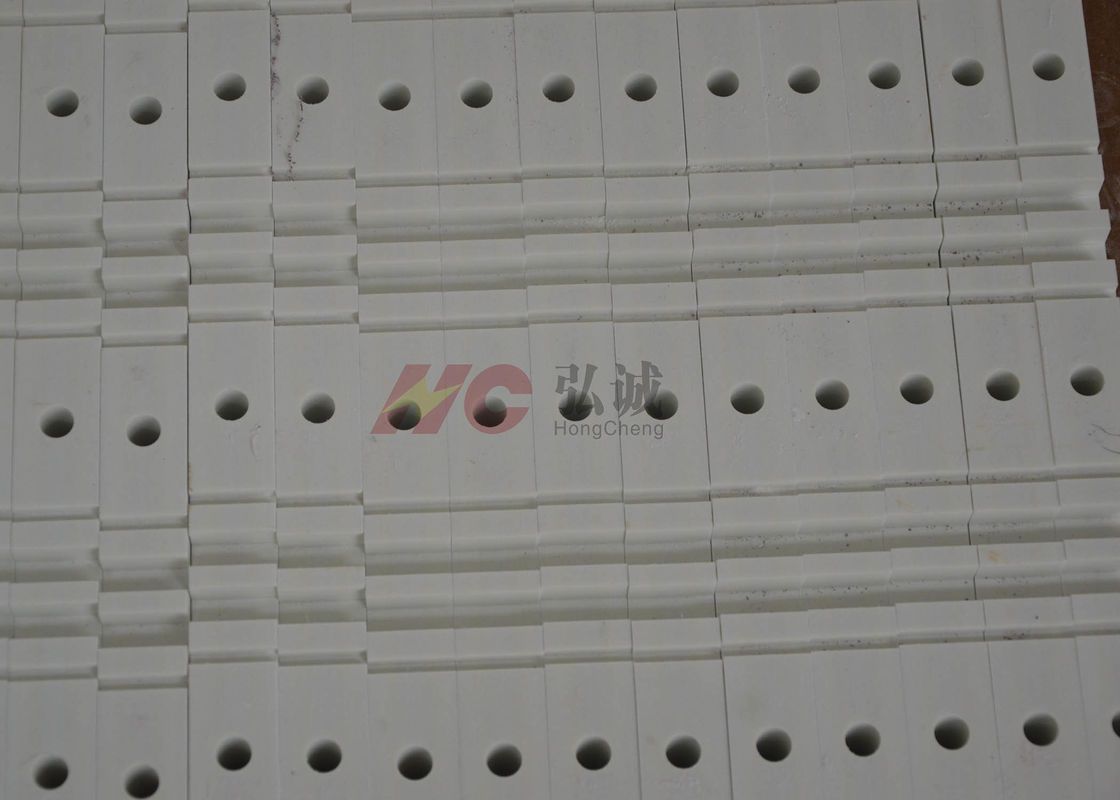

  • SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Packaging Details: cartons,plywood pallet;crate packing
    Delivery Time: 3-5 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Color: White/ Red/Gray Flame Resistance: V-0
    Toxicant: Low The Anti Microbial Properties Of Bacteria: Good
    Oxygen Index: ≥30% Tensile Strength: ≥130Mpa
    Compressive Strength: ≥300Mpa

    SGS Certified Upgm203 Sheet / upgm203 sheet with high heat resistance and fire retardant


    Product Introduction:
    SGS Certified Upgm203 Sheet are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press


    Feature:

    It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.



    Application:

    it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.



    Thickness range :2mm-60mm



    Sheet Size:1000mm*1200mm



    Main Color:Red,White ,Brown,Yellow or Gray


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    SGS Certified UPGM 203 Insulation Sheet With High Heat Resistance And Fire Retardant

    products: electrical reactor/Transformer
    materials: UPGM203 laminated sheet with SGS certified
    Description: The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
    Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
