Home ProductsGPO3 Fiberglass Sheet

Xiamen Hongcheng Insulating Material Co., Ltd.

Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption

    • Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption
    • Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption
    • Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption
    • Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption
  • Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption

    Product Details:

    Place of Origin: Xiamen China
    Brand Name: Hongcheng
    Certification: UL/RoHS 2.0 /Reach/SGS/DIN5510/EN45545
    Model Number: Yellow GPO-3

    Payment & Shipping Terms:

    Packaging Details: Carton/pallet
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Electric Strength: ≥ 12kV/mm Breakdown Voltage: ≥ 80kV/25mm
    IEC Standard: UPGM203 German Standard: HM2471
    Tensile Strength: ≥130Mpa Compressive Strength: ≥300Mpa
    Volume Resistivity: ≥ 1.0 X 1010Ω·m Surface Resistivity: ≥ 1.0 X 1012Ω

    Yellow GPO3 Fiberglass Board Sheets EN45545 certifited Low cost low water absortion


    Product Introduction:



    Product Introduction:

    Yellow GPO3 Fiberglass or related products are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press
    Feature: It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.
    Application: it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.
    Thickness range : 2mm-60mm
    Sheet Size: 1000mm*1200mm
    Main Color: Red,White ,Brown,Yellow or Gray

    Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good

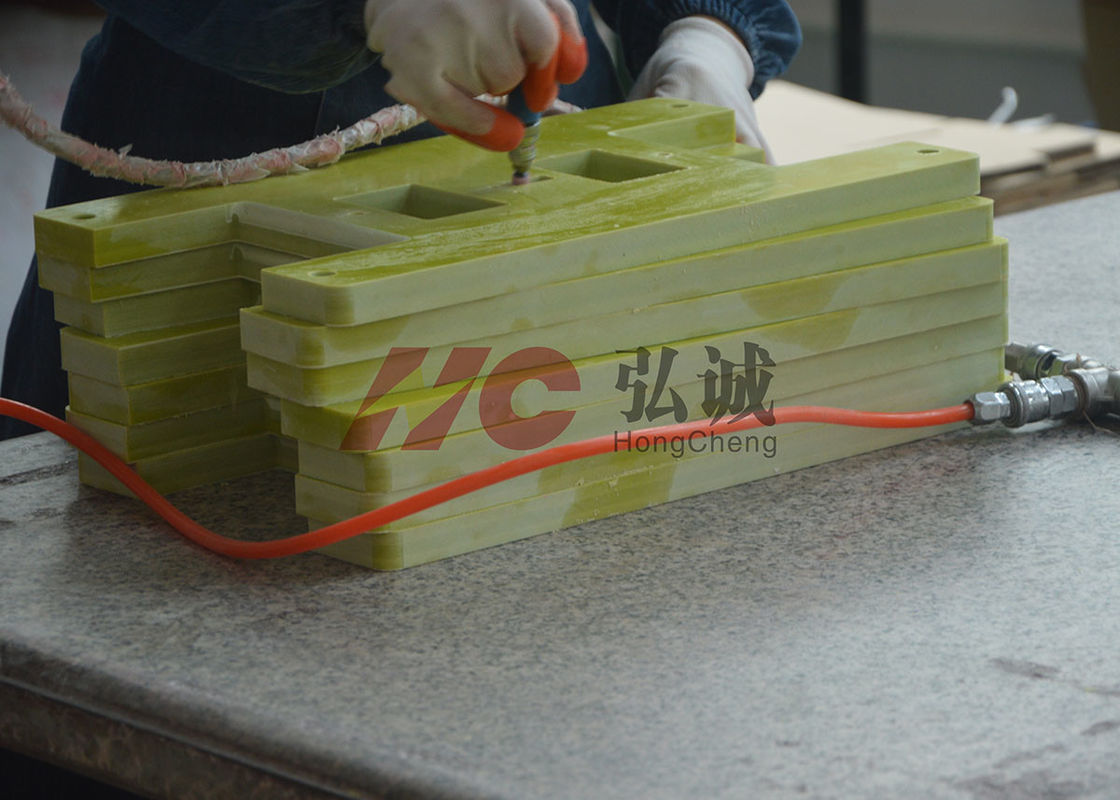

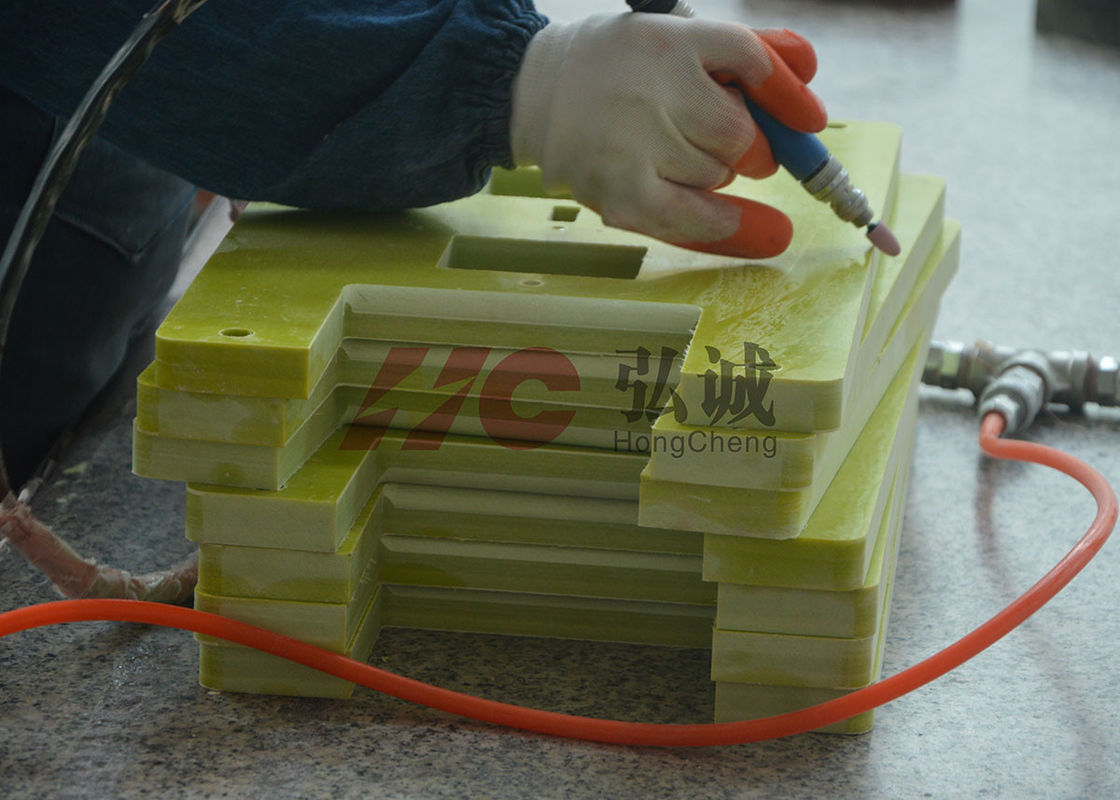

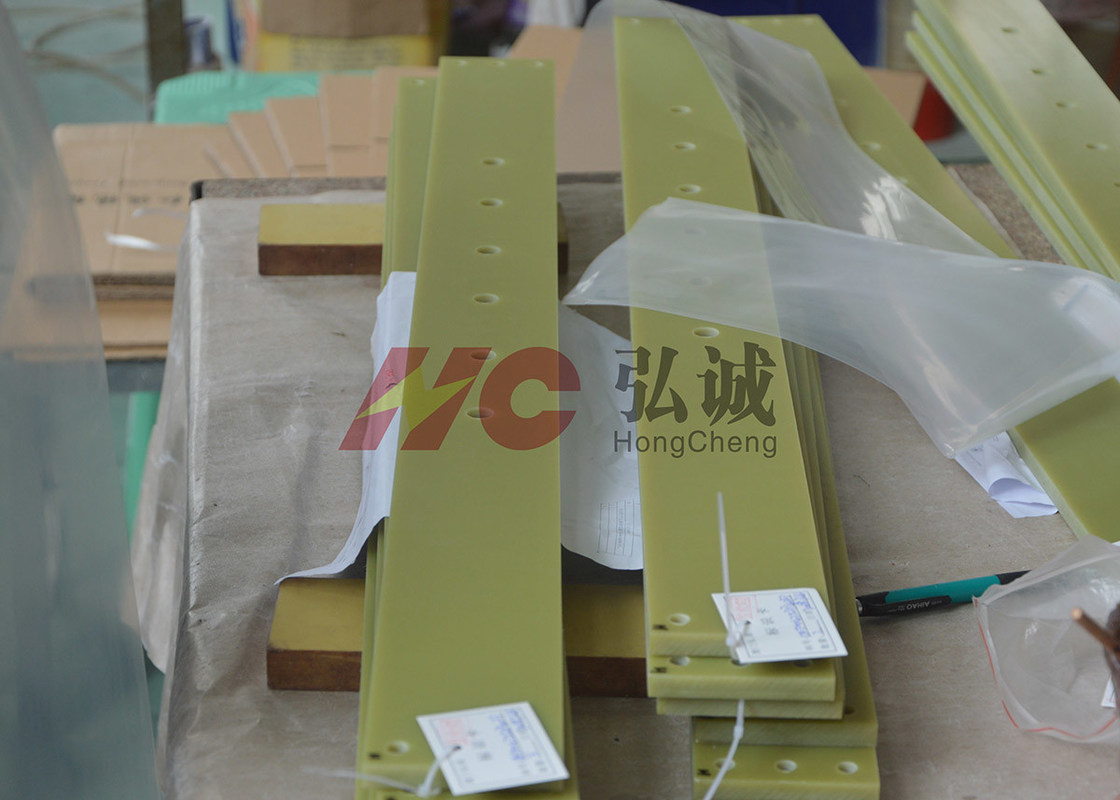

    Yellow GPO3 Fiberglass Board Sheets EN45545 certifited Low cost low water absortion used in jig and fixture

    Yellow GPO3 Fiberglass Sheeting Panels EN45545 Certified Low Water Absorption

    Tooling jig refers to auxiliary consumables used in machining parts and producing products , such as polishing spacer , tooling fixture of CNC machining, various blocks, etc. The requirements of insulation materials in this field are different such as abrasion resistance, high mechanical strength and excellent tolerance .The commonly materials used in this industry are HC-GPO3/HC-FR4/HC-FR2 etc.
