FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification

    • FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification
    • FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification
    • FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification
    • FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification
  • FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification

    Product Details:

    Place of Origin: Xiamen China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach/EN45545/DIN5510
    Model Number: FR 5 / EPGC204 / Hgw2372.4

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR5 H-class Epoxy Fiber Glass Sheet IEC Standard:: EPGC204
    Water Absorption: <0.3% Electric Strength⊥: ≥ 14KV/mm
    Breakdown Voltage∥: ≥ 60KV Volume Resistivity: ≥ 1.0×10P12Ω.m



    Low water abortion FR5 epoxy fibreglass sheet high temp index H-class grade EN45545 certification




    Product Introduction: Low water abortion FR5 epoxy fibreglass sheet high temp index H-class grade EN45545 certification also known as EPGC204 under the IEC standard which were joint developed by ISOLA Twaiwan and our company,This is the high temperature resistant rigid plate insulating materials.

    Feature:

    Heat resistance:High temperature resistance more than 180℃(the gradeof heat resistance is class H)

    Voltage resistance: the voltage resistance of FR5 up to 16KV/mm

    Fire retardant: FR5 Epoxy sheets are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.

    Mechanical strength:FR5 Epoxy sheet have stable mechanical strength and high degree of automation processing.

    Application:

    1. High-voltage motor and electrical equipment as insulating structure: high-tension switch cubible,transformer,frequency changer,Converter,DC motor,AC contactor

    2. Switch cubicle:bursting disk,lining plate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plat insulating supports

    3. Strut member and bus bar supports

    4. The armature parts of electrical machine:cover plate,slot wedge,stator gasket,shims,carbon brush etc.

    FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification


    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    Low water abortion FR5 epoxy fibreglass sheet high temp index H-class grade EN45545 certification in Photovoltaic system

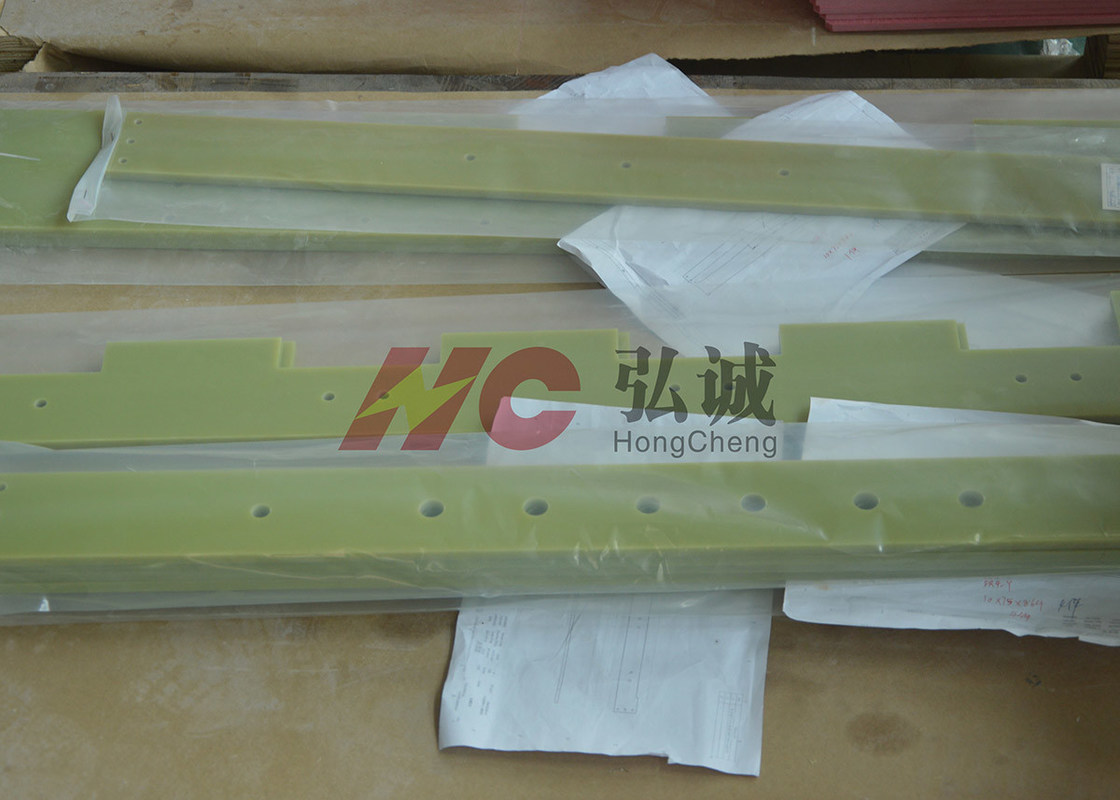

    FR5 Epoxy Fiberglass Sheet High Temp Index H - Class Grade EN45545 Certification

    Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.
    Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.
