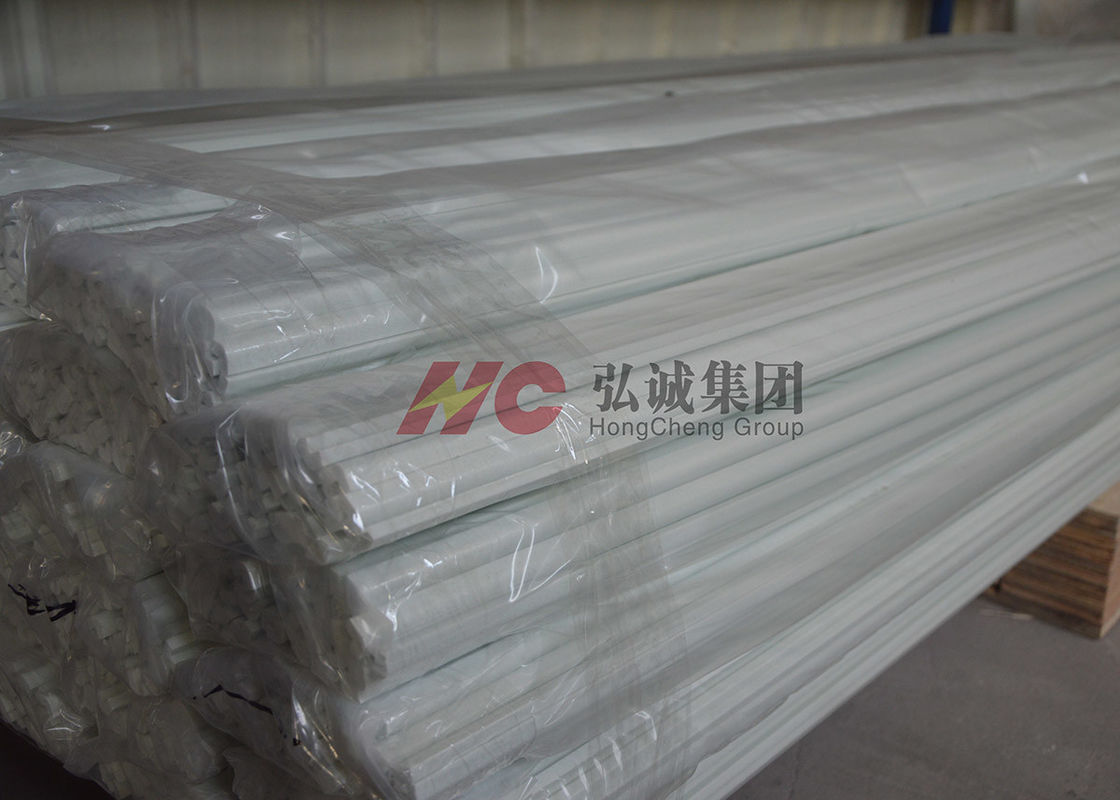

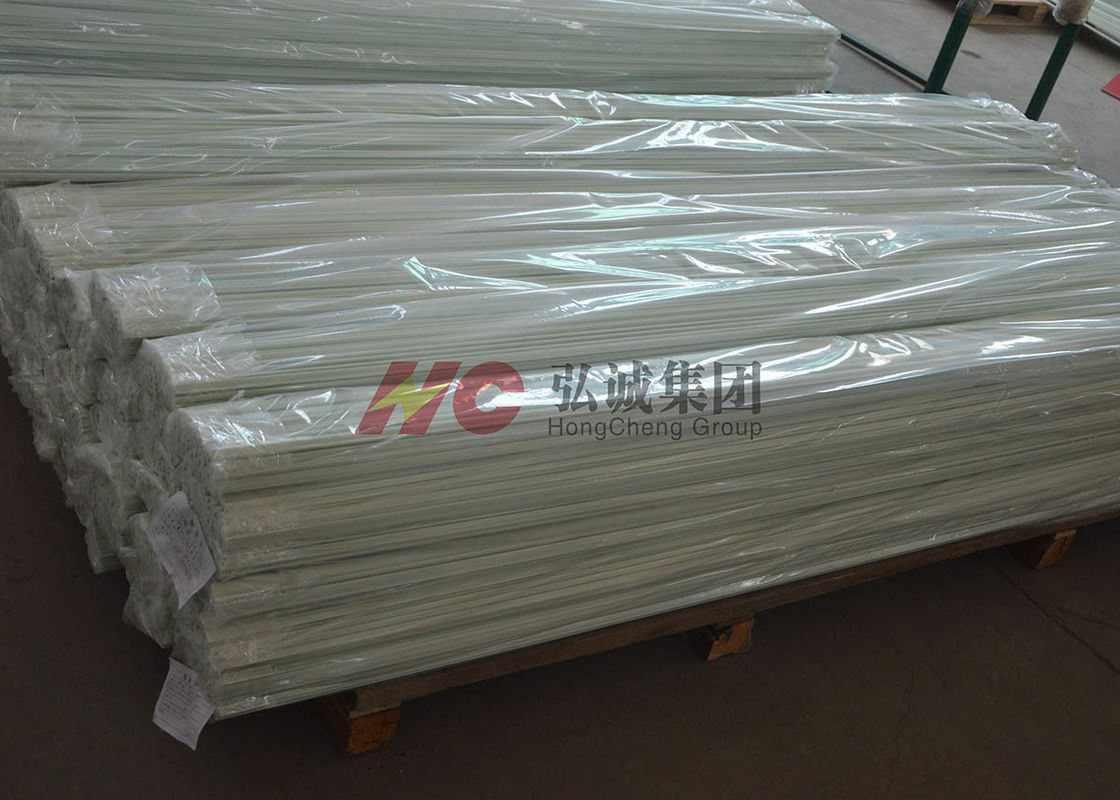

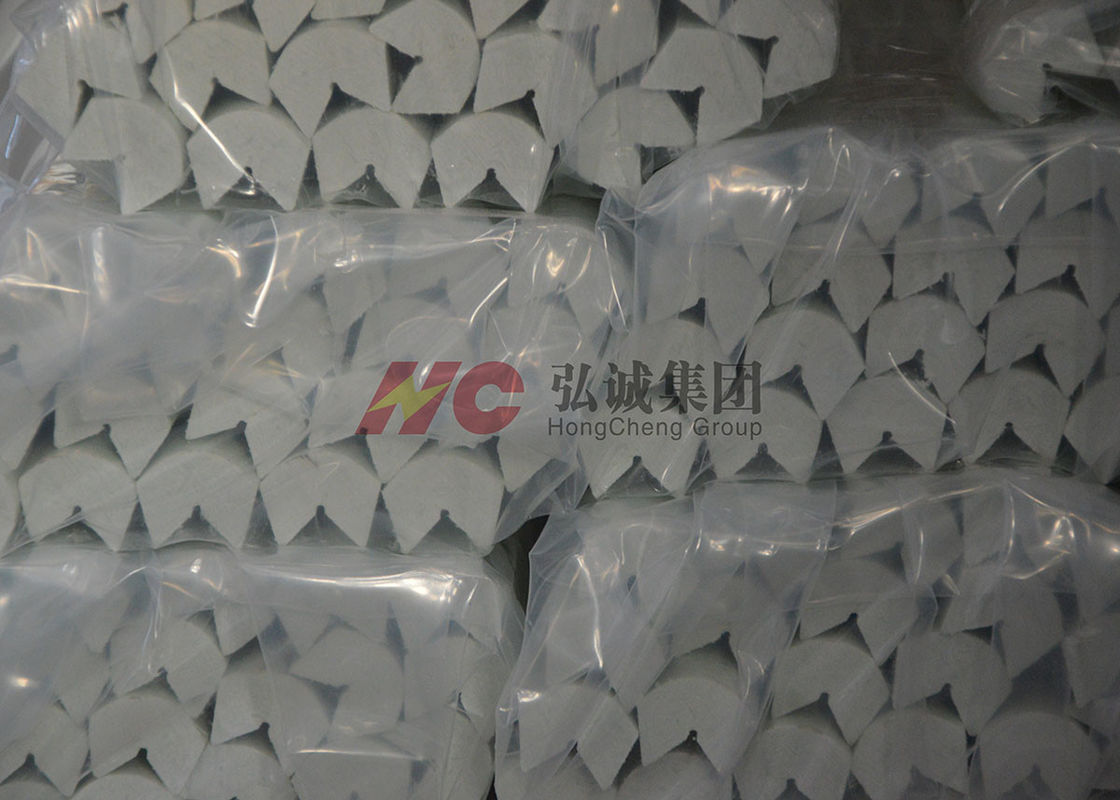

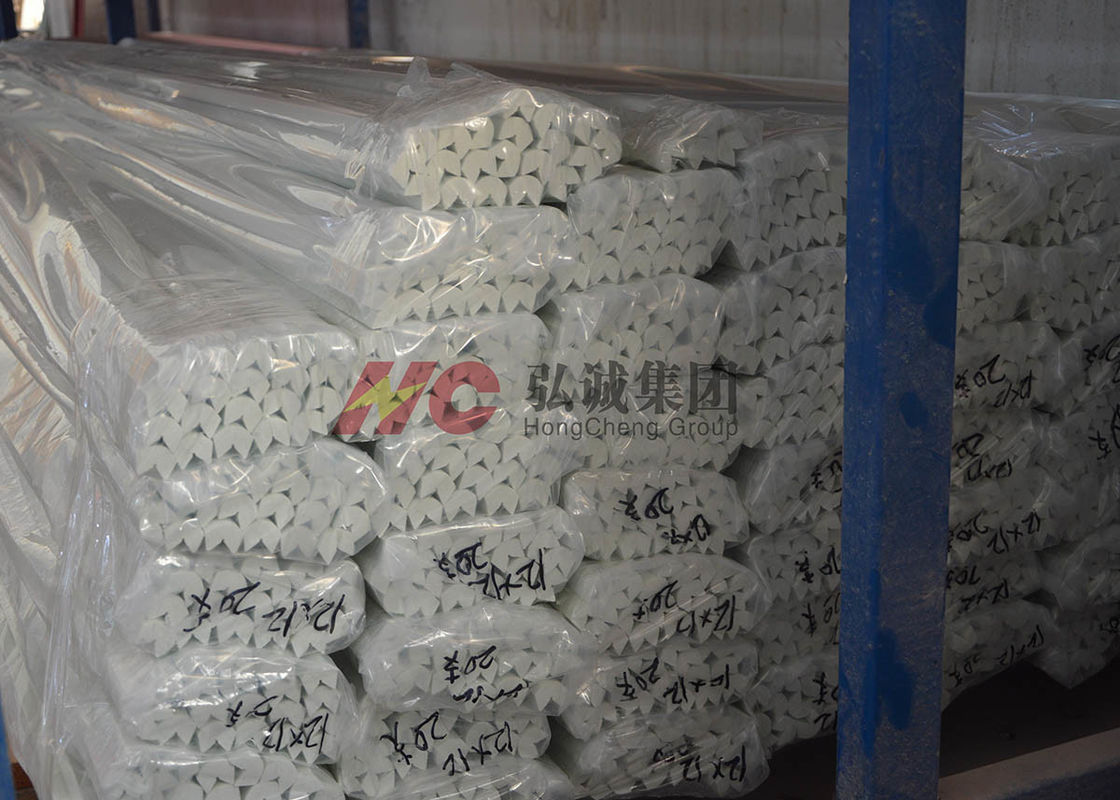

Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer

    • Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer
    • Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer
    • Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer
    • Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer
  • Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer

    Product Details:

    Place of Origin: Xiamen China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/Din 5510
    Model Number: Corner bone

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Tensile Strength: >400Mpa Coefficient Of Thermal Expansion: ≤2×10-5
    Surface Resistivity: ≥ 1.0×1014Ω Electric Strength Perpendicular To Lamination (90℃ In Oil): ≥ 10.0KV
    Breakdown Voltage Parallel To Lamination: ≥ 45KV

    Corner Bone used in transformer have high flexural strength ,non-cracking and low cost


    Dry type transformer GPO3 Conner Bone specification:

    1. it is class F and H insulation material.
    2. size: 8x6mm, 10x8mm, 10x10mm, 12x10mm, 12x12mm, 13x10mm, 14x10mm etc.
    3. High mechanical strength
    4. Excellent electrical isolation
    5. color: white, red etc.
    6. Dry type transformer FRP Dogbone Application:
    7. Mainly use for dry-transformers,Inductor,and motor wedges etc
    Introduction:

    RoHS Certified Corner Bone is pultruded by composed of e-class glass-fiber or glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Product Feature:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Non-cracking,space stability

    Arc resistance:≥180S which is longer than most of other material

    Track Resistance: CTI ≥600V

    Heat resistant:H class,heat resisitance up to 180℃

    Fire retardant:UL 94 V-0 Grade

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Application: GPO-3 Corner bone has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

    Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer


    Diagram:

     Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For TransformerNon - Cracking Pultruded Corner Bone Excellent Electrical Isolation For TransformerNon - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer


    Specification sheet:

    Product Name Item No. Size
    Corner bone HC-XC-C-W 6*6 normal
    HC-XC-C-W 8*8 normal
    HC-XC-C-W 10*10 normal
    HC-XC-C-W 12*12 normal
    Corner bone HC-XC-SC-W 7*7 Special-shaped
    HC-XC-SC-W 8*8 Special-shaped
    HC-XC-SC-W 10*10 Special-shaped
    HC-XC-SC-W 12*12 Special-shaped
    HC-XC-SC-W 16*16 Special-shaped



    Non - Cracking Pultruded Corner Bone Excellent Electrical Isolation For Transformer

    Reactor special-purpose Corner bone
    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
