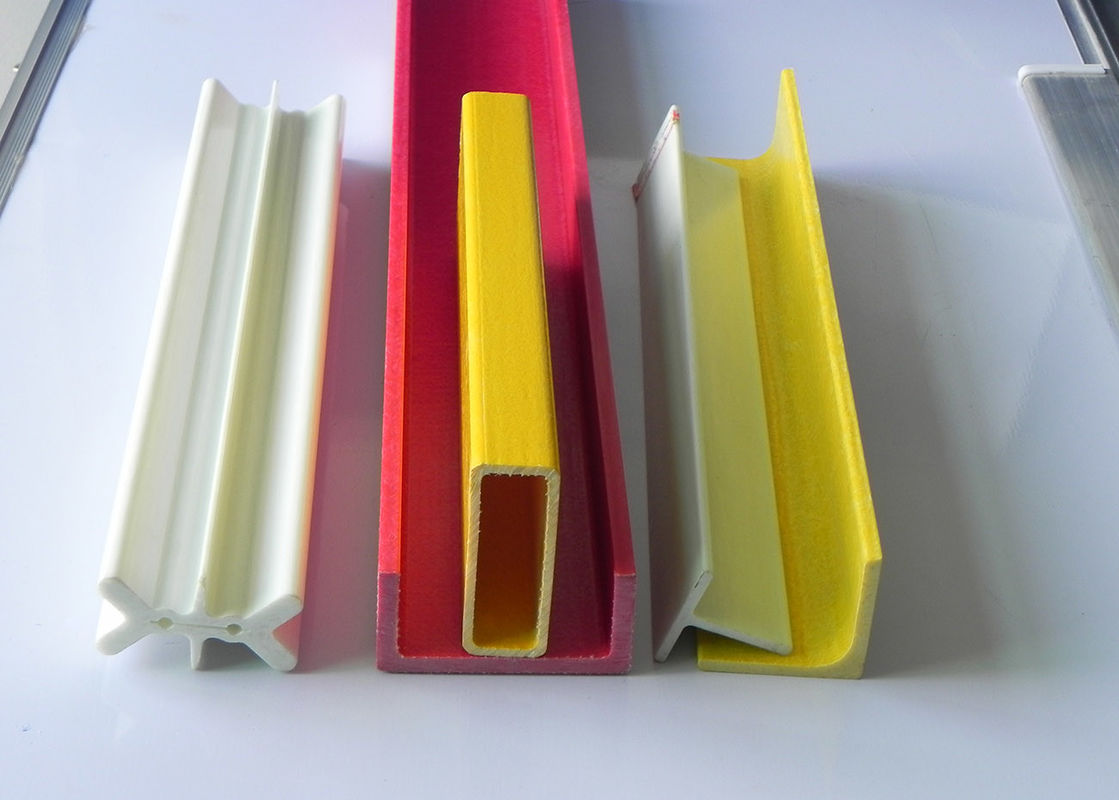

H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer

    • H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer
    • H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer
    • H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer
    • H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer
  • H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer

    Product Details:

    Place of Origin: Xiamen China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach
    Model Number: Dog bone

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Insulation Dog Bone Product Color: Red/Gray/White
    Density: 1.85-2.00g/cm3 Volume Resistivity: ≥1.0 X 1012Ω·m
    Surface Resistivity: ≥ 1.0×1014Ω Arc Resistance: ≥ 180Sec.

    H-class heat resistance GPO3 dog bone used in dry transformer have high Compressive strength




    Type

    GPO3 Fiberglass Pultruded Shape
    Material GPO3 fiberglass
    Size can be customized (pls check detail as below form)
    Color According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized



    Product Description:

    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.





    Application:

    transformer ,reactor,large dry transformer

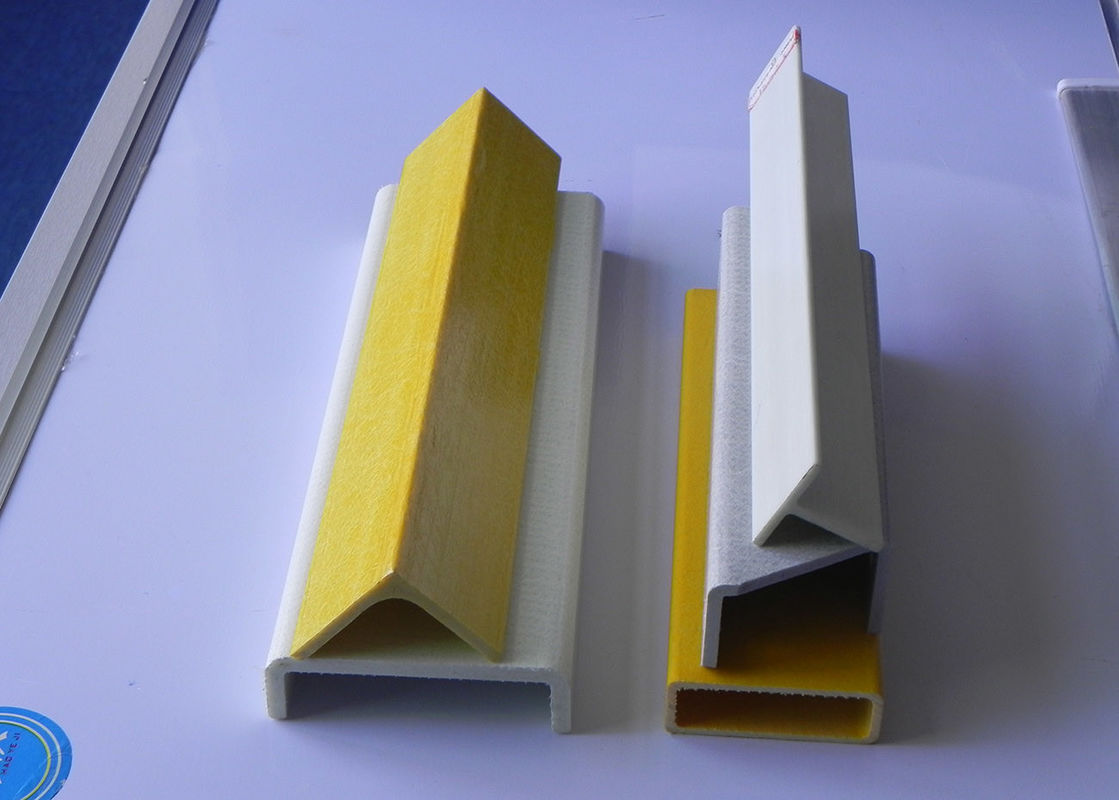

    H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer

    Product Feature:

    Light Weight / High Strength Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength
    Anti-Fire / Safety Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
    Anti-Corrosion No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
    Anti-skid / slip Different process mode on surface, concave, gritted, increase friction factor.
    Anti-aging Have more than 20 years effective service life under normal outdoor working condition.
    Anti-fatigue Moderate flexibility reduces the workers` pressure on legs and waist
    Easy maintenance have alternative and bright colors. Non-fading. Easily for clean.
    Excellent economic benifits Excellent comprehensive economic benefits

    High performance insulation dog bone used in New energy

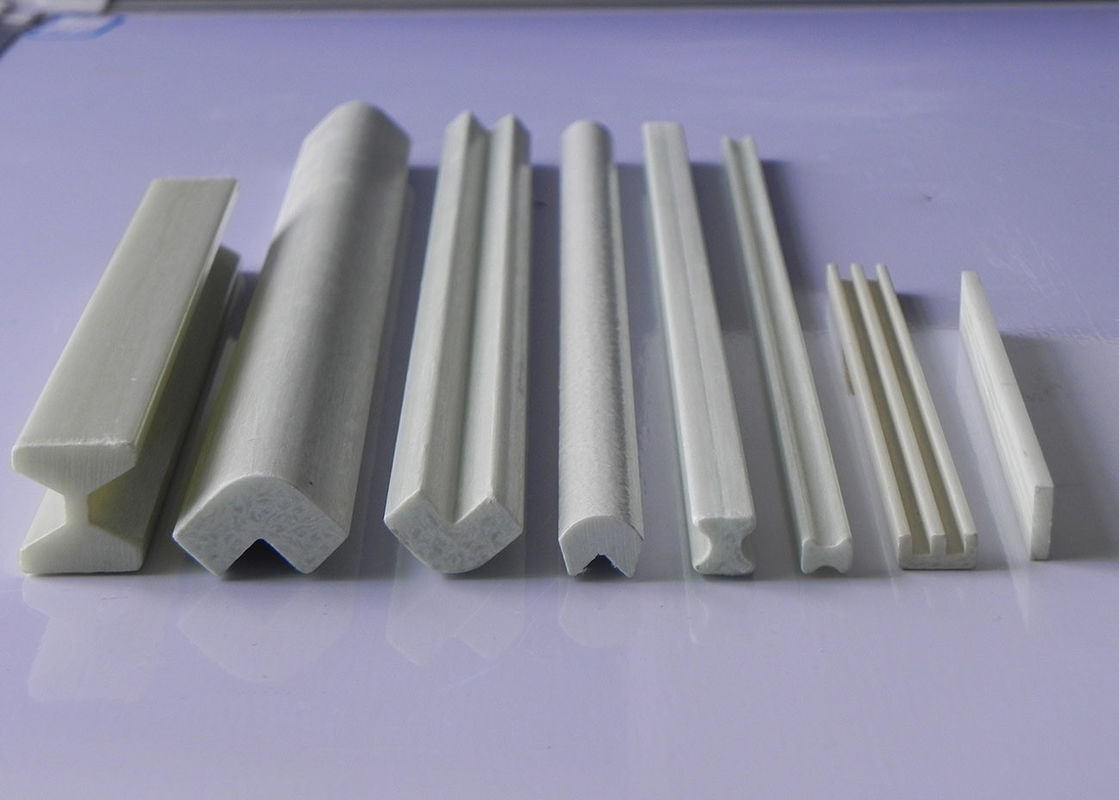

    H - Class Heat Resistance Gpo - 3 Dogbone Customized Size For Dry Transformer

    New energy in the energy field is a trend that the world has been advocating for development, it has been developing from traditional oil and coal to cleaner and more environmentally friendly energy sources such as solar power and wind power etc..
    At the same time, clean energy has been using to develop energy storage areas such as lithium batteries, supercapacitors and energy-saving components.With the development of the industry, the insulation materials of our company have expanded more market and R&D direction
    Our GPO-3sheet are widely used in new energy field,including Wind power,photovoltaic,power battery etc.
