White Reinforcement Sheet / White Laminate Sheets High Flexural Strength

    • White Reinforcement Sheet / White Laminate Sheets High Flexural Strength
    • White Reinforcement Sheet / White Laminate Sheets High Flexural Strength
    • White Reinforcement Sheet / White Laminate Sheets High Flexural Strength
  • White Reinforcement Sheet / White Laminate Sheets High Flexural Strength

    Product Details:

    Place of Origin: China Xiamen
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: UPGM203 fiberglass sheet

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 piece
    Price: USD 3.5-6 per kg
    Packaging Details: crate packing/ pallet/ carton
    Delivery Time: 1-3 WORK DAYS
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: Red UPGM203 German Standard: HM2471
    Specific Gravity: 1.95-2.05g/cm3 Tensile Strength: ≥130Mpa
    Compressive Strength: ≥300Mpa Flexural Strength: ≥180Mpa

    White UPGM 203 Insulation Sheet Milky White SMC Sheet,Red UPGM203 fiberglass sheet with high flexural strength


    Product Introduction:

    White UPGM 203 Insulation Sheet is or related products are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press



    Thickness range :2mm-60mm



    Sheet Size:1000mm*1200mm



    Features:

    Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



    Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



    Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining



    Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

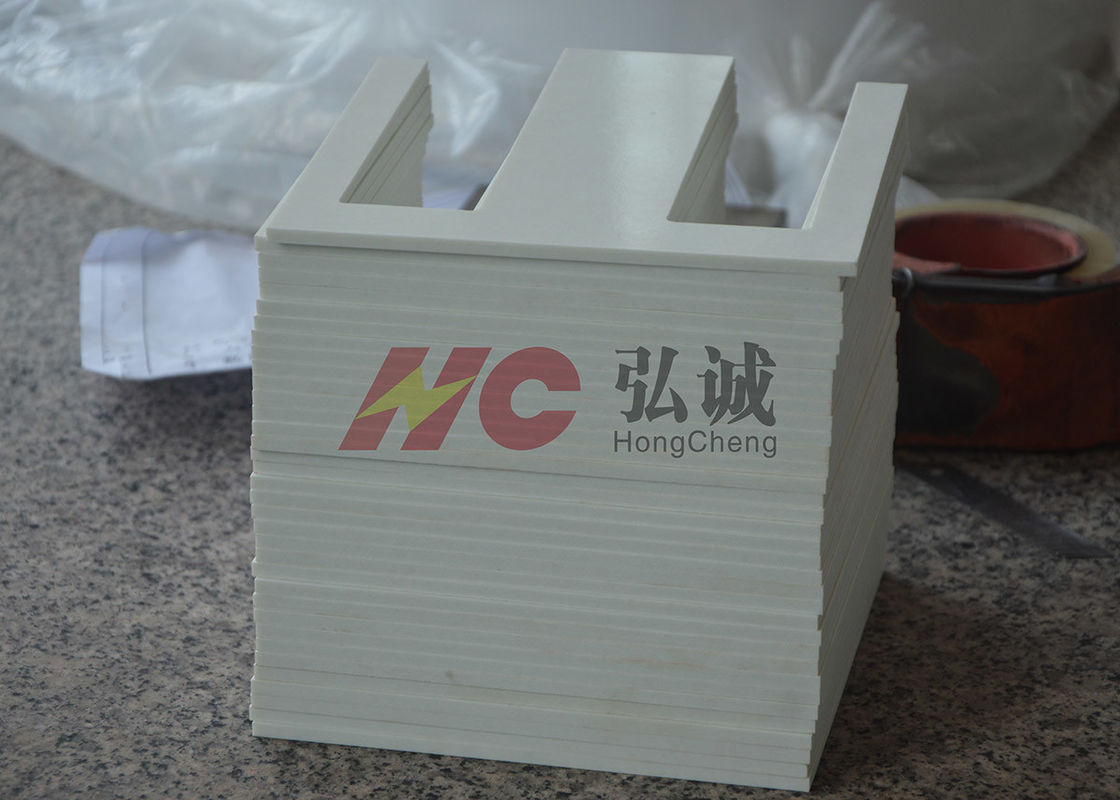

    White Reinforcement Sheet / White Laminate Sheets High Flexural Strength


    Application:

    White Reinforcement Sheet / White Laminate Sheets High Flexural Strength

    White UPGM 203 Insulation Sheet can be used extensively in low & middle voltage electrical equipments as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor,converter,inverter & explosionproof apparatus etc. ; automotive industry field etc. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arcchute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate,slot wedge, stator, gasket,shims,carbon brush etc.




    Factory & Produce Line

    White Reinforcement Sheet / White Laminate Sheets High Flexural Strength

    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
