High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts

High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts

  • High Light

    polyester sheets

    ,

    glass reinforced polyester sheet

  • Material
    Polyester And Glass Fiber
  • Color
    Red And White
  • Size
    1000*1200mm/1230*2100mm
  • CTI
    600
  • ARC
    180S
  • Name
    High Precision GPO3 Fiberglass Sheet
  • Place of Origin
    XIAMEN
  • Brand Name
    HC
  • Model Number
    GPO-3
  • Minimum Order Quantity
    100KG
  • Price
    3-4USD
  • Packaging Details
    pallet
  • Delivery Time
    3-5 work days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    500TONS/MONTH

High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts



High precision GPO-3 machined part used in electrical equipment

Product Introduction

GPO-3 machined parts where made of GPO-3 laminated sheet , GPO-3 laminated sheet was made of fiberglass and polyester resin the fiberglass was impregnated in polyester resin with the aluminium hydroxide material and then press under the high temperature & pressure by machine.

The machining precision can meet ISO2768-F according to the customer demand .It is so high precision in insulation industry . As soon as we know , higher precision which we can meet , better for the electrical products .

For example , the transformers requested high precision GPO-3 parts as the air gap . Normally , the higher precision tolerance , the better quality/performance of the products . Higher precision will increase leakproofness of transformer , the noise will be decreased , the more important is the insulation between phase will be better .

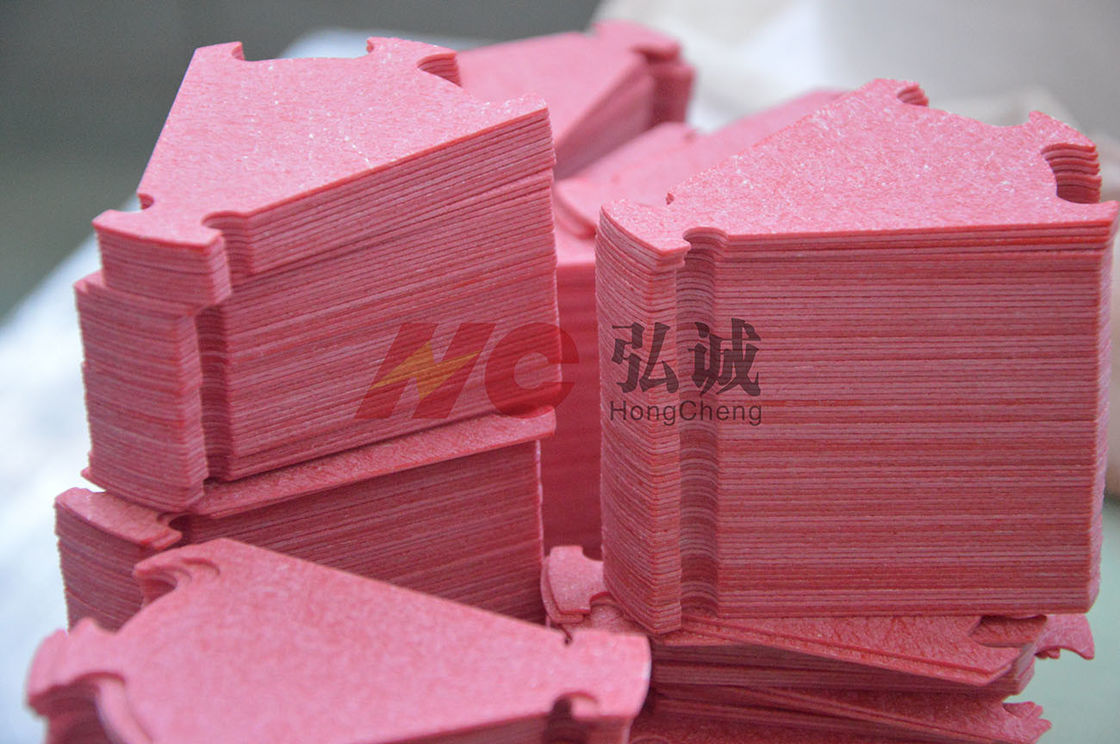

High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts 0

Feature of product

It is high precision tolerance part , it can meet tolerance ISO2768-F class

It is high leakproofness place , it will decrease the noise ;

It is easily to machine by CNC machines .

It is green product , halogen free of it .

This material is widely used in every low and medium voltage electrical products .

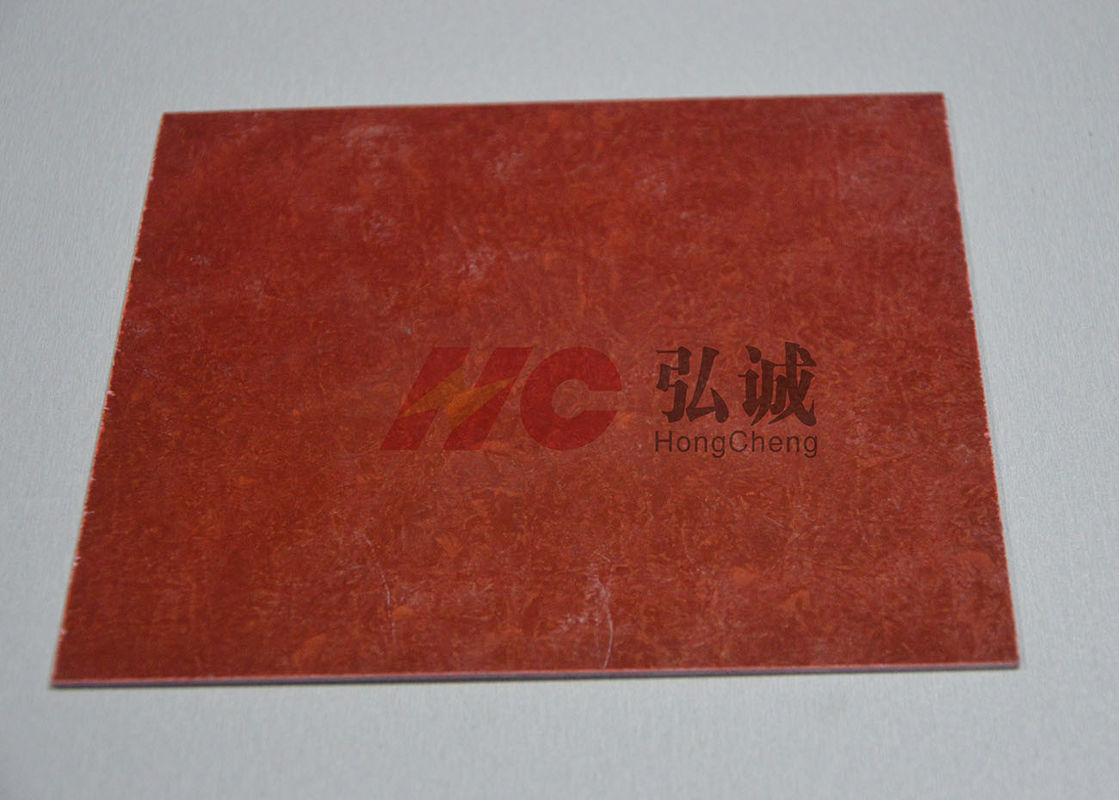

High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts 1

Application of material

GPO-3 laminated sheet with the performance on machining , it can be grinded and machined according to ISO2768-F or more precision on the tolerance . With the technology development and requirements higher and higher , more and more components will be requested higher precision on the tolerance , whole electric equipment will be more and more precision , it will help the properties improvement . such as decrease noise , increase insulation between phases etc. The machined parts/plates are widely used in transformer/Switch cabinet/uninterruptible power supply , etc.

Further more , excellent insulation properties /mechanical properties of this material , so more and more electrical equipment manufacturers use it instead of other material as the plate , bracket , busbar , Cable clamp etc.

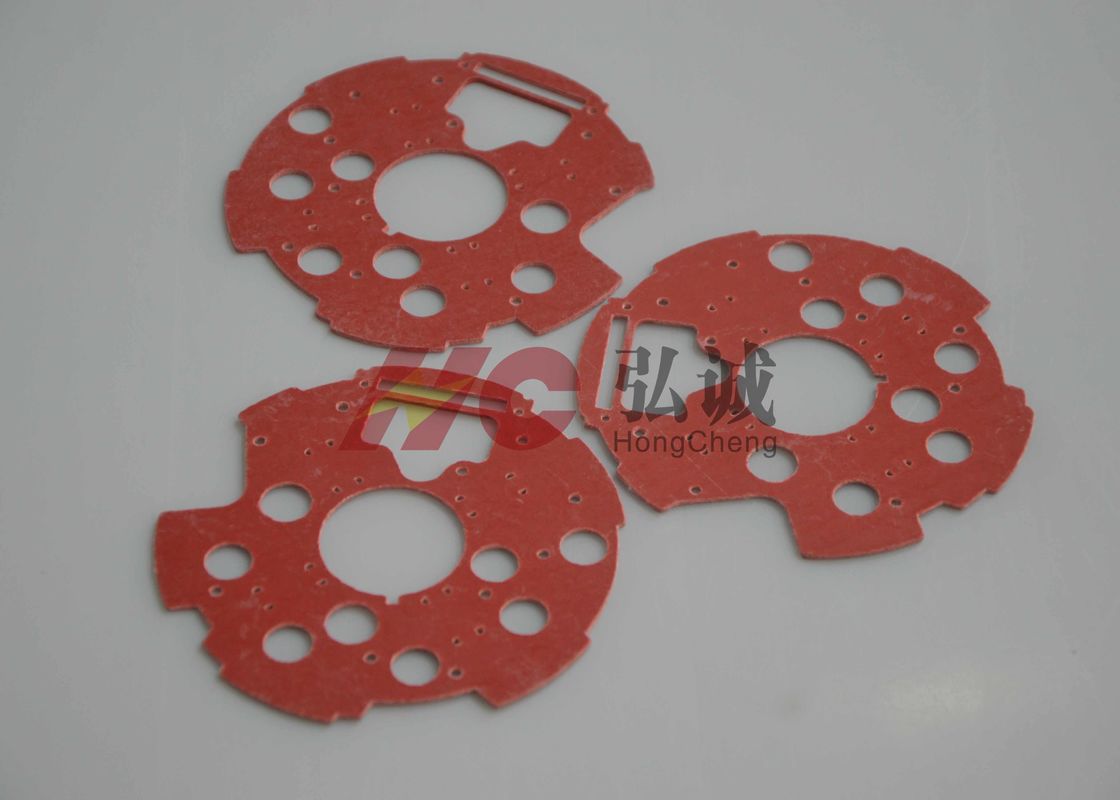

High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts 2High Precision GPO3 Fiberglass Sheet Machined Electrical Equipment Parts 3
