Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life

Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life

  • High Light

    polyester sheets

    ,

    glass reinforced polyester sheet

  • Material
    Polyester And Glass Fiber
  • Color
    Red And White
  • CTI
    600
  • Arc Resistance
    180 Seconds
  • Fire Resistance
    UL84-V0
  • Name
    Gpo3 Fiberglass Sheet
  • Place of Origin
    CHINA
  • Brand Name
    HC
  • Minimum Order Quantity
    100
  • Price
    3USD/KG
  • Packaging Details
    PALLET
  • Delivery Time
    3-5DAYS
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    6000TONS/YEAR

Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life

High quality and excellent arc properties GPO-3 machined part used in electrical equipment





GPO-3 machined parts which were made of GPO-3 laminated sheet by CNC or punching tools , GPO-3 laminated sheet was made of fiberglass and polyester resin the fiberglass was impregnated in polyester resin with the aluminium hydroxide material and then press under the high temperature & pressure by machine. It is the F class material which required continuous working time meet to 20K hours .

This material machined parts with very nice arc property , it was application to every kinds of electrical equipment which has arc when running , it will remove the arc . In other way the machining precision can meet ISO2768-F according to the customer demand .It is so high precision in insulation industry . As soon as we know , higher precision which we can meet , better for the electrical products .

For example , the transformers requested high precision GPO-3 parts as the air gap . Normally , the higher precision tolerance , the better quality/performance of the products . Higher precision will increase leakproofness of transformer , the noise will be decreased , the more important is the insulation between phase will be better .

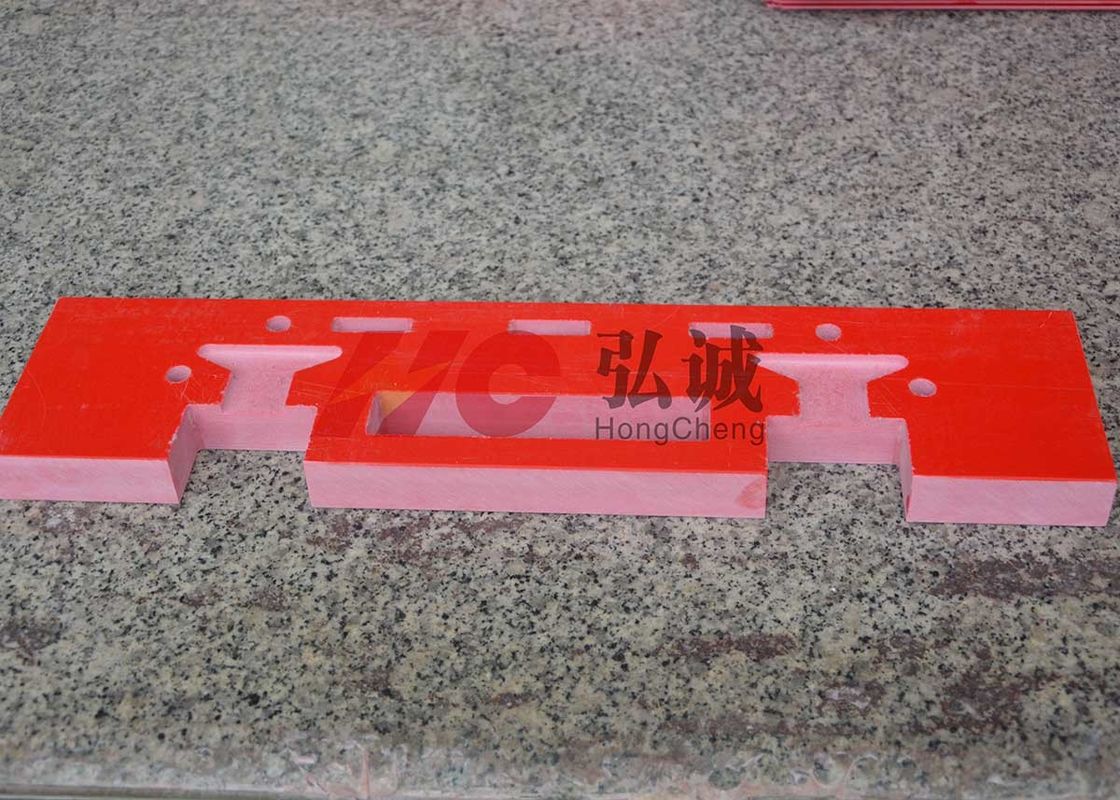

Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life 0



It is high precision tolerance part , it can meet tolerance ISO2768-F class

It has very good arc property when running ;

It is easily to machine by CNC machines .

It is green product , halogen free of it .

This material is widely used in every low and medium voltage electrical products .

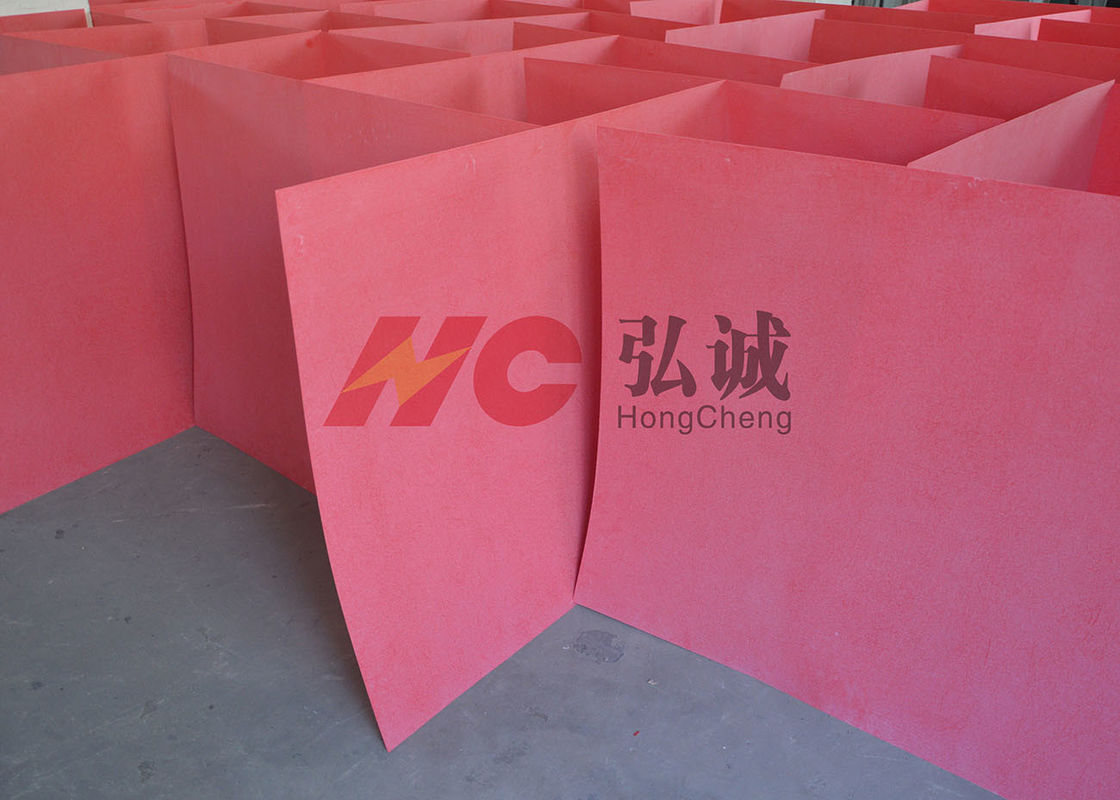

Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life 1



GPO-3 laminated sheet with the performance on electrical properties such as arc resistance when it is working . So many electrical products have the arc while it is running . Arc will callused the insulation materials carbonized .once the material carbonized, it will be become semiconductor , so the properties will be effected .

For the machining properties , it can be grinded and machined according to ISO2768-F or more precision on the tolerance . With the technology development and requirements higher and higher , more and more components will be requested higher precision on the tolerance , whole electric equipment will be more and more precision . it will help the properties improvement . such as decrease noise , increase insulation between phases etc. The machined parts/plates are widely used in transformer/Switch cabinet/uninterruptible power supply , etc.

Further more , excellent insulation properties /mechanical properties of this material , so more and more electrical equipment manufacturers use it instead of other material as the plate , bracket , busbar , Cable clamp etc.

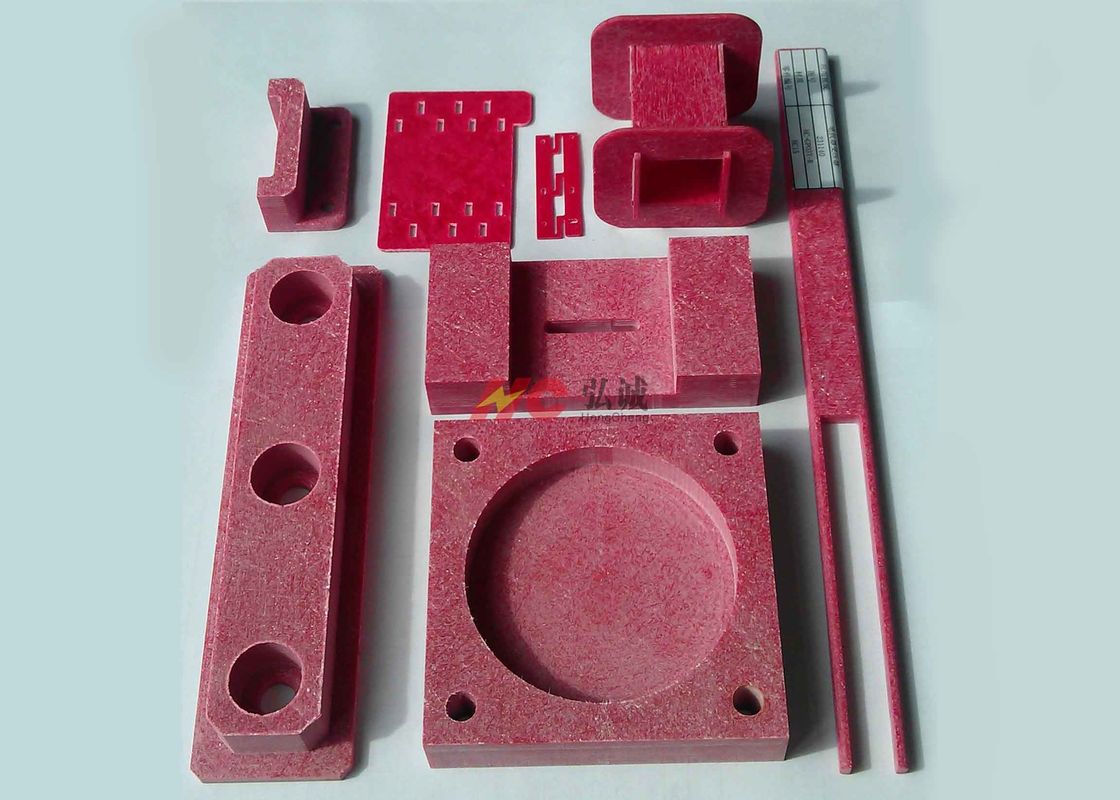

Excellent Arc Properties GPO3 Fiberglass Sheet Machined Part Long Life 2
