Strengthen 80mm GPO3 High Precision Machining Parts For Rail Transit
-
High Light
GPO3 High Precision Machining Parts
,Strengthen High Precision Machining Parts
,80mm GPO3 Parts
-
CTI600
-
MaterialGlass Fiber And Polyester Resin
-
Arc Resistance≥180 Seconds
-
ColorRed And White
-
Thickness0.5-60mm
-
Fire ResistanceUL 94-V0
-
High PrecisionΦ30 Tolerance（0，+0.036） Mm
-
Various Sizes1000*1200、1000*1300、1230*2100
-
Place of OriginChina
-
Brand NameHC、HONGCHENG
-
CertificationUL/ROHS/REACH/EN45545
-
Model NumberGPO3、UPGM203、HGW2471
-
Minimum Order Quantity100KG
-
Price3-4 USD/KG
-
Packaging Detailscarton and pallet
-
Delivery Time3-5 DAYS
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability3600 TONS PER YEAR
Strengthen 80mm GPO3 High Precision Machining Parts For Rail Transit
Strengthen GPO3(UPGM203) high precision machining parts for rail transit thickness 0-80mm
GPO3(UPGM203) material has good insulation performance, mechanical strength and good machinability. According to the use requirements of different structural parts, it can support special-shaped, processing thread, inlaid screw sleeve and other processing technologies

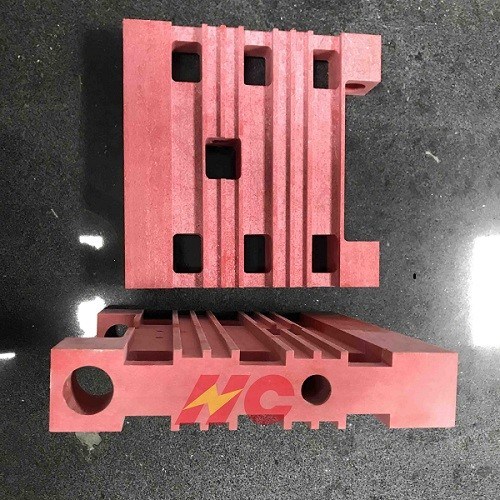

This GPO3(UPGM203)product is used in rail transit equipment, which needs multi-faceted processing and deep hole processing. The machining accuracy is very high. The tolerance of two Φ 30 round holes is required (0, + 0036), and the concentricity of the two round holes is required to be 0.15.
Our company has 10 raw material production lines, which can produce materials of different panel sizes to reduce the loss of raw materials. With more than 100 CNC processing equipment, nearly 30 technical engineer team, and perfect process control process, we can ensure stable product quality and low production cost. At present, we have become the leading manufacturer of ABB, Siemens, Schneider and CRRC
Features of GPO-3 material :
Low smoke and halogen free meet EN45545/NF F16-101
In the glass fiber insulation board, the proportion is light,only 1.85-1.95g/cm3
Color can be customized
High strength and arc resistance up to 180 seconds
Dimensional stability
it meets of CTI600
Good flame and Low smoke
Good weatherability and strong anti-aging ability.
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
| Other properties | The anti microbial properties of bacteria | G21-G22 | ||
Application of GPO-3
GPO-3 material (contain laminated sheet/shapes such as dog bone , corner bone , L shape , U channel ) is used in the cabinet,reactor,transportation,motor,rail transit,inverter,heat shield,circuit breaker and other fields.
Our services cover all industries and reach all parts of the world.
