UL and Reach&RoHs certified GPO-3(UPGM203) meet arc 180second and CTI600
Full name of GPO-3(UPGM203) is unsaturated polyester composited with glass fiber mat laminated sheet , then hot pressing under the high temperature .
The thickness range which we can produce : 0.5mm-60mm
Length and width : 1200*1000mm/1230*1040mm and 2100*1230mm
It has properties for very low hygrometric susceptibility, small losses at high frequency, excellent mechanical properties, good dielectric properties, V-0 flame resistance. It is mainly used as support in transformer and electric machines, pitctures, etc.
Feature of material
(1)It is green product , halogen-free material .
(2)Good electronic performance running under high temperature ,good performance for anti leakage of electronic
(2)Arc resistence could reach more than 180S in electrical equipment.
(3)flame-retardant grade could reach UL94-V0, temperature index could reach F grade (155℃)
(4)It is low smoke material when burning .
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- |
Red/White Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- | Low | |
Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Application of material

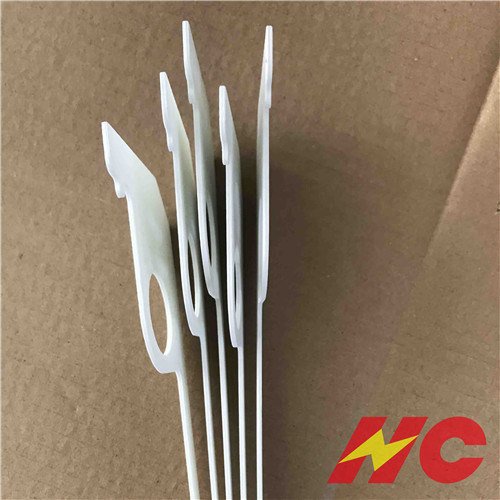

Polyester sheet is widely used in area of transformers /switchgears/ frequency converter/ inverter/UPS and every kind of electric equipment . By virtue of its excellent electric and mechanical capacity , it has been used more and more kinds of electric equipments .GPO3(UPGM203) Polyester sheet can grinded by milling machining , the thickness tolerance will be better than normal sheet ,it means better flatness . it can be machined into complex parts by CNC machines .It is widely used in rail traffic project such as bullet train and metro by its low smoke and halogen-free flame retardant properties .As For example , Xiamen Metro , Fuzhou metro etc., it was used in switchgears and safety gate by its very low water-absorbing quality . As we know , the metro is underground and atmosphere damp , so the low water-absorbing is top important when running equipment to avoid short circuit .Up to now , metro in Xiamen China ,metro in Xi’an China have running , the Switch cabinet with GPO-3 material which supplier by HC .
