High Light
Low Smoke Fiberglass Laminate Sheet
,Heat Resistant UPGM203 Fiberglass Laminate Sheet
,Laminated GPO3 Fiberglass Sheet
-
Flame ResistanceV-0
-
PTI Proof Tracking Index PTI≥600 V
-
Toxicant(Emission Halogen Etc.)Low
-
ColorRed/White/Brown/Grey
-
Specific Gravity2.0g/cm3
-
Water Absorption≤0.5%
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach/SGS
-
Model NumberGPO-3
-
Packaging DetailsCarton/Pallet/wooden box
-
Delivery Time5-15 work days
-
Payment TermsT/T
-
Supply Ability2000kg pr day
Heat Resistant Low Smoke UPGM203 GPO3 Fiberglass Laminate Sheet

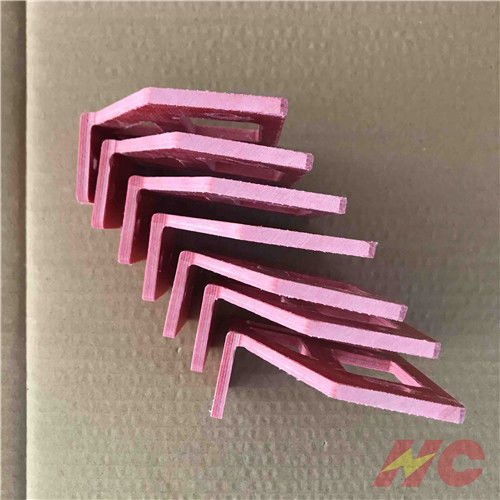

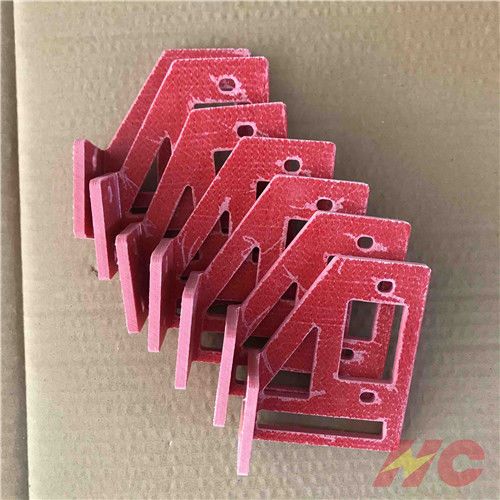

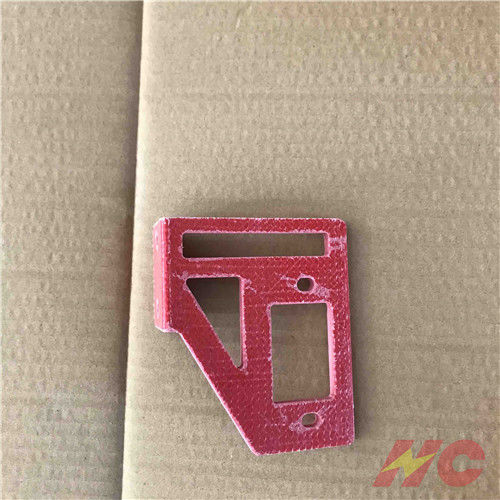

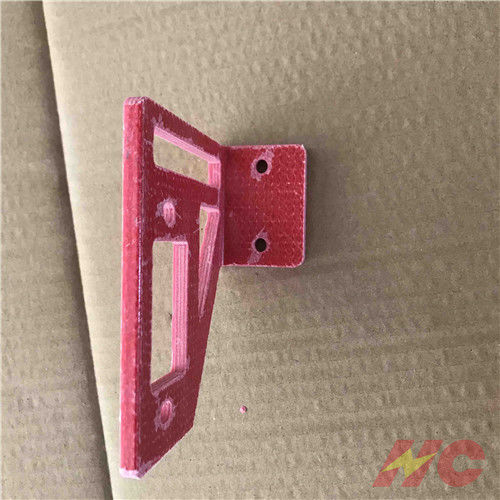

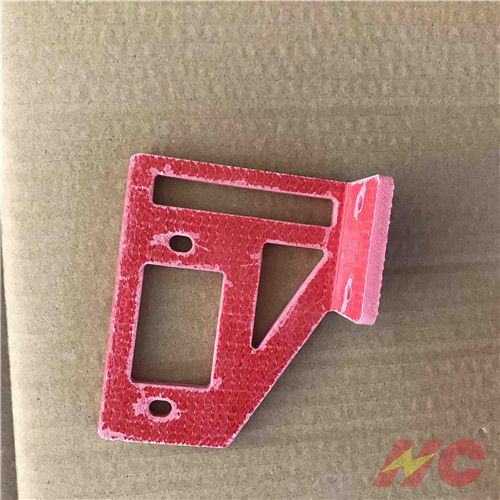

Low Smoke GPO3 Fiberglass Sheet / UPGM203 laminated sheet Heat Resistance For Bus Bar Supports
Product Description:
| Product Name: | HC-GPO3 |
| Product Name: | HC-GPO3 |
| IEC Standard | UPGM203 |
| NEMA Standard | GPO-3 |
| German Standard | HM2471 |
| Product Color: | Red,White,Brown,Gray |
| Product Thickness: | 0.5mm-80.0mm |
| Product Size:: | 1000*1200；1000*1300；1230*2100 |
HC-GPO3 Sheet(Red,White,Brown)Series is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.
Product Advantages:
Beard to draft the country standard,have earned six patents
Excellent Arc Resistance(Arc Resistance≥180 S)
Excellent Track Resistance(CTI≥600V)
Excellent Heat Resistance(Class F)
Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
Excellent Fire Retardant(UL 94 V-0 Grade)
Excellent Mechanical Strength and Automatic Machining
Low Smoke,Halogen Free Products(NF-F16-101/102)
RoHS,Reach Certified products
Features:
Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.
Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.
Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining
Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
RoHS Certified GPO-3 fiberglass Sheet used in power ridid
RoHS Certified GPO-3 fiberglass Sheet is used extensilvely in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.
In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.
