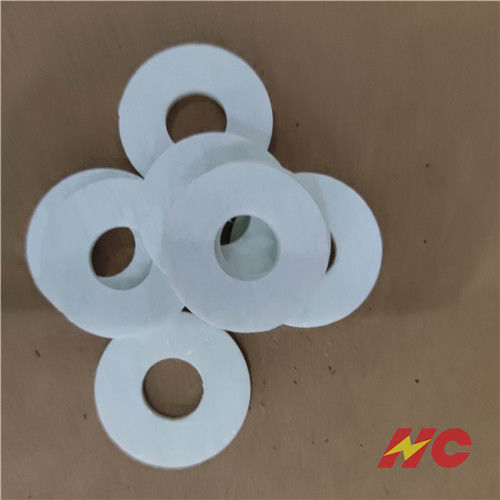

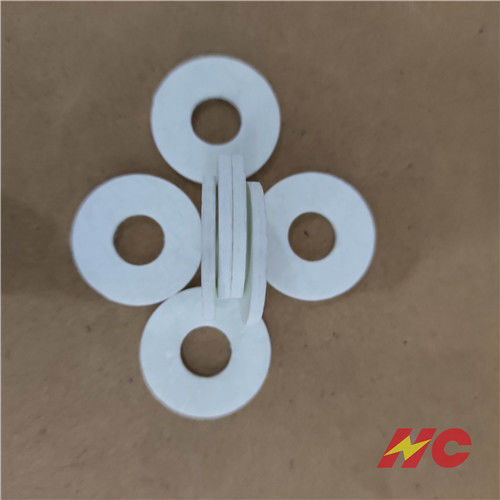

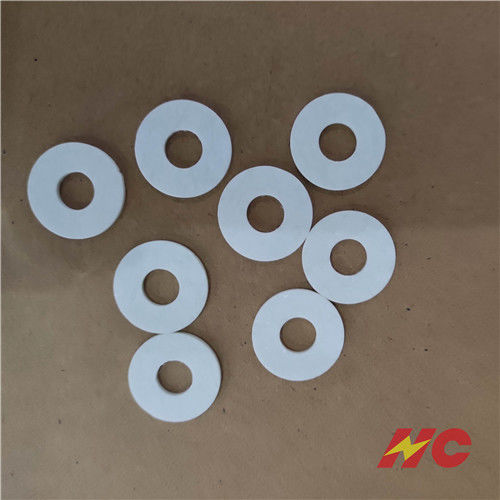

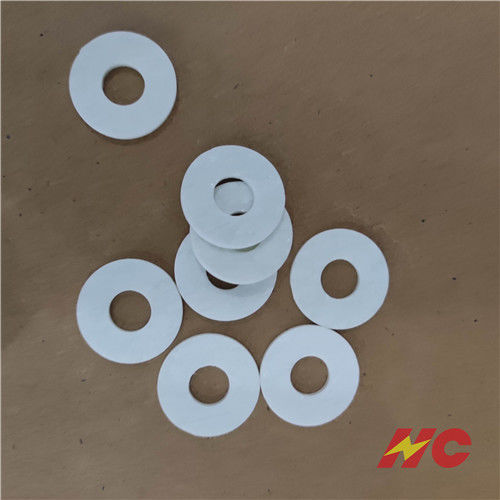

UL Certification GPO3 Fiberglass Sheet / HM2471 For Raiway traffice with V-0 Fire retardant
Product Introduction:
UL Certification GPO-3 fiberglass Sheet or related products are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press
Features:
Good electrical performance,under high temperature,good performance for anti leakage of electronic
Arc-resistance could reach more than 180℃
Flame retardant grade could reach UL94 V-0 termal endurance class could reach Fgrade(more than 160℃)
It is the advance retardance, anti impact,and anti corrosion materail in recent years
Application:
Insulating parts of electronic equipments
All kinds of plate ,mat,arcing shield,flash barrier and other similiar sheets and distributed parts
Relays and Switches
High frequency electronic equipments
Electrical Cabinet
Thickness range :2mm-60mm
Sheet Size:1000mm*1200mm
Main Color:Red,White ,Brown,Yellow or Gray
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- | Low | |
Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
UL Certification GPO-3 fiberglass Sheet used in UPS
UPS is the uninterrupted power supply which is connected to the host by the battery ,converts the direct current into the system equipment of the AC by module circuit of the main engine inverter. When the market input is normal,UPS supplies the AC to the load after voltage stabilization .At this time, UPS is an AC voltage regulator, and it also charges the battery inside the machine;
When mains supply interruption (power outage), UPS use the battery's direct current energy to continue supply 220V alternating current to the load immediately through the inverter switching conversion method ,it makes the load keep working and protect the software and hardware from being damaged. UPS devices usually provide protection against voltage too high or too low .The flame retardant requirement for insulating materials is V0, high strength and temperature resistance , The commonly materials used in UPS is HC-GPO3
UPS are divided into:prepared UPS ,Online UPS,On line interactive UPS,The working principle of UPS is use the AC to charge the battery.than use the battery to supply the power for inverter cabinet,in order to supply power automaticly when the AC fails.
GPO-3 sheet,PC are mainly used as Protective cover sheet , the structures plate,battery box which will improve the safety and durability of UPS.
Main famous cooperative enterprises:Kehua Group(China) Co.,Ltd,East Group Co.,Ltd,Emerson electric(China) Co.,Ltd,Schneider(APC)
Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.
Company Honor(Best Supplier of Sungrow Power):
