High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet

High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet

Products - Thermoset Polyester
  • High Light

    Red Fiberglass Laminated Sheet

    ,

    High Flexural Strength Fiberglass Insulation Sheet

    ,

    UPGM 203 Fiberglass Sheet

  • Product Color
    White / Red / Yellow /Gray
  • Thickness
    0.5mm-80.0mm
  • Product Size
    1000*1200
  • Breakdown Voltage
    ≥ 80KV
  • Arc Resistance
    ≥180
  • Proof Tracking Index PTI
    ≥600
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL（E344098）/RoHS 2.0 /Reach
  • Model Number
    UPGM203/ GPO3
  • Minimum Order Quantity
    1000kg
  • Packaging Details
    Carton/Pallet/wooden box
  • Delivery Time
    5-15 work days
  • Payment Terms
    T/T, Western Union, L/C
  • Supply Ability
    500kg per day

High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet

  • High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet
  • High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet
  • High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet
  • High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet
  • High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet
Get Price Contact Now

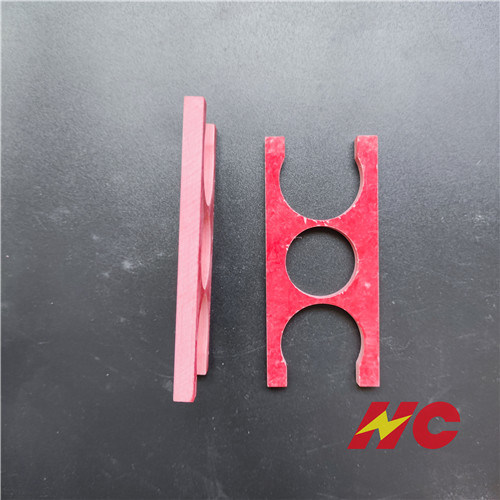

UPGM203 red firbergalss laminate Sheets High Performance with Good Flexural Strength

Product Introduction:

UPGM203 sheet or related products are consists of unsaturated polyester and fiberglass mat ,UPGM203 sheet offer a superior combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.

our laminates also have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.

These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.





Good electrical performance,under high temperature,good performance for anti leakage of electronic



Arc-resistance could reach more than 180℃



Flame retardant grade could reach UL94 V-0 termal endurance class could reach Fgrade(more than 160℃)



It is the advance retardance, anti impact,and anti corrosion materail in recent years



Application:

Insulating parts of electronic equipments

All kinds of plate ,mat,arcing shield,flash barrier and other similiar sheets and distributed parts

Relays and Switches

High frequency electronic equipments

Electrical Cabinet

Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60









Electrical properties

 Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997   ≥180
Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 ℃ 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good



UPGM203 with high peformance tensile used in Transformer



High Flexural Strength UPGM 203 Red Fiberglass Laminated Sheet 0

The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.

Processing Advantage:



The advantage of processing
1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming, to meet the requirements of machining of complex surface;
2. We have a large number of senior engineers, and do the independent development of tooling and fixture to meet the production requirements of customers with high quality, high yield and low cost;
3. We have dozens of high precision CNC machining equipment, can satisfy the customer delivery requirements of shorter production;
4. We have 850 sets of CNC machining center (with a knife) mufti-step processing can complete complex parts;
5. We have many 1000*1200 large platform of Longmen CNC machining centers,can complete large panel parts with high precision production to avoid error caused by splicing processing processing.
