High Light
EPGC201 Fiberglass Cloth Sheet
,FR4 Epoxy Fiberglass Cloth Sheet
,Light Green FR4 Epoxy Sheet
-
Water Absorption＜0.3%
-
Toxicant ContentLow
-
Temperature Index155℃
-
Flame ResistanceUL94 V-0
-
Dissipation Factor0.04-0.05
-
Dielectric Constant4.0-5.5
-
Insulation Resistance After Immersion 24Hrs In Water≥ 5×10^10 Ω
-
Place of OriginXiamen China
-
Brand NameHongcheng
-
CertificationROHS 2.0/ REACH/ UL / Third party certified
-
Model NumberFR4 / EPGC202
-
Minimum Order Quantity1000kg
-
Packaging Detailscrate packiing / plywood pallet / cartons
-
Delivery Time5-15 work days
-
Payment TermsT/T, D/P, L/C, Western Union
-
Supply Ability500kg per day

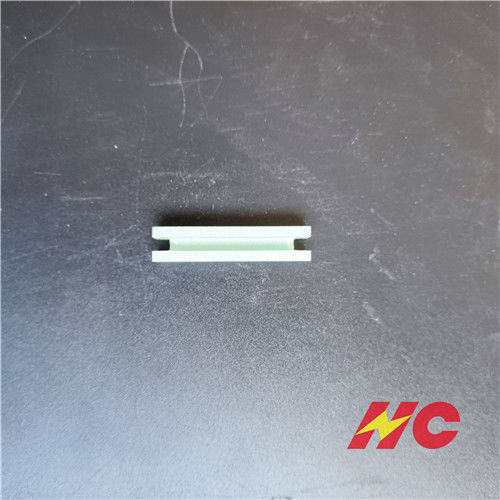

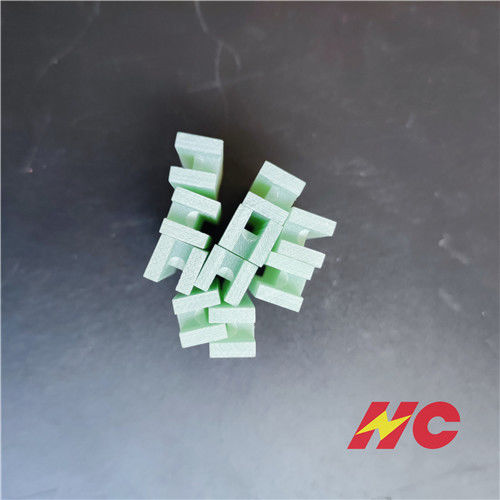

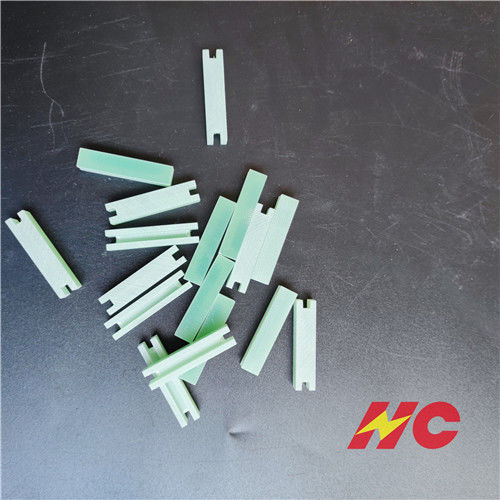

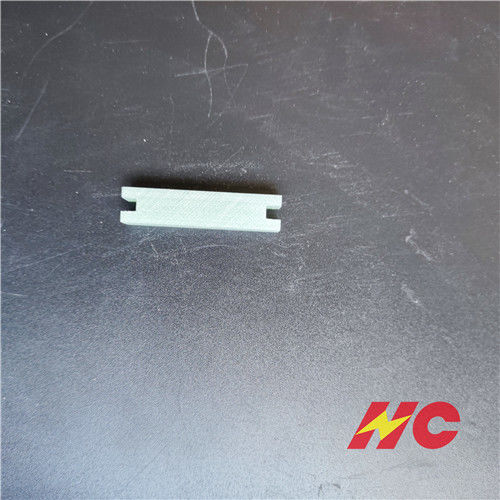

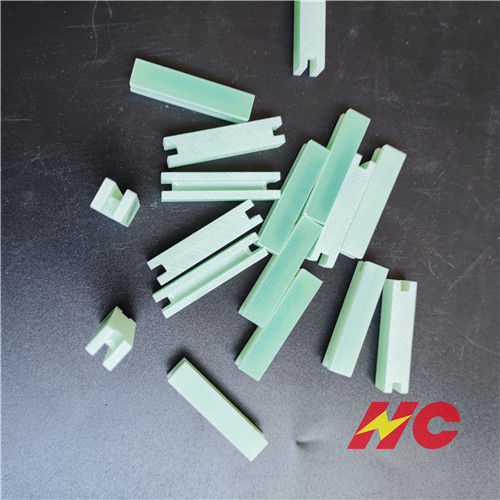

Light Green EPGC201 FR4 Epoxy Fiberglass Cloth Sheet
Light Green EPGC201 epoxy fiberglass cloth Glass good fire resistance with high heat retardant
Product Introduction:
Light green FR4 epoxy sheet is are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple.
Product Advantage:
FR4 epoxy fiberglass cloth sheet have Good mechanical strength(the thermal state retension rate can reach over 50%)under medium temperature or the thermal state,as well as the stable electric properties(the insulation resistance after immersion reachers 10^12Ω)in high humidity condition .and also with higher voltage end urance /withstand voltage (over 35KV),parallel to laminated ,and they also have Good flame retardant property.the sheets also passed the toxic and hazadous substance detection(RoHS Report)
| Hong Cheng Grade | HC-FR-4 | |||
| IEC 893/EN 60893 Grade | EPGC 202 | |||
| ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
| DIN 7735 | Hgw2372.1 | |||
| JIS GRADE | EL-GEF | |||
| Item | Test method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | － | Light green / yellow |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
| Water absorption | ISO 62:2008 | % | ＜0.3 | |
| Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
| Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
| Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
| (1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
| (1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
| Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
| Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
| Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
| Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
| //Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
| Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
| Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Toxicant Content | E662 | ﹍ | Low | |
| Others | Acetone Resistance | boiled | Min | 30(OK) |
Our Machining Advantage:
| Advantages: | 1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface; 2. We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost. 3. To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time . 4. The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time. 5. The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining. |
Packing Introduction:
Our services cover all industries and reach all parts of the world.
