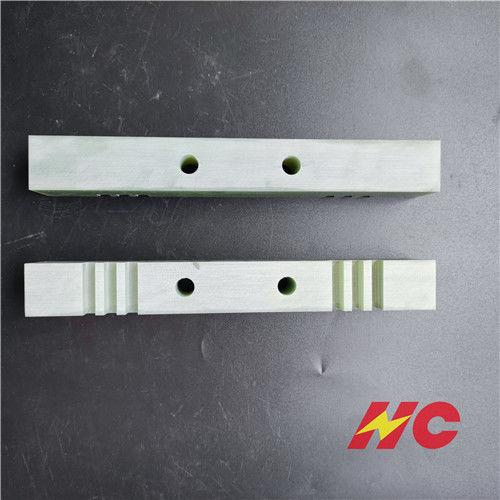

EPGC 202 Fr 4 Fibercloth Laminated Sheet With High Breakdown Voltage

Fr 4 fibercloth laminated Sheet EPGC 202 epoxy sheet with high breakdown vlotage and high physical properties

Product Introduction:

Fr 4 fibercloth laminated Sheet is are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free.

Product Advantage:

Good Fire Retardant(UL 94 V-0 Grade)

Good Voltage Resistance(electric strength ≥16KV/mm)

Good Water Resistance(Water absorption ≤0.2%)

Good Heat Resistance(Class F)

Good thermal impact resistance(Temp.Index:-273℃ to +155℃)

Good mechanical processability & high degree of automation processing

RoHS,Reach Certified products

Fr 4 fibercloth laminated Sheet  Switchgear Cabinet

Inverter cabinet are used to convert DC power(Battery,Storage bottle)to AD power( Generally 50Hz 220V sinusoids or square wave),it consist of Inverter bridge,logic control parts,filter circuit.

Inverter Cabinet are divided into:Centralized inverter and String Inverter according to the applicable situation.

Centralized inverter technology is made of couples of parallel PV string connected to DC input of centralized inverter,the larger power use the three phase IGBT power module,the smaller power use the tield effect transistor and DSP conversion controller to improve the quality of electric.make the power output close to the Sine wave current.generally used for large photovoltaic power station (＞10kW) system.

String Inverter is base on modularization.each photovoltaic group (1-5Kw) equiped with 1 Inverter,
Has maximum power peak tracking at DC side,Parallel connected at AC side.String Inverter has become the most popular inverter in the international market.

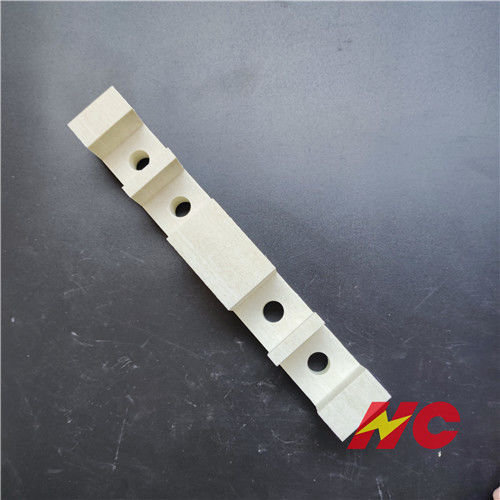

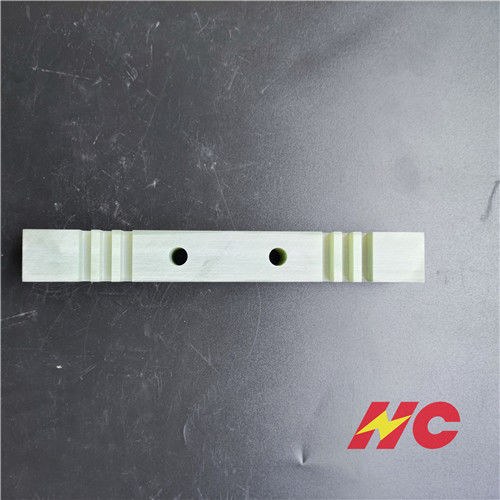

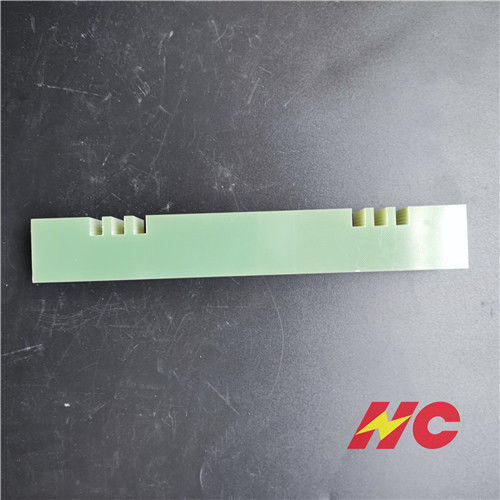

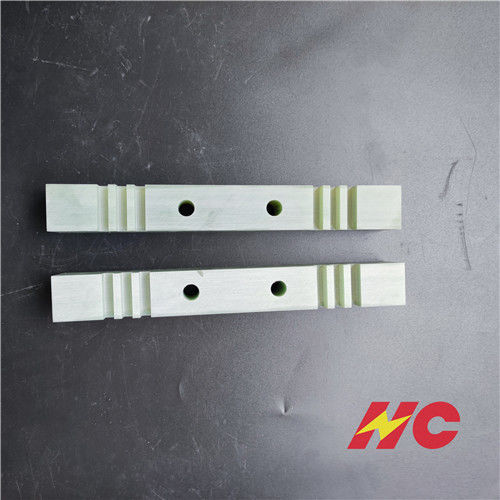

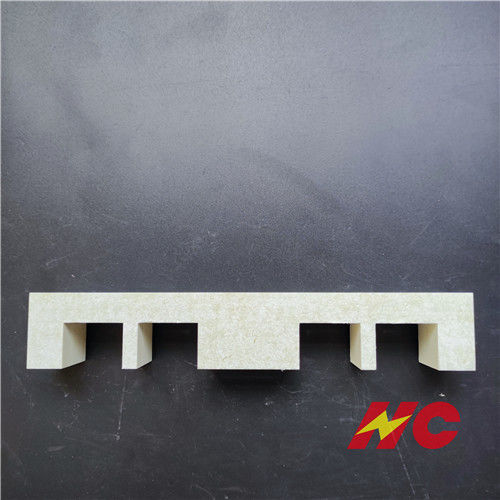

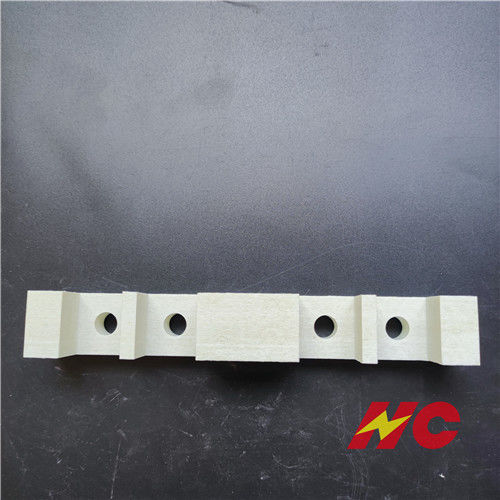

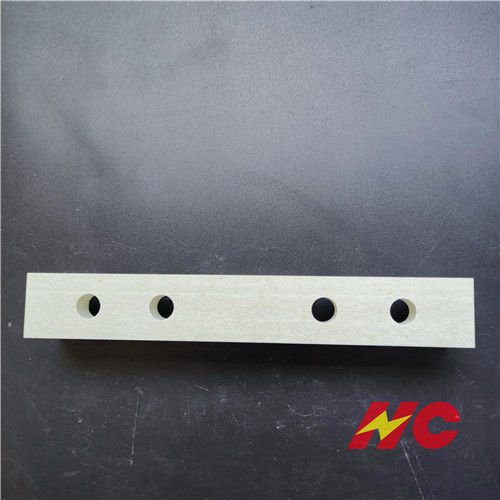

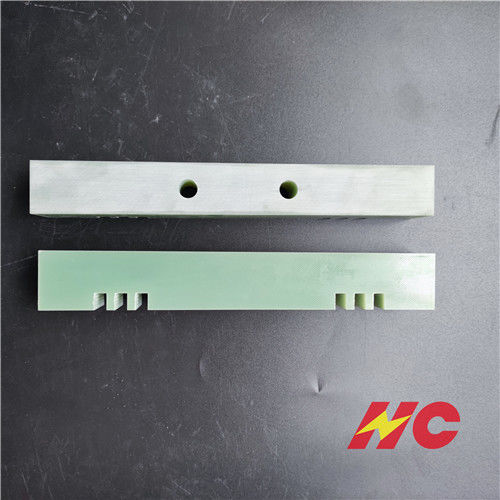

Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.

our packing introduction:

Company Introduction:

Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
