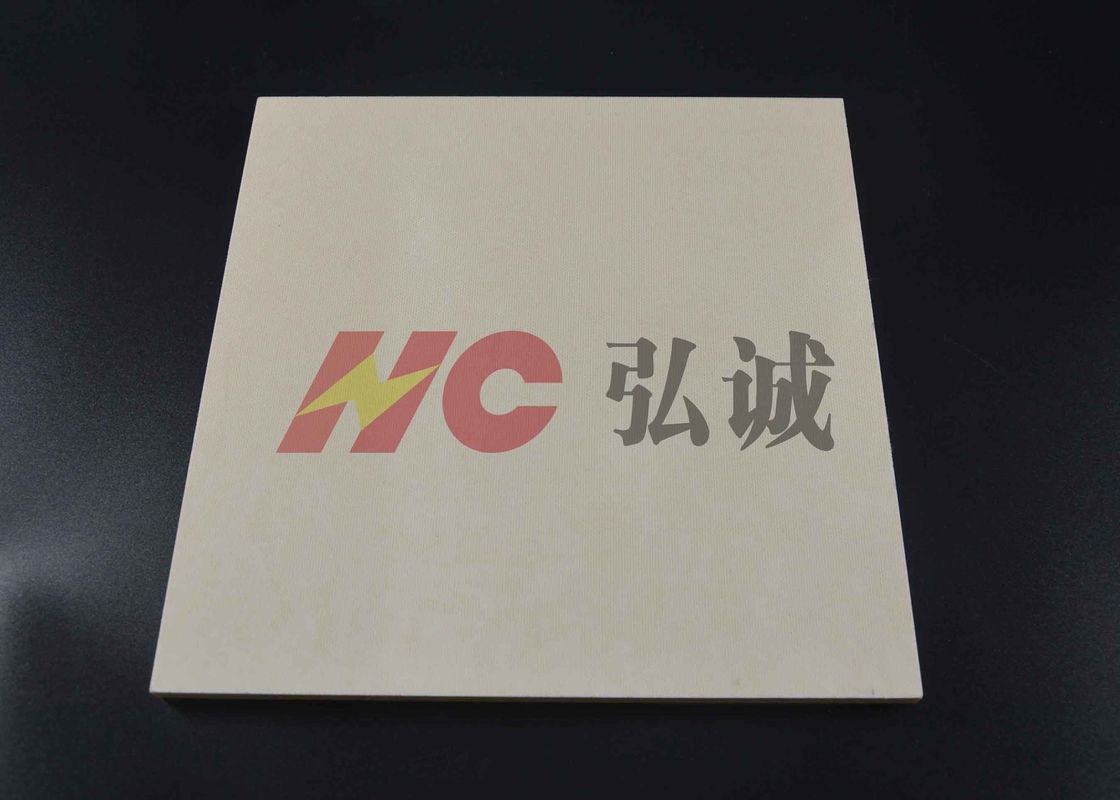

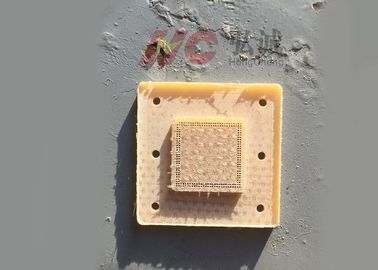

Epoxy glass laminate sheet CEM-1 / Epoxy glass fiber cloth coated inflaming retarding paper laminated sheet
epoxy glass fiber cloth coated inflaming retarding paper laminated sheet is made of epoxy inflaming retarding paper laminated sheet coated with glass fiber cloth which were impregnated epoxy resin on two sides,it is a rigid plate-like insulating material and laminated under high temperature and high pressure.
Integrated plate are widely used in many fields. These materials can be applied to moulded case circuit breaker , electrical machine, electrical equipment as parts of insulating Structures and they can be used in transformer oil, widely used in power distribution cabinet, fixture board, mould plate, high and low voltage distribution cabinet ,PCB,ICT jig ,the base plate of make-up machine, drilling machine, surface grinding.
|Hong Cheng Grade||HC-CEM-1|
|ANSI (NEMA) Grade NEMA LI-1||CEM-1|
|Moisture Absorption (1.6mm)||ISO62:2008||%||≤0.25|
|Mechanical Properties||Flexural Strength||IEC 60893-2 5.1||Mpa||≥ 330|
|Flexural Modulus (1.6mm)||GPa||≥ 14.5|
|Compressive Strength flatwise (3.2mm)||IEC 60893-2 5.3||MPa||≥235|
|Izod Impact Strength||LW||IEC 60893-2 5.53||ft-lb/in||1.7|
|Tensile Strength (1.6mm)||IEC 60893-2 5.7||MPa||≥ 160|
|Bond Strength (13.0mm)||ASTM D229 Cond. A||N||≥6233|
|Shear Strength (perpendicular) (1.6mm)||IEC 60893-2 5.5||MPa||≥86|
|ELECTRICAL PROPERTIES||Electric Strength(1.6mm)||IEC 60893-2 6.1.2||KV/mm||≥26|
|Breakdown Voltage(1.6mm)||IEC 60893-2 6.1.3||kV||≥60|
|Permittivity(1.6mm)||IEC 60893-2 6.2||-||≤4.6|
|Dissipation Factor(1.6mm)||IEC 60893-2 6.2||-||≤0.030|
|Arc Resistance(3.2mm)||GB/T 1411-2002||sec||≥120|
|CTI (3.2mm)||ASTM D3638||V||≥ 300|
|THERMAL PROPERTIES||Temperature Index||IEC 60893-2 7.1||°C||130|
|Flammability Rating||IEC 60893-2 7.2||Class||V-0|
Epoxy glass laminate sheet CEM-1 used in Switch cabinet
Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
