High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet

High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet

  • High Light

    glass lamination sheet

    ,

    glass reinforced polyester sheet

  • IEC Standard
    UPGM203
  • German Standard
    HM2471
  • Flame Resistance
    V-0
  • PTI Proof Tracking Index PTI
    ≥600 V
  • Toxicant(Emission Halogen Etc.)
    Low
  • The Anti Microbial Properties Of Bacteria
    Good
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach/SGS
  • Model Number
    GPO-3
  • Payment Terms
    T/T

High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet

Excellent Compressive strength GPO-3 fiberglass Sheet / High performance mechanical properties upgm203


Product Introduction:
Excellent Compressive strength GPO-3 fiberglass Sheet are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press


Features:

Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining



Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃



GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications

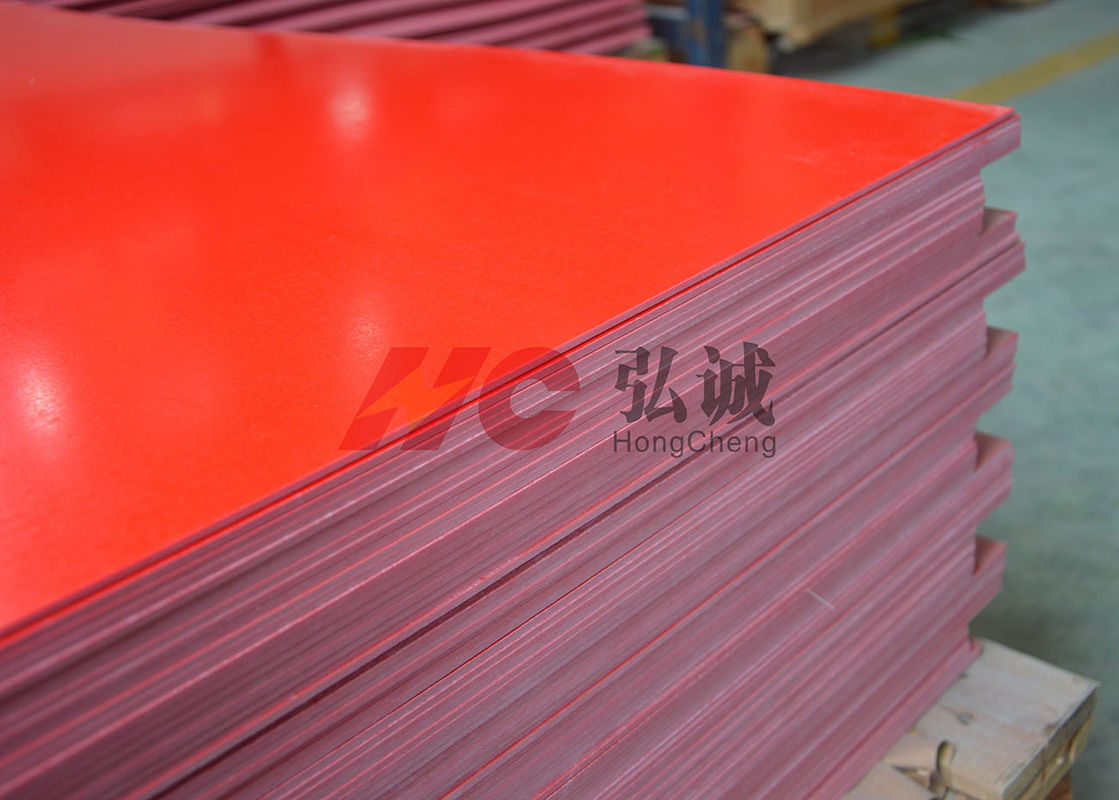

High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet 0


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good




Excellent Compressive strength GPO-3 fiberglass Sheet used in Wind Driven Generator

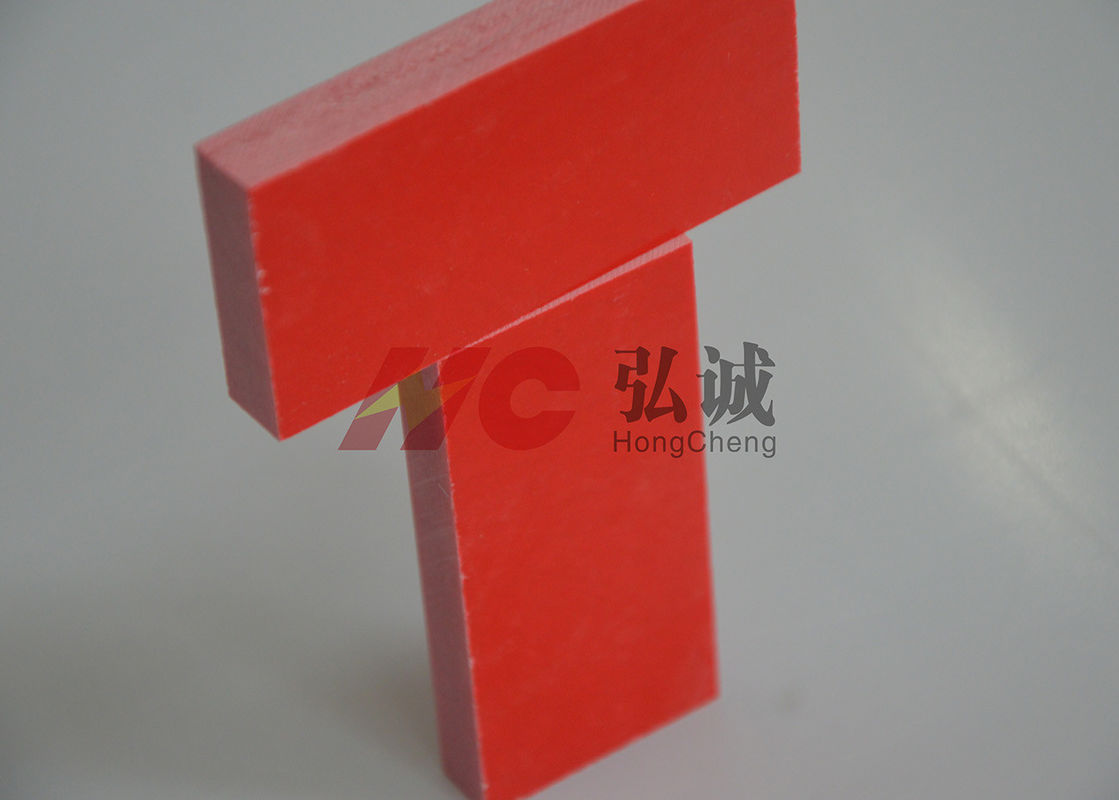

High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet 1

Wind power generation is an important generator in the new energy.When the fan blade is driven by wind, the motor will turn to generate electricity.Insulation material in the wind power motor application, the requirement of temperature resistance is F above & flame retardant V0 ,it has important weather resistance requirements , The commonly materials used in wind driven generator are HC-GPO3/HC-FR4 etc.


Certification of Unility National Patents

High Performance Glass Reinforced Polyester Sheet / Fiberglass Reinforced Plastic Sheet 2
ISO9001 ISO14001 OHSAS18001 certification
