Arc - Chute Plate GPO3 Fiberglass Sheet High Mechanical Strength Low Toxicant

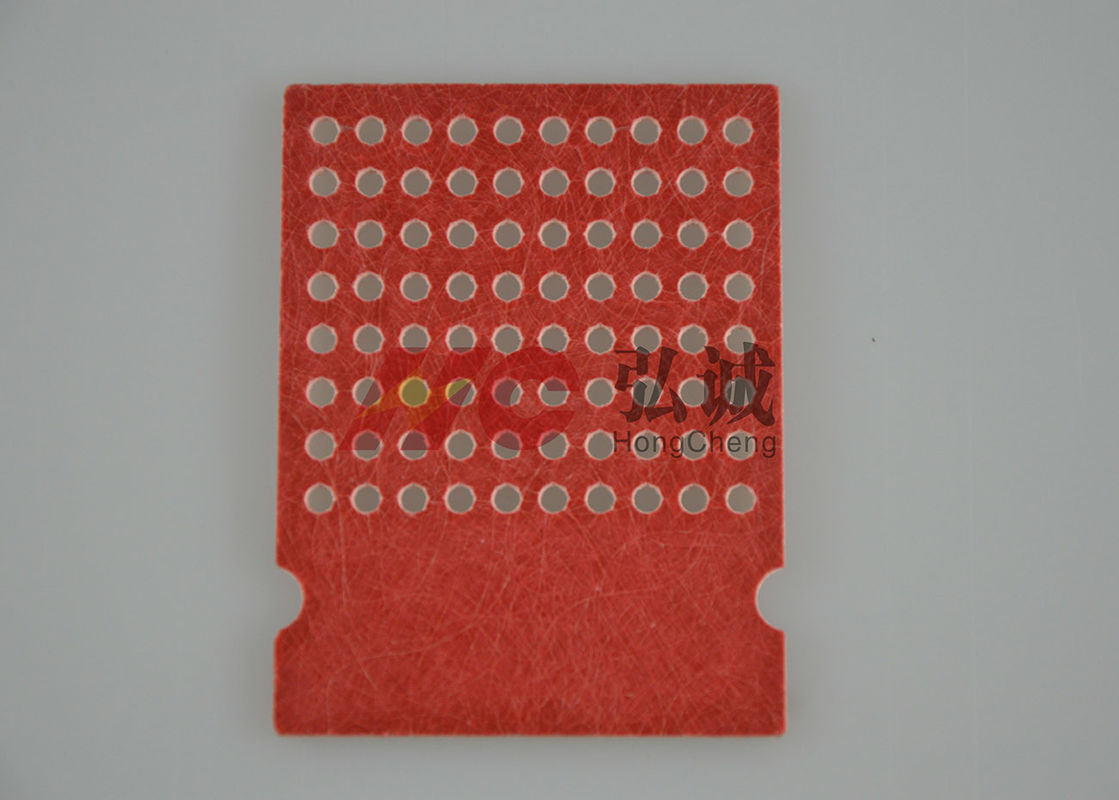

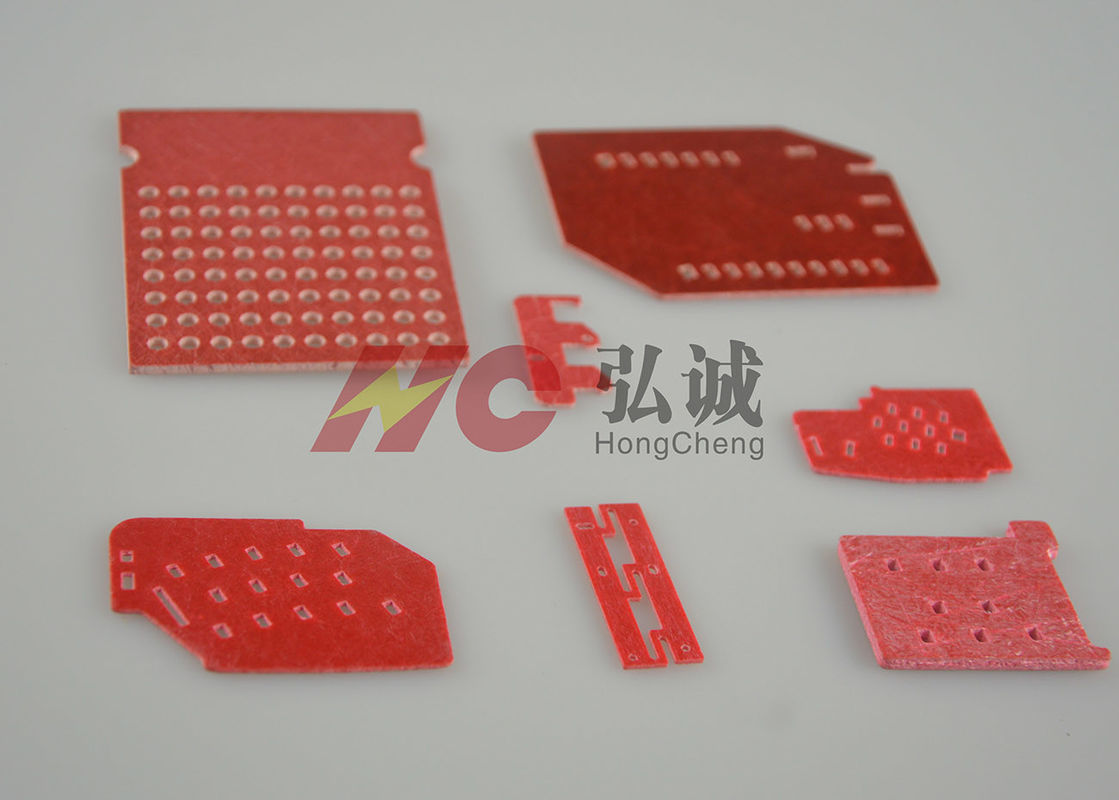

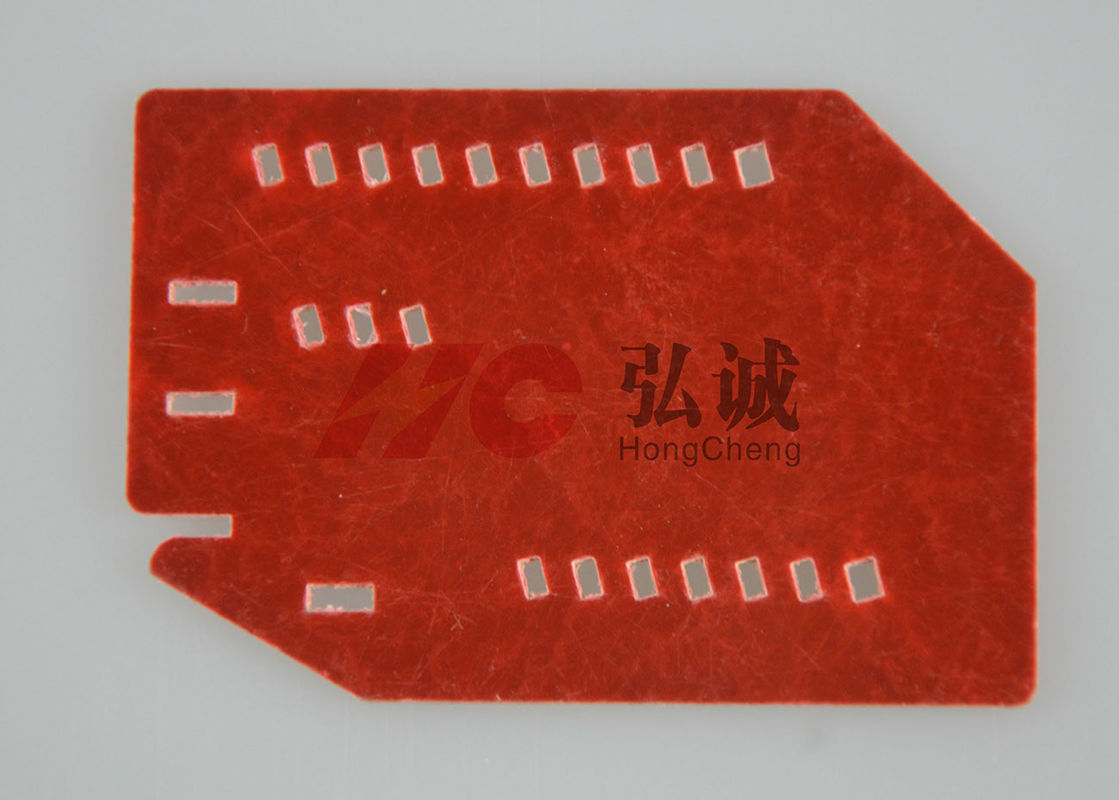

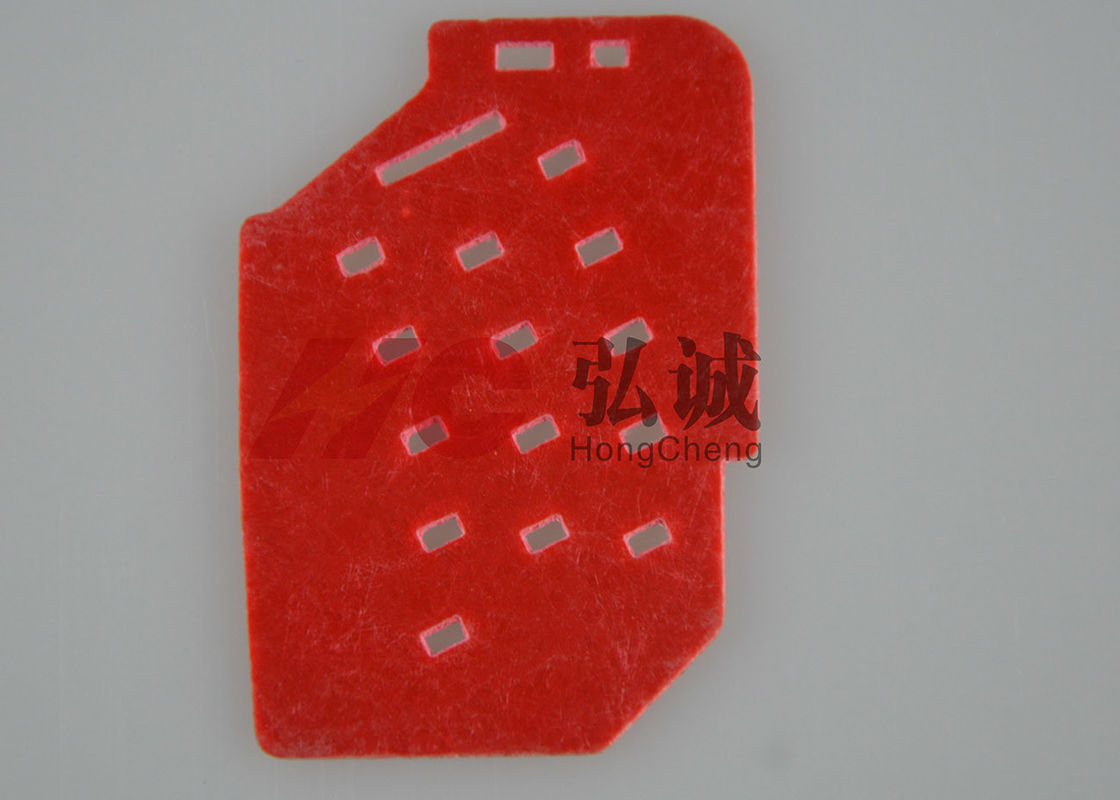

GPO-3 fiberglass Sheet Specified for MNS / GPO-3 fiberglass Sheet Specified for Arc-chute plate
Product Introduction:
GPO-3 fiberglass Sheet Specified for MNS are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press
Feature:
It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.
Application:
it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.
Thickness range :2mm-60mm
Sheet Size:1000mm*1200mm
Main Color:Red,White ,Brown,Yellow or Gray
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
GPO-3 fiberglass Sheet Specified for MNS
| products: | MNS,VD4 Switch cabinet |
| Description: | A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by Overcurrent/overload or short circuit. Its basic function is to interrupt current flow after Protective relays detect faults condition. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. The type of circuit breaker is divided into three kinds of commonly: Air circuit breaker(ACB):Air circuit breaker current level is generally larger,from 630A to 6300A, The appearance of air circuit breaker is bigger than MCCB & MCB,it Can be equipped with more attachment,manual operation or Equipped with electric operation.fixed installation or drawout installation.Most of its performance is better than MCCB(Molded Case Circuit-Breaker) and MCB(Miniature Circuit-Breaker). MCCB(Molded Case Circuit-Breaker)current level is generally from dozens of amps to 1600,most of MCCB are used in 63 amps.The appearance of MCCB is smaller usually.manual operation or Equipped with electric operation.most of its performance close to ACB. MCB(Miniature Circuit-Breaker)current level is generally under 63 amps. The shape of MCB is minimum.It can be equipped with some basic accessories. As auxiliary contact, fault-indicating contact, Shunt trip or under voltage tripper.MCB can only manual install and fixture.Most of its performance is lower than ACB & MCCB.It is generally used on the end of the line of small electric equipment. Our products are mainly used as mounting panels,Bus Bar supports,insulating supports in circuit breaker. Main famous cooperative enterprises: ABB,Schneider(APC),Siemens,HUYU Group Co.,Ltd.Electrical Components & Automation Jiangsu Daqo Kfine Electric Co., Ltd. |
