White L angle / White GPO-3 L angle / White cable bridge / White angle insulation
-
High Light
custom u channel
,pultruded fiberglass structural shapes
-
Product NameGPO-3 L Angle
-
Product ColorRed/Gray/White
-
Product Size21 Kinds Of Specifications
-
Flexural Strength≥650mpa
-
Compressive Strength≥290mpa
-
Shearing Strength≥89.7mpa
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach
-
PriceEXW , FCA , FOB
-
Packaging Detailscrate packing,plywood pallet , plastic pallet ，carton
-
Delivery Time5-7 working days
-
Payment TermsT/T

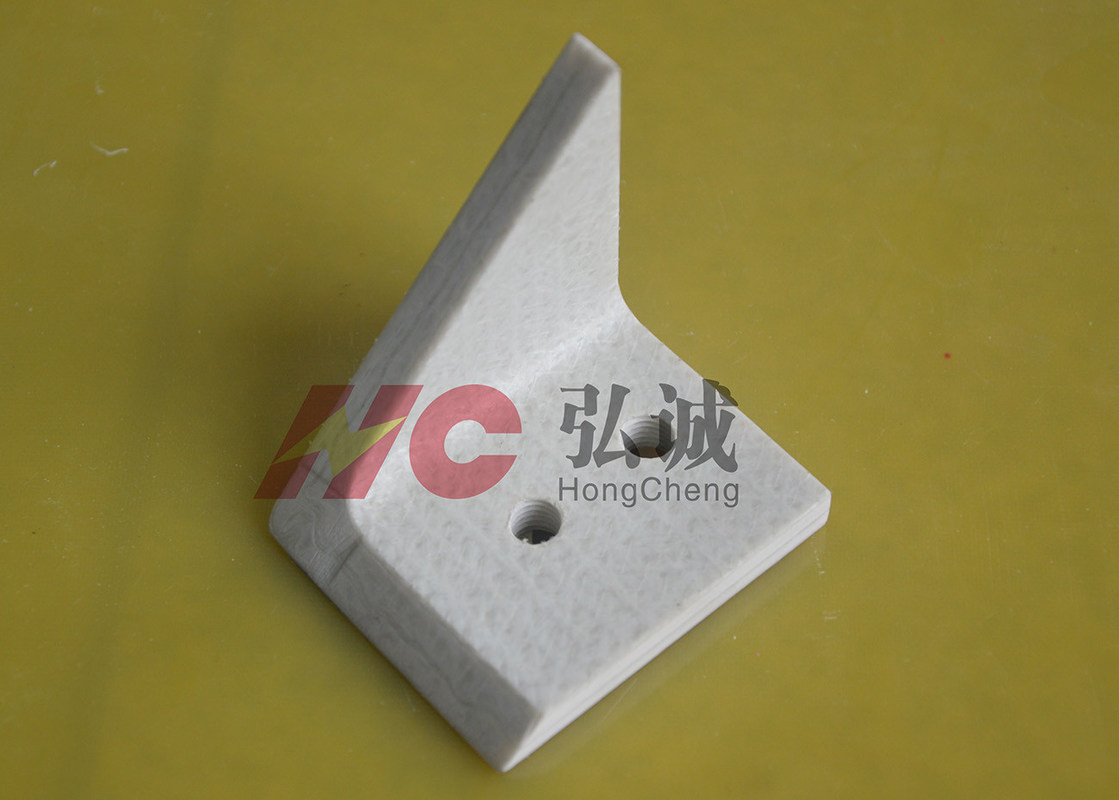

White L angle / White GPO-3 L angle / White cable bridge / White angle insulation
White L angle / White GPO-3 L angle / White cable bridge / White angle insulation
|
Introduction:
|
White L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder. |
| Feature: |
Stable structure,non cracking, non Explosive Edge Technical advantages, mold development and design capabilities, excellent supporting capacity. High Arc Resistance:≥180 Seconds Track Resistance:CTI≥600V Heat Resistance:Class F,up to 130℃ Thermal Impact:Temp. Index: -273℃ to +155℃ Fire Retardant:UL 94 V-0 Grade
|
|
Application:
|
Power control & Power transmits:Cable bridge & angle insulation； Insulation channel of bus duct & fuse; Insulating support of inverter,converter |
Diagram:
| Custom Your Own Mould | |
| Mould trade Process | |
| 1. Quote | According to the sample & Sample |
| 2. Comfirm | Color,Material,Price,Payment,MOQ, |
| 3. Advance | Pay the Mould cost 100% by T/T |
| 4. Mould Design/Processing | Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation |
| 5. Balance settlement | 100% by T/T after the customer approved the samples and decide to start the production |
| 6.Delivery | Delivery by sea or air under EXW/FCA |
Specification sheet:
| Product Name | Item No. | Size |
| GPO-3 L angle | HC-XC-L-W | GPO-3 White L angle 2.5*14*14 |
| HC-XC-L-R | GPO-3 Red L angle 3.0*40*40 | |
| HC-XC-L-R | GPO-3 Red L angle 4.0*30*40 | |
| HC-XC-L-R | GPO-3 Red L angle 4.0*40*88.5 | |
| HC-XC-L-R | GPO-3 Red L angle 4.8*31.8*44.45 | |
| HC-XC-L-R | GPO-3 Red L angle 5.0*50*50 | |
| HC-XC-L-R | GPO-3 Red L angle 6.0*20*34 | |
| HC-XC-L-R | GPO-3 Red L angle 6.0*25*50 | |
| HC-XC-L-R | GPO-3 Red L angle 6.0*30*50 | |
| HC-XC-L-R | GPO-3 Red L angle 6.0*50*50 | |
| HC-XC-L-R | GPO-3 Red L angle 6.0*75*100 | |
| HC-XC-L-R | GPO-3 Red L angle 6.35*50.8*50.8 | |
| HC-XC-L-R | GPO-3 Red L angle 8*50*50 | |
| HC-XC-L-R | GPO-3 Red L angle 8.0*50*65 | |
| HC-XC-L-R | GPO-3 Red L angle 10*50*75 | |
| HC-XC-L-R | GPO-3 Red L angle 10*50*80 | |
| HC-XC-L-R | GPO-3 Red L angle 10*50*125 | |
| HC-XC-L-R | GPO-3 Red L angle 10*63*100 | |
| HC-XC-L-R | GPO-3 Red L angle 10*75*75 | |
| HC-XC-L-R | GPO-3 Red L angle 10*80*150 | |
| HC-XC-L-R | GPO-3 Red L angle 10*90*90 | |
| HC-XC-L-R | GPO-3 Red L angle 10*125*125 | |
| HC-XC-L-G | GPO-3 Grey L angle 6*50*50*1350 |
The advantage of processing
1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming, to meet the requirements of machining of complex surface;
2. We have a large number of senior engineers, and do the independent development of tooling and fixture to meet the production requirements of customers with high quality, high yield and low cost;
3. We have dozens of high precision CNC machining equipment, can satisfy the customer delivery requirements of shorter production;
4. We have 850 sets of CNC machining center (with a knife) mufti-step processing can complete complex parts;
5. We have many 1000*1200 large platform of Longmen CNC machining centers,can complete large
panel parts with high precision production to avoid error caused by splicing processing processing.
Certification of Unility National Patents
ISO9001 ISO14001 OHSAS18001 certification
Our services cover all industries and reach all parts of the world.
