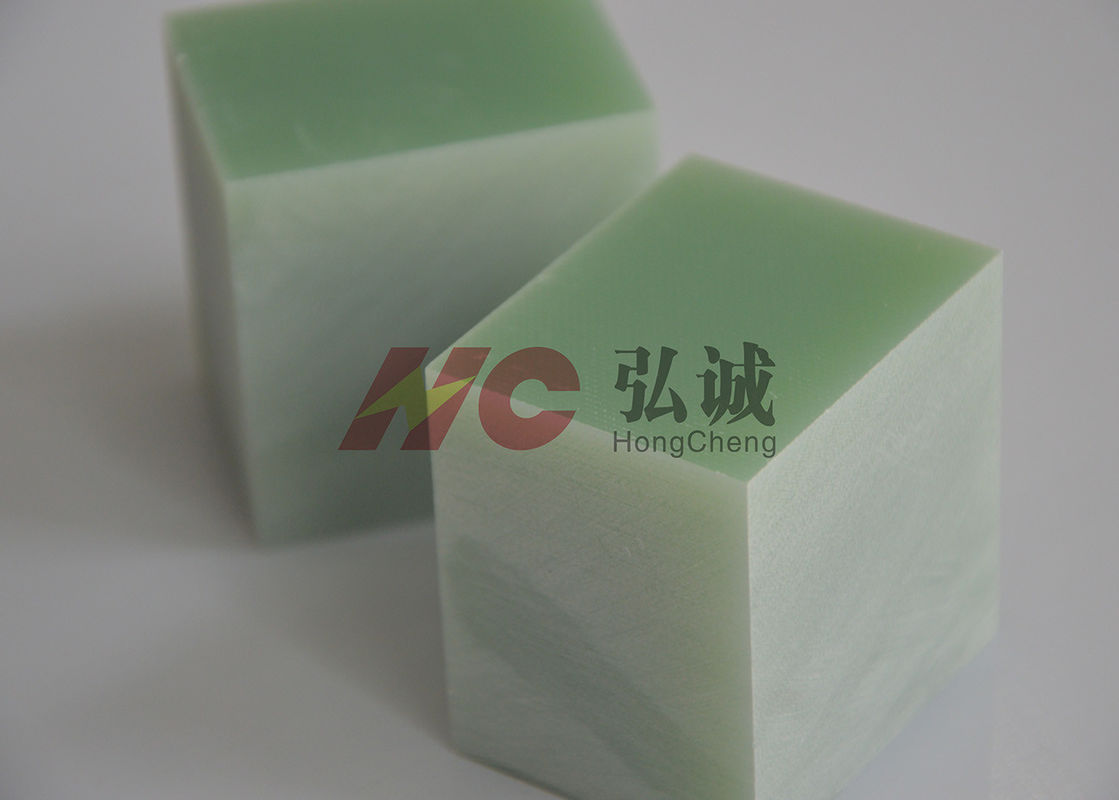

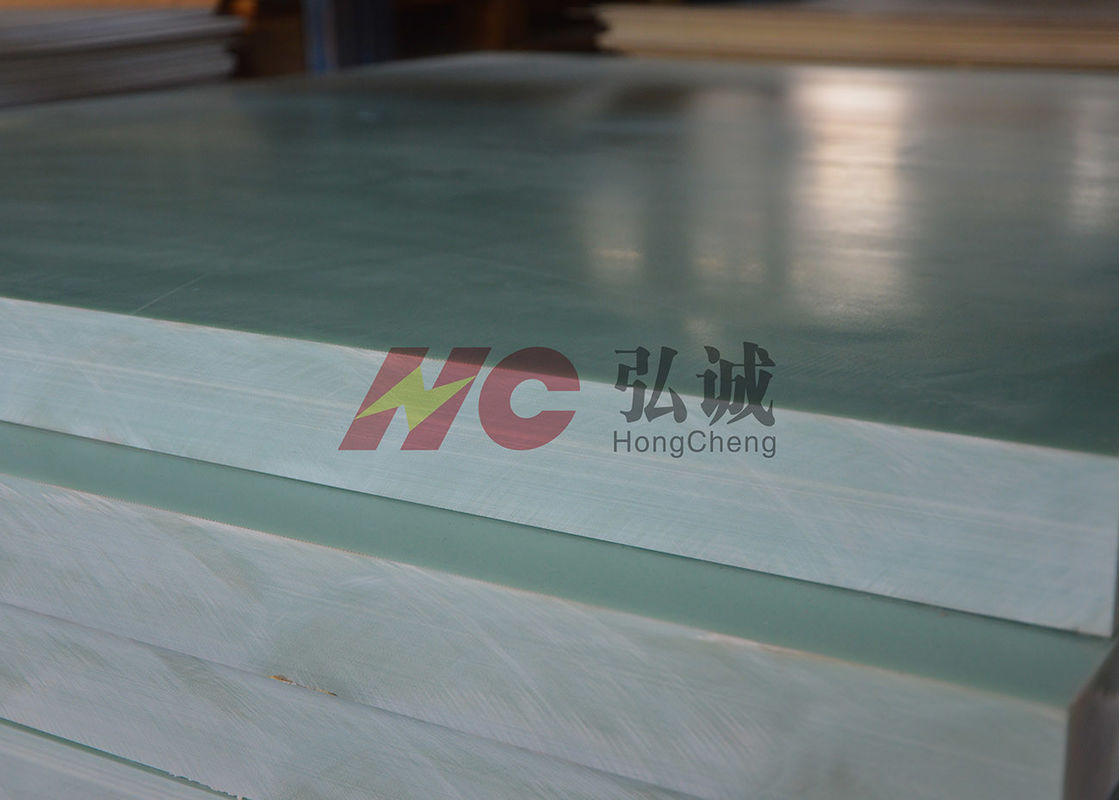

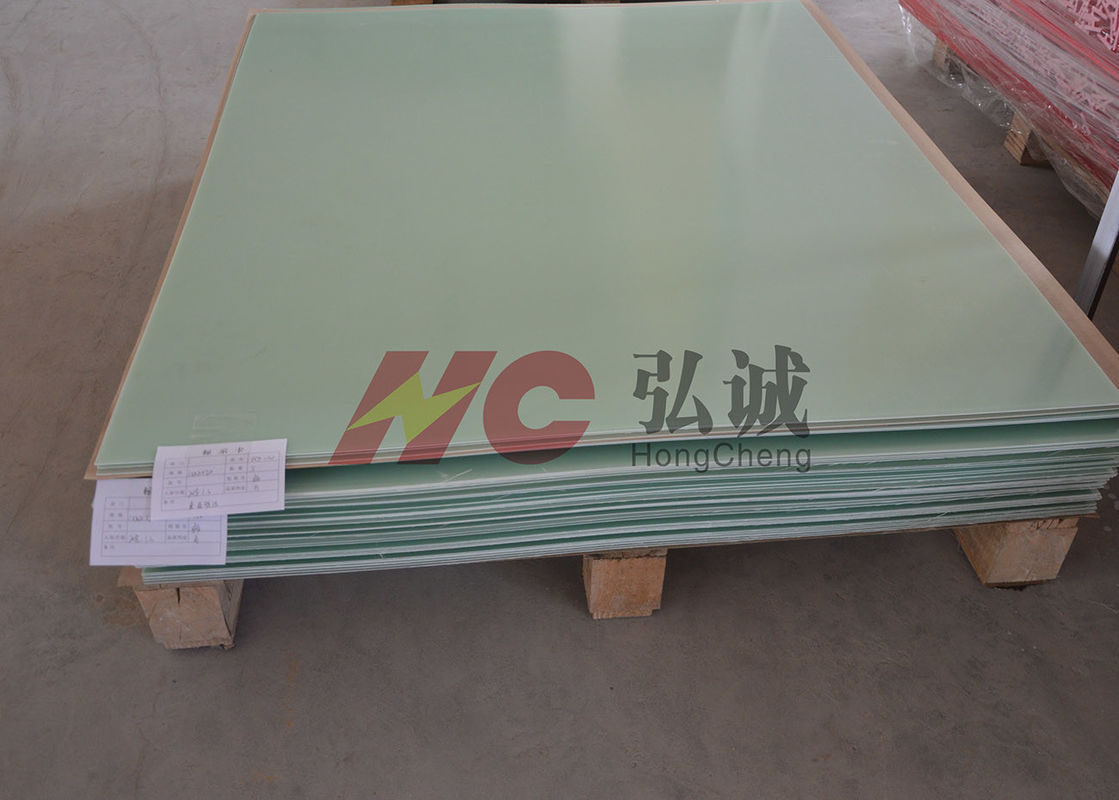

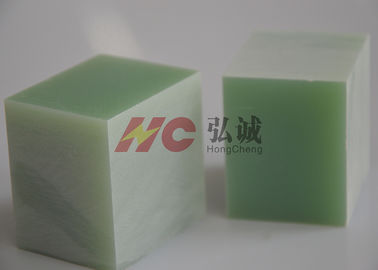

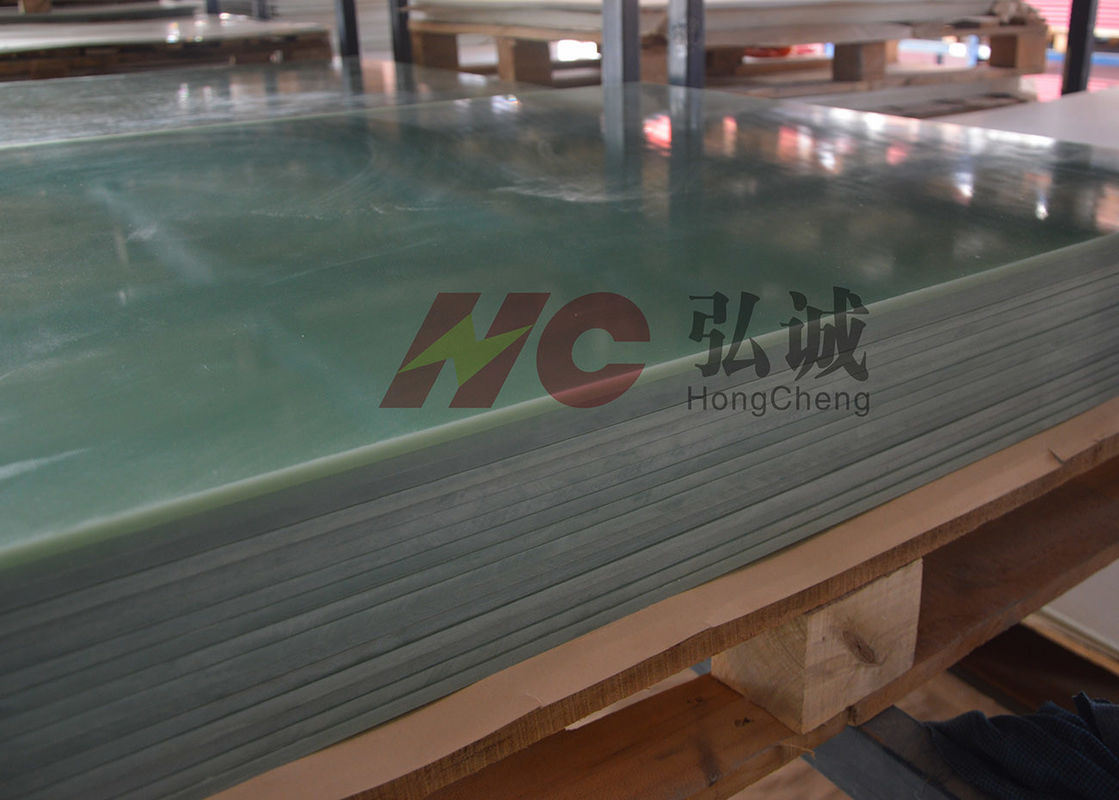

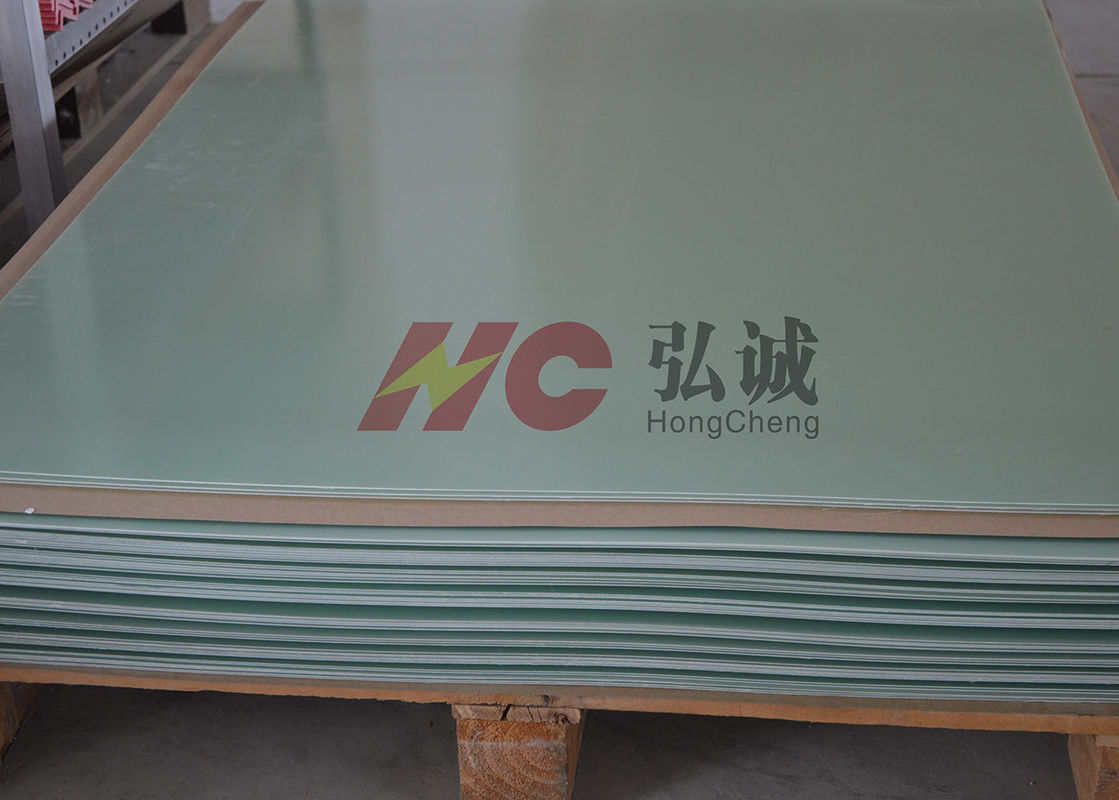

Light green FR4 epoxy sheet / Light green EPGC202 with high mechanical strength
Product Introduction:
Light green FR4 epoxy sheet is a rigid insulating lamination sheet made of composed imported alkali-free glass fiber cloth ,impregnated with imported high quality epoxy resin,added the imported fire retardant and cementing compound,it is a rigid plate-like insulating material under high temperature and high pressure.
Light green FR4 epoxy sheet are widely used in every kinds of switch cubicle such as burshing disk,arc extinguishing chamber ,arcing cylinger,arcing piece,flash barrier,wiring board,terminal plate insulating support;stru parts and bus-bar supports in switchear & transformer, the armature parts of electrical machine such as cover plate,slote wedge,stator ,gasket,shims,carbon brush etc,the epoxy glass laminated sheet series are used much more extensively in consumer electronics.panels display and photovotaic in recent years.
Product Advantage:
High precision for the tolerance
Excellent Fire Retardant(UL 94 V-0 Grade)
Excellent Voltage Resistance(electric strength ≥16KV/mm)
Excellent Water Resistance(Water absorption ≤0.2%)
Excellent Heat Resistance(Class F)
Excellent thermal impact resistance(Temp.Index:-273℃ to +155℃)
Excellent mechanical processability & high degree of automation processing
RoHS,Reach Certified products
Hong Cheng Grade | HC-FR-4 | |||
IEC 893/EN 60893 Grade | EPGC 202 | |||
ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
DIN 7735 | Hgw2372.1 | |||
JIS GRADE | EL-GEF | |||
Item | Test method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | - | Light green / yellow |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
Water absorption | ISO 62:2008 | % | <0.3 | |
Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
(1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
(1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
//Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Toxicant Content | E662 | ﹍ | Low | |
Others | Acetone Resistance | boiled | Min | 30(OK) |
Advantages: | 1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface; 2. We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost. 3. To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time . 4. The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time. 5. The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining. |
