Laminate Red UPGM 203 Sheet Large Size Arc Resistance With High Flexural Strength

Laminate Red UPGM 203 Sheet Large Size Arc Resistance With High Flexural Strength

  • High Light

    high pressure laminate sheet

    ,

    reinforcement sheet

  • German Standard
    HM2471
  • Flame Resistance
    V-0
  • PTI Proof Tracking Index PTI
    ≥600 V
  • Toxicant(Emission Halogen Etc.)
    Low
  • The Anti Microbial Properties Of Bacteria
    Good
  • Water Absorption
    ≤0.5%
  • Tensile Strength
    ≥130Mpa
  • Compressive Strength
    ≥300Mpa
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach/SGS
  • Model Number
    UPGM203
  • Minimum Order Quantity
    100 pieces
  • Packaging Details
    cartons,plywood pallet;crate packing
  • Delivery Time
    3-5 work days
  • Payment Terms
    T/T

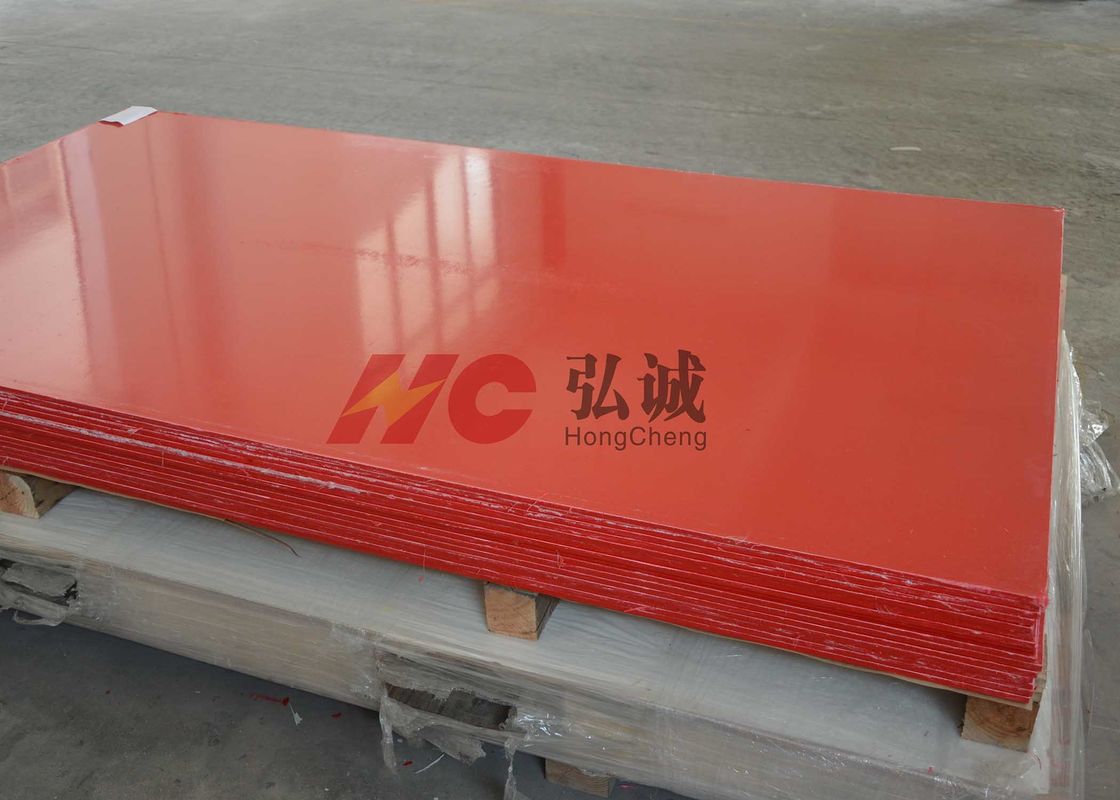

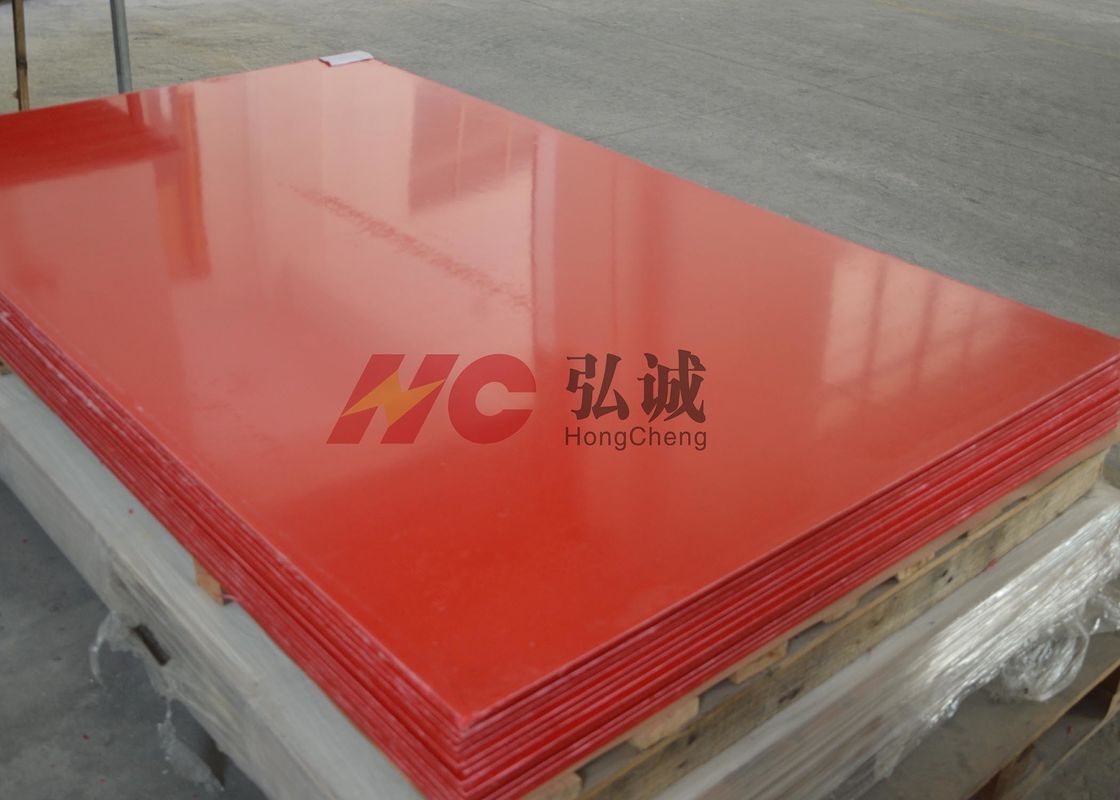

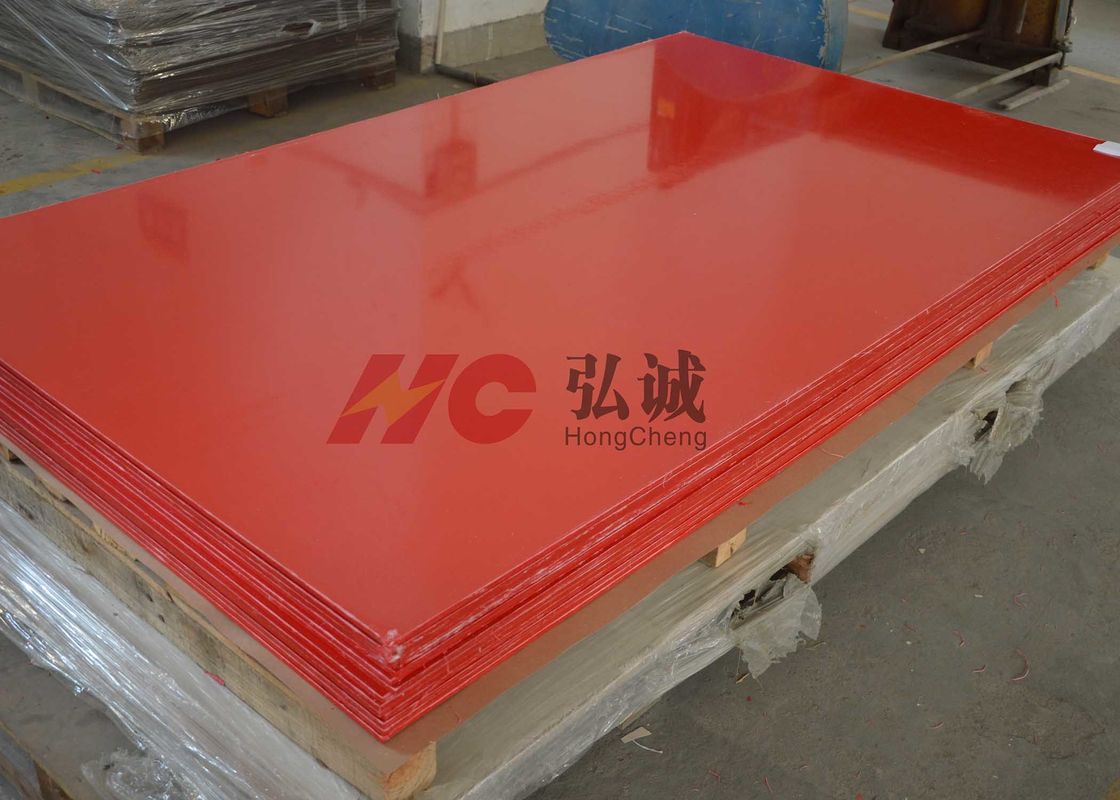

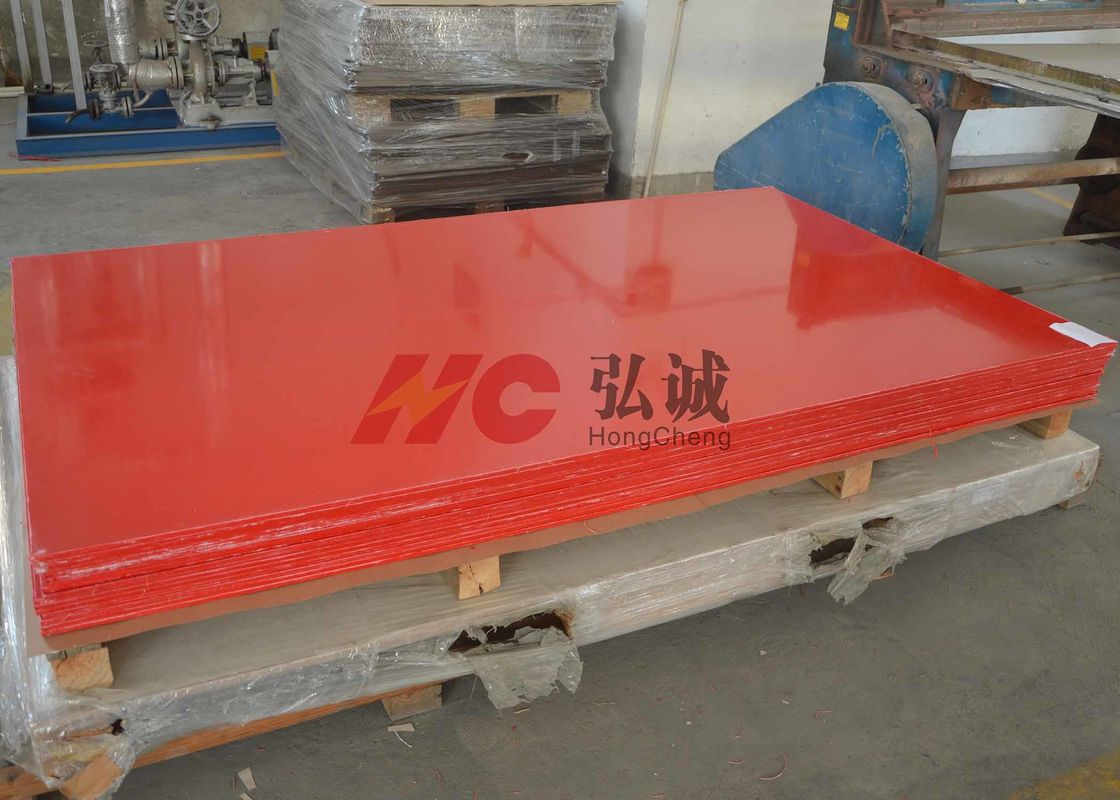

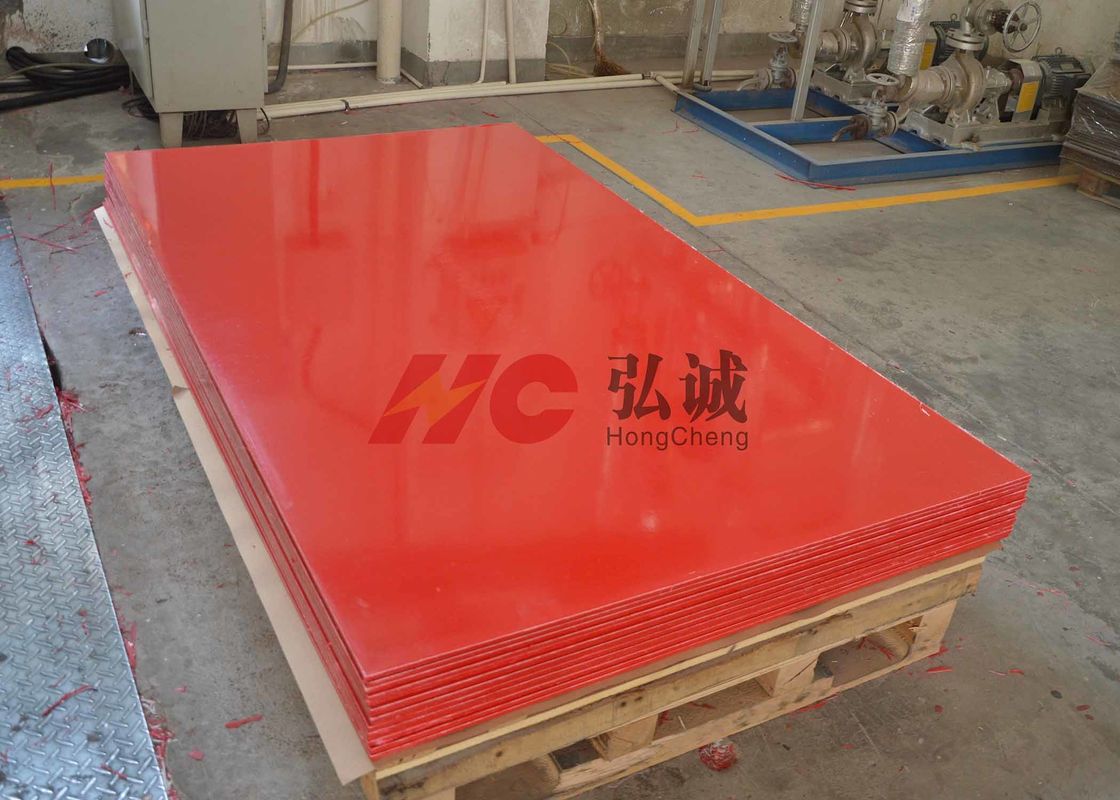

Laminate Red UPGM 203 Sheet Large Size Arc Resistance With High Flexural Strength

Large size UPGM203 laminated sheet in 48′×82′ / 48′×82′ UPGM203 laminated sheet with high flexural strength


Product Introduction:
Large size UPGM203 laminated sheet in 48′×82′ are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press

Application:
it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.

Thickness range :2mm-60mm

Sheet Size:1000mm*1200mm

Main Color:Red,White ,Brown,Yellow or Gray

Feature:
It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good




Laminate Red UPGM 203 Sheet Large Size Arc Resistance With High Flexural Strength 0

products: Molded Circuit Breaker,Universal circuit breaker
materials: UPGM203 laminated sheet in large size
Description: The molded case circuit breaker is also called a device breaker ,all parts are sealed in plastic shell, the touch head, arc-suppression , release devices and operating mechanism are assembled in a plastic casing through modularization.Generally, maintenance is not considered ,it suitable for branch protection switch ,overcurrent tripping device has two types: thermally magnetic and electronic.The arc-suppression plate in the structure is mainly used for the thin plate and the arc resistance HC-GPO3 ,arc-suppression plate acts as a protective effects.

Main famous cooperative enterprises: ABB,Schneider(APC),Siemens,HUYU Group Co.,Ltd.Electrical Components & Automation Jiangsu Daqo Kfine Electric Co., Ltd.

Packing detail: plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
delivery detail: 5-7 working days
