Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle

  • High Light

    fiberglass l channel

    ,

    pultruded fiberglass structural shapes

  • Product Name
    GPO-3 Dogbone/ Corner Angle
  • Density
    1.85-2.0g/cm3
  • Water Absorption
    ≤ 0.5%
  • Tensile Strength
    ≥400Mpa
  • Flexural Strength(perpendicular)
    ≥650Mpa
  • Arc Resistance
    ≥ 180 Sec
  • Place of Origin
    Xiamen China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Model Number
    Dogbone / Corner angle
  • Minimum Order Quantity
    2000pcs
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Payment Terms
    T/T

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle

Low cost high compressive strength Dogbone Conner angle,GPO3 brace 24kinds of mold


Product Introduction: Low cost high compressive strength Dogbone Conner angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
Feature:

Stable structure,non cracking, non Explosive Edge

Technical advantages, mold development and design capabilities, excellent supporting capacity.

High Arc Resistance:≥180 Seconds

Track Resistance:CTI≥600V

Heat Resistance:Class F,up to 130℃

Thermal Impact:Temp. Index: -273℃ to +155℃

Fire Retardant:UL 94 V-0 Grade

Application transformer & reactor special-purpose airway support is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.




All dimension of our GPO3 dogbone:

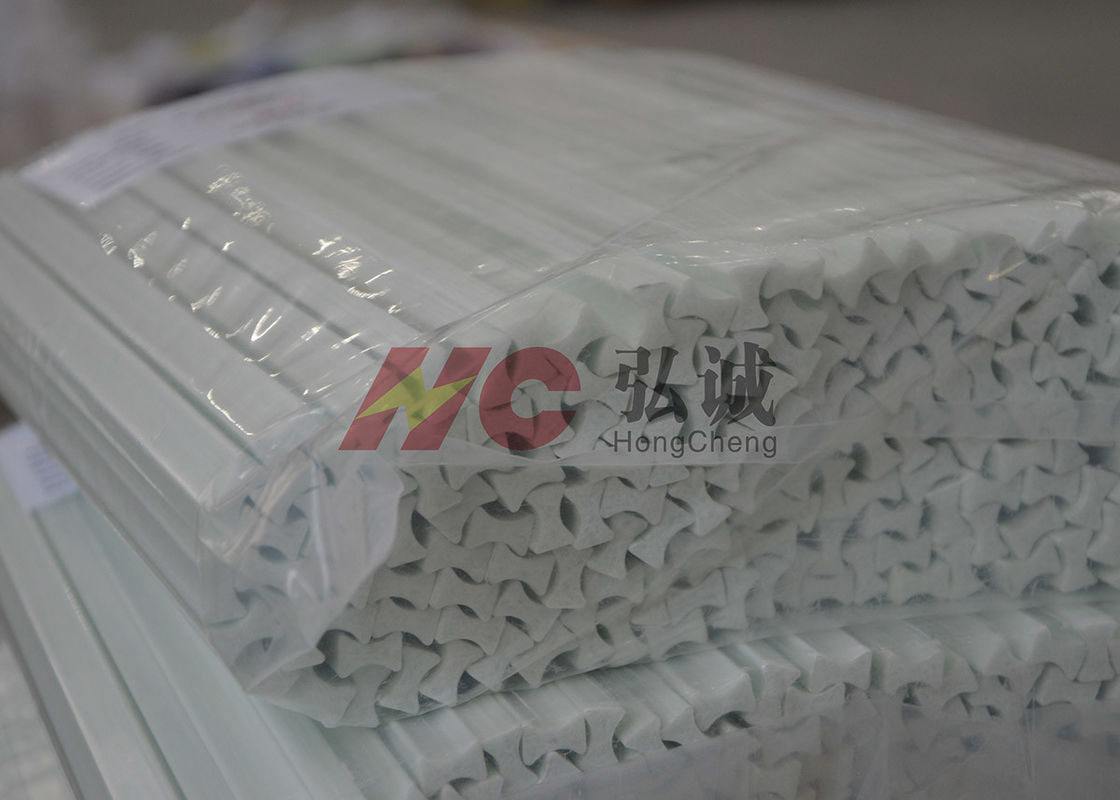

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle 0

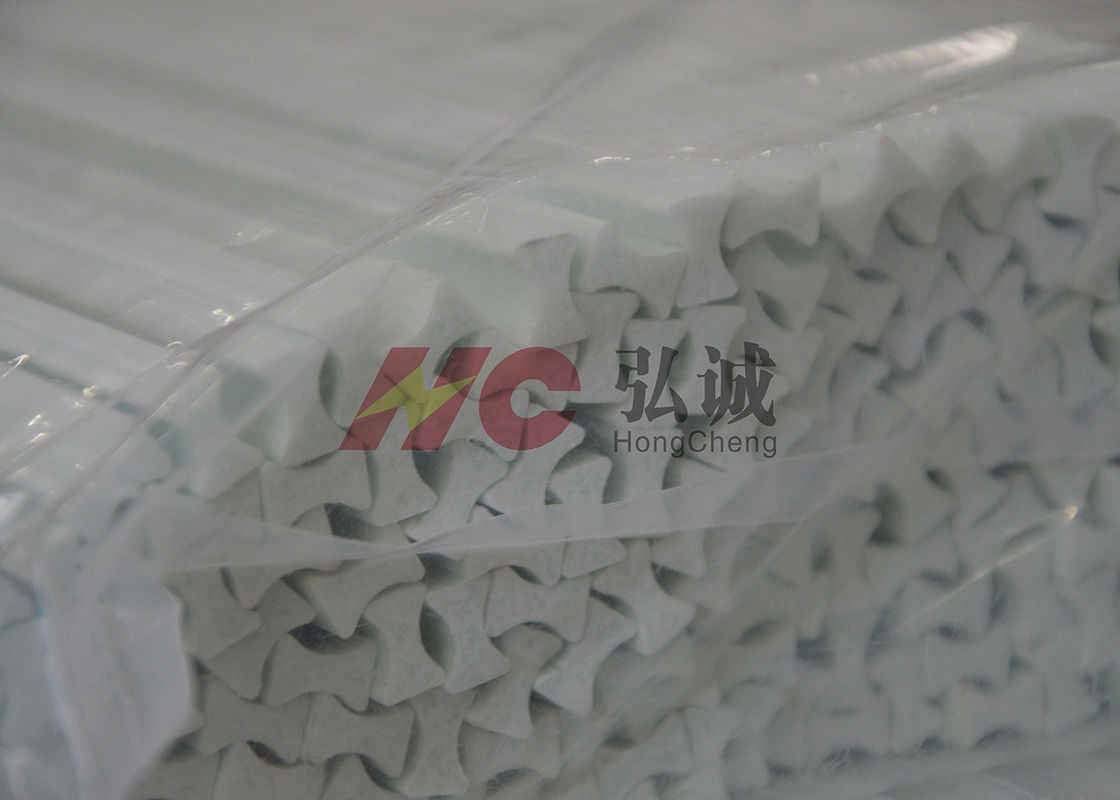

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle 1

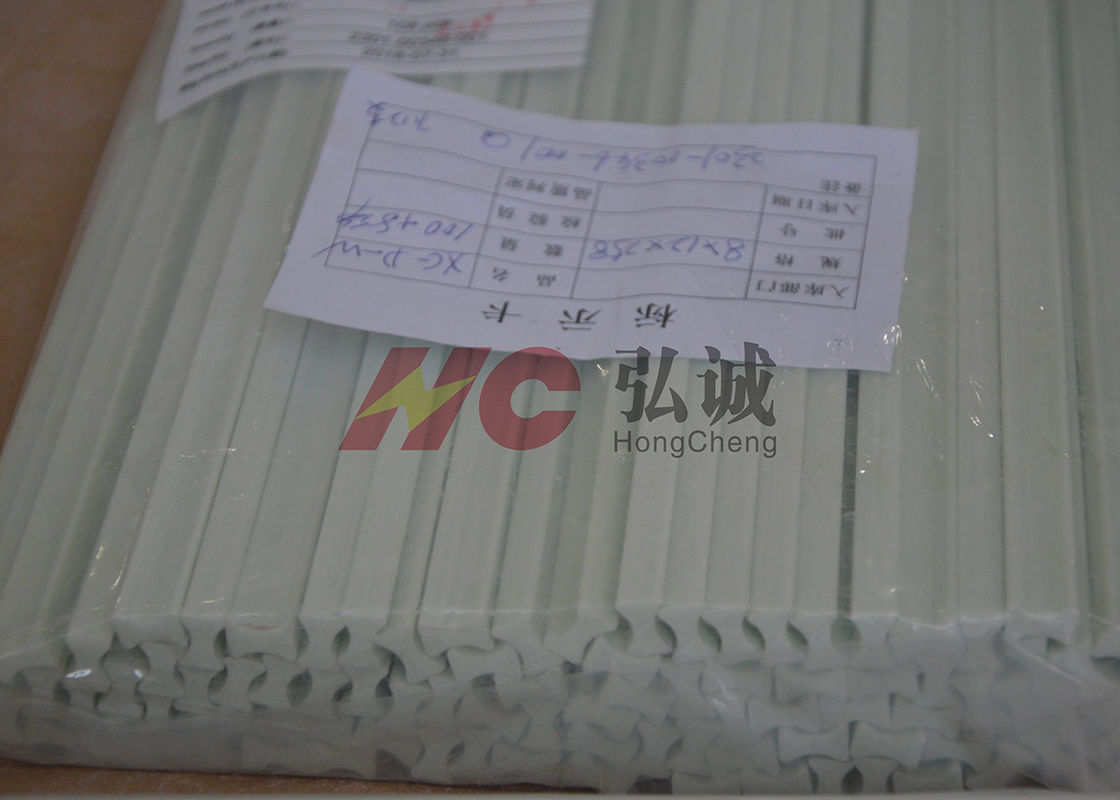

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle 2






Low cost high compressive strength Dogbone Conner angle used in electrical reactor/Transformer

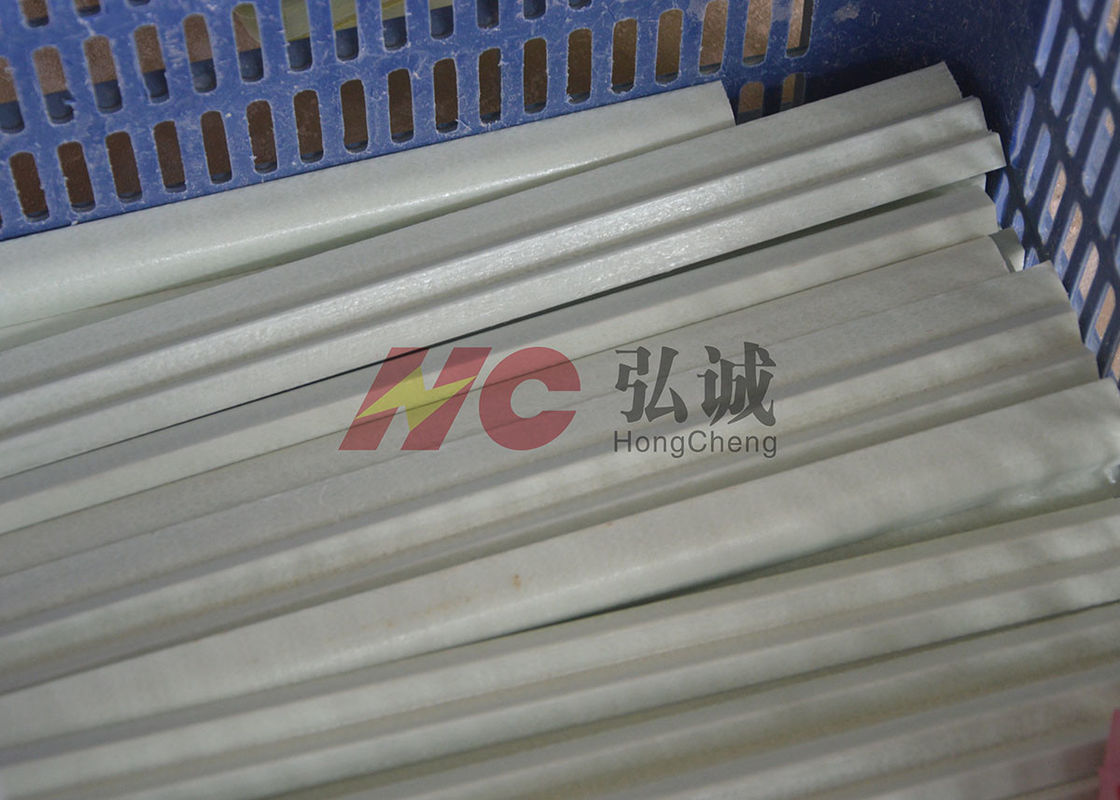

Low Cost Pultruded Profiles High Compressive Strength Dogbone Corner Angle 3

The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
