Product Introduction:
UPGM203 is also called GPO-3 , it is a glass reinforced thermoset polyester sheet material. GPO-3 have good mechanical strength ,dielectric strength and excellent arc and carbon tracking resistance ,grade GPO3 is flame resistant.it is designed for general purpose insulation and mechanical support in electrical equipment ,where a flame resistant material is required.
Like many glass reinforced thermoset sheet materials, GPO-3 is somewhat abrasive on tooling during machining operations.
Feature of this GPO-3 as below :
(1)Good electronic performance under high temperature,good performance for anti leakage of electronic
(2)Arc resistence could reach more than 180°C
(3)flame-retardant grade could reach 94-V0, thermal endurance class could reach F grade(More than 160°C)
(4)It is the advance retardant ,anti-impact and anti corrosion material in these recent years
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- |
good |
Application of GPO-3
(1) Insulation parts of electronic equipments.

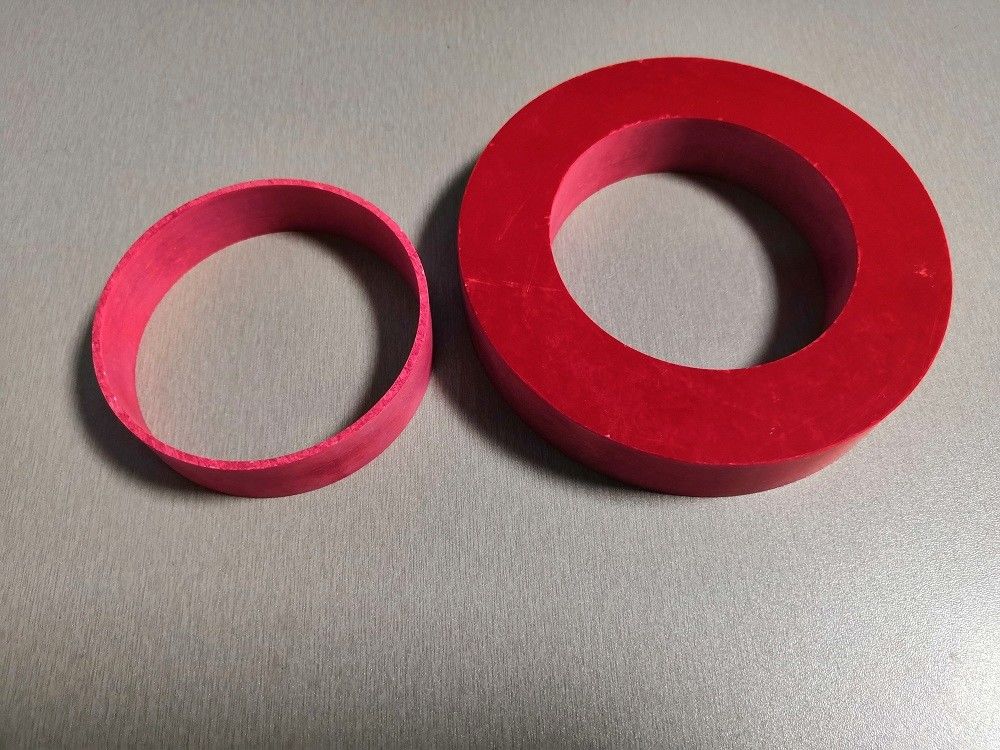

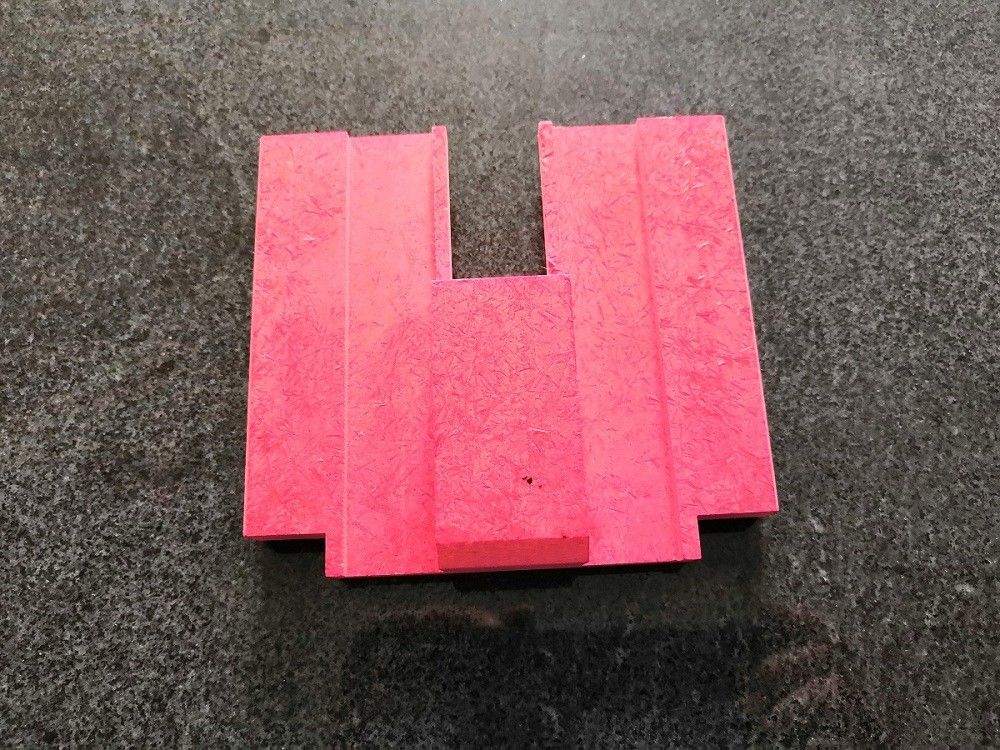

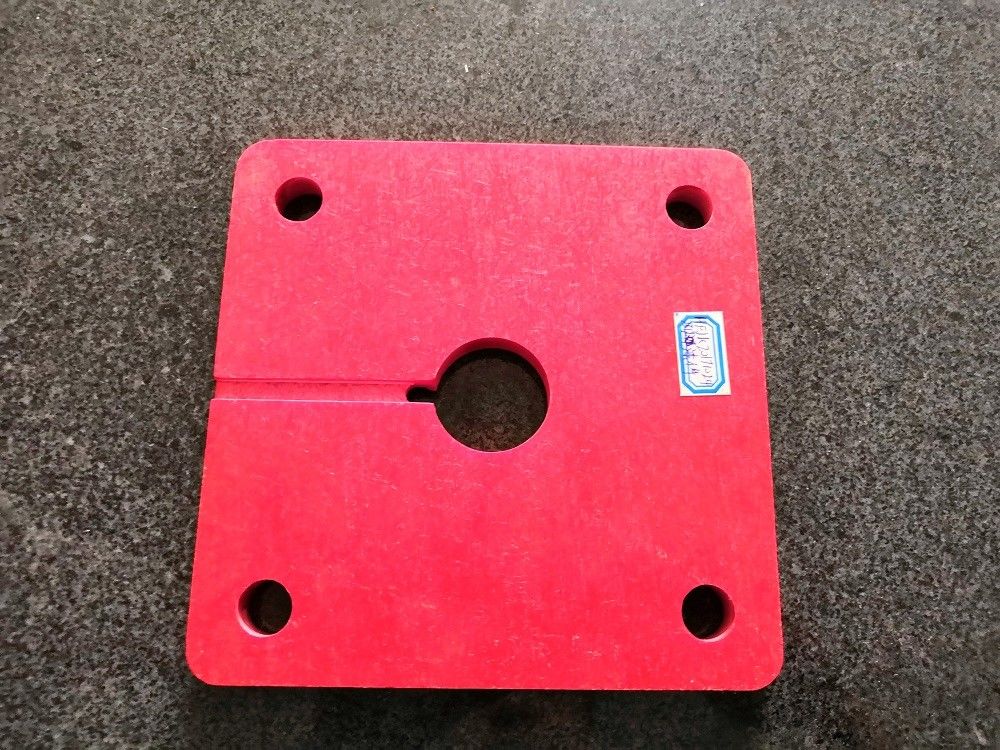

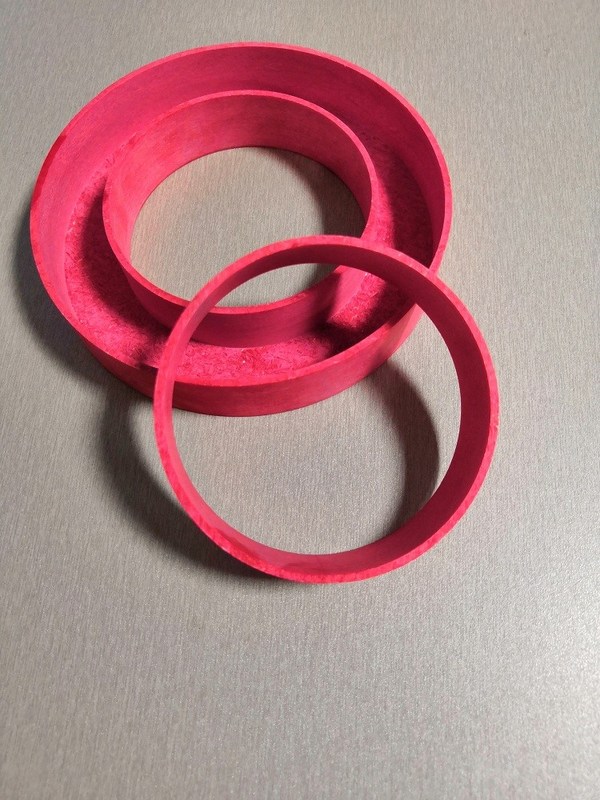

(2) All kinds of plate,mat , arcing shield, flash barrier and other similar sheets and distributed parts
(3)flame-retardant grade could reach 94-V0, thermal endurance class could reach F grade( 155°C)
(4)It is the advance retardant ,anti-impact and anti corrosion material in these recent years
