UPGM203
,1000*1200mm Polyester Glass Fiber Sheet
-
Arc183S
-
CTI600
-
Tensile Strength＞170MPA
-
Raw MaterialPolyester And Glass Fiber
-
ColorRed And White
-
Size1000*1200mm/1230*2100mm
-
CertificationUL/ROHS/REACH
-
Minimum Order Quantity100KG
-
Price3-4 USD
-
Packaging Detailscarton and pallet
-
Delivery Time3-5 DAYS
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability6000 TONS PER YEAR

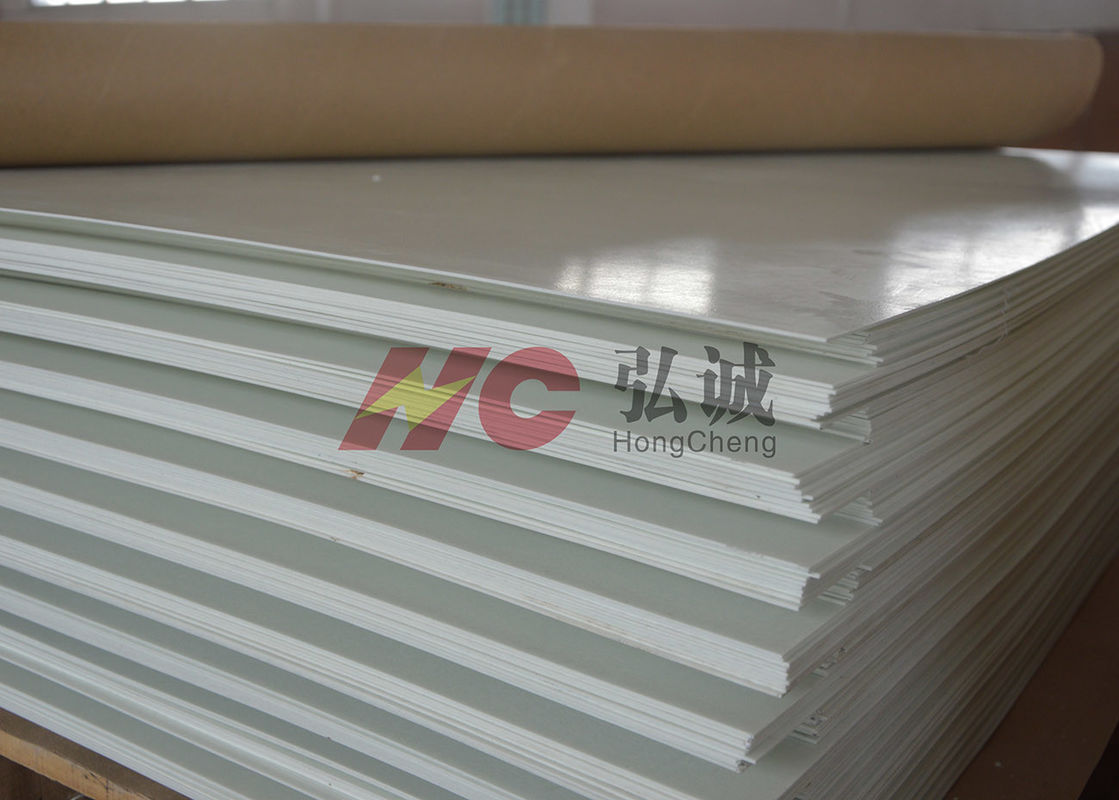

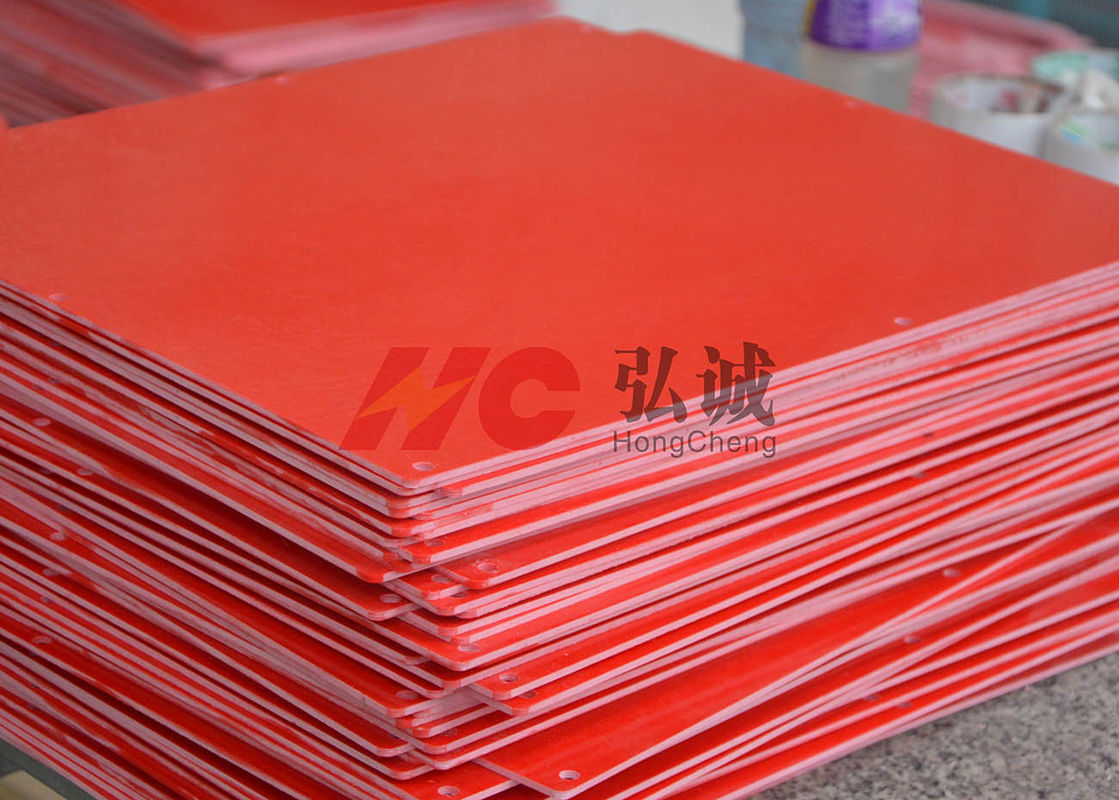

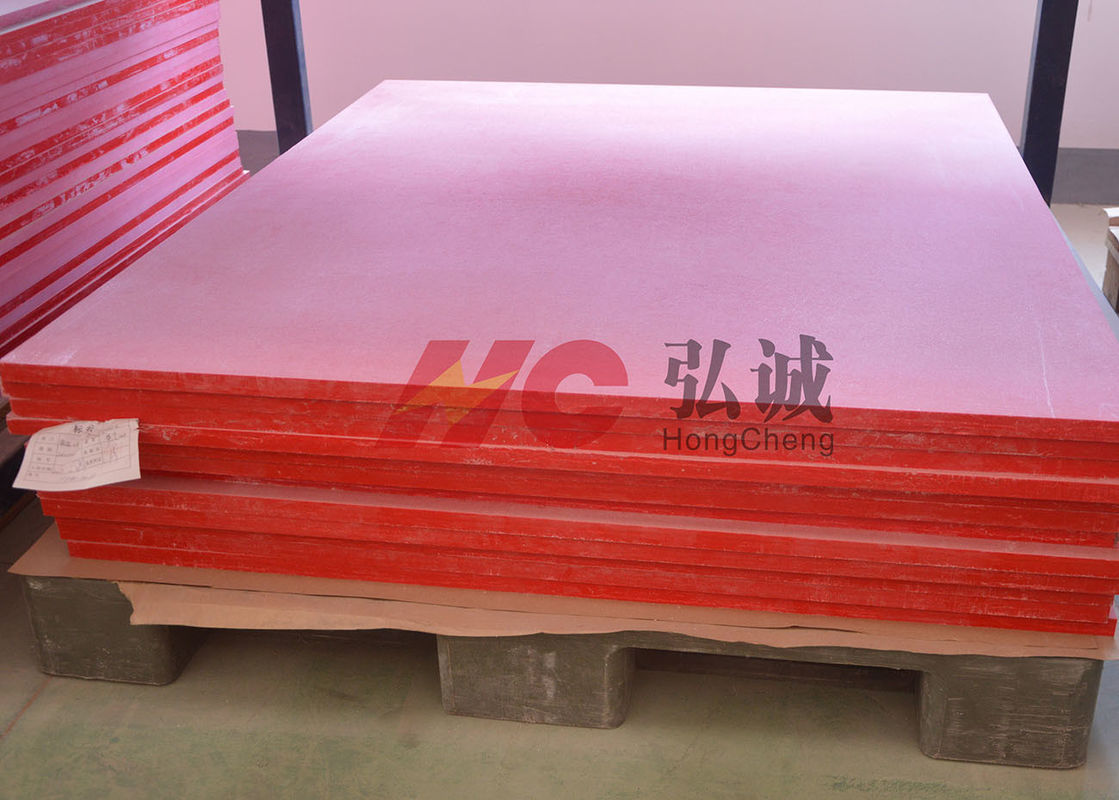

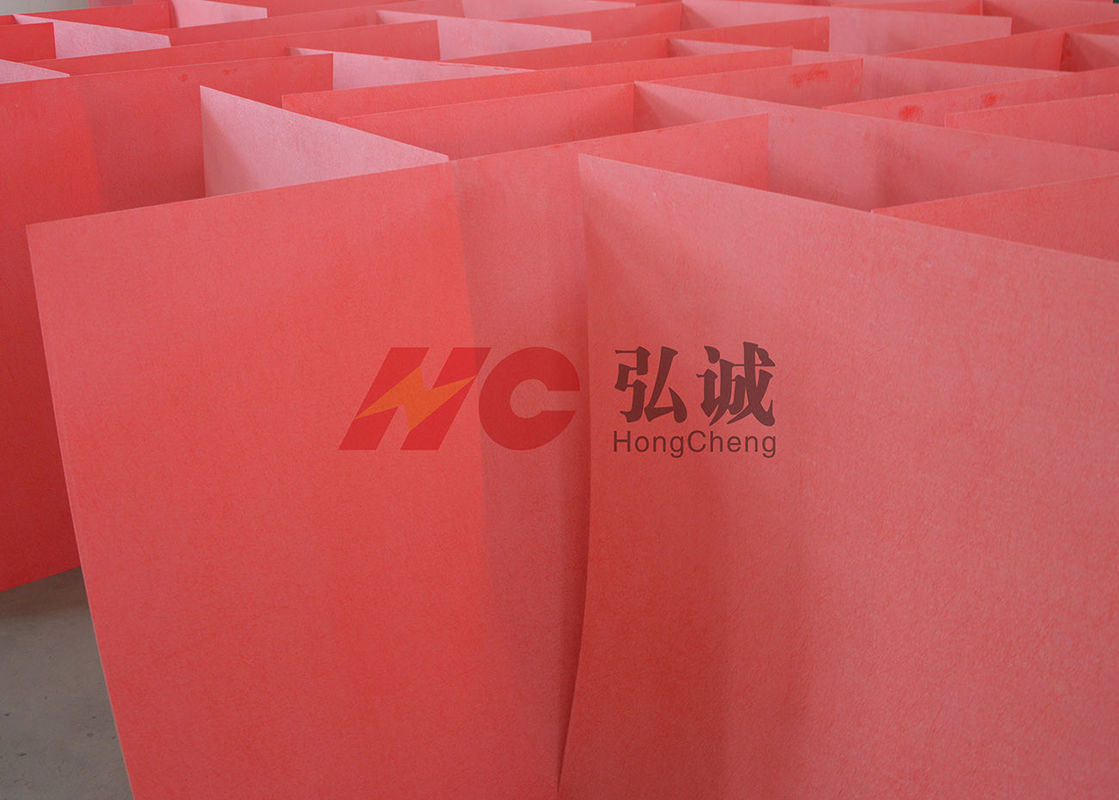

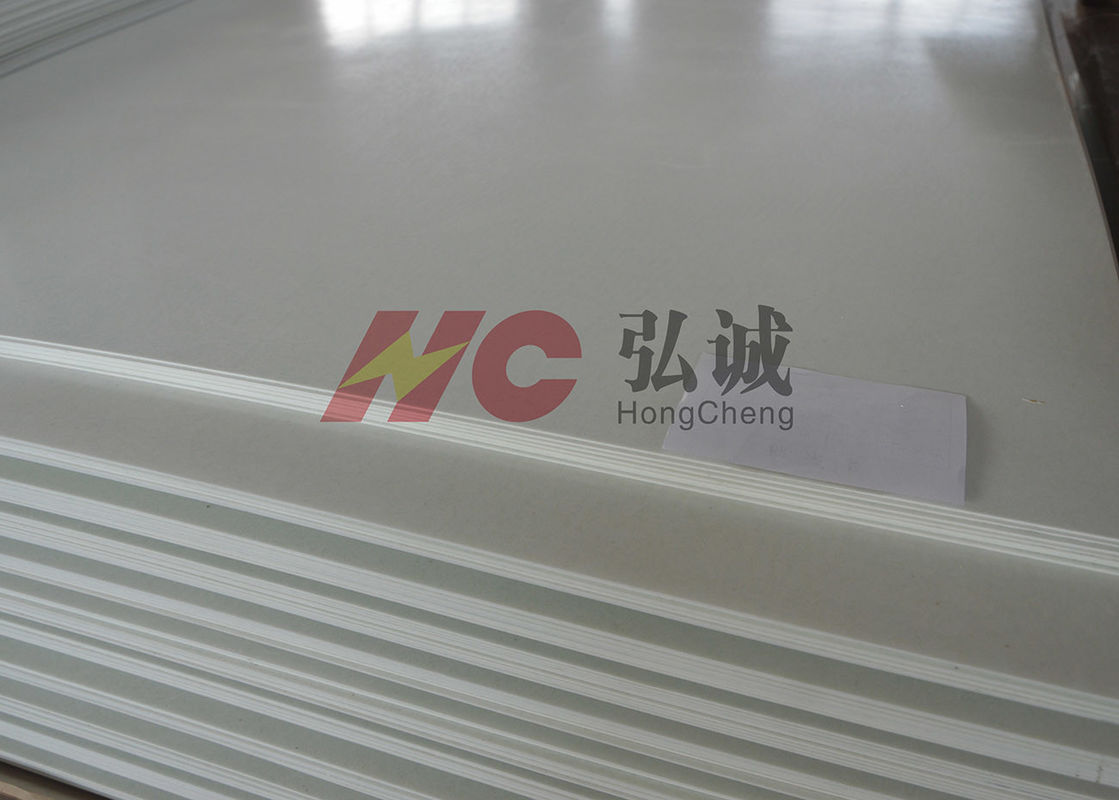

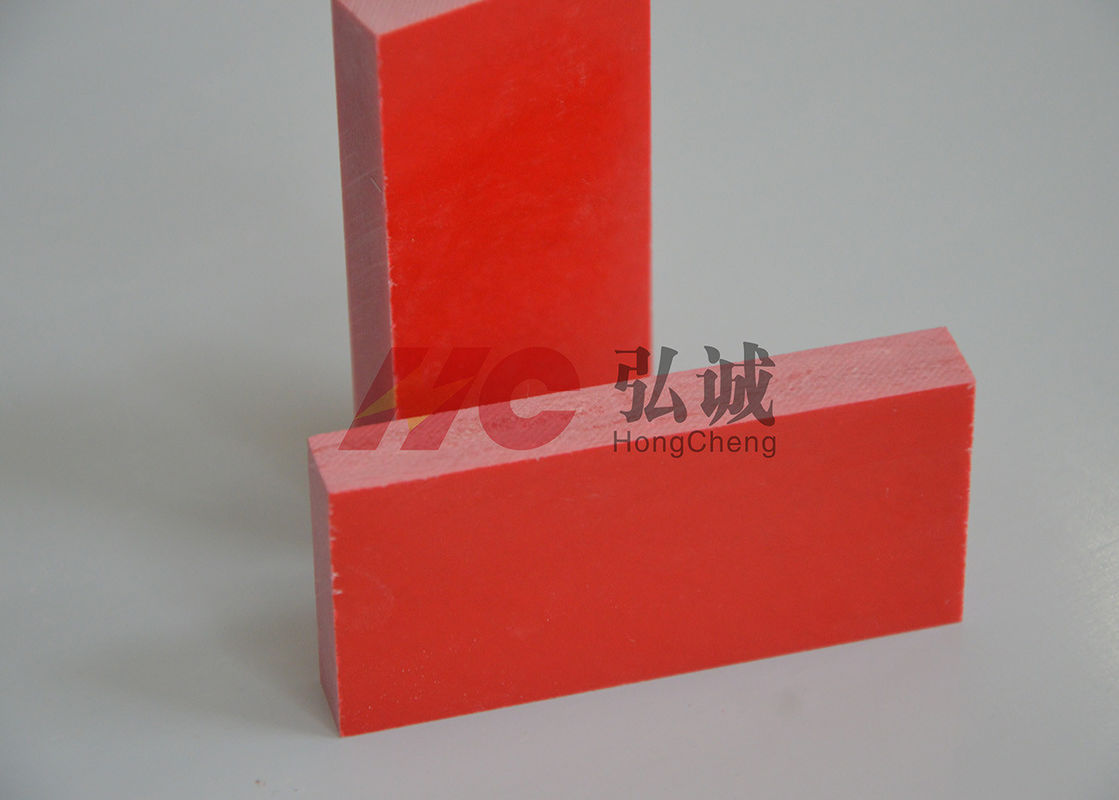

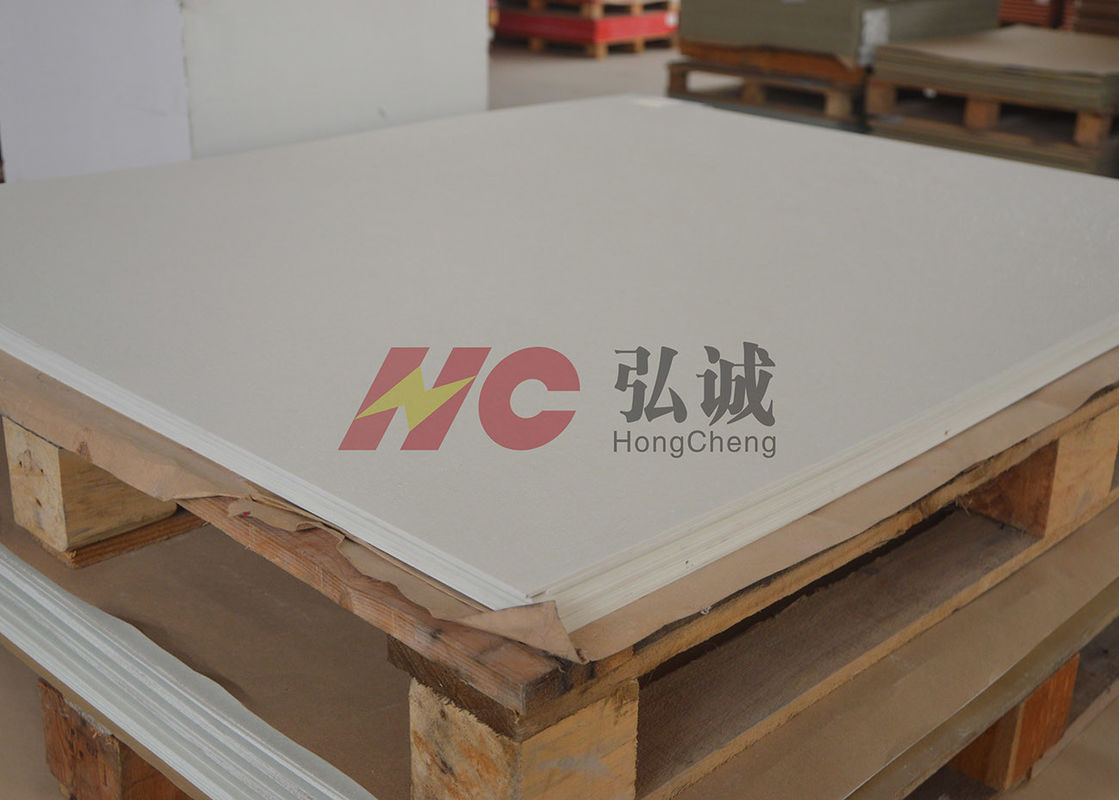

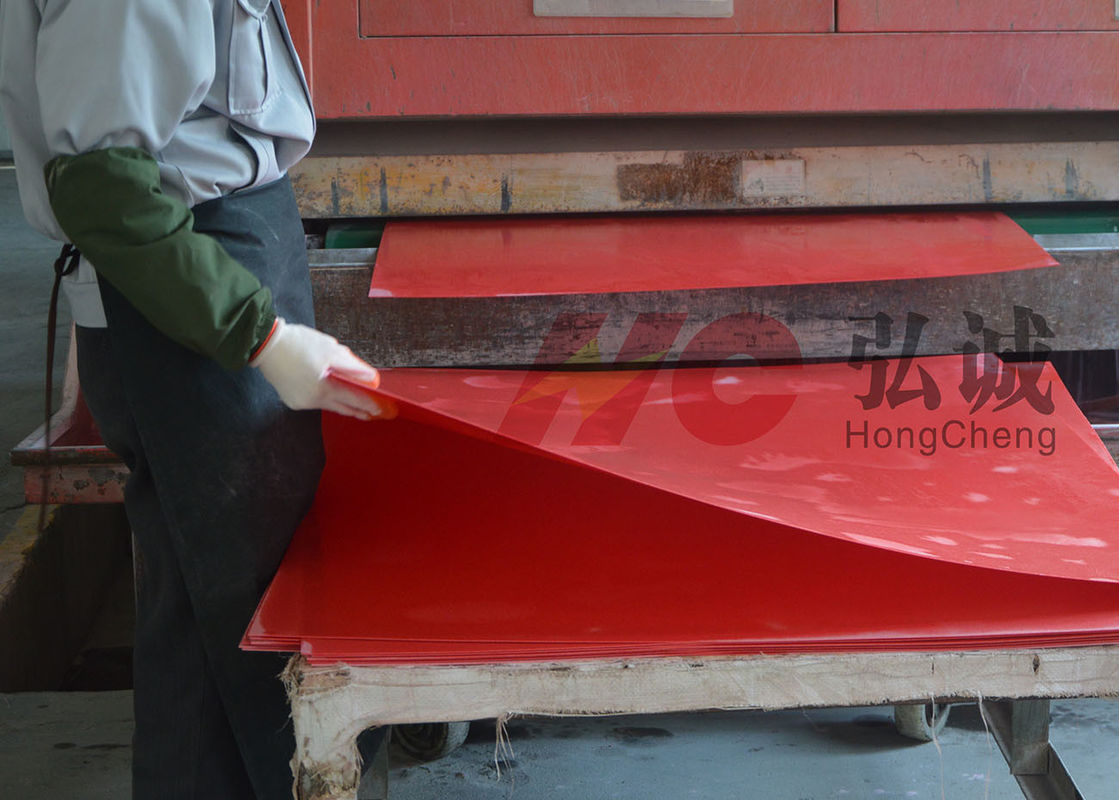

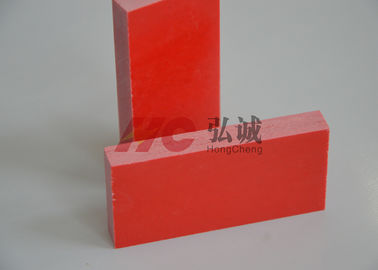

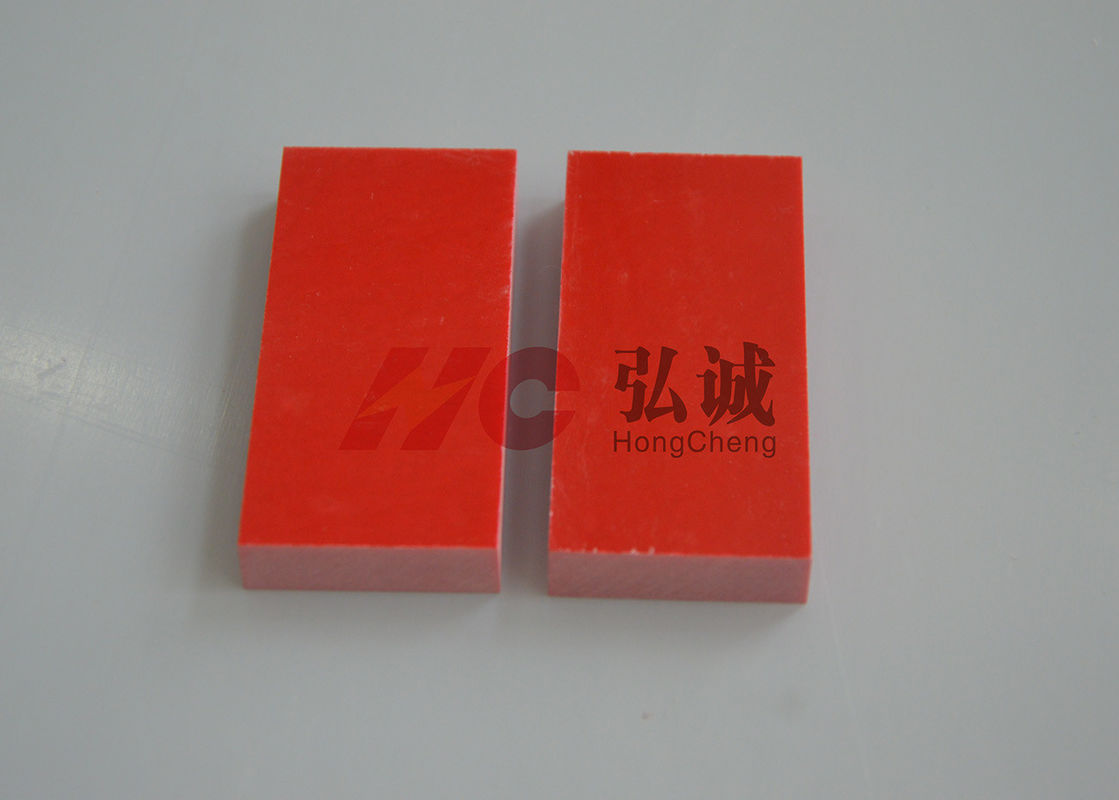

Arc Resistant UPGM203 Polyester Glass Fiber Laminate Sheet
What is UPGM203 sheet ?
As we known UPGM203 laminate sheet is also called GPO-3, it is alkali-free fiberglass mat dipped into unsaturated polyester resin and added relevant filling material as the basic material pressed under high temperature PRESS into rigid panel as insulating material. It has good electrical property under high humidity and high mechanical property by medium temperature, quite nice fire retardant property, good arc resistance and tracking resistance. It's widely used in the low&medium voltage electrical industries such as making of phase and end barriers, insulating supports, bus bar supports and mounting panels in switch-gear and other types of electrical apparatus.
This material have been done the test in liquid helium approximate to -270℃, but it still has very nice strength on mechanical properties .
What is product feature of UPGM203 sheet ?
Electrical Insulation: GPO3 has good electrical property under high humidity and high mechanical property, fire retardant property, good arc resistance and tracking resistance.
Mechanical Strength: It can be machined, punched, drilled, milled, sawn, sanded, sheared or routed. Assembly by bonding, metal screws or rivets are also possible.
Environmental protection : this material is green product , it meet requirements of ROHS and Reach
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- |
good |
What is application of UPGM203 ?
It is widely used in the low voltage electrical industry in the European and American countries.
1. Mould case circuit breaker
2. safety door
3. arc plate
4. slot wedge, shifting cover spacer ,gasket
5. switch cabinet
6. bus-bar clamp
7. Clamp Connector
