High Light
GPO-3 Laminated Sheet
,Laminated Gpo3 Sheet
-
CTI600
-
ARC183
-
ColorRed And White
-
Size1000*1200mm/1230*2100mm
-
Raw MaterialPolyester Resin And Glass Fiber Mat
-
Place of OriginCHINA
-
CertificationUL/ROHS/REACH
-
Minimum Order Quantity100KG
-
Packaging Detailscarton and pallet
-
Delivery Time3-5 DAYS
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability3600 TONS PER YEAR

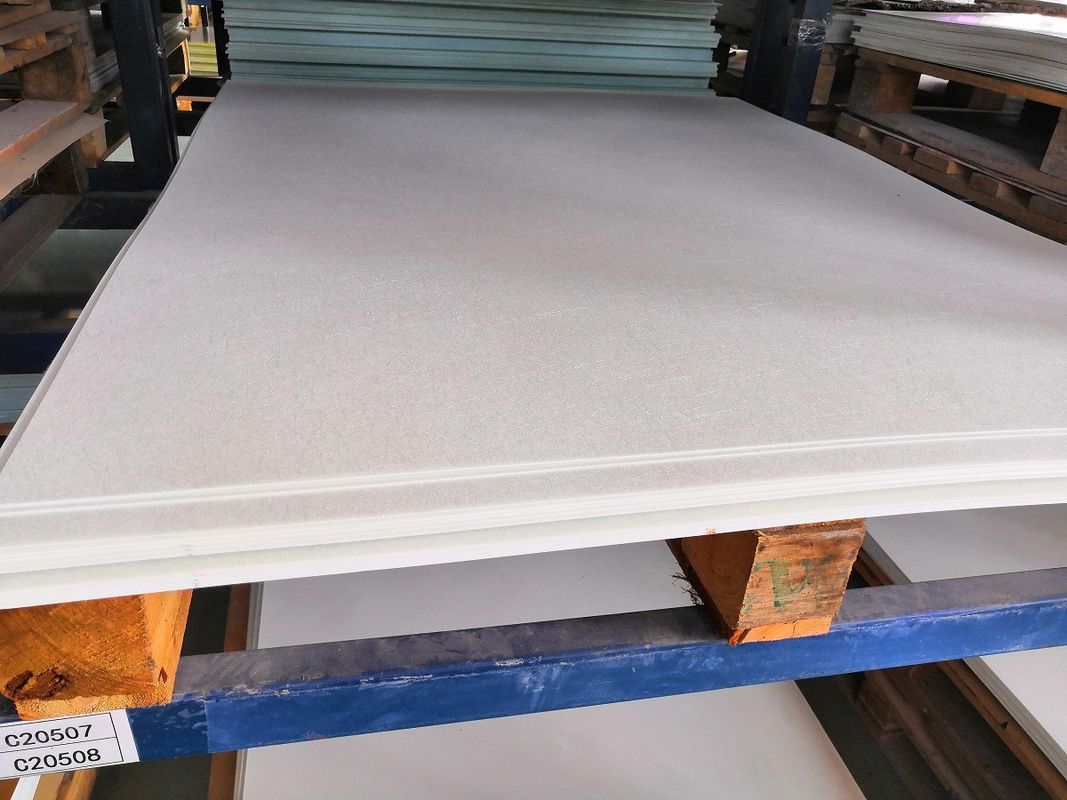

Laminated Gpo3 Sheet Excellent Electrical Property On CTI
Intr0duction of GPO-3 material
GPO-3 material , known as UPGM203 material , this material was produced by polyester resin and fiberglass mat under hot pressed.
GPO-3 sheet perform well in electrical application that require high arc and track resistance ,as well as flame resistance , physical strength and high heat resistance.
All our GPO-3 products are UL recognized and are used extensively in the making of phase and end barriers,insulating supports,bus bar supports,mounting panels in switch gear and other types of electrical equipment .
It is green material meet requirement of ROHS/REACH and have certificates for both .
Features of GPO-3
1.Flammability: UL94 V-0
2. CTI≥ 600V without tracking
3. Heat resistance is F Class
4.Excellent arc resistance> 180seconds
5.High mechanical strength and good Impact resistance

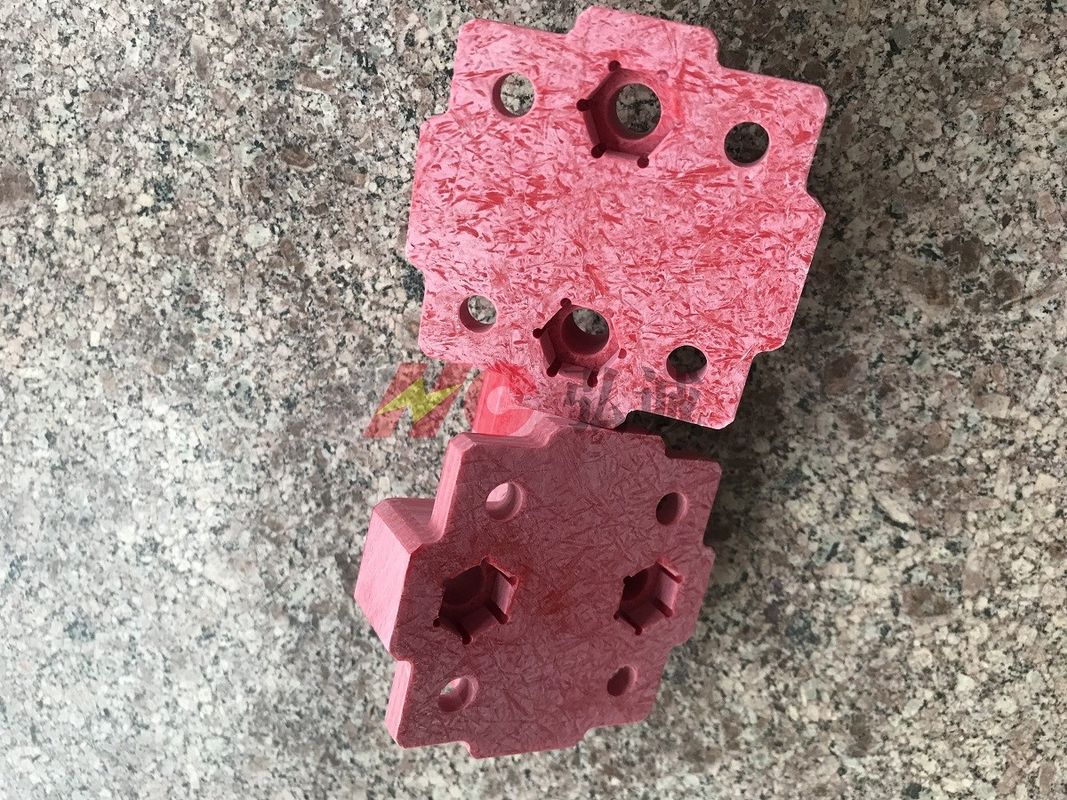

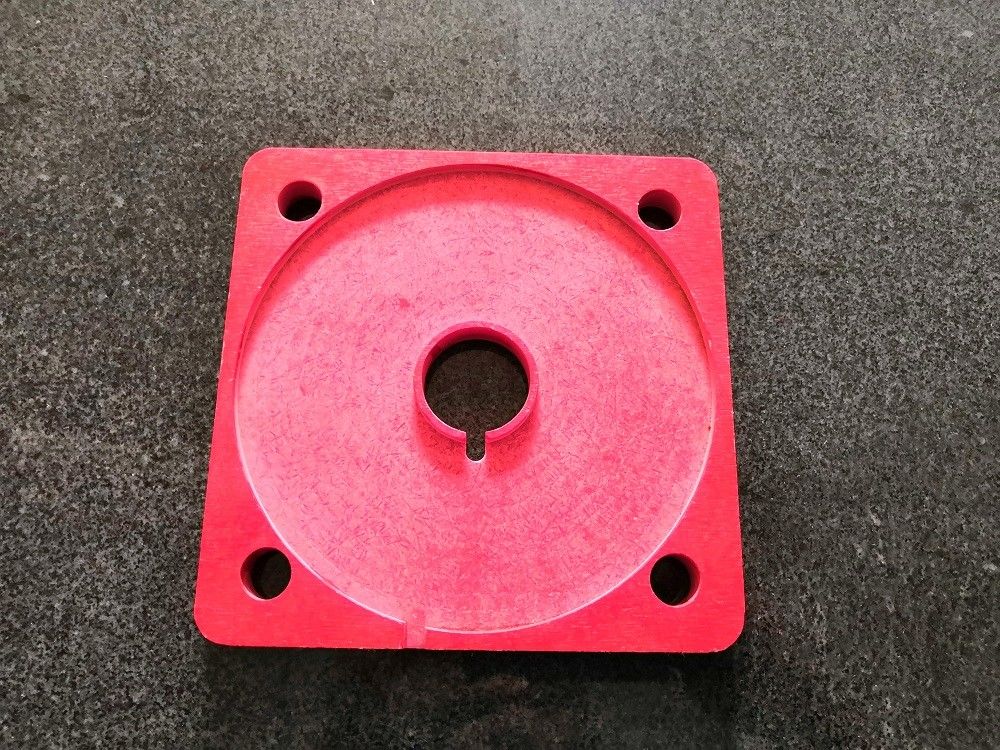

6.Good Processing properties, it can be punched, drilled, machined, cut.
7. UL certification passed ,ROHS once a year, have passed inspection
8.Complete sort, sufficient inventory to meet the different needs of customers
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- |
good |
Application of GPO-3 material
1.Phaes and end barriers
2.Insulating supports ,bus bar supports

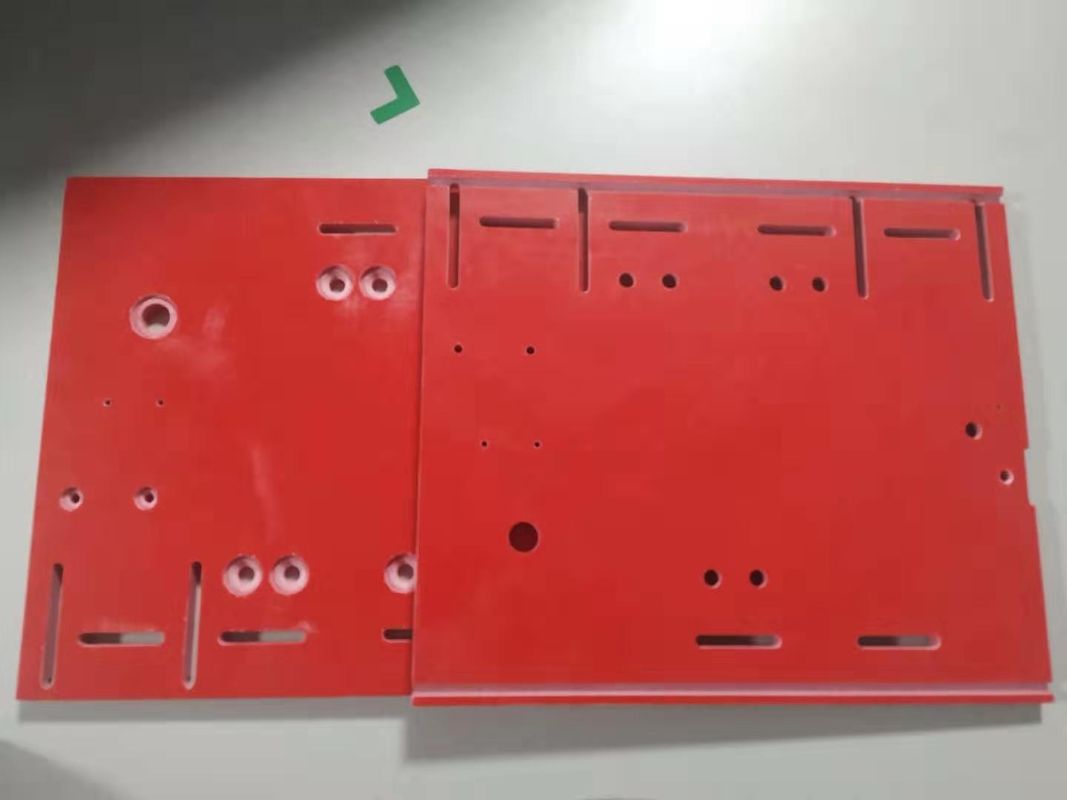

3.Mounting panels in switch gears ,transformers
4.Antenna buses ,spacers andSeparator system parts
5.Power supply: Medium voltage inverter, High Voltage Switchgear and other high-quality primary insulation material for Columns, beams, trunking, etc.
6.Breaker: Safety shutter, security shutters, space liner, clapboard, arc interrupter compartment panels
7.Electric motor: Motor armature parts , wedge stator fixed gaskets, shims, carbon brush holder, etc
8.Arcresistant structures: Interrupter cover, arc tube, arc across the board and various central parts
9. Where high heat ,mechanical stability and electrically isolative conditions are needed
