GPO3 Fiberglass Laminate Sheet
,CTI 600 Fiberglass Laminate Sheet
,Arc Resistant GPO 3 Sheet
-
CTI600
-
Arc Resistance180 Seconds
-
Water Absorption ResistanceLess Than 0.5%
-
Raw MaterialGlass Fiber Mat And Polyester
-
Filler MaterialCalcium Carbonate
-
Fire ResistanceUL94-V0
-
Size1230*2100mm/1000*1200mm/1040*1230mm
-
Thickness0.5-70mm
-
Environmental Protection MaterialHalogen-free
-
ColorRed And White
-
Place of OriginCHINA
-
CertificationUL/ROHS/REACH/EN45545
-
Minimum Order Quantity100KG
-
Price3-4 USD
-
Packaging Detailscarton and pallet
-
Delivery Time3-5 DAYS
-
Payment TermsL/C, T/T, Western Union
-
Supply Ability4800 TONS PER YEAR
Arc Resistant CTI 600 GPO3 Fiberglass Laminate Sheet
Arc resistance reach 180 second and reach CTI600 GPO3 glass fiber laminate sheet
GPO3 sheet is also called UPGM203 sheet (Unsaturated Polyester Glass Mat Plate). UPGM203 is IEC standard
and GPO-3 is NEMA grade. The main composite is polyester resin , glass fiber mat and filler material . It is kind of rigid plate insulating material, made of alkali-free fiberglass mat impregnated with unsaturated polyester resin, adding relevant chemical agents in high temperature and pressing to rigid plate.
This material with very nice properties on mechanical , electrical and low water absorption , because of glass fiber with high strength on mechanical and unsaturated polyester resin with very nice electrical , such as high tensile strength , bending strength , impact strength and compression strength of properties on mechanical ; excellent arc resistance , CTI and break down resistance voltage ; very low water absorption due to filler material is calcium carbonate , UL 94-V0 due to the calcium carbonate , it is halogen-free which is environmental protection material .
Features of the material
a.Nice resistance Water absorption rate , the value less than 0.5%
b.High strength of bending , tensile and compression
c.Excellent fire resistance , it can meet UL94-V0
d.Great heat resistance class , long working temperature can meet F class , 155℃
e.CTI meet CTI600
f.Nice arc resistance , it meets more than 180 seconds , not easy to carbonization
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
| Other properties | The anti microbial properties of bacteria | G21-G22 | ||
What is application of GPO3 ?
As mentioned so much excellent properties on electrical , mechanical , heat resistance , fire resistance and low water absorption of GPO-3 material , this material is more and more widely used in the low and medium voltage electrical industries , such as photovoltaic power generation ( for example inverter cabinet ) , rail transportation (for example battery box ) , power generation, wind energy, power transmission and distribution (such as bottom and top cover in transformer) , metallurgy, petrochemical, public transportation and other fields.

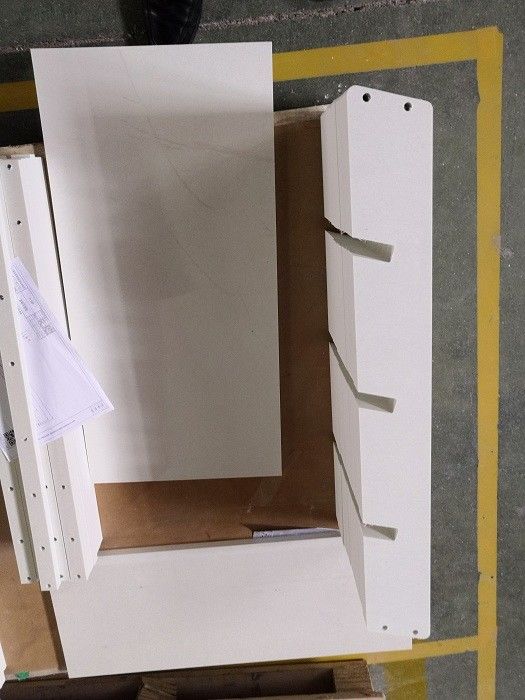

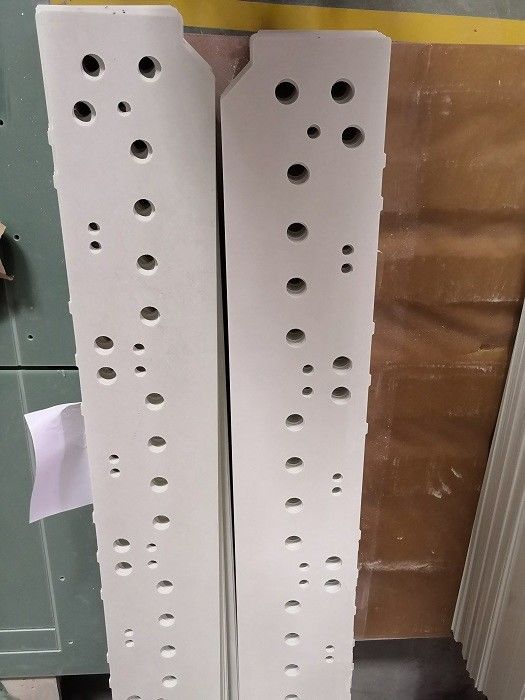

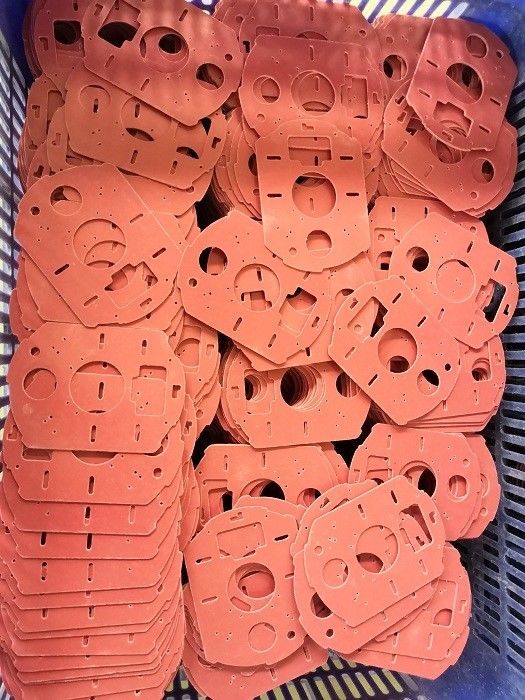

It always made into insulating structural parts as follow products:
1.phase and end barriers,
2.insulating supports,
3.bus bar supports,
4.mounting panels in switch-gear,
5. slot wedge in switch cabinet,
6.motor
7. top and bottom cover in small transformer
8. combtype bracket in dry transformer
9. frame breaker
10. arc extinction plate and safety plate in breaker
Our services cover all industries and reach all parts of the world.
