Halogen-free GPO3 with UL recognized and 1mm thickness reach UL94-V0
GPO3 sheet is a environmental protection material (green product ) , because of it is not content the halogen . As we known , so many insulation materials add the halogen (such as bromine) to enhance fire inflaming retarding grade UL94-V0 . However , the filler material of GPO3 is calcium carbonate , it is the halogen free material and meet UL94-V0 . Halogen will migerl injurious to health of persons .
The GPO3 material is also recognized by UL/ROHS/REACH/EN45545 etc., as we known , more and more customers requested certified by UL and meet requirements of ROHS/REACH , if the material did not have certicated of them , it will be difficult exporting to Europe and North America.
The GPO-3 sheet from our company can reach UL94-V0 on fire resistance property , as we know that it will more easy to burn if the thickness is small . According to IEC and GB standard , no any clause stipulate the GPO-3 should meet UL94-V0 when thickness less than 3mm , most of GPO-3 sheet with thickness less than 3mm can reach UL94-V2 only and even HB grade , it means that it has the risk to burn during electrical equipment running .
What is the features of GPO3 material ?
1. It is halogen free material , no any halogen material as fire retardant .
2. High strength of bending , tensile properties , tensile strength can meet 162MPa ;
3. Excellent Vertical Compression Strength , the test value is more than 490MPA
4. Great running temperature index , long working temperature can meet F class , 155℃
5. Arc resistance reach 180 second .
6.Very low water absorption , it means better insulation strength when running in humid environment.
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
Other properties | The anti microbial properties of bacteria | G21-G22 |
What is application of GPO3 material ?
With the technology development and social progress , more and more electrical products have been came into the lives , more and more peoples take care of the health of electrical products , save and green products are the same important into our lives . GPO3 material has been more and more widely used in every industry by virtue of more save and more environmental protection , such as
photovoltaic power generation , rail transportation , wind energy , power transmission and distribution .

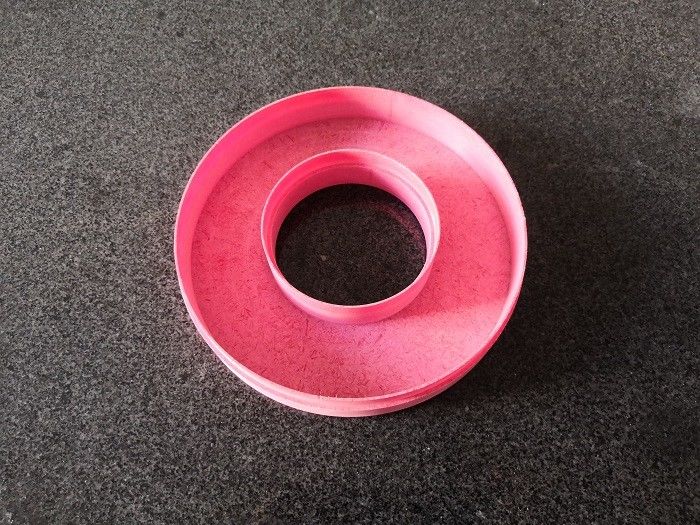

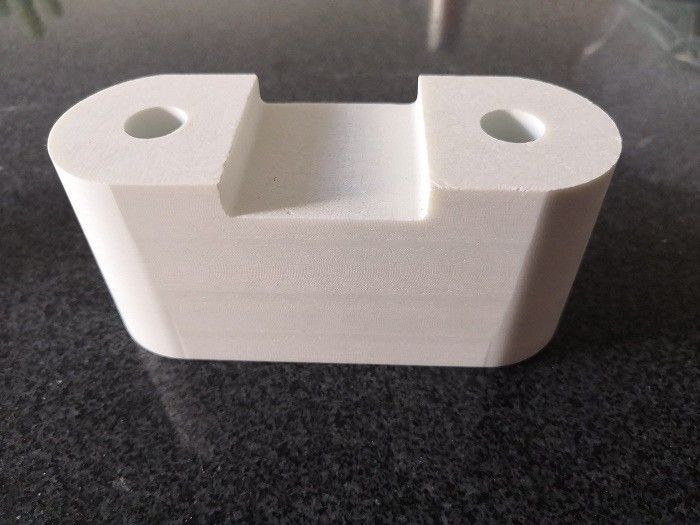

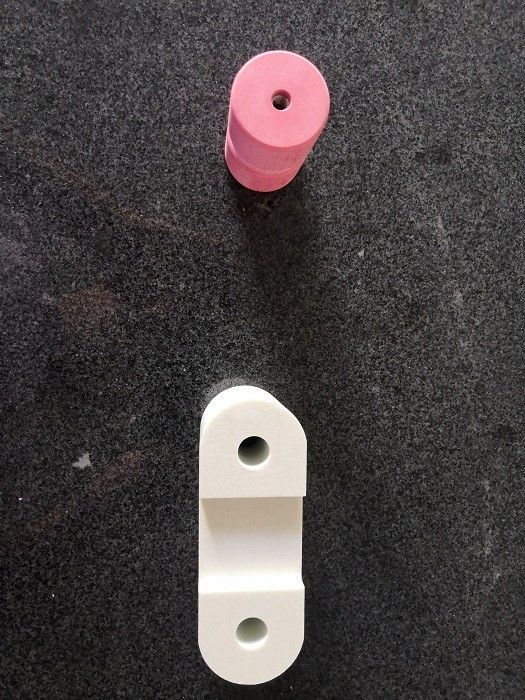

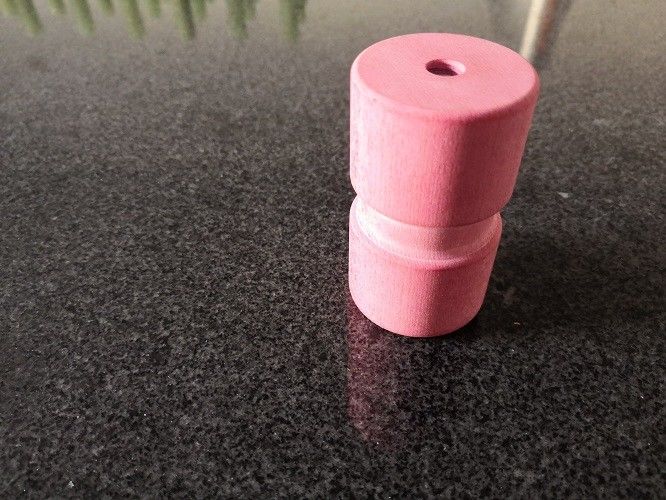

It has been making every kinds of insulating structural parts , for example :
