UPGM203 Halogen-free material as the filler meet UL94-V0 requirement
What is the UPGM203 material ?
UPGM203 material is composited by unsaturated polyester , glass fiber mat and aluminium hydroxide material . As soon as we known , if the material need to meet UL94-V0 , it need fire retardant material , so many UPGM203 manufacturers use filler content bromine as the fire retardant , but bromine is the halogen material . Halogen will impair person’s heath , so it is very important to keep the product is green .
In other way , aluminium hydroxide material as the filler material in UPGM203 will decrease the water absorption rate .So many UPGM203 manufacturers use for calcium carbonate as filler material due to it is cheaper than aluminium hydroxide material . However , calcium carbonate as filler will caused rising up of water absorption rate , it caused insulation performance rise down .
What properties does this material have ?
1. Very low water absorption rate ;
2. It has the excellent performance on mechanical property when running on high and low temperature
3. It is the green product , no Halogen in this material .

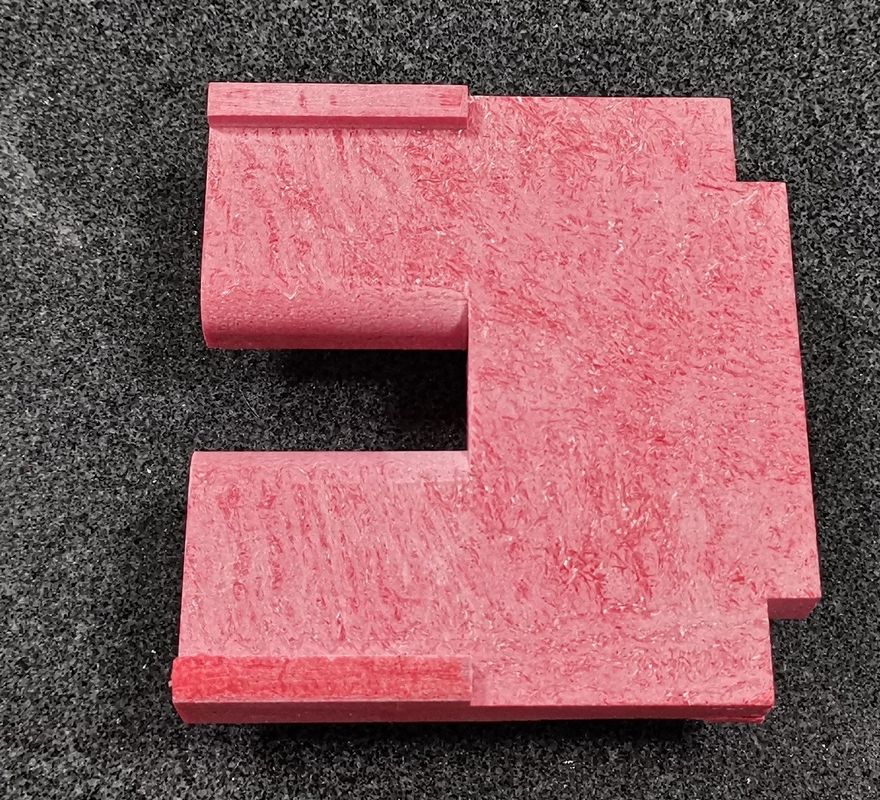

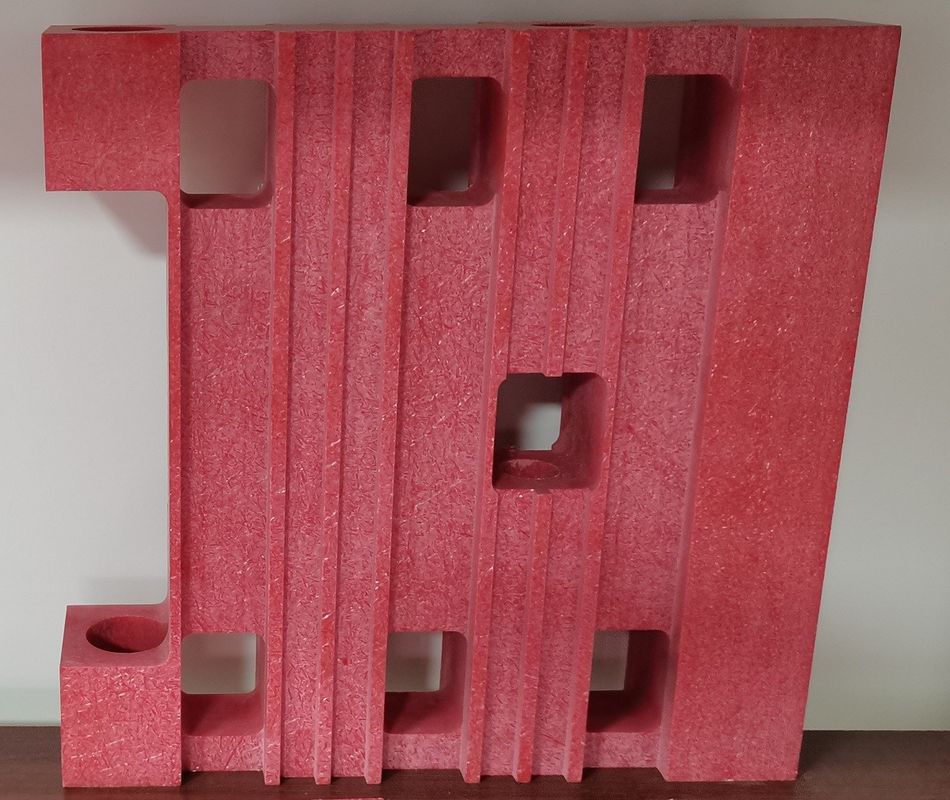

4. It is easy process by CNC machines , it can be machine into complex parts .
5. It has widely application to every kinds of electrical products such as transformer/switches etc.
6. It has strong electrical strength , the break down voltage can meet 14.3KV/mm
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- |
Low |
|
Other properties | The anti microbial properties of bacteria | G21-G22 |
May I know the application of tUPFM203 material ?
UPGM203 is also called GPO-3 , it was widely used in every fields , such as environmental protection, photovoltaic power generation, wind energy, rail transportation, power transmission and distribution, motor etc.

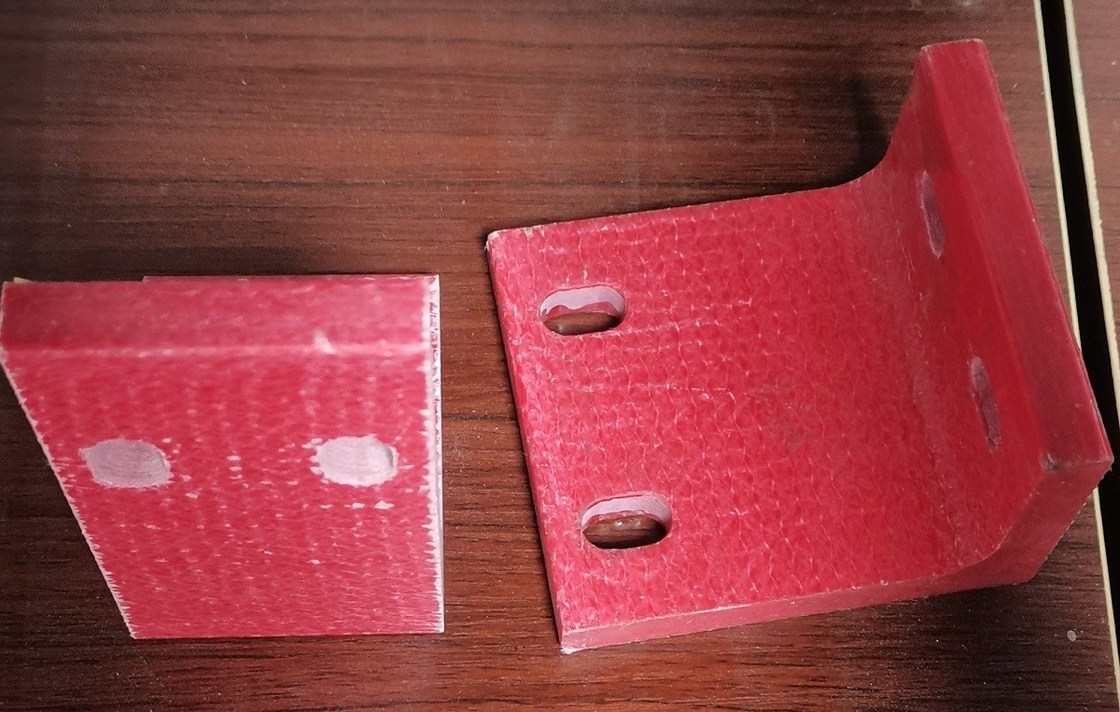

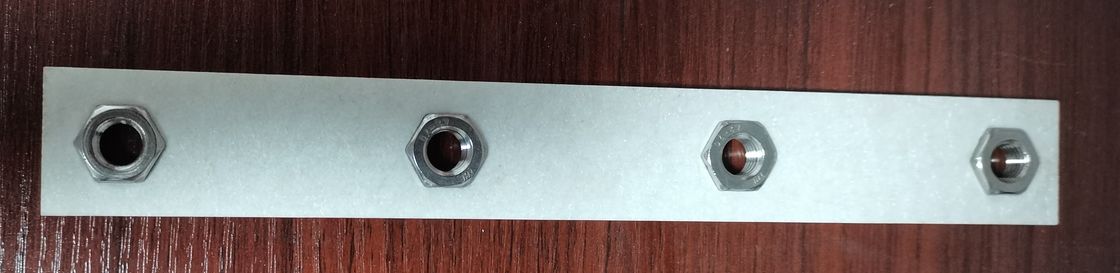

It has been used as insulating structural parts for products of above industries , such as :
in low & middle voltage electrical equipments as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor , converter , inverter & explosion proof apparatus etc. ; automotive industry field etc. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arcchute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate , slot wedge, stator, gasket , shims , carbon brush etc.
We believe that the UPGM203 will be used for more and more industries due to it’s green products and excellent properties on insulation and mechanical .
