UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property

UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property

  • High Light

    Halogen Free GPO 3 Sheet


    UL 94-V0 GPO 3 Sheet


    60mm GPO3 Fiberglass Sheet

  • CTI
  • Material
    Glass Fiber And Polyester Resin
  • Arc Resistance
    180 Seconds
  • Color
    Red And White
  • Thickness
  • Fire Resistance
    UL 94-V0
  • Place of Origin
  • Certification
  • Minimum Order Quantity
  • Price
    3-4 USD
  • Packaging Details
    carton and pallet
  • Delivery Time
    3-5 DAYS
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    3600 TONS PER YEAR

UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property

GPO-3 sheet with UL/EN45545/ROHS/REACH and with nice property of machining


GPO-3 sheet is also called UPGM203 sheet , it is the insulation material which was made by unsaturated polyester resin , glass fiber and aluminium hydroxide .

Functions of unsaturated polyester resin is electrical properties such as CTI/Arc resistance /break down voltage and etc.,

functions of glass fiber mat is mechanical properties such as bending strength , compress strength , tensile strength and etc., functions of aluminium hydroxide is filling material and fire resistance , it can meet UL94-V0 of fire resistance.

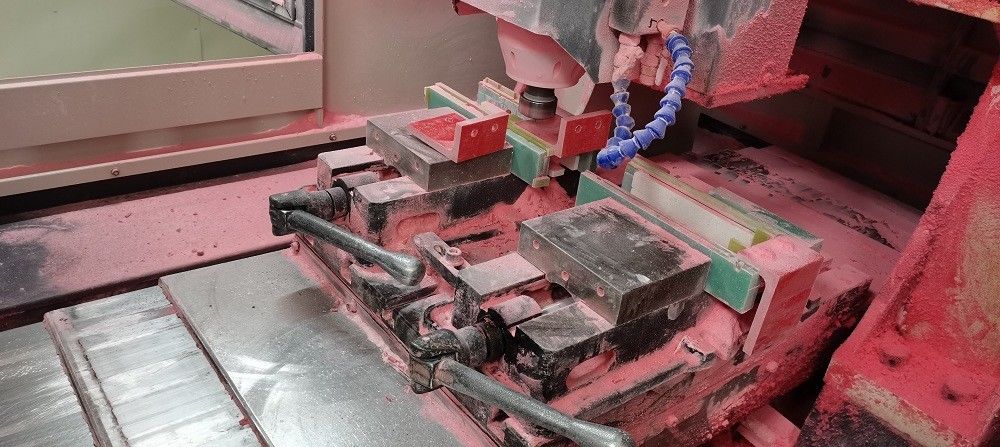

The glass fiber is the alkali-free glass fiber mat , it will be more save when running in switch cubicle , because some of the cubicle filling sulfur hexafluoride gas . The GPO-3 which we manufacture has certified by UL/ROHS/REACH and EN45545 , all of these certificates will be needed when materials exporting to Europe and North America . For the property of machining , the material can be cut , drill the holes and process on CNC machines .

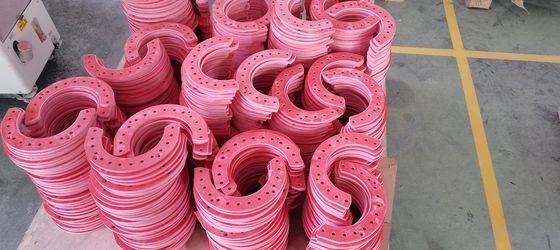

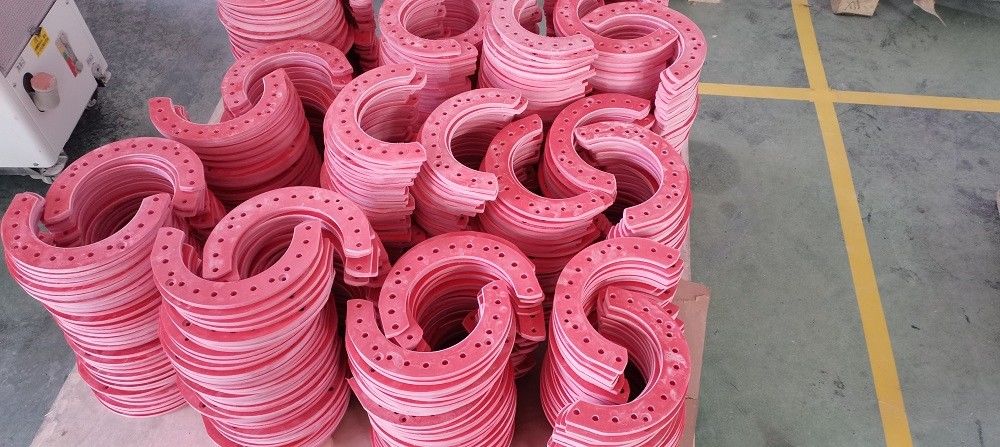

UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property 0UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property 1


Features of GPO-3 material :

Impact resistant

It is environmentally friendly material as it is halogen free material .

It has strong strength on tensile and compression

Dimensional stability

Good arc resistance and tracking resistance ,as it meets requirement of CTI600 &Arc resistance 180S

Good flame and smoke characteristics

It has very strong break down resistance and voltage meet 14.3KV/mm

It can be punched to save machining cost if the thickness less than 3mm

It has very low water absorption rate and application to humid environment .


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 ---



Other properties The anti microbial properties of bacteria G21-G22




Application of GPO-3

As soon as we known , GPO-3 material (include laminated sheet/shapes such as dog bone , corner bone , L shape , U channel ) is widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation , photovoltaic and other fields.

GPO-3 always machined into insulating structural parts by CNC as follow products:

a.phase and end barriers,

b.insulating supports,

c.bus bar supports,

d.mounting panels in switch-gear,

e.switch cabinet,


g.frame breaker,

h.safety plate,

i.arcing plate,

j.slot wedge,

k.shifting cover spacer,


m.cable clamp;

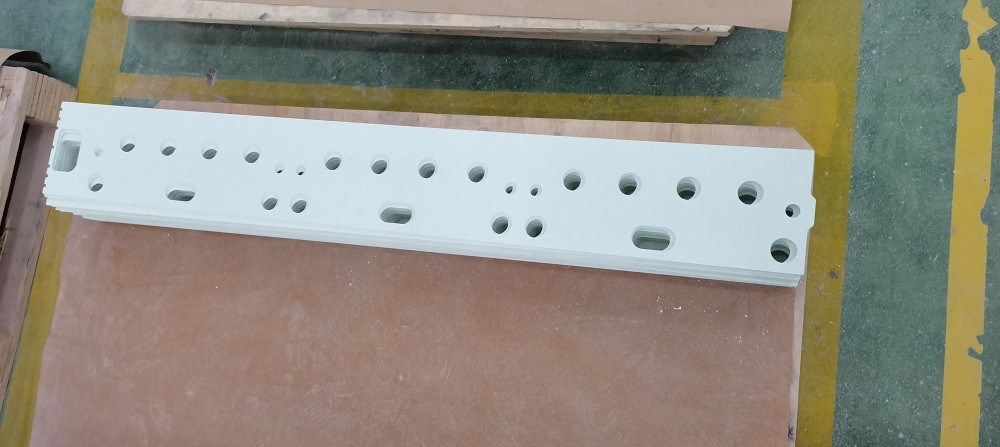

UL 94-V0 Halogen Free GPO 3 Sheet With Excellent Machining Property 2
