100mm Polyester Glass Mat UPGM 203 Sheet EN45545

100mm Polyester Glass Mat UPGM 203 Sheet EN45545

  • High Light

    Polyester Glass Mat UPGM 203 Sheet

    ,

    100mm UPGM 203 Sheet

    ,

    UPGM 203 Insulation Sheet EN45545

  • Material
    Unsaturated Polyester Resin
  • Rated Voltage
    15kv
  • Color
    Ashen
  • Thickness
    0.8mm~100mm
  • Usage
    Electrice Power
  • Feature
    Electrical Performence
  • Flexural Strength
    Above 130
  • Density
    2
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    ul, rohs ,reach, en45545, din5510
  • Model Number
    GPO3 unsaturated polyester glassmat sheet
  • Minimum Order Quantity
    100kg
  • Payment Terms
    L/C, T/T

100mm Polyester Glass Mat UPGM 203 Sheet EN45545

0.5mm - 100mm UPGM203/upgm 203/UPGM-203 polyester gassmat sheet





Product  description



UPGM203 Sheet also known as GPO3, it is alkali-free fiberglass mat dipped into unsaturated polyester resin adding relevant chemical agent as the basic material pressed under high temperature molded into rigid panel as insulating material.

UPGM203/upgm 203/UPGM-203  has good electrical property under high humidity and high mechanical property under medium temperature, fine fire retardant property, good arc resistance and tracking resistance.



UPGM203/upgm 203/UPGM-203 is  widely used in the low voltage electrical industries such as making of phase and end barriers, insulating supports, bus bar supports and mounting panels in switch-gear and other types of electrical apparatus.





our laminates also have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.

These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.





Product parameters



Items

Unit

Test Method

Typical Values

ASTM/UL/GB

Density

g/mm³

D792

2

barcol hardness

-

D2583

93

Tensile strength

Mpa

GB/T5130-1997

155

compressive strength

Mpa

GB/T5130-1997

218

Charpy Impact Testing

KJ/M2

GB/T5130-1997

568

147

Cantilever beam impact test

Mpa

GB/T5130-1997

100

Parallel shear strength

10

Vertical bending test

Mpa

GB/T5130-1997

230

Parallel layer breakdown voltage

KV

GB/T5130-1997

43

GB/T1408-2006

Vertical layer electrical strength

KV/mm

GB/T5130-1997

15

GB/T1408-2006

 relative dielectric constant

-

GB/T5130-1997

4.8

GB/T1408-2006

Dielectric loss factor

-

D495

≤0.06

Arc Resistance



›180

Insulation resistance after immersion in water

Ω

GB/T5130-1997

4.8*109

GB/T10064-2006

Resistance to electrical leakage marks CTI

V

GB/T4207-2003

The voltage is 600V without scratch

flame retardant rating

-

UL94 V-O

94VO





UPGM203/upgm 203/UPGM-203 Application

UPGM203/upgm 203/UPGM-203  Widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation and other fields.

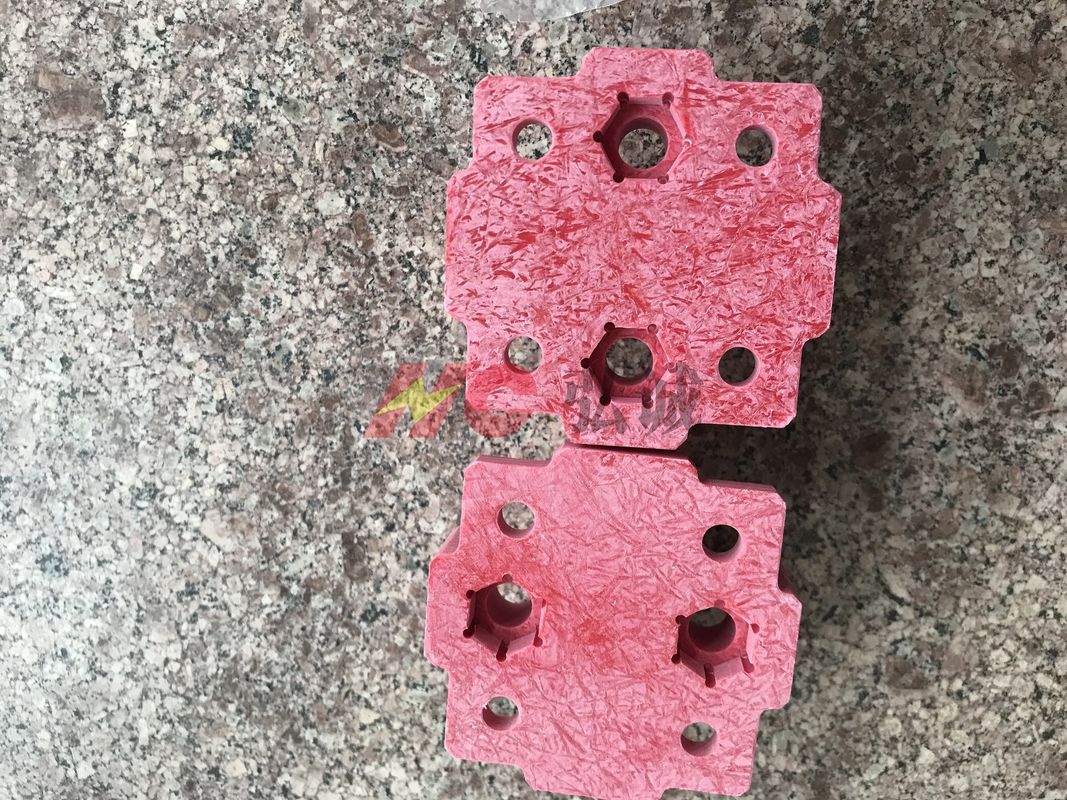

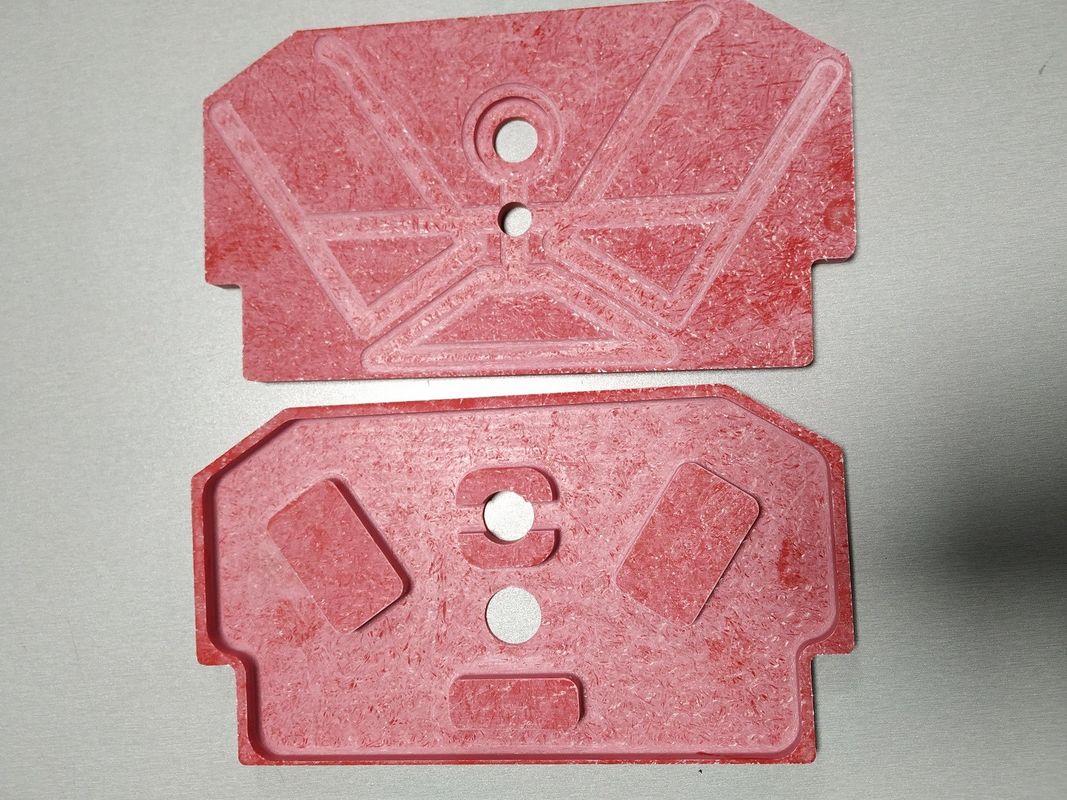

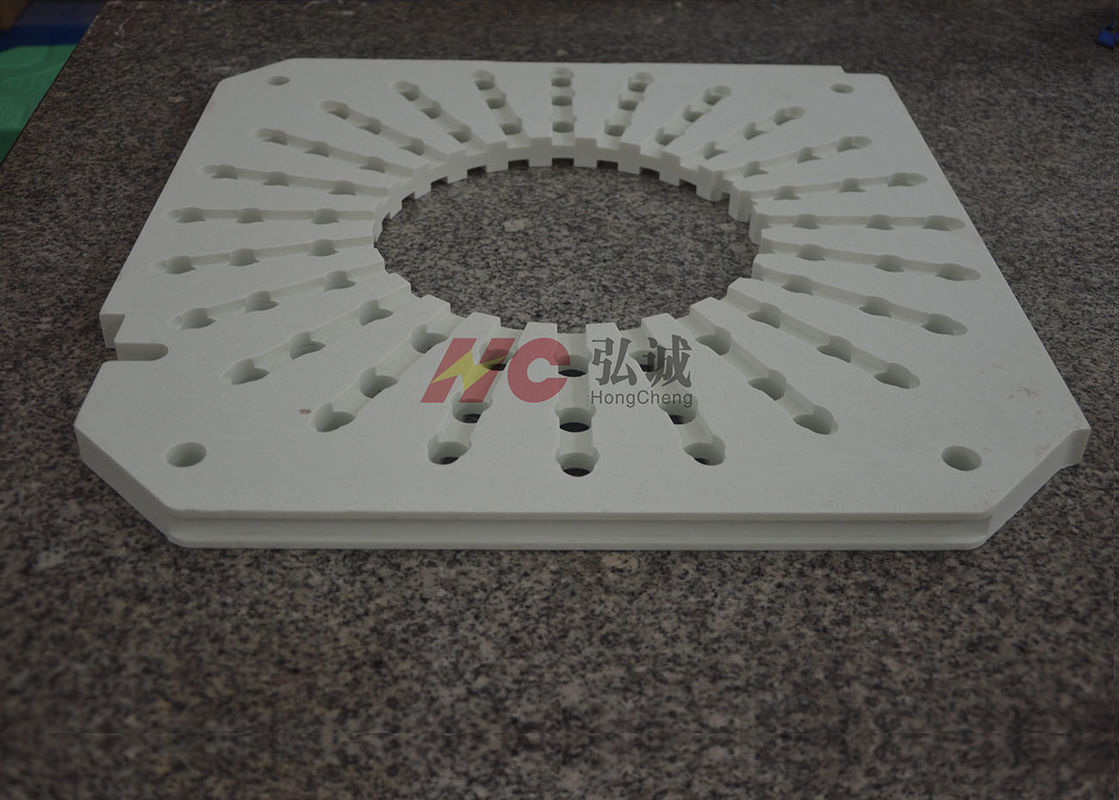

It always made into insulating structural parts as follow products:phase and end barriers,insulating supports,bus bar supports,mounting panels in switch-gear,switch cabinet,motor,
frame breaker,safety plate,arcing plate, slot wedge,shifting cover spacer,gasket,cable clamp,other types of electrical apparatus.





Advantages



1. experience We are specialized in this industry for more than 20 years, So that ripe experience is gained and manufacturing engineering can be well controlled.



2.customerize We can design and produce the workpiece according to the customers’ drawings or samples.



3. technical support We have our own professional and technical engineers to give you before and after sale technical support.



4. lead time We can delivery the goods according to order on time.



5. solution We will try our best to offer a total solution about insulation material for you.
