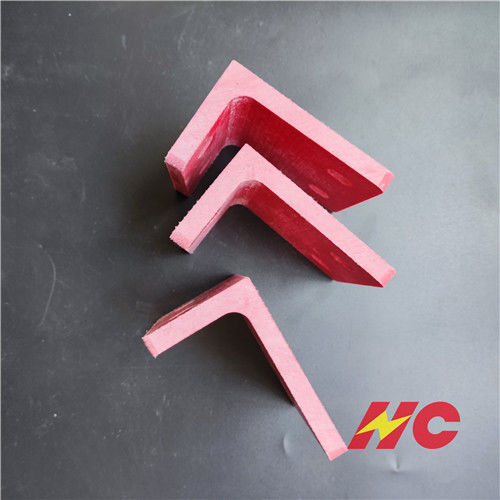

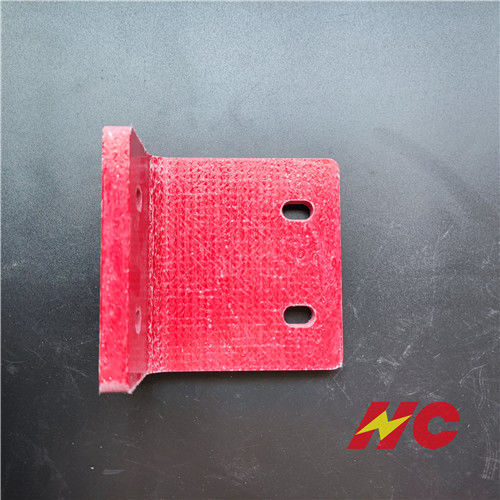

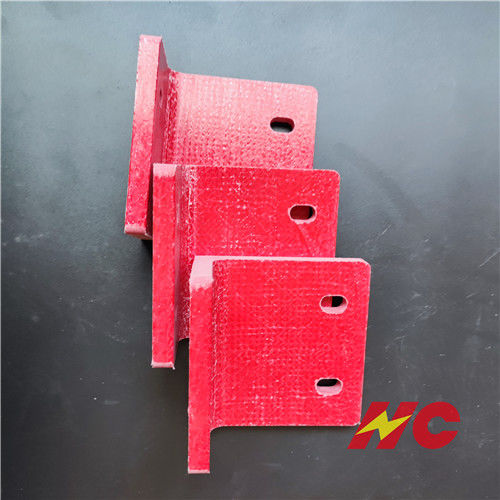

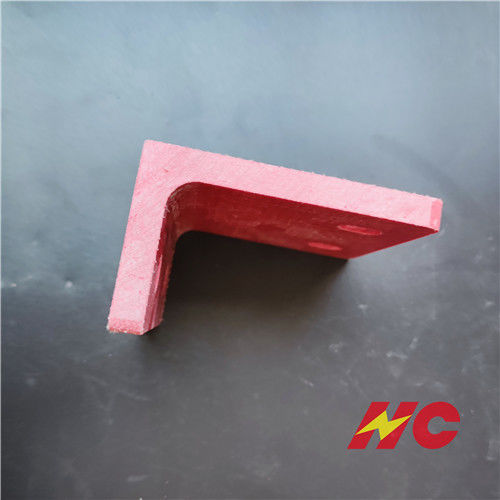

Red UPGM 203 Fiberglass mat reforcement laminated sheet with highflexural strength GPO3 machined part
Product Introduction:
GPO3 is a special laminated material based on unsaturated polyester resin in connection with a reinforcement of glass mats and relevant chemical agent.
Feature:
Features:
Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.
Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.
Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining
Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃
Application:
GPO3 are widely used in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.
Thickness range :0.5mm-60mm
Sheet Size:1000mm*1200mm and 1040mm*1230mm and 1230mm*2100mm
Hong Cheng Grade | HC-GPO3 | |||
IEC 893 / EN 60893 Grade | UP GM 203 | |||
DIN 7735 Grade | HM 2471 | |||
ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
Items | Test Method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
Water absorption | ISO62:2008 | % | ≤0.5 | |
Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
Compressive strength | IEC 60893-2:2003 | ≥300 | ||
Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
Toxicant(Emission halogen etc.) | E662 | --- | Low | |
Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Company introduction:
Xiamen HongCheng Insulating Materials Co.,Ltd is the wholly-owned subsidiary of Xiamen Hongcheng Technology Group,which is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,and using the “HC”as company logo which is registered by Xiamen Hongcheng Technology Group,At present , the products have been exporting to many countries and regions,The annual value of production is more than 100 million RMB.
With the professional materials background and non-metallic materials processing experiences ,the company has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further processing of spare parts.
Currently,We are one of leading companies to draft the national standard of insulating materials and the Insulation Branch Council Unit of China Electrical Equipment Industrial Association(CEEIA),we owned patents on many products ,The company has been passed ISO9001,TS16949,ISO14001 and OHSAS18001 management system etc.
The company is trusted by famous customers in national and overseas for excellent quality and service.and has became the global supplier of GE,ABB,Siemens, Schneider,Emerson,CRRC,Dongfeng Peugeot Citroen Automobile Co.,Ltd.and win a high reputation.Our products are widely used in Rail transit,Electric transmission and transformation,New energy,Electronic industry and etc.
material application and R&D.
