EPGC 202 Glass cloth laminated sheet with good machannical strength good phsical strength
Product Introduction:
EPGC 202 Glass cloth laminated sheet is made by alkali-free glass fiber cloth impregnated with high quality epoxy resin and suitable in organic fillers by processing under pressure and heat, it is rigid insulating laminated sheet.
Feature:
High precision for the tolerance
Good Fire Retardant(UL 94 V-0 Grade)
Good Voltage Resistance(electric strength ≥16KV/mm)
Good Water Resistance(Water absorption ≤0.2%)
Good Heat Resistance(Class F)
Good thermal impact resistance(Temp.Index:-273℃ to +155℃)
Good mechanical processability & high degree of automation processing
RoHS,Reach Certified products
Application:
Widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation and other fields.

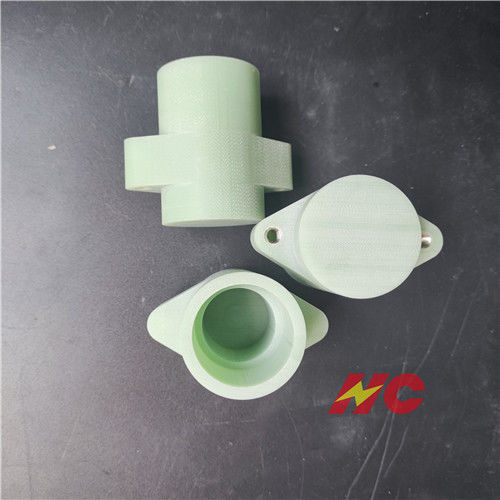

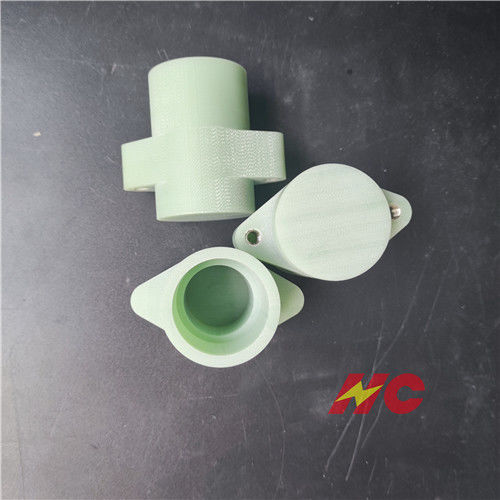

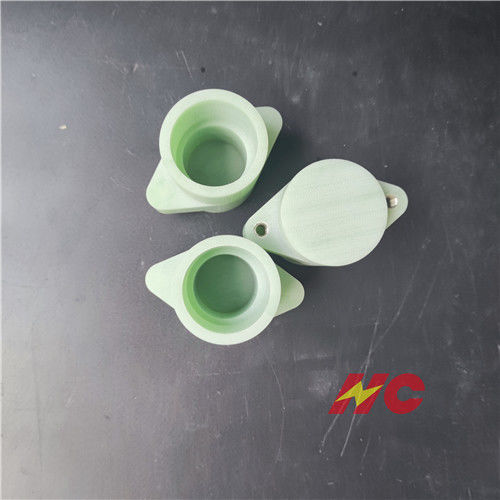

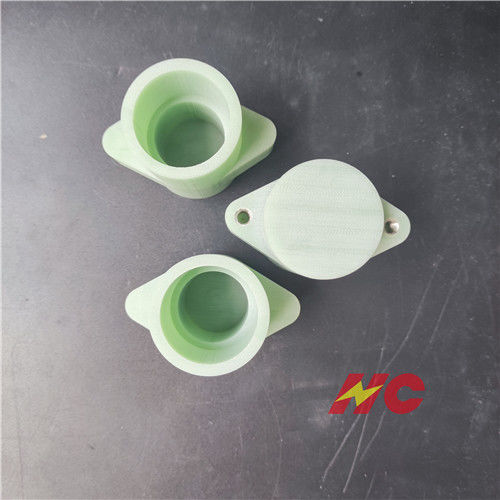

It always made into insulating structural parts as follow products:
1. phase and end barriers,
2. insulating supports,
3. bus bar supports,
4. mounting panels in switch-gear,
5. switch cabinet,
6. motor,
7. frame breaker,
8. safety plate,
9. arcing plate,
10. slot wedge,
11. shifting cover spacer,
12. gasket,
13. cable clamp,
Hong Cheng Grade | HC-FR-4 | |||
IEC 893/EN 60893 Grade | EPGC 202 | |||
ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
DIN 7735 | Hgw2372.1 | |||
JIS GRADE | EL-GEF | |||
Item | Test method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | - | Light green / yellow |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
Water absorption | ISO 62:2008 | % | <0.3 | |
Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
(1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
(1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
//Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Toxicant Content | E662 | ﹍ | Low | |
Others | Acetone Resistance | boiled | Min | 30(OK) |
products: | Inverter Cabinet |
materials: | EPGC202 sheet |
Description: |
Inverter cabinet are used to convert DC power(Battery,Storage bottle)to AD power( Generally 50Hz 220V sinusoids or square wave),it consist of Inverter bridge,logic control parts,filter circuit.
Inverter Cabinet are divided into:Centralized inverter and String Inverter according to the applicable situation.
Centralized inverter technology is made of couples of parallel PV string connected to DC input of centralized inverter,the larger power use the three phase IGBT power module,the smaller power use the tield effect transistor and DSP conversion controller to improve the quality of electric.make the power output close to the Sine wave current.generally used for large photovoltaic power station (>10kW) system.
String Inverter is base on modularization.each photovoltaic group (1-5Kw) equiped with 1 Inverter, Has maximum power peak tracking at DC side,Parallel connected at AC side.String Inverter has become the most popular inverter in the international market.
Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.
Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd. |
