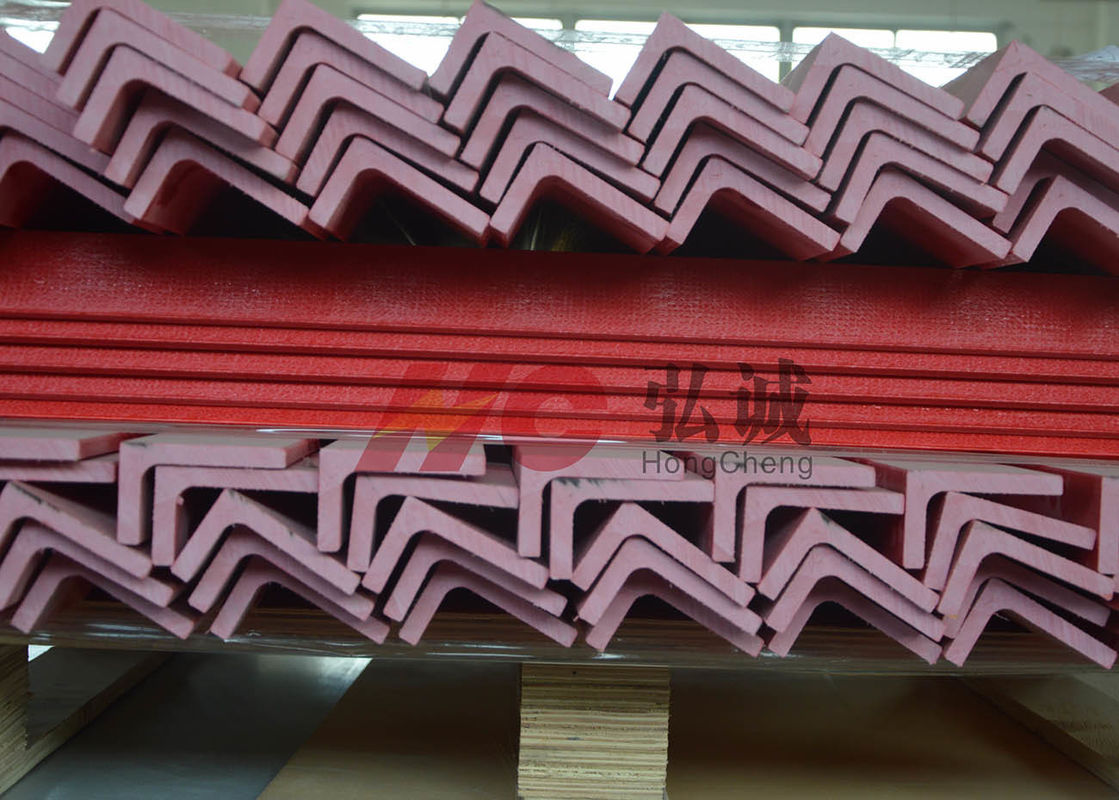

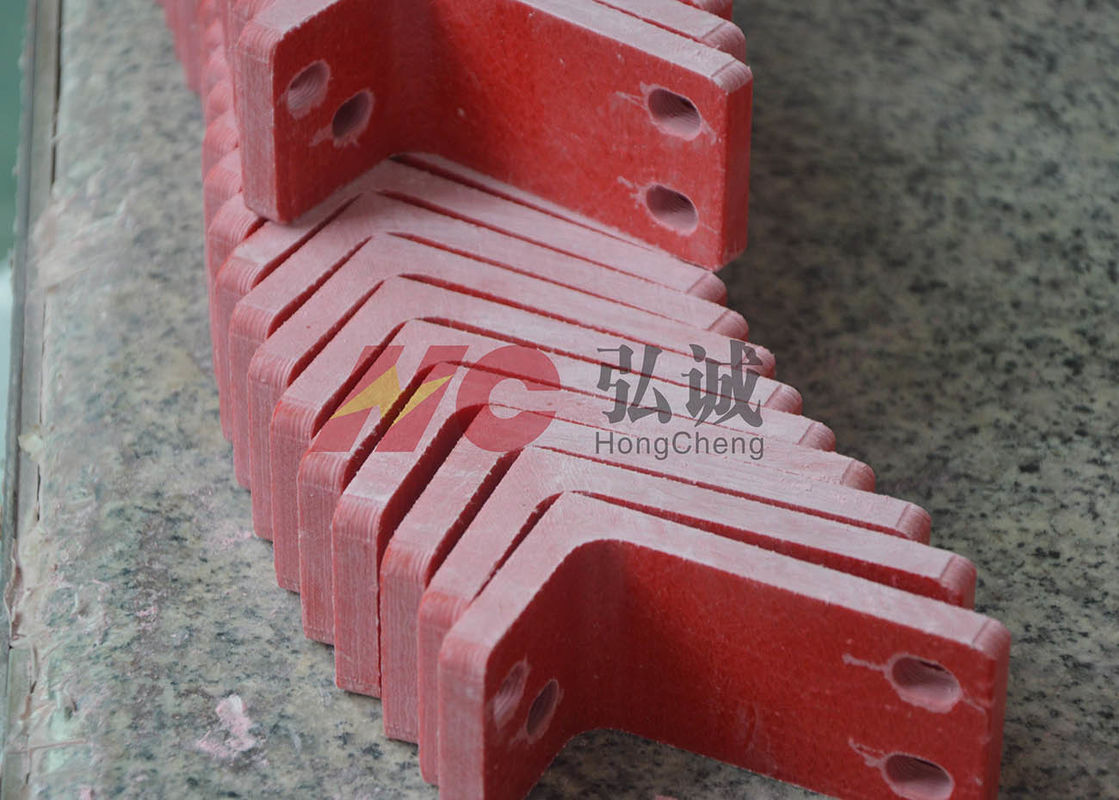

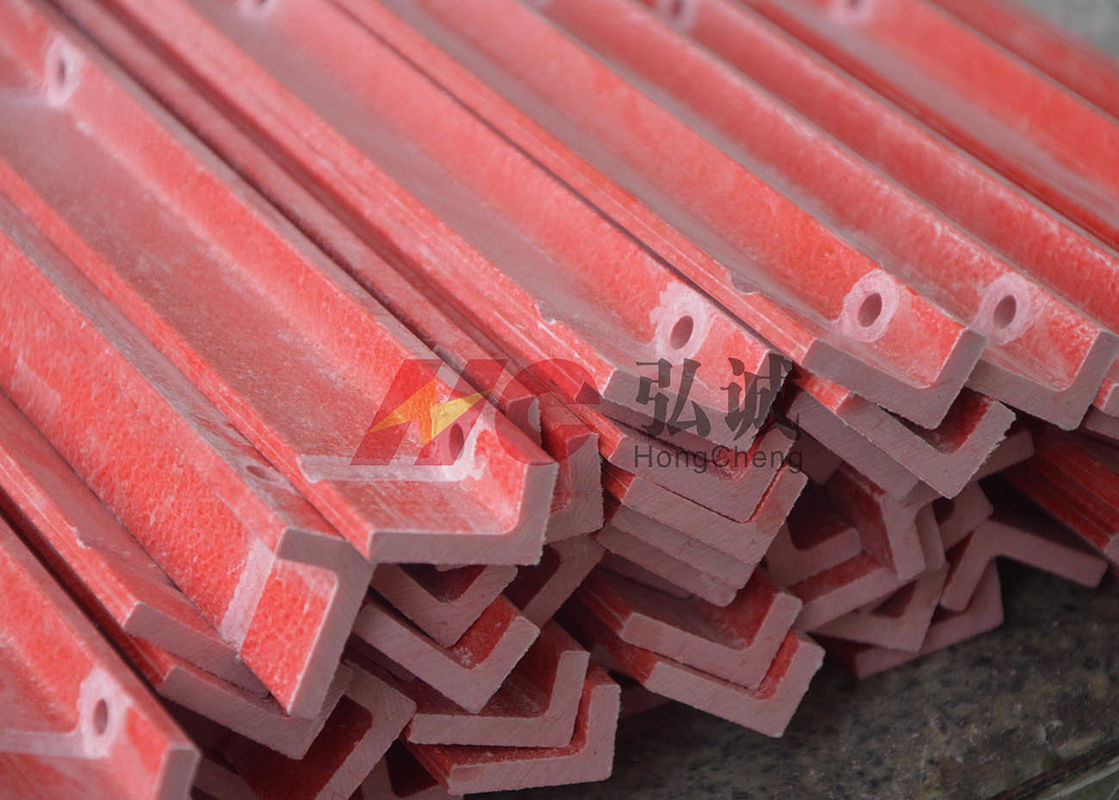

Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications

    • Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications
    • Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications
    • Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications
    • Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications
  • Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Compressive Strength: ≥ 290Mpa
    Shearing Strength: ≥ 89.7Mpa Volume Resistivity: ≥1.0 X 1012Ω·m

    RoHS Certified L angle / RoHS Certified GPO-3 L angle / Environment-friendly angle insulation


    Introduction:



    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:



    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter




    Diagram:

     Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

    RoHS Certified L angle used in rail traffic

    Three Color Fiberglass Channel Non Explosive Edge With 21 Kinds Specifications

    RoHS Certified L angle is used extensively in rail traffic,There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are HC-GPO3
