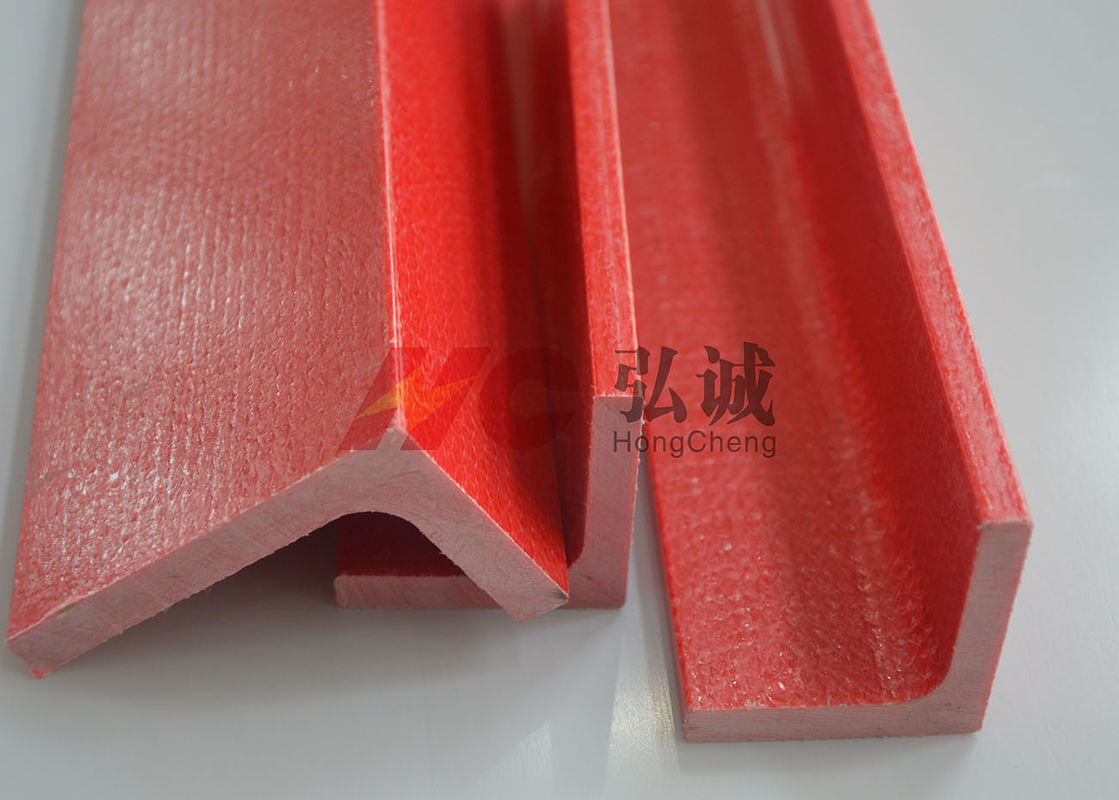

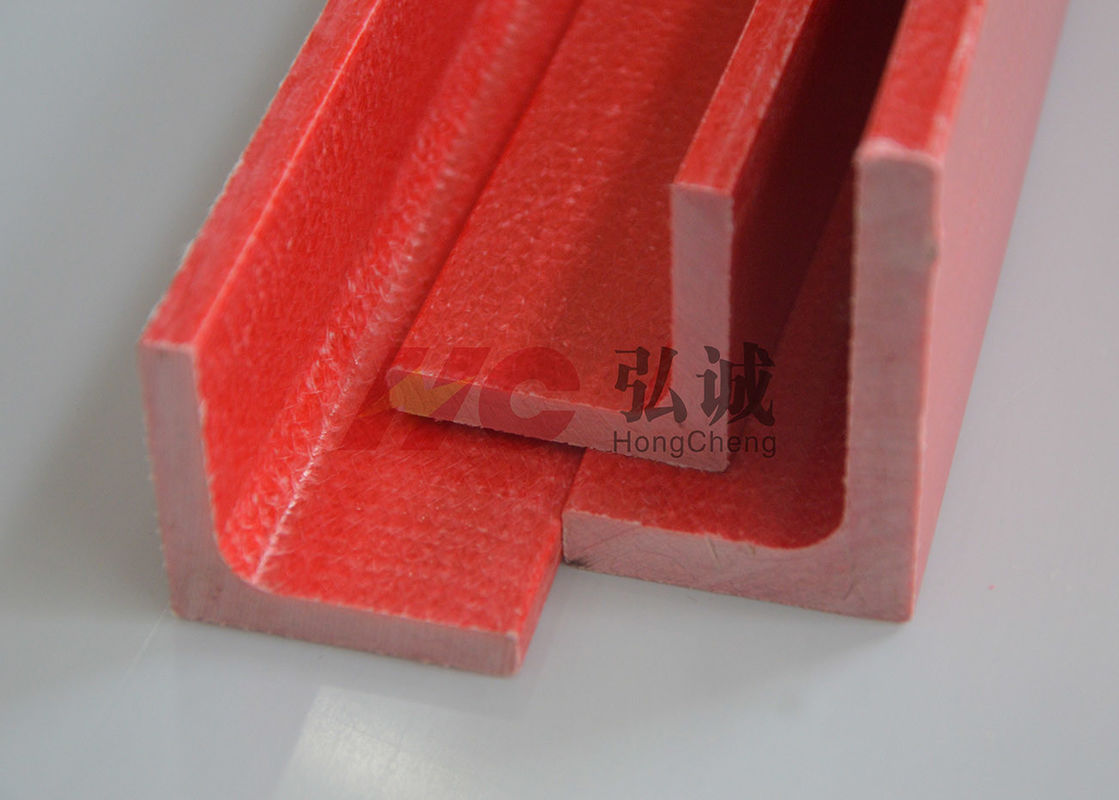

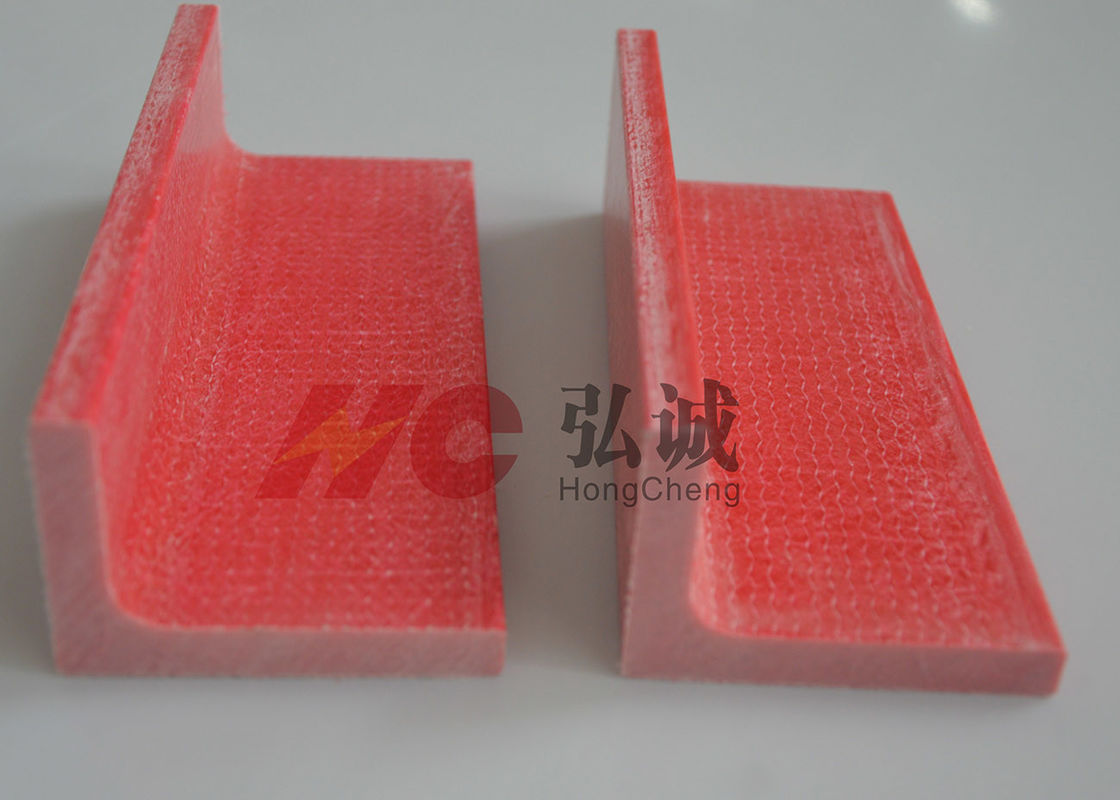

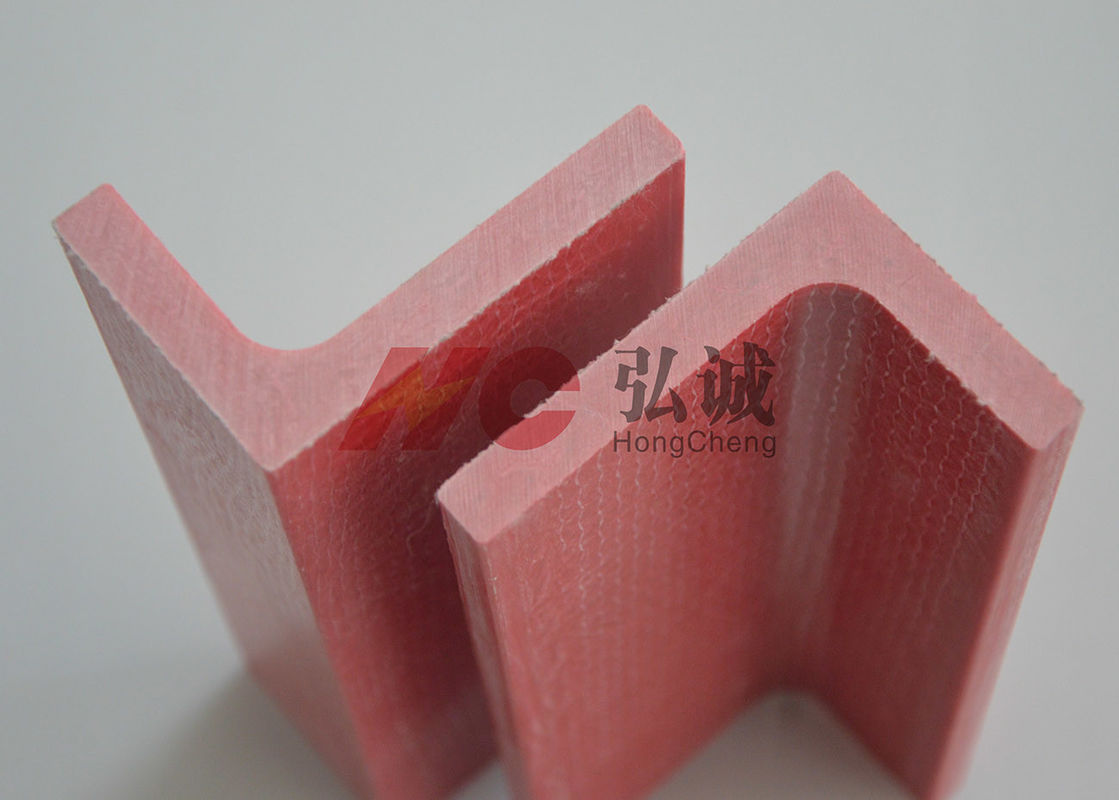

Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified

    • Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified
    • Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified
    • Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified
    • Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified
  • Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Coefficient Of Thermal Expansion: ≤2×10-5 1/K
    Coefficient Of Heat Conduction: ≤10.79 W/(m2×K) Arc Resistance: ≥ 180Sec.

    IEC testing center certified L angle / IEC testing center certified GPO-3 L angle


    Product Description:

    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Advantages:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Excellent size, space stability, non cracking, non Explosive Edge

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)



    Application:

    Red L angle is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.




    Diagram:

     Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

     IEC testing center certified L angle  used in electrical reactor/Transformer

    Red L Angle Fiberglass Structural Beams With IEC Testing Center Certified

    The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
    Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
