Home ProductsPultruded Profiles

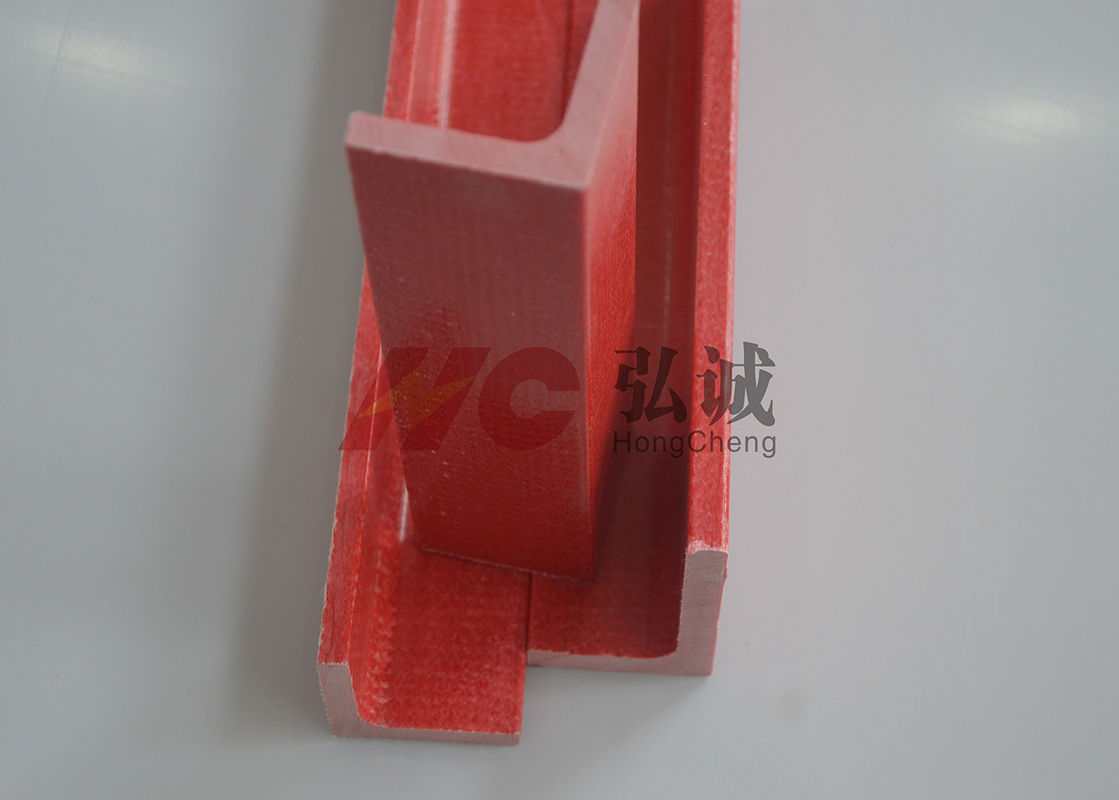

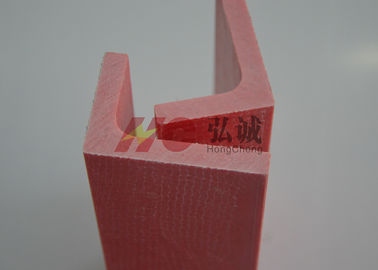

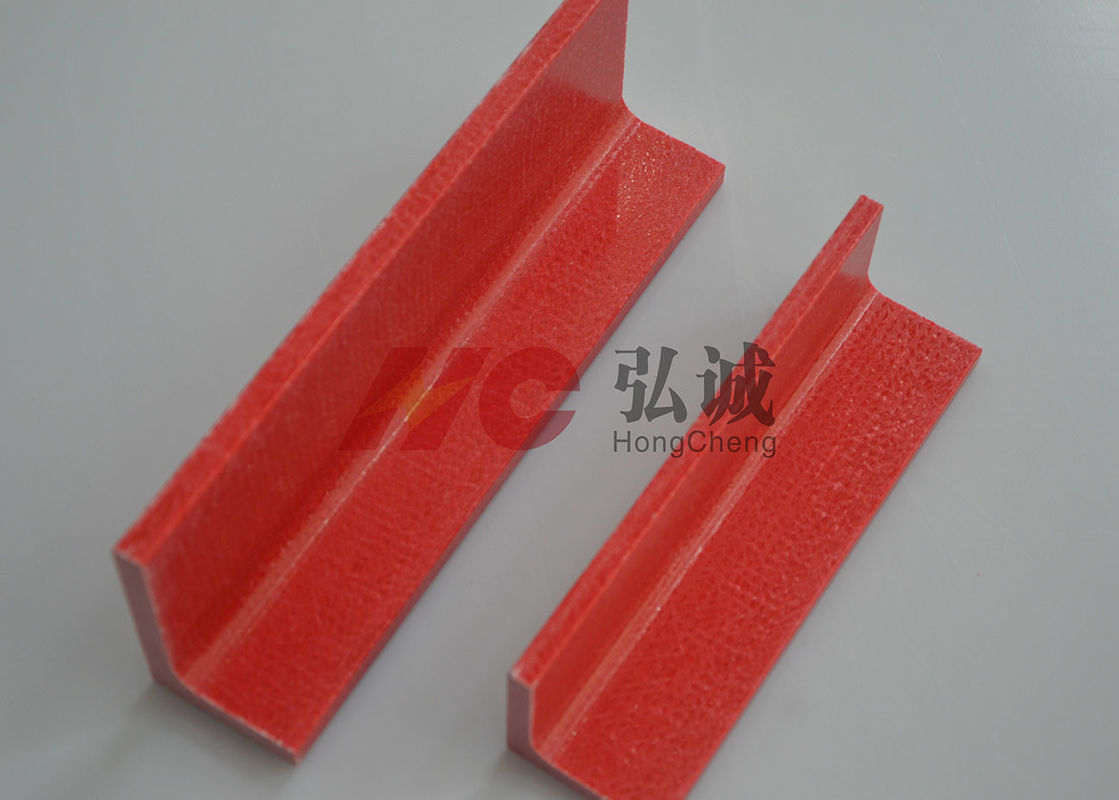

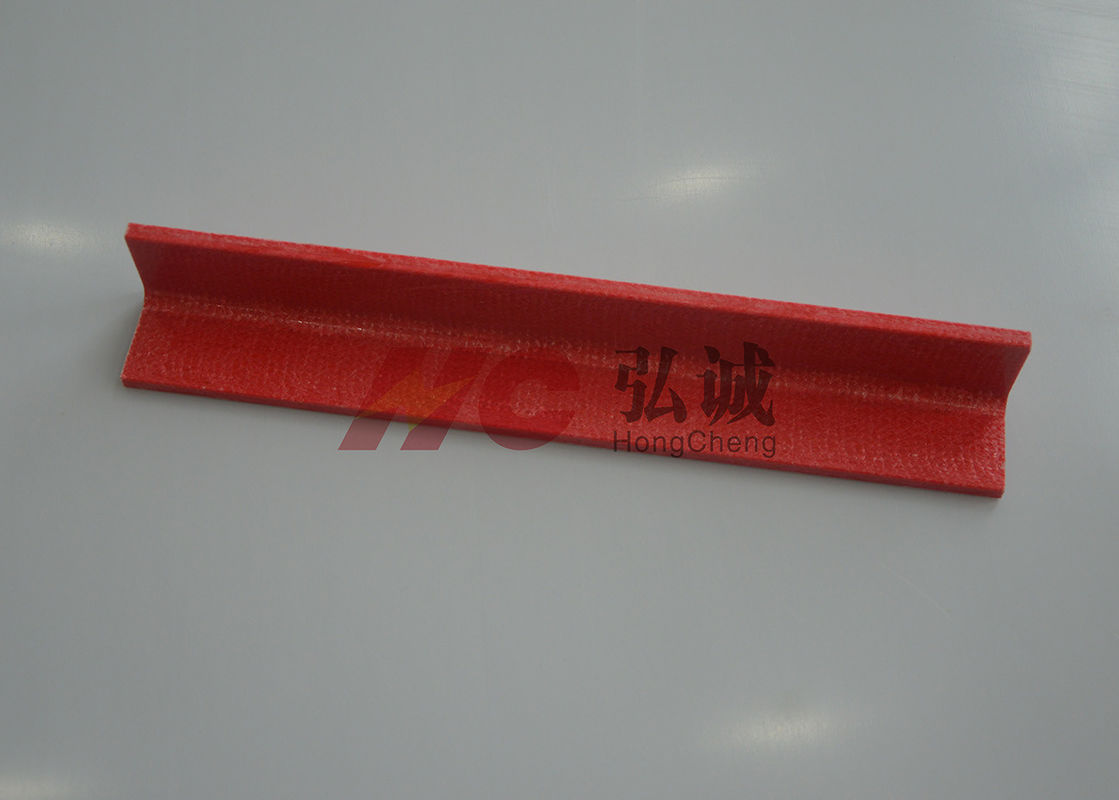

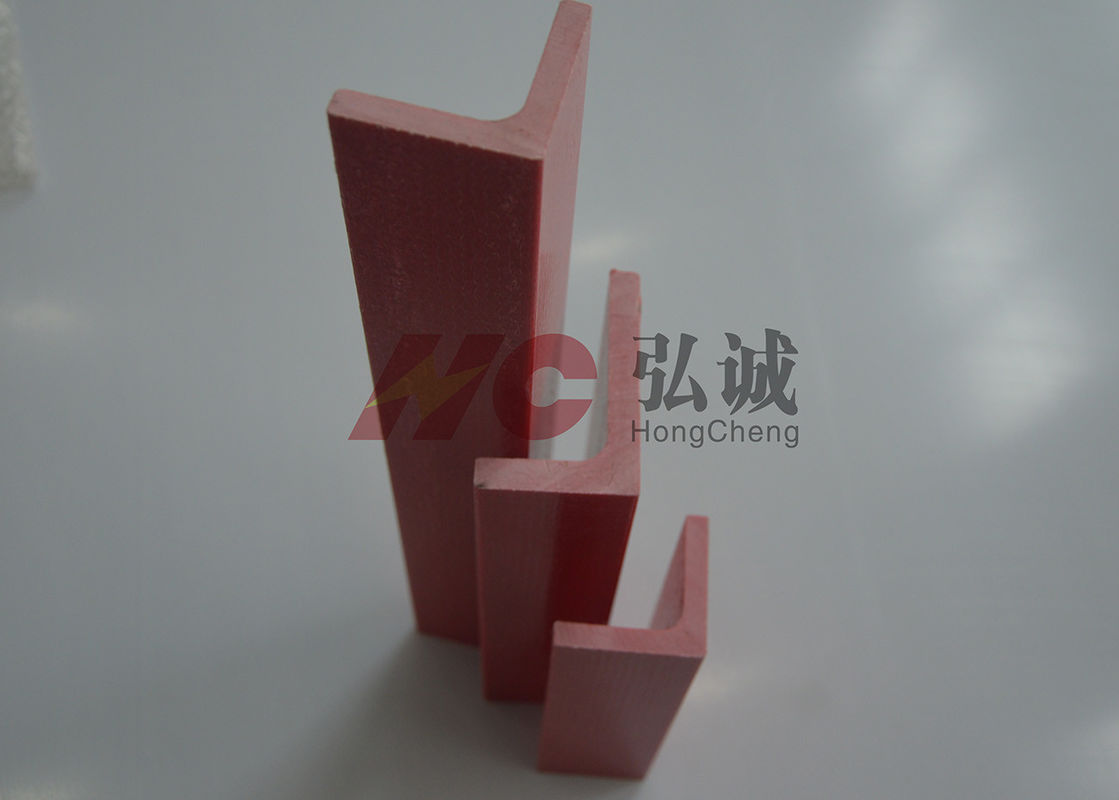

High Track Resistance Fiberglass L Channel Excellent Compressive Strength

High Track Resistance Fiberglass L Channel Excellent Compressive Strength

    • High Track Resistance Fiberglass L Channel Excellent Compressive Strength
    • High Track Resistance Fiberglass L Channel Excellent Compressive Strength
    • High Track Resistance Fiberglass L Channel Excellent Compressive Strength
    • High Track Resistance Fiberglass L Channel Excellent Compressive Strength
    • High Track Resistance Fiberglass L Channel Excellent Compressive Strength
  • High Track Resistance Fiberglass L Channel Excellent Compressive Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Compressive Strength: ≥ 290Mpa
    Volume Resistivity: ≥1.0 X 1012 Ω·m Arc Resistance: ≥ 180 Sec
    High Light:

    fiberglass l channel

    ,

    custom u channel

    Excelllent Arc resistance L angle / High Track resistance L angle


    Introduction:



    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:



    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter




    Diagram:

     High Track Resistance Fiberglass L Channel Excellent Compressive Strength 0


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

    Excelllent Arc resistance and compressive strength L angle  used in Reactive Power Compensator Cabinet

    High Track Resistance Fiberglass L Channel Excellent Compressive Strength 1

    Reactive power compensation cabinet can improve the power factor of power grid in power supply system, reduce the loss of power supply transformer and transmission line, improve power supply efficiency and improve power supply environment.Therefore, reactive power compensation device is a very important position in power supply system.The insulation material can support, carry heavy, insulate function,it has requirements of certain mechanical strength and electrical performance.
    Main famous cooperative enterprises:ABB Xiamen
