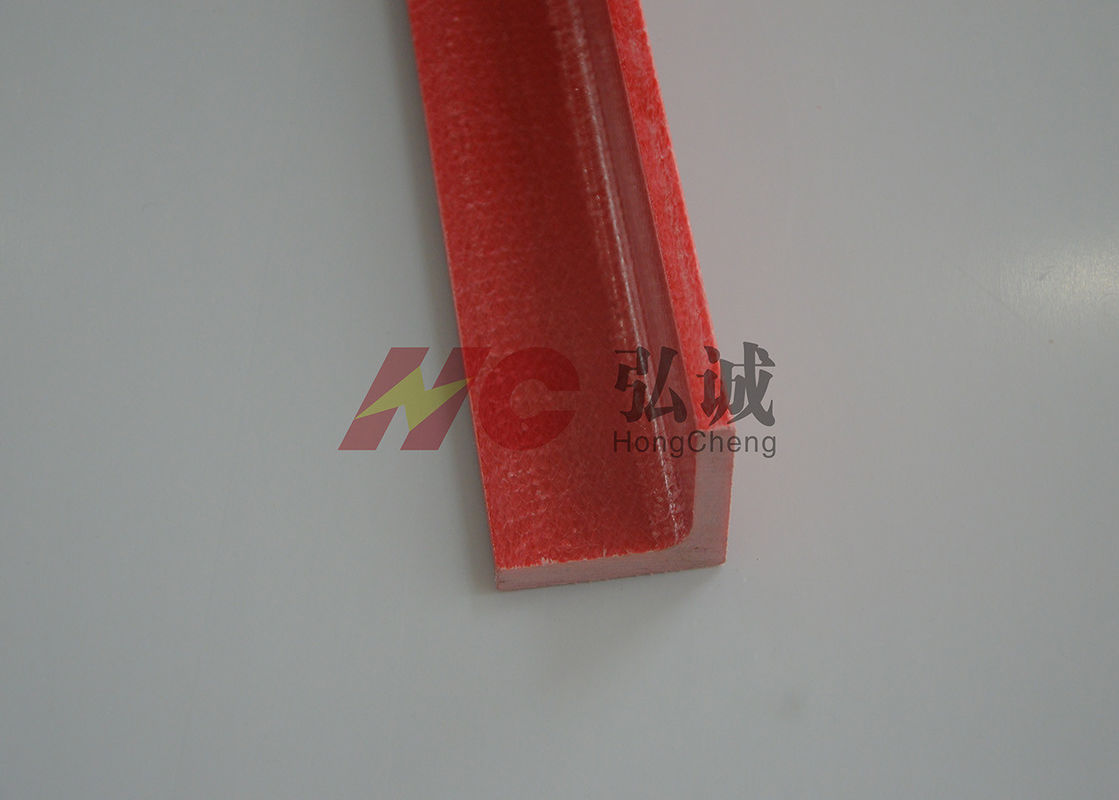

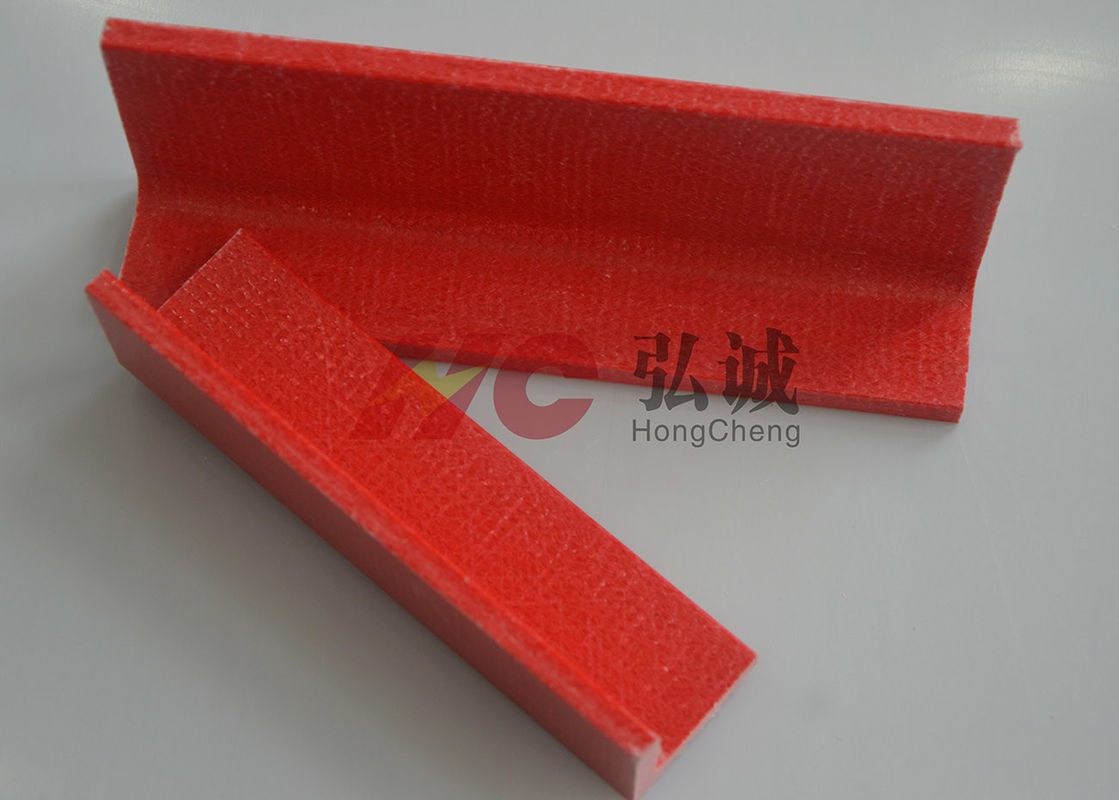

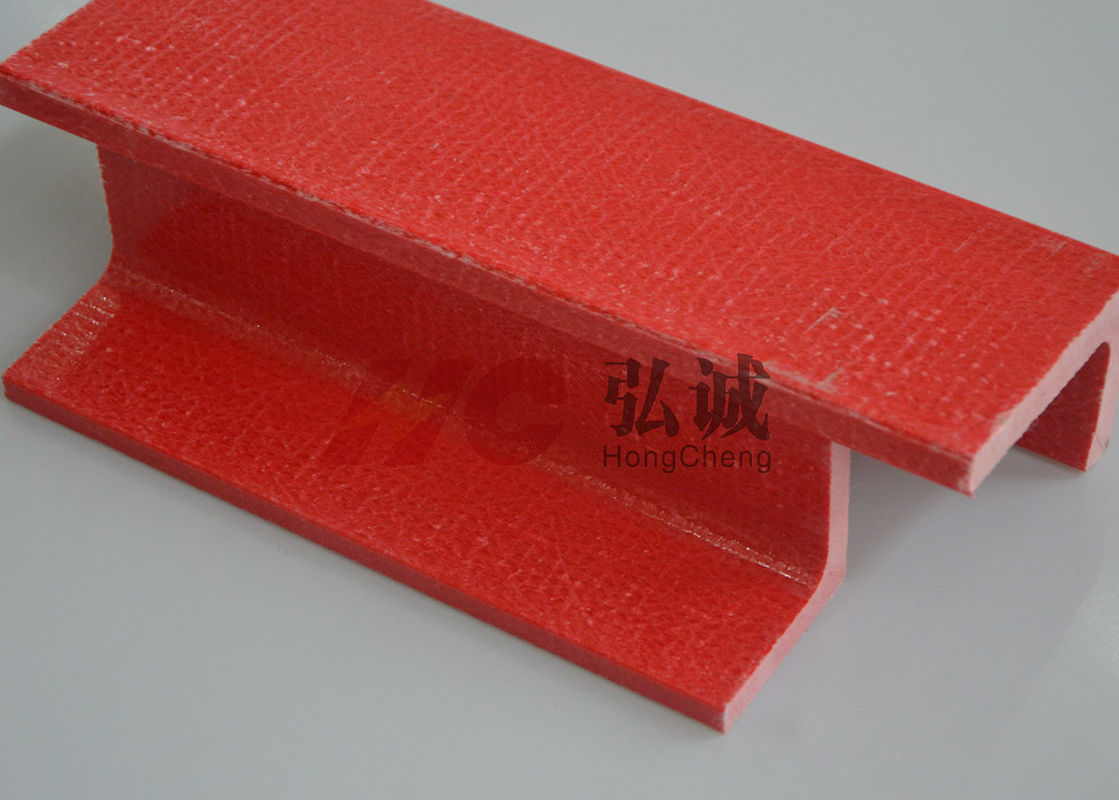

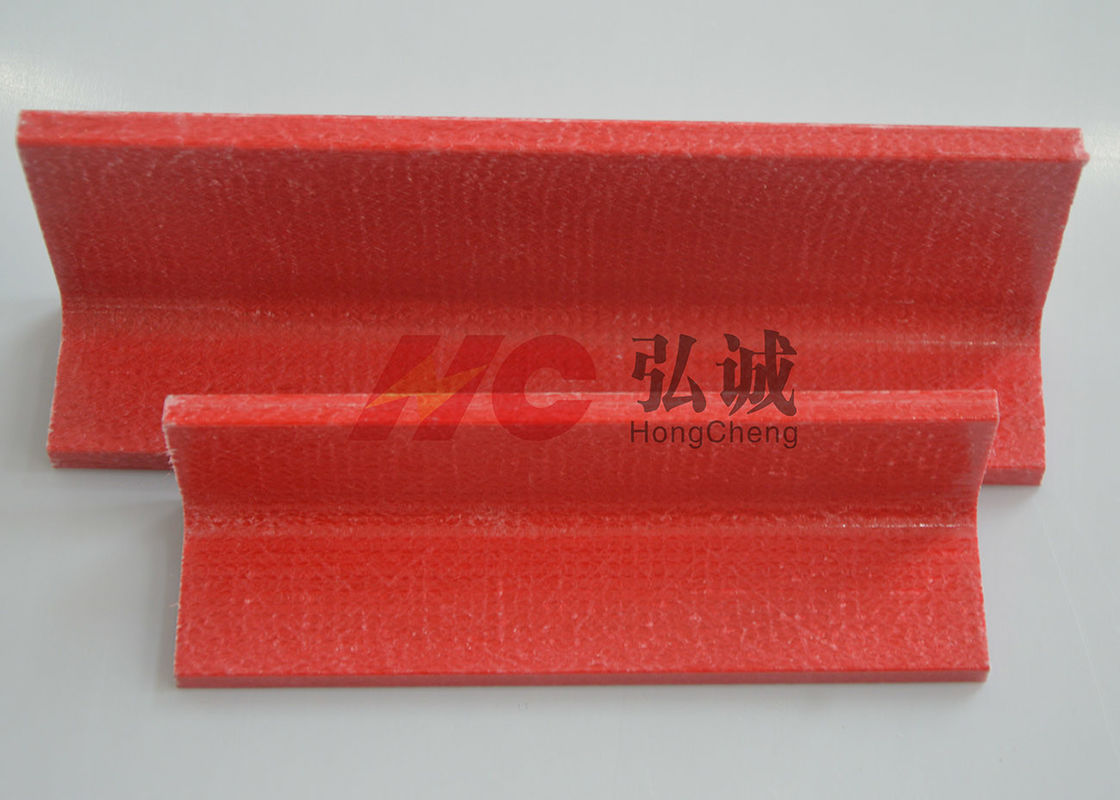

High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength

High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength

    • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength
    • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength
    • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength
    • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength
    • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength
  • High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Water Absorption: ≤ 0.5%
    Shearing Strength: ≥ 89.7Mpa Arc Resistance: ≥ 180Mpa
    High Light:

    fiberglass l channel

    ,

    custom u channel

    High tensile strength L angle / High Flexural strength L angle


    Product Description:

    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter


    Diagram:

     High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength 0


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125

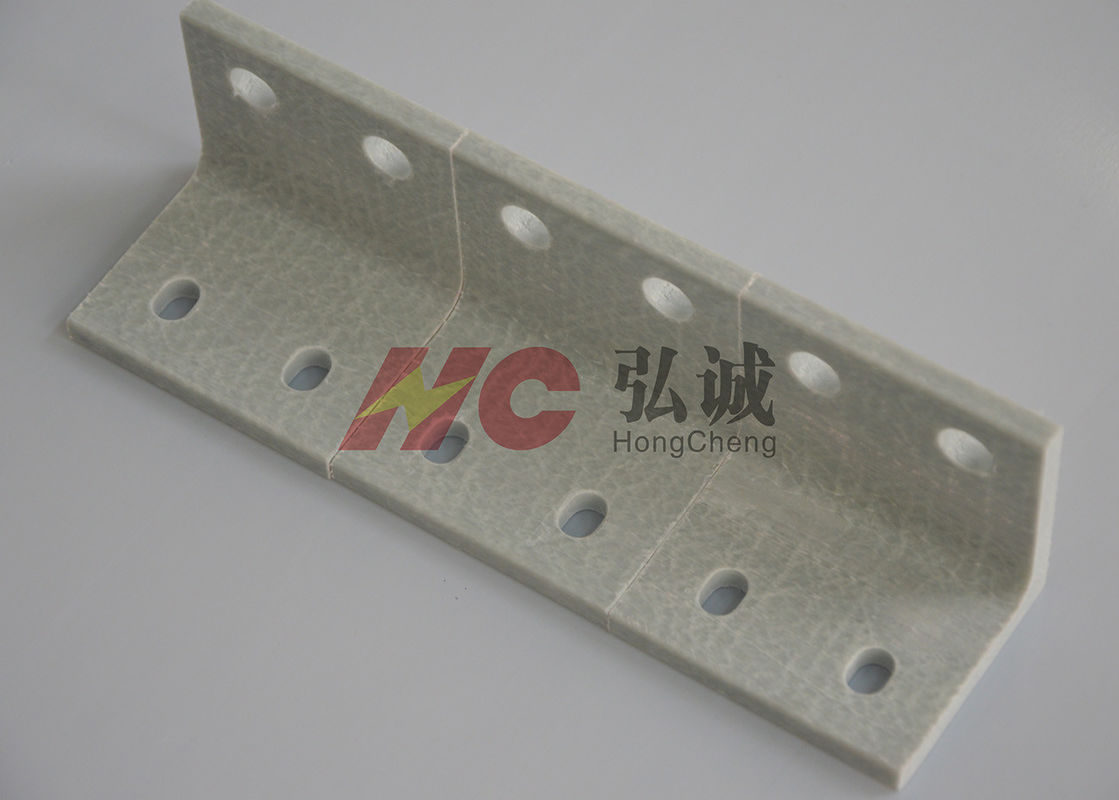

    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

    High tensile strength and flexural strength L angle used in UPS

    High Tensile Strength Pultruded Profiles GPO-3 L Angle Excellent Flexural Strength 1

    UPS is the uninterrupted power supply which is connected to the host by the battery ,converts the direct current into the system equipment of the AC by module circuit of the main engine inverter. When the market input is normal,UPS supplies the AC to the load after voltage stabilization .At this time, UPS is an AC voltage regulator, and it also charges the battery inside the machine;
    When mains supply interruption (power outage), UPS use the battery's direct current energy to continue supply 220V alternating current to the load immediately through the inverter switching conversion method ,it makes the load keep working and protect the software and hardware from being damaged. UPS devices usually provide protection against voltage too high or too low .The flame retardant requirement for insulating materials is V0, high strength and temperature resistance , The commonly materials used in UPS is HC-GPO3
    UPS are divided into:prepared UPS ,Online UPS,On line interactive UPS,The working principle of UPS is use the AC to charge the battery.than use the battery to supply the power for inverter cabinet,in order to supply power automaticly when the AC fails.
    GPO-3 sheet,PC are mainly used as Protective cover sheet , the structures plate,battery box which will improve the safety and durability of UPS.
    Main famous cooperative enterprises:Kehua Group(China) Co.,Ltd,East Group Co.,Ltd,Emerson electric(China) Co.,Ltd,Schneider(APC)
