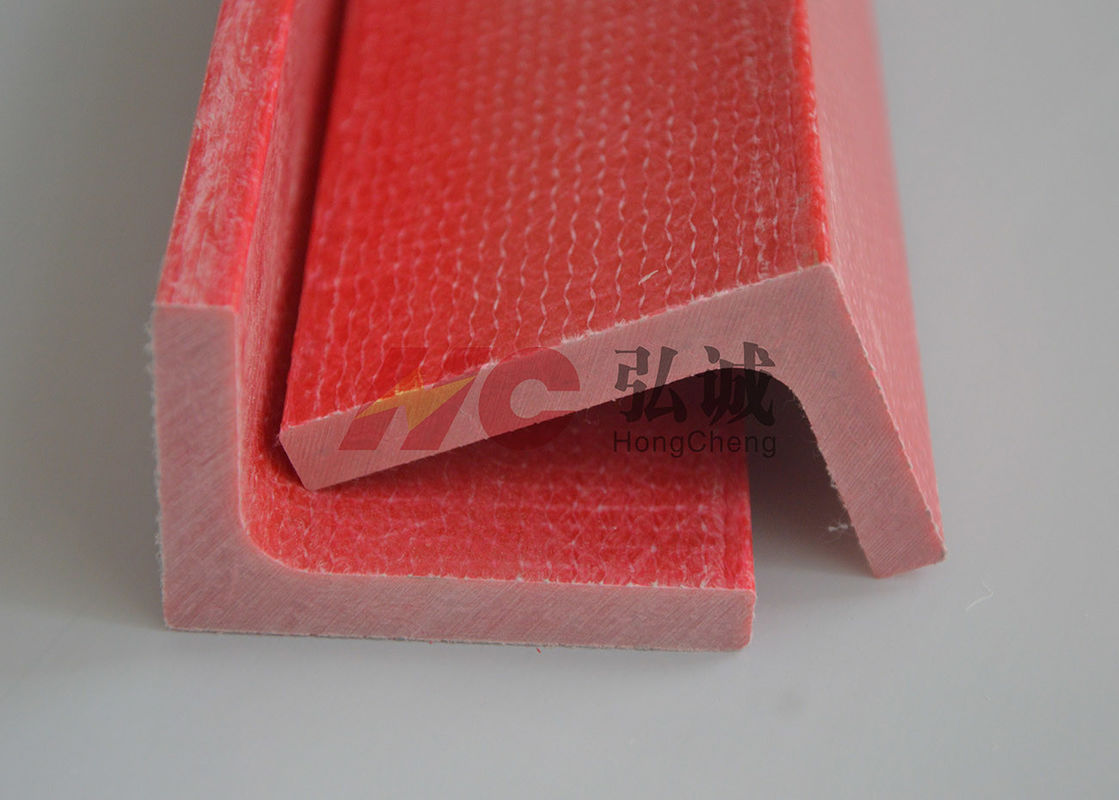

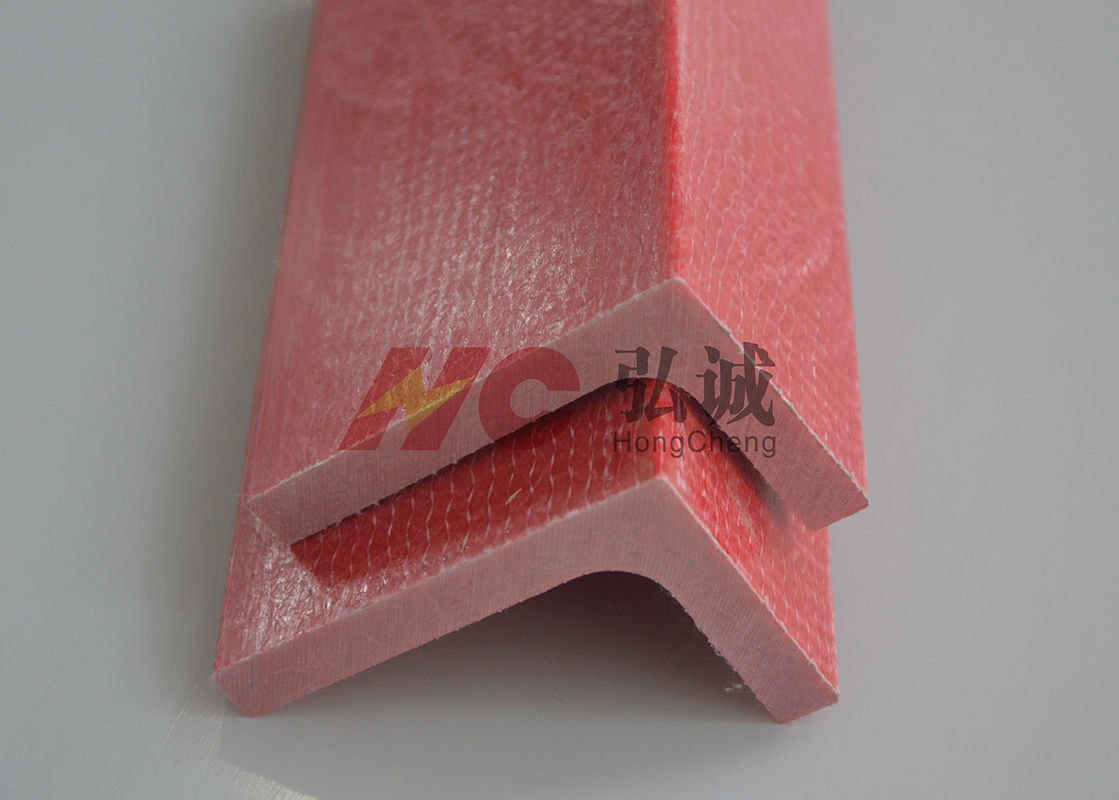

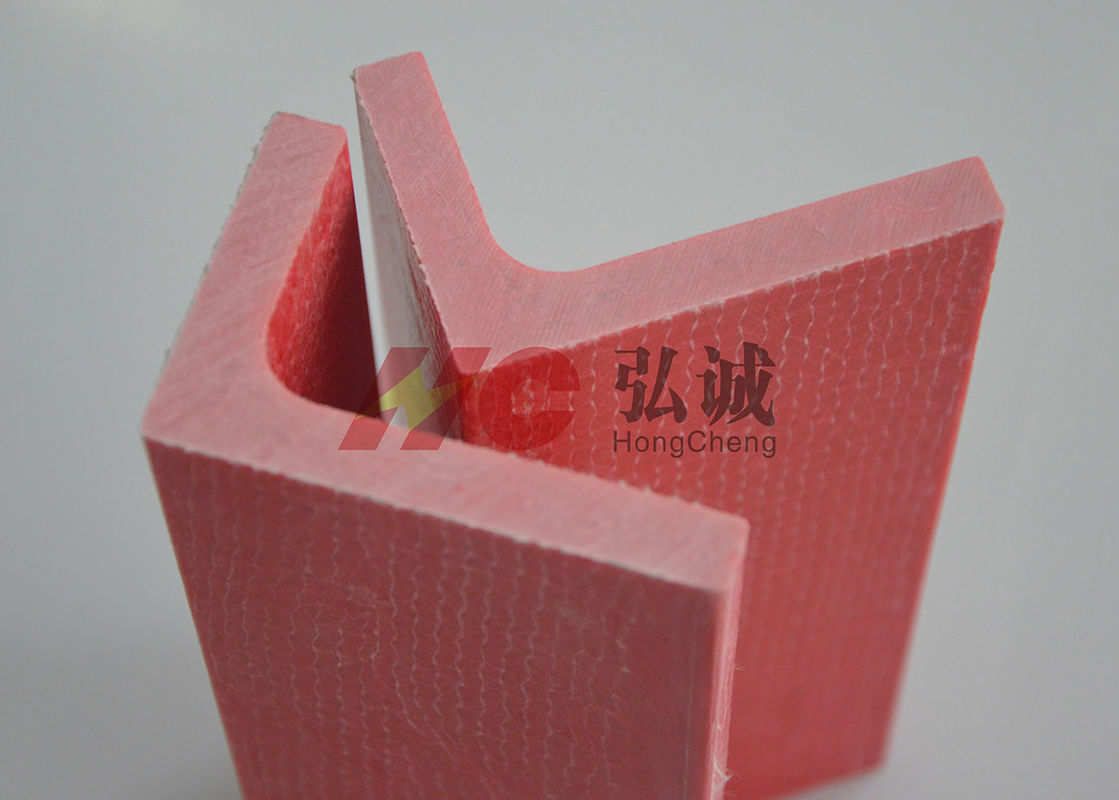

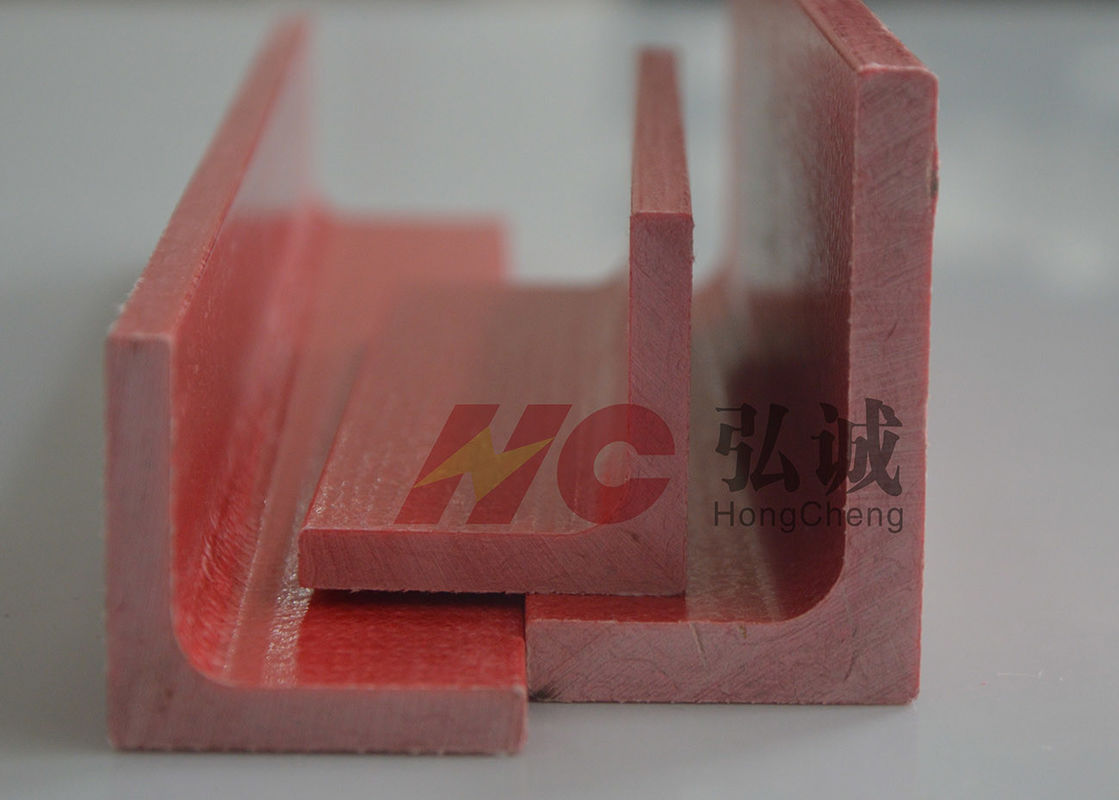

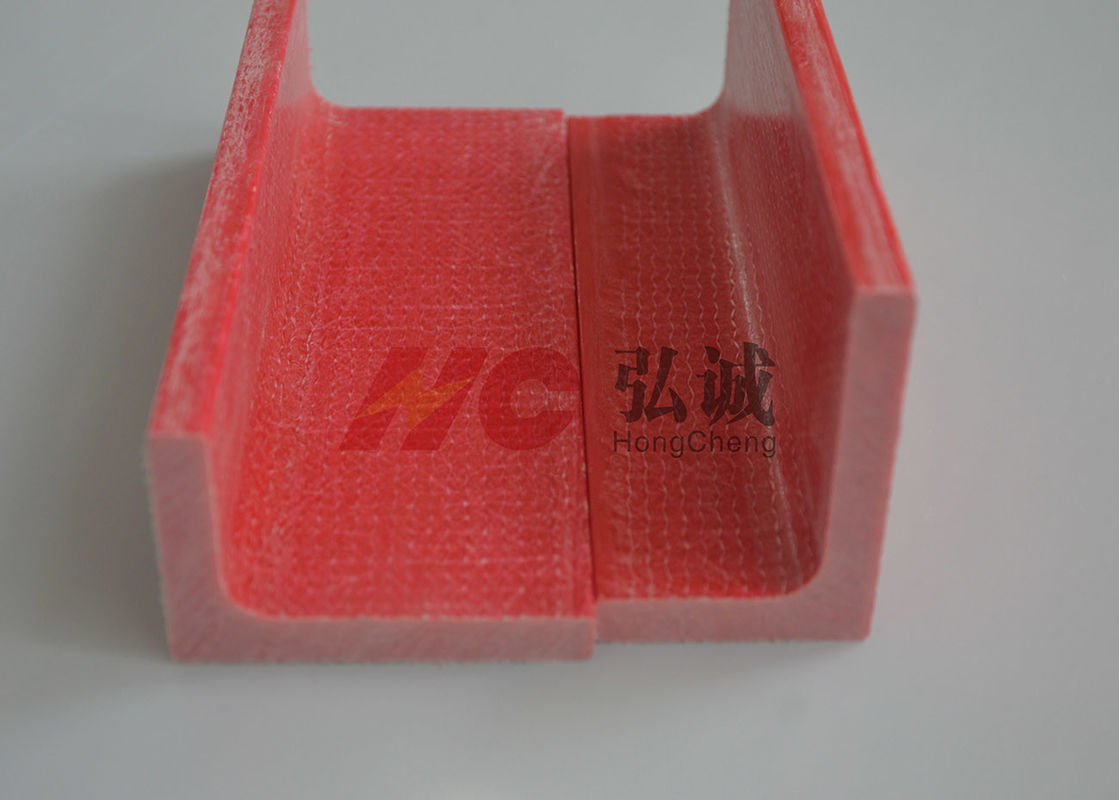

Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes

Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes

    • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes
    • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes
    • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes
    • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes
    • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes
  • Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Density: 1.85-2.0g/cm3
    Flexural Strength(perpendicular): ≥650mpa Impact Strength(Charpy): ≥ 475Kj/m2
    High Light:

    fiberglass l channel

    ,

    custom u channel

    L angle Specified for Inverter cabinet / GPO-3 L angle specified for inveter


    Product Description:

    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Advantages:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Excellent size, space stability, non cracking, non Explosive Edge

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)



    Application:

    Red L angle is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.


    Diagram:

     Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes 0


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

    Pultrusion Technique

    Inverter Cabinet Pultruded Profiles / Pultruded Fiberglass Structural Shapes 1

    Custom Your Own Mould
    Mould trade Process
    1. Quote According to the sample & Sample

    2. Comfirm Color,Material,Price,Payment,MOQ,

    3. Advance Pay the Mould cost 100% by T/T

    4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

    5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

    6. Delivery Delivery by sea or air under EXW/FCA
